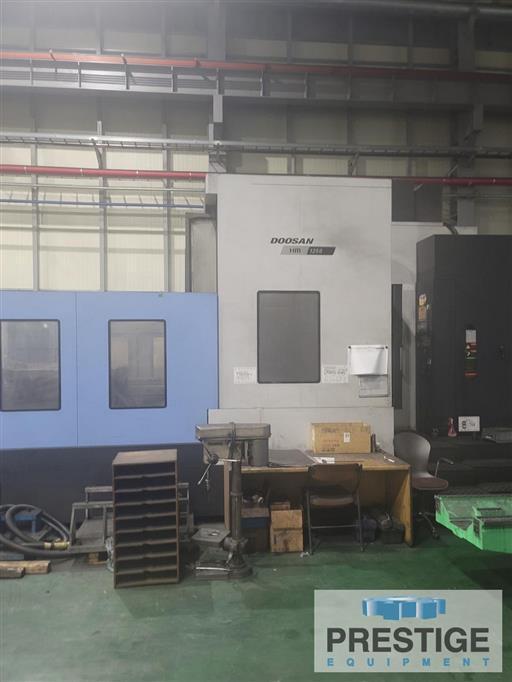

DOOSAN HM-1250 CNC Horizontal Machining Center

Specifications:
X-Axis Travel 82.7"
Y-Axis Travel 59.1"
Z-Axis Travel 59.1"

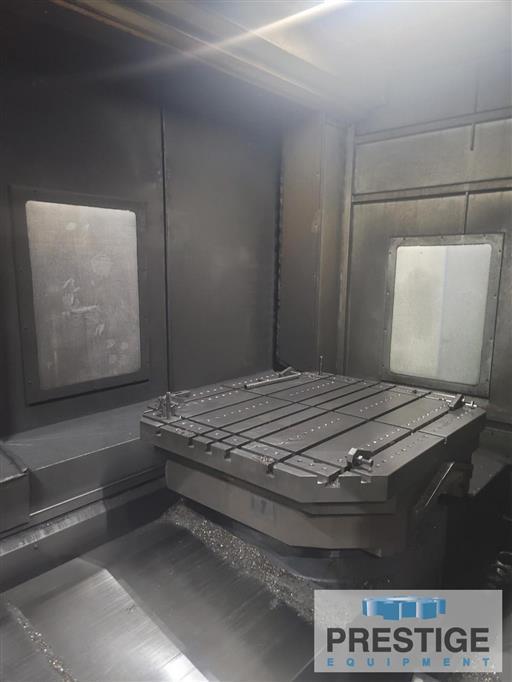

Pallet Dimensions 49.2" x 49.2"
Pallet Indexing 1 Degree
Loading Capacity 13,200 Lbs
Table Top to Spindle Nose 1.96"-61.02"
Spindle Speeds to 6000 RPM
Spindle Taper #50
Spindle Motor 35 HP
Tool Capacity 90 ATC
Rapid Traverse Rate (X/Y/Z) 944.88 IPM
Cutting Feed Rate 472.44 IPM
Approximate Machine Dimensions 415" x 230"
Approximate Machine Height 163"
Approximate Machine Weight 68,500 Lbs.



Equipped With:
Fanuc 31iM Model-B CNC Control
90-Station Automatic Tool Changer

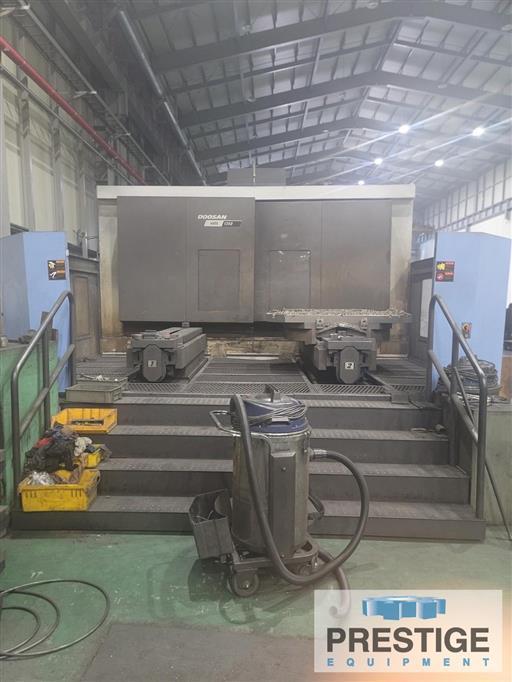

2-Station Automatic Pallet Changer
Pressure Thru Spindle Coolant
Full Chip And Splash Enclosure

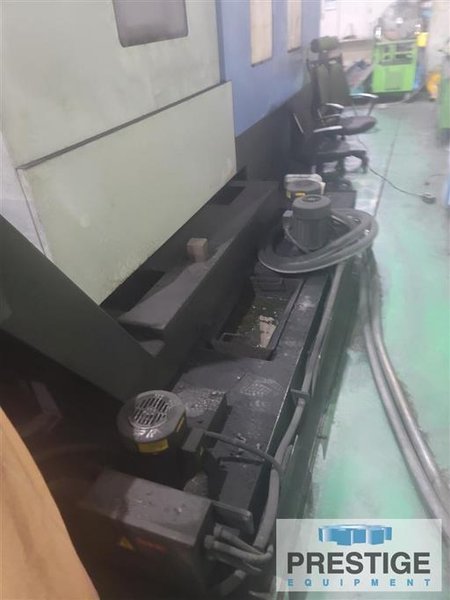

Chip Conveyor

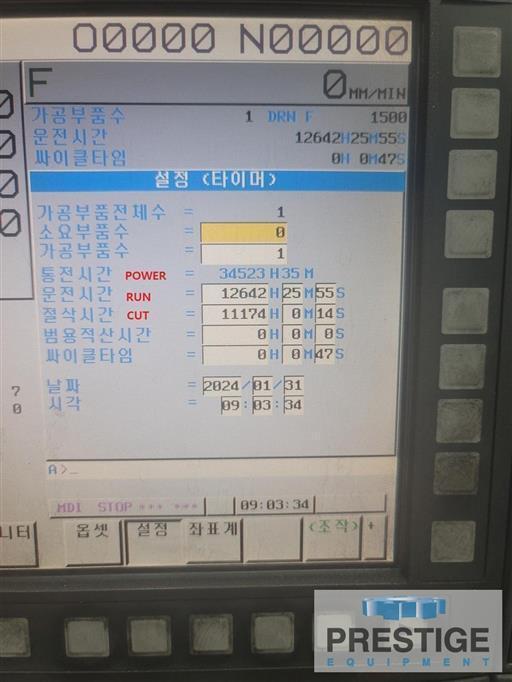

HOURS: Power On: 12,642
Cutting Hours: 11,174


NOTE: Inspect In Plant Under Power!
