Haas VF-4D CNC Vertical Machining Center – Mill

Brand
HAAS
Category
Machining Centers
Type
Machining Centers, Vertical
Model
Make:HaasModel:VF-4D
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Haas
Model:VF-4D
Year:2002
Condition:Used – Good



Equipped With:
Haas CNC Control
7500 RPM Spindle
20 Station Automatic Tool Changer
30 HP Spindle Drive
Programmable Coolant
Rigid Tapping
Coolant Tank



Travels:
X-axis: 50″
Y-Axis: 20″
Z-Axis: 25″
Rapid Traverse Rates: 710 IPM
Cutting Feed Rates: 500 IPM
Spindle Nose To Table (Min.- Max.): 4.2″ – 29.2″



Table:
Length: 52″
Width: 19.5″
Number Of Std T-slots: 5
T-Slot Width: 5/8″
Max Weight On Table: 3500 Lbs



Spindle:
Taper Size: CAT-40
Speed Range: 7500 RPM
Spindle Power: 30 HP



Automatic Tool Changer:
Capacity: 20 Station Carousel Type
Tool Weight: 12 Lbs
Max Tool Length: 13″
Max Tool Dia.: 5.0″
Tool Changing Time: 2.6 Seconds



General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 125″ x 93″ x 102″ High Approx.
Weight:  13,500 lbs Approx.
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - Haas VF-4D CNC Vertical Machining Center – Mill

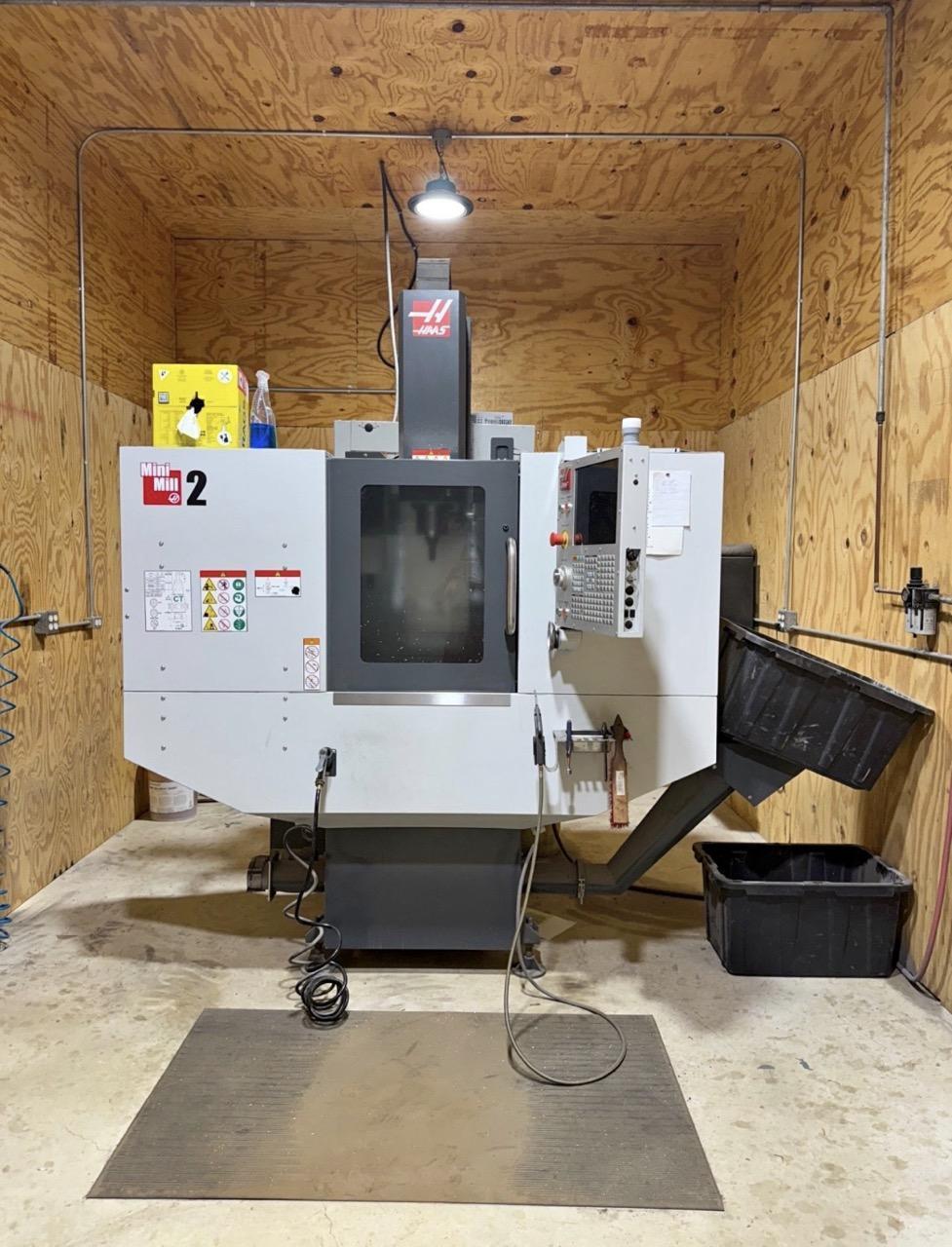

Haas Super Mini Mill VMC, 2005
