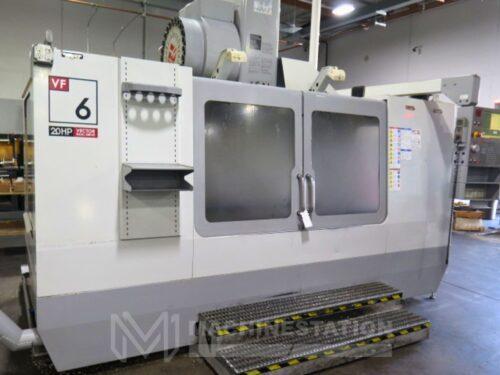

Haas VF-6/40 CNC Vertical Machining Center – Mill

Haas VF-6/40 CNC Vertical Machining Center – Mill

Name: Used HAAS VF-6/40 For Sale 112824
Brand: HAAS
SKU: 112824

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model:	VF-6/40
Year:	2008
Cutting Hours:	Used – Good

Equipped With:

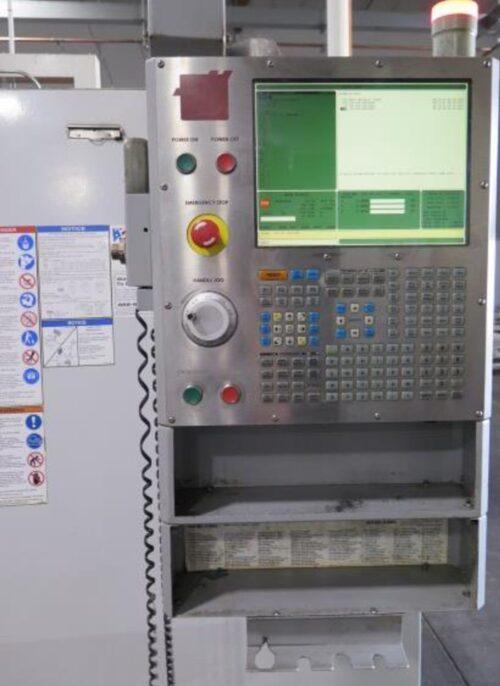

Haas CNC Control
8100 RPM High Torque Spindle
20 HP Vector Dual Drive
24 Station Automatic Tool Changer
Programmable Coolant Nozle
USB Drive
MPG Handwheel Control
Telescopic Way Covers
Coolant System
Chip Auger

Travels:
X-axis: 64″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 600 IPM
Cutting Feed Rates: 500 IPM
Spindle Nose To Table (Min.- Max.): 4″ – 34″

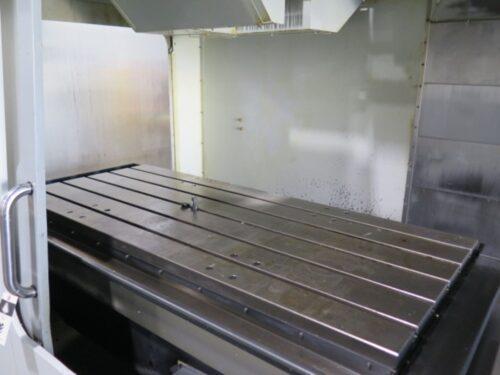

Table:
Length: 64″
Width: 28″
Number Of Std T-slots: 5
T-Slot Width: 5/8″
Max Weight On Table: 4000 Lbs

Spindle:
Taper Size: 40
Speed Range: 8100 RPM
Spindle Power: 20 HP
Vector Drive Max Torque: 90ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Tool Weight: 12 Lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 16″
Tool Changing Time: 3.6 Seconds
