72" x .625" x 70,000# PRO-ECO HEAVY GAUGE INJECTOR HEAD SLITTING & PACKAGING LINE
Brand
Category
Model
Not specified
Stock #
116803
Year
Not specified
Condition
Used
Location
Not specified
|

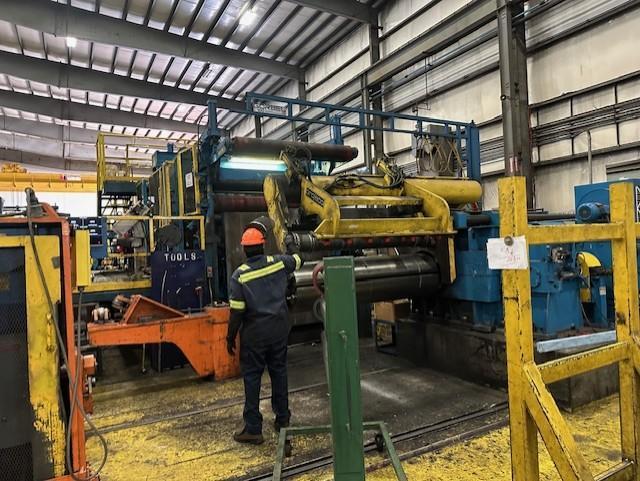

72” x .625” x 70,000# PRO-ECO HEAVY GAUGE INJECTOR HEAD SLITTING & PACKAGING LINE
SLITTING LINE SPECIFICATIONS:
MANUFACTURER – PRO-ECO
YEAR – 2004
LINE DIRECTION – LEFT TO RIGHT
MATERIALS – COLD ROLLED AND HOT ROLLED STEEL (PICKLED OR BLACK)
THICKNESS – .165” (4.19 mm) MIN., .625” (15.88 mm) MAX.
COIL WIDTH – 74” (1,880 mm) MAX. (ENTRY) 72” (1,829 mm) MAX. (EXIT)
COIL WEIGHT – 70,000# (31,752 Kg) MAX. (ENTRY & EXIT)
COIL OUTSIDE DIAMETER – 72” (1,829 mm) MAX. (ENTRY & EXIT)
COIL INSIDE DIAMETER (ENTRY) – 20” (508 mm) TO 32” (813 mm)
COIL INSIDE DIAMETER (EXIT) – 20” (508 mm) OR 24” (610 mm)
SLITTER ARBOR DIAMETER – 13.000” (330.2 mm)
NUMBER OF SLITTER HEADS – ONE (1) 60” (1,524 mm) AND ONE (1) 72” (1,829 mm)
SLITTER HEAD EXCHANGE STYLE – POWERED INJECTOR WITH TURNTABLE
LINE SPEED – 450 FPM (137 MPM) IN HIGH GEAR, 150 FPM (46 MPM) IN LOW GEAR
UNCOILER DRIVE – HYDRAULIC FEED-UP w/ WATER-COOLED BRAKE
FLATTENER DRIVE – 300 HP
SLITTER DRIVE – 150 HP
RECOILER DRIVE – 300 HP, 650/1950 RPM, DC
SLITTING LINE COMPONENTS:
FOUR (4) ARM ENTRY STORAGE TURNSTILE
FLOOR LEVEL COIL LOADING CAR

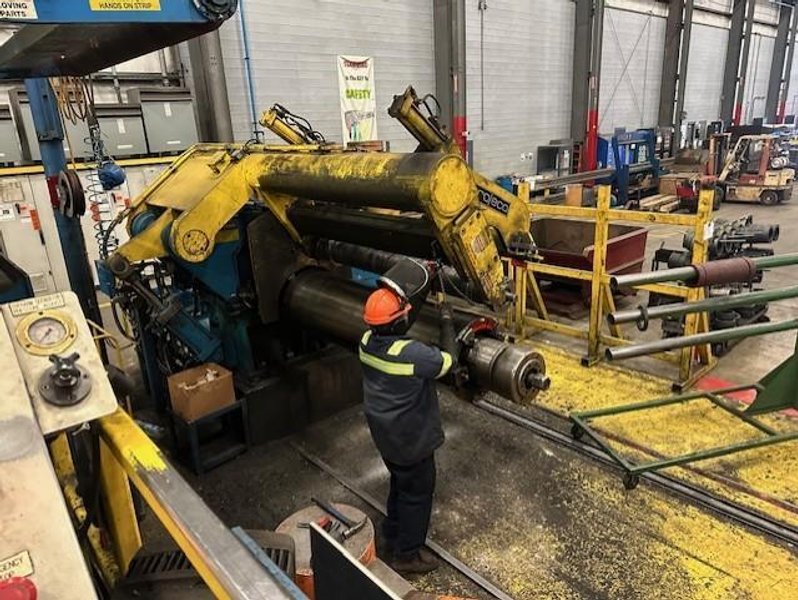

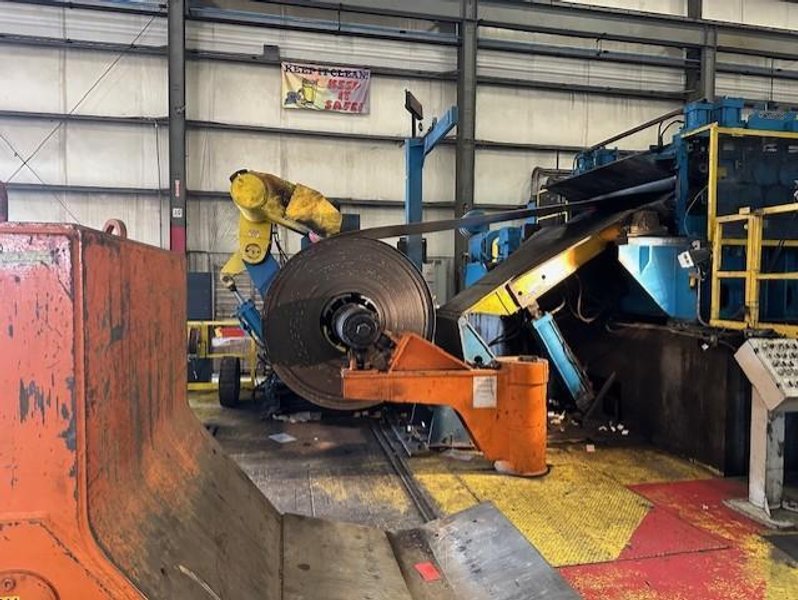

CANTILEVERED MANDREL UNCOILER w/ HOLD DOWN ROLL & WATER-COOLED BRAKE
UNCOILER OUTBOARD SUPPORT
UNCOILER FILLER PLATES FOR LARGER COIL ID
PIVOTING AND TELESCOPING PEELER BLADE
ENTRY PINCH ROLLS

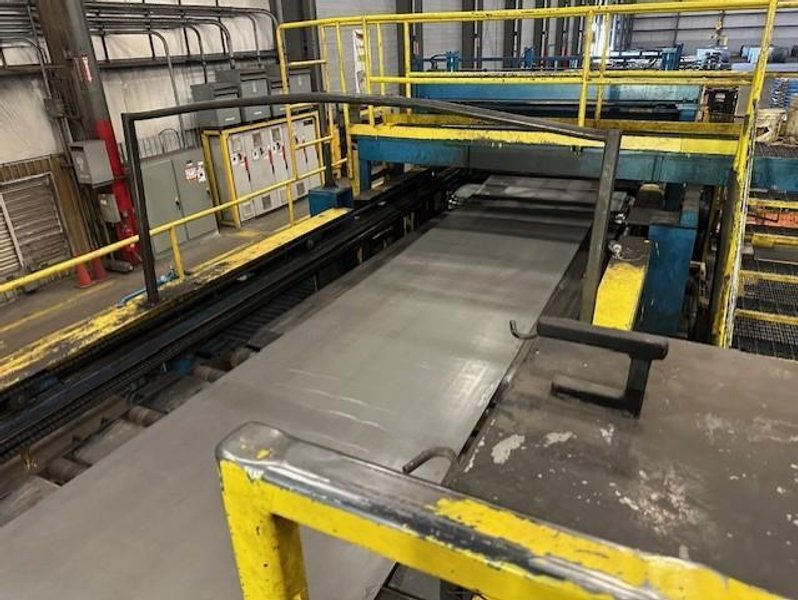

ROLLER TYPE SIDE GUIDES w/ POWERED WIDTH ADJUSTMENT
ENTRY PINCH ROLLS
FIVE (5) ROLL FLATTENER w/ VARIABLE SPEED DRIVE
THICKNESS GAUGE
ENTRY CROP SHEAR
STEEL REINFORCED BELT SCRAP CONVEYOR
HEAVY-DUTY SIDE GUIDES
VARIABLE SPEED SLITTER DRIVE BASE

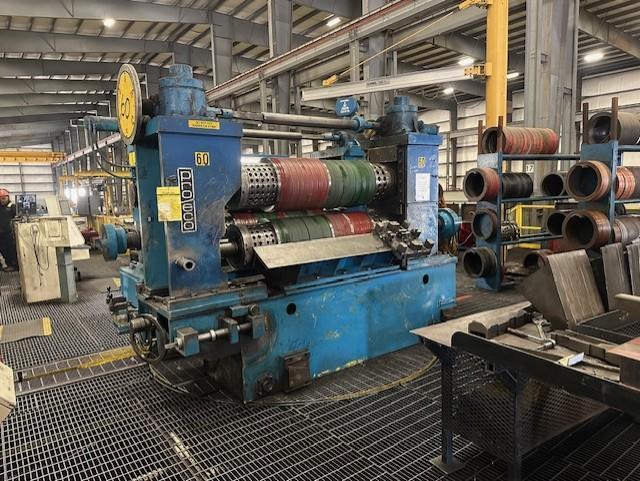

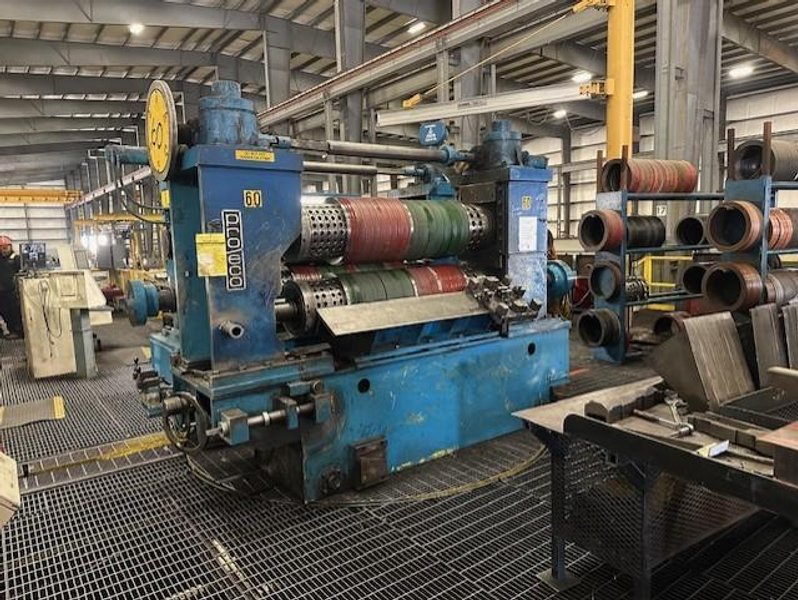

TWO (2) INJECTOR STYLE SLITTER HEADS w/ 13.000” (330.2 mm) ARBORS
SLITTER HEAD CHANGE SYSTEM w/ INJECTOR RAIL & STORAGE TURNTABLE
ONE (1) LOT OF SLITTER & SEPARATOR TOOLING w/ CABINETS & BOXES

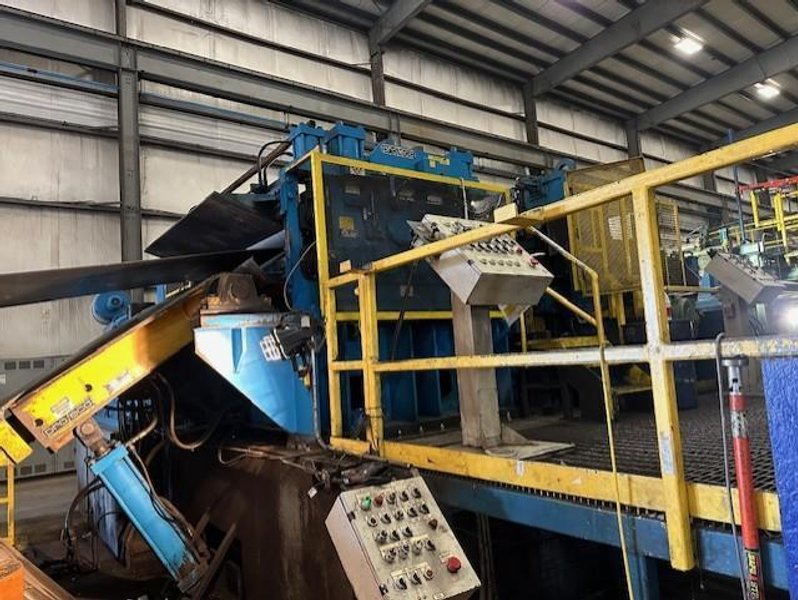

DUAL ARBOR ROTARY SCRAP CHOPPERS w/ VARIABLE SPEED DRIVE
HINGED STEEL BELT SCRAP CONVEYOR
SCRAP CHOPPER CARRY OVER TABLE
PIVOTING PIT THREADING TABLE

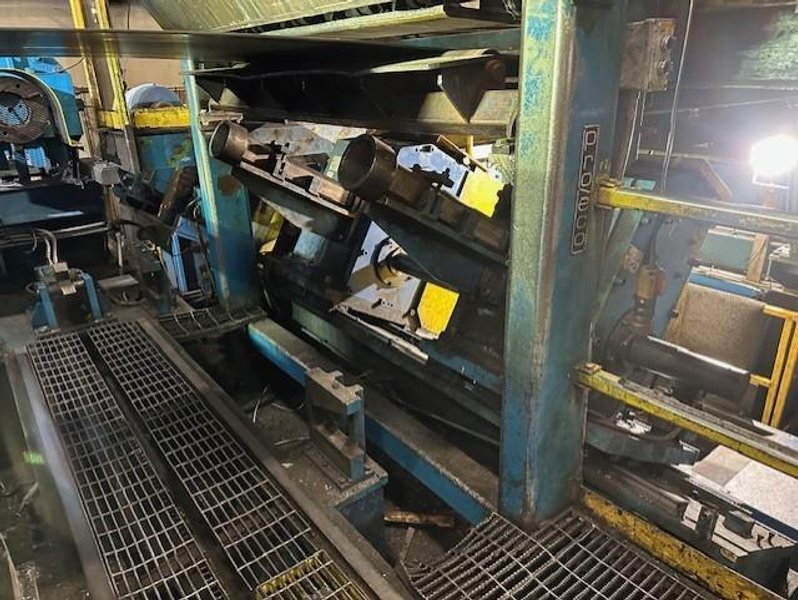

PAD TYPE TENSION STAND w/ STRIP SEPARATOR SPINDLE
EXIT CROP SHEAR w/ TAIL FEED ROLLS
EXIT PASS LINE ROLL
PIVOTING RECOILER THREADING TABLE

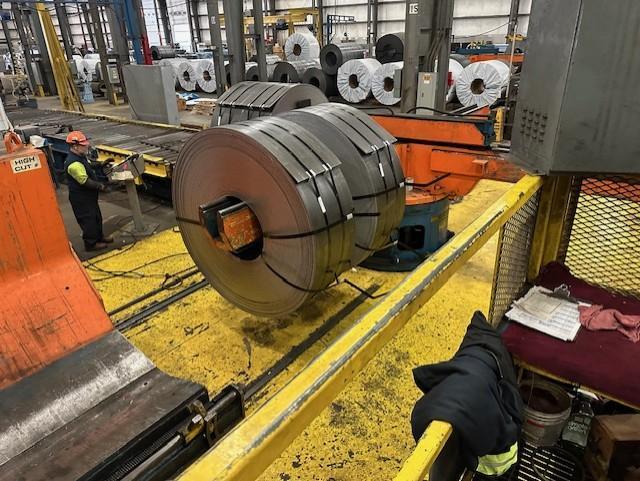

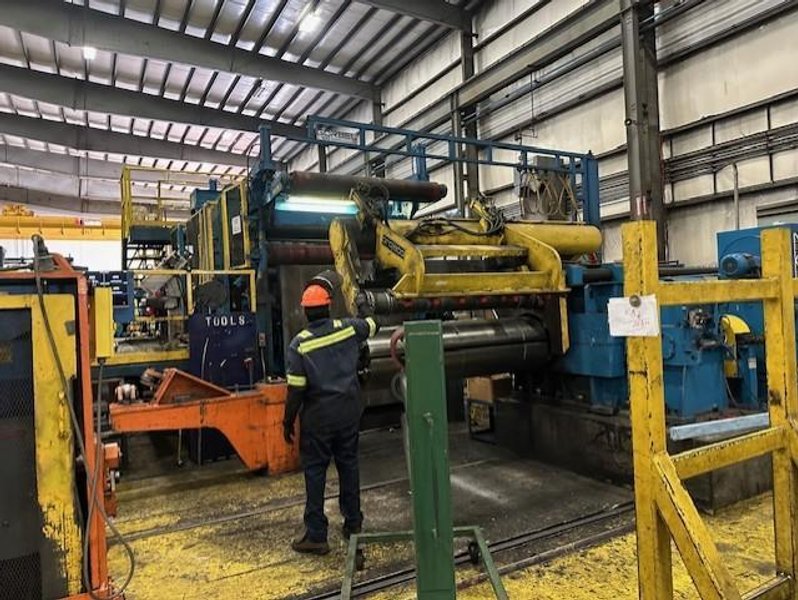

CANTILEVERED MANDREL RECOILER w/ 20” (508 mm) DRUM, VARIABLE SPEED DRIVE, COIL PUSHER, & PIVOTING OVERARM SEPARATOR w/ TAIL CLAMP
RECOILER OUTBOARD SUPPORT
HARDENED STEEL RECOILER FILLER PLATES FOR 24” (610 mm) ID

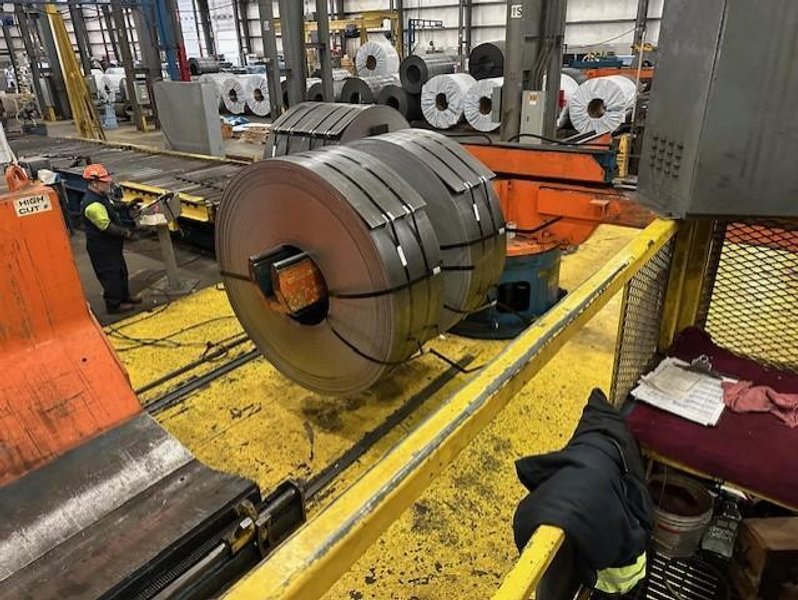

FLOOR LEVEL COIL UNLOADING CAR w/ NARROW COIL SUPPORT STANCHIONS
FOUR (4) ARM EXIT STORAGE TURNSTILE w/ HYDRAULIC COIL PUSHER
OPERATOR CONTROL STATIONS
AC CONTROLS
VARIABLE SPEED DRIVE CONTROLS
CLOSED LOOP HYDRAULIC SYSTEM
CLOSED LOOP WATER COOLING SYSTEM
PACKAGING LINE SPECIFICATIONS: MANUFACTURER – PRO-ECO
YEAR – 2004
LINE DIRECTION –RIGHT TO LEFT
SLIT COIL WEIGHT – 10,000# (4,536 Kg) MAX.
SLIT COIL WIDTH – 24” (610 mm) MAX.
SLIT COIL OUTSIDE DIAMETER – 72” (1,829 mm) MAX.
SLIT COIL INSIDE DIAMETER – 20” (508 mm) OR 24” (610 mm)
PACKAGE WEIGHT – NOT LIMITED BY QUOTED EQUIPMENT
PACKAGE HEIGHT – NOT LIMITED BY QUOTED EQUIPMENT
COIL SPACER THICKNESS – 1” MIN. (SPACER BLOCKS REQUIRED BETWEEN SLIT COILS)
DOWNENDER STYLE – STATIONARY
BANDER STYLE – POWERED COIL ROTATION TABLE w/ MANUAL TOOLS
STACKER STYLE – MONO-RAIL & HOIST w/ MANUAL ID GRAB
PACKAGING LINE COMPONENTS:
SLIT COIL DOWNENDER
SEVEN (7) FOOT COIL STORAGE CONVEYOR
POWERED COIL MANIPULATING TABLE w/ DRIVEN COIL ROTATION ROLLERS
MANUAL BANDING TOOLS
FOURTEEN (14) FOOT COIL CONVEYOR w/ ID GRAB ACCESS CHANNEL
MONO-RAIL & HOIST w/ MANUAL ID GRAB
OPERATOR CONTROL STATIONS
AC CONTROL PANELS
CLOSED LOOP HYDRAULIC SYSTEM |
