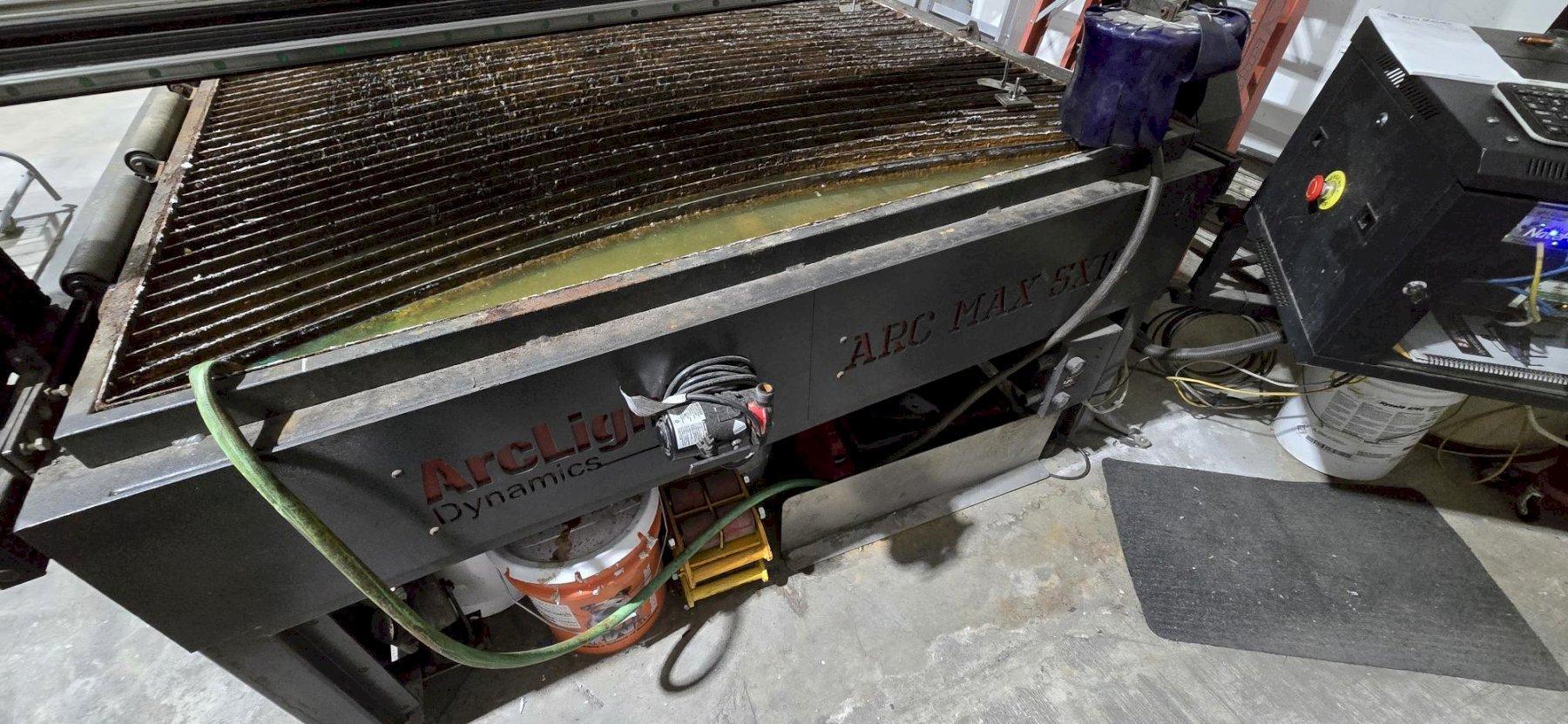

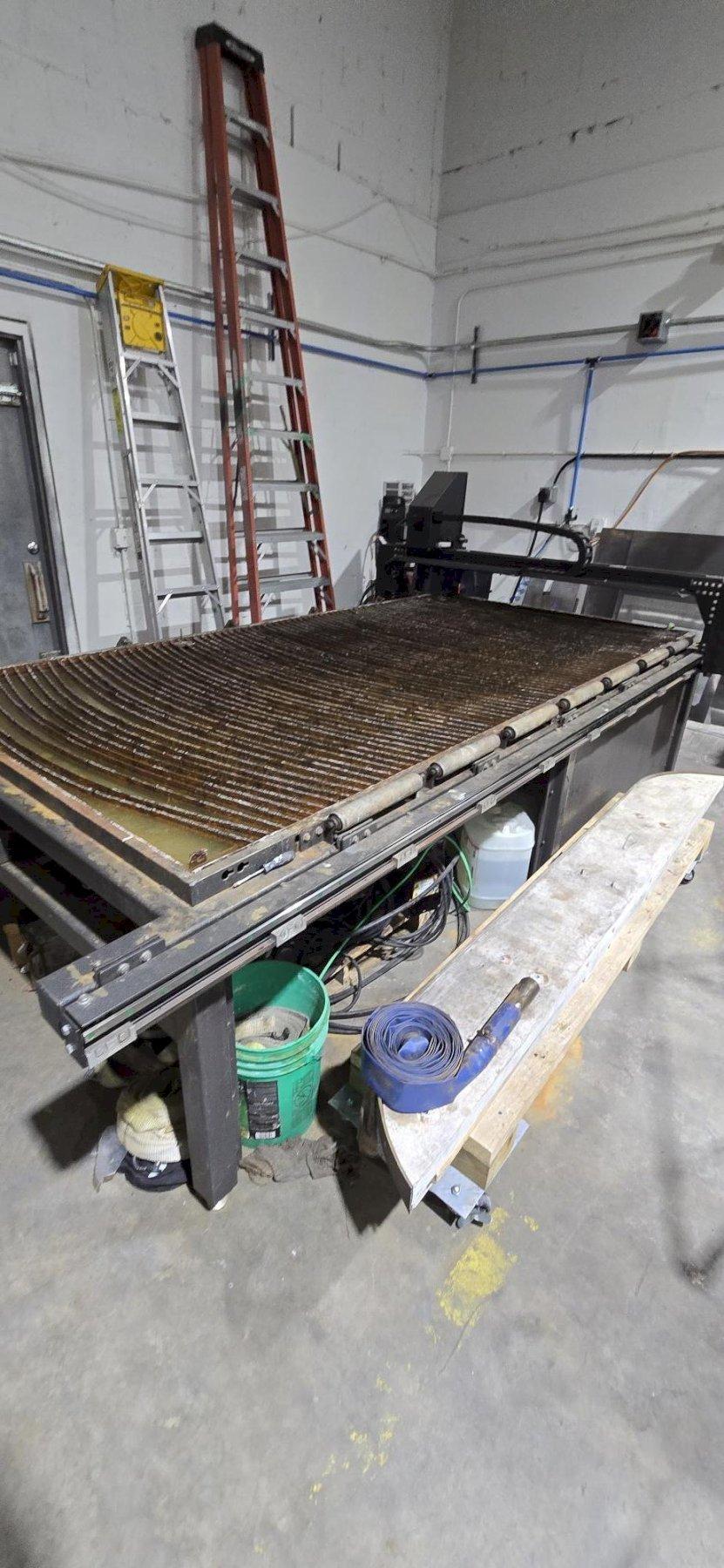

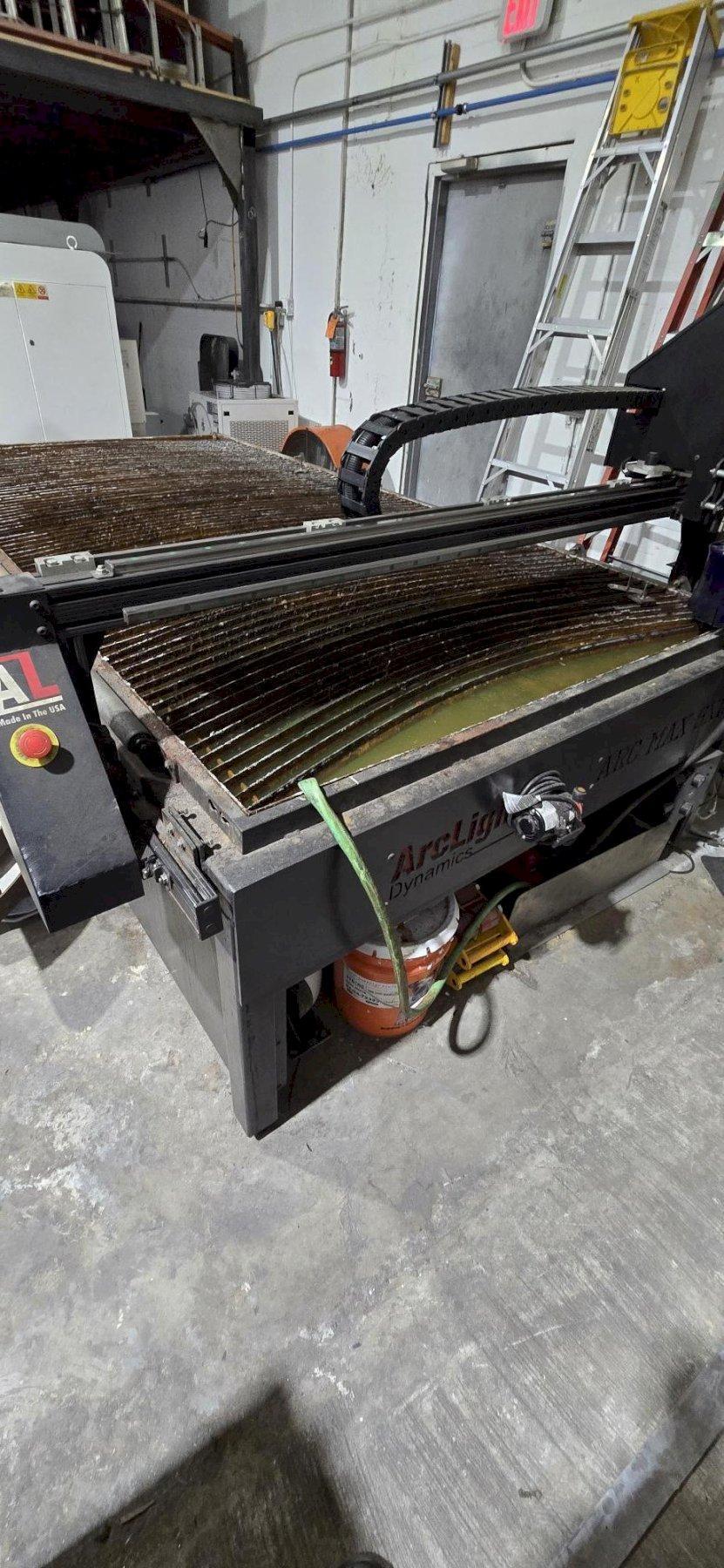

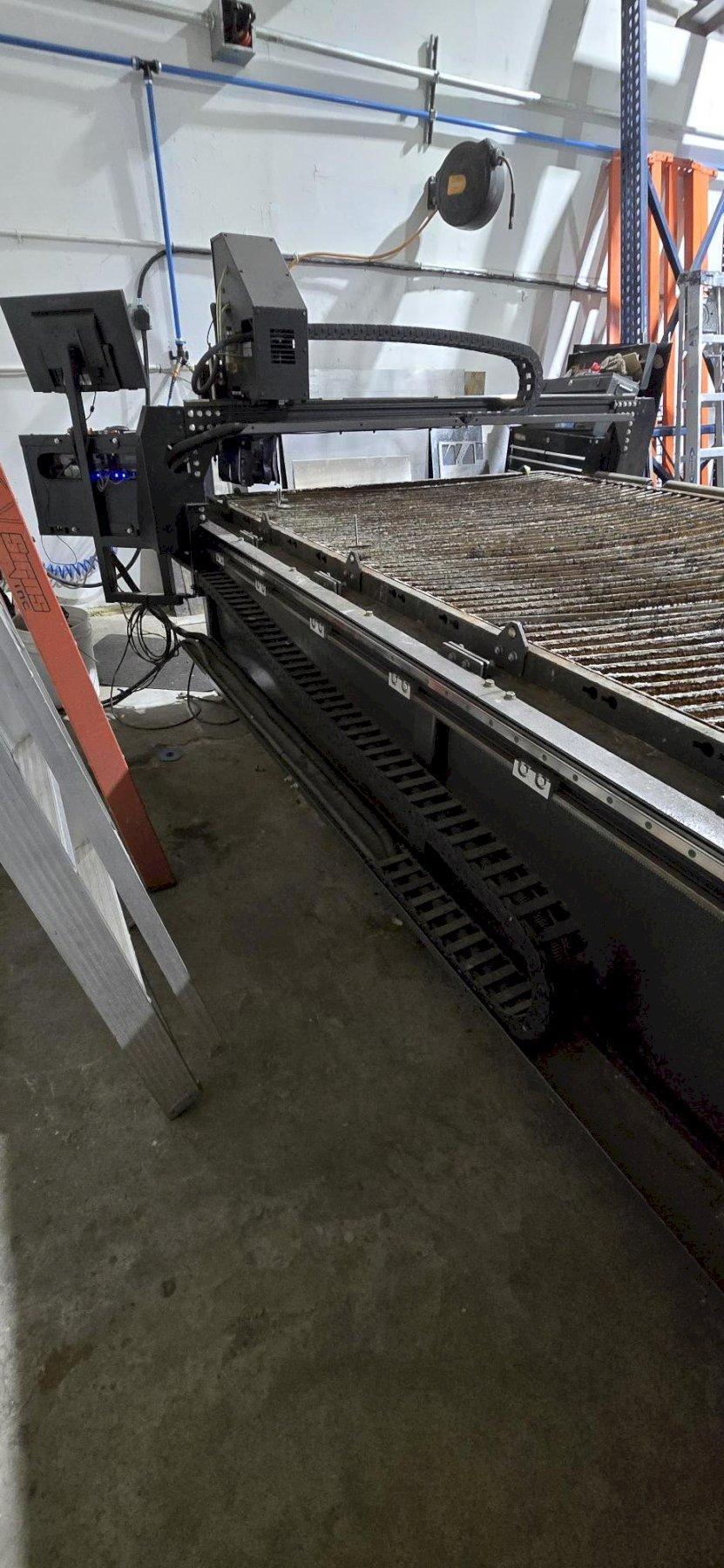

5’x10′ ArcLight Arc Max CNC Plasma Table, 2019 – Hypertherm 65, Water Table

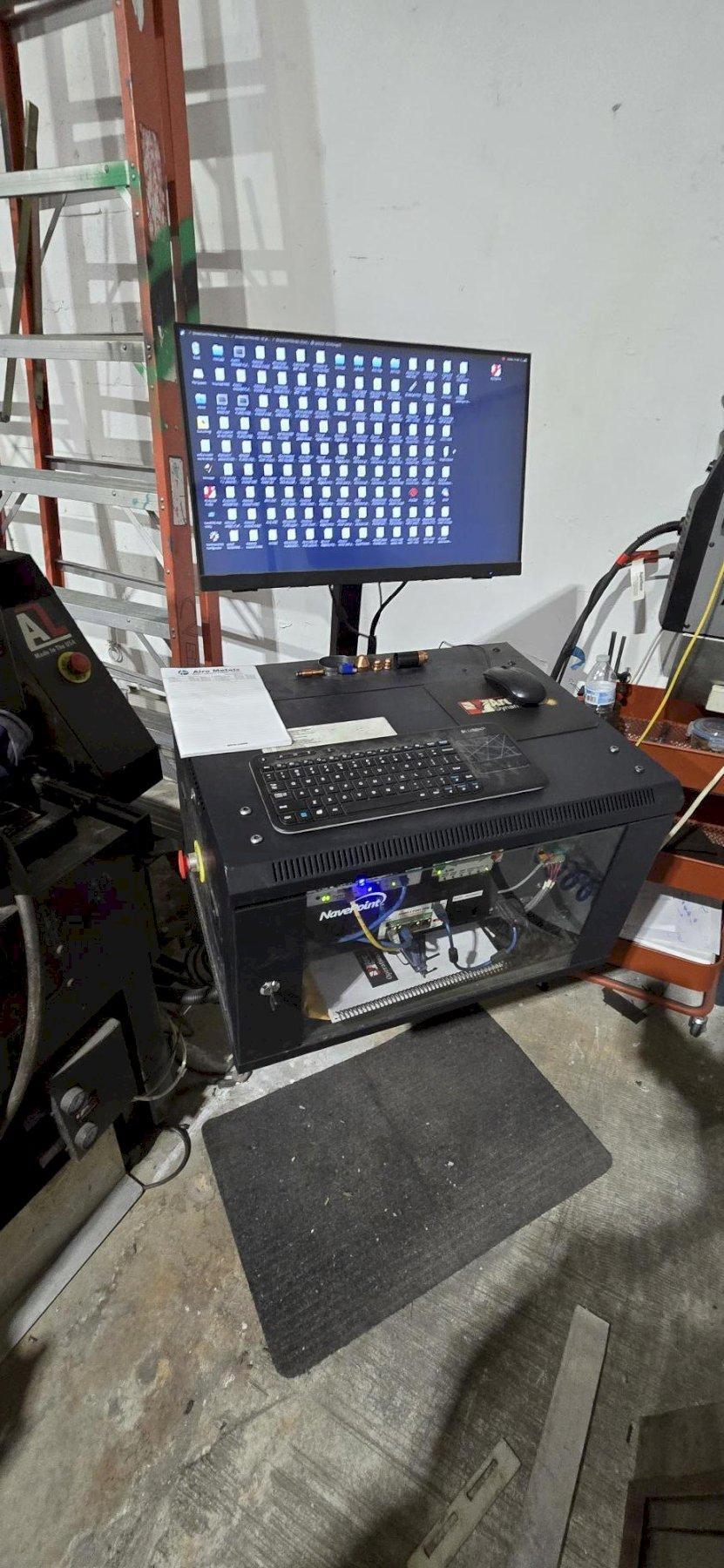

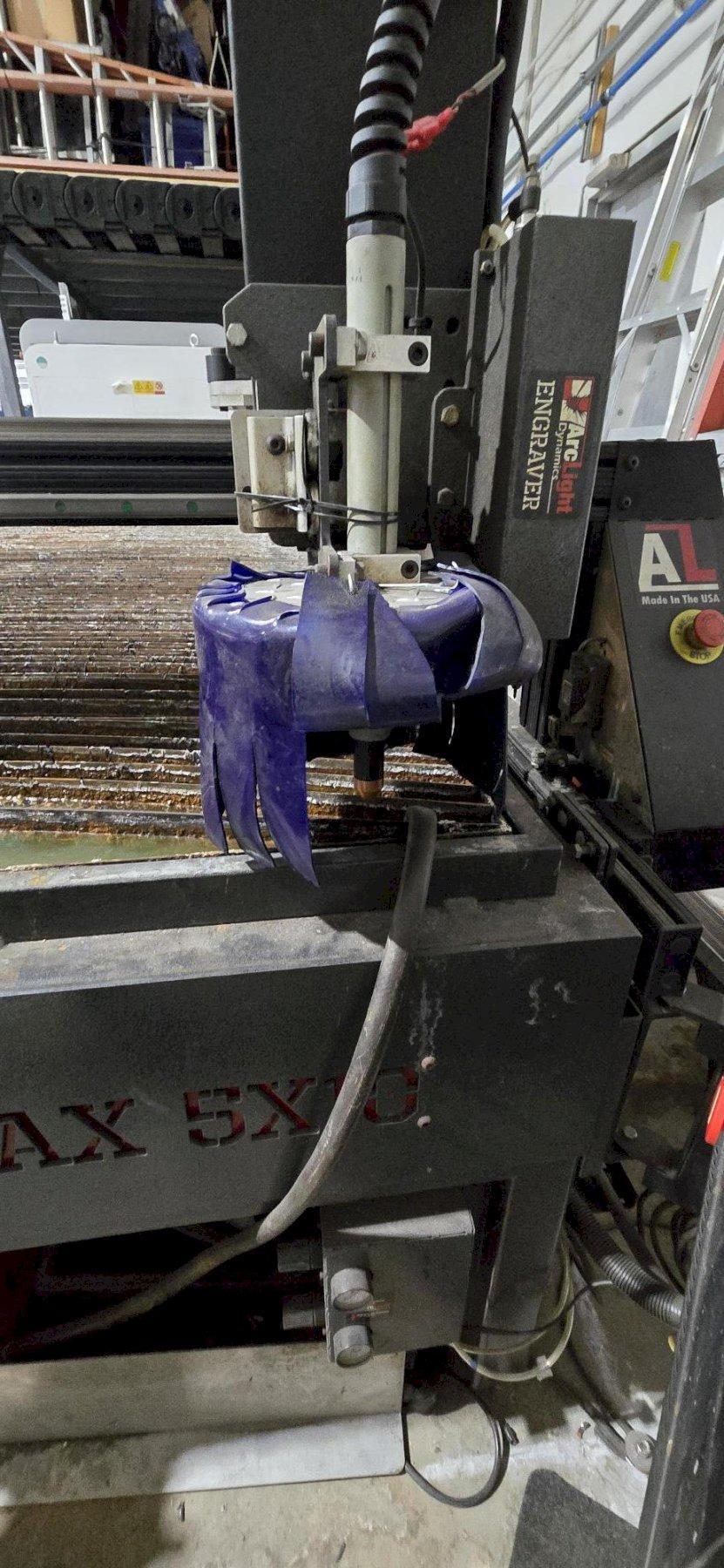

Motors: Four 620 oz Stepper Belt Drive: 3:1 gear reduction Gear Engagement: Spring loaded precision, Rack and Pinion Drive X&Y Axis Rails: Dual 20mm Linear Guides Z-Axis: Anti-backlash lead screw w/floating head & magnetic torch mount Traverse Speed: 600 IPM Max Cut Speed: 600 IPM Controller: CoreCNC Delta 3 Phase 2 Slat Spacing: 1.5″ Apart standing Gantry Clearnence: 7″ Standard

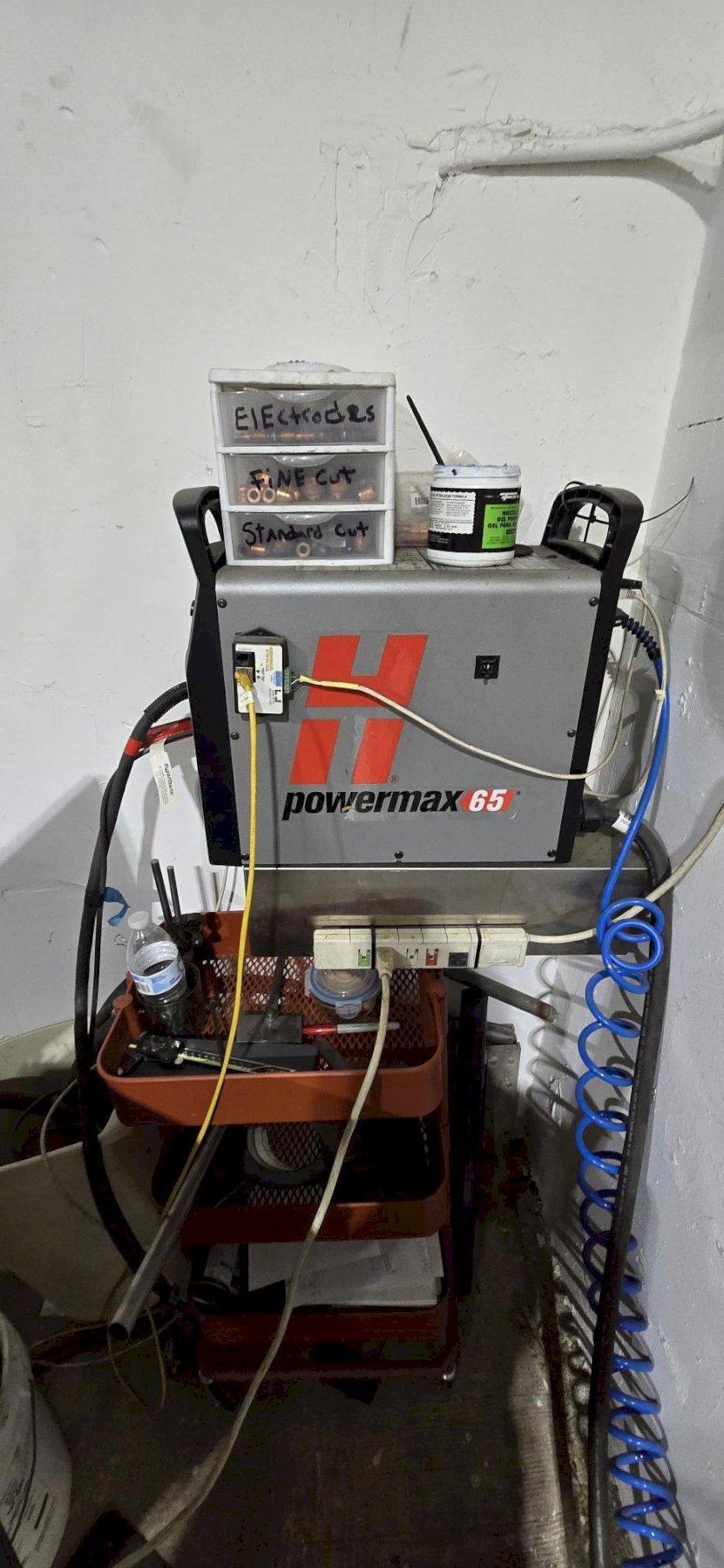

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Overall Dims: 88’wx143″Lx60″H Size at Base: 70″Wx133″L Cutting Envelope: 62″W X 124:L Cabinet: 21.5″ x 17.75″ Water Capacity 300 Gallons Weight: 2500 lbs Hypertherm powermax 65

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
