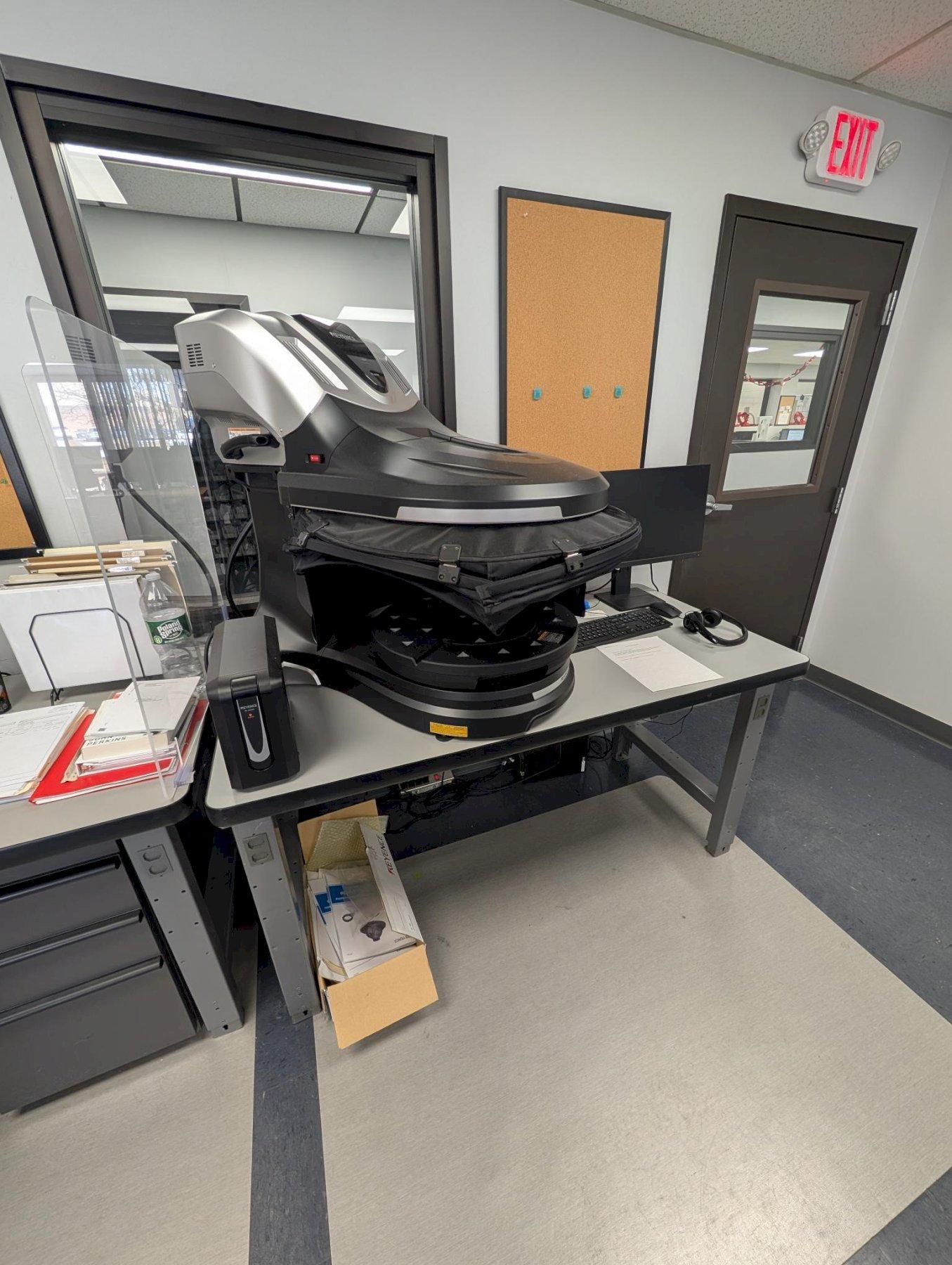

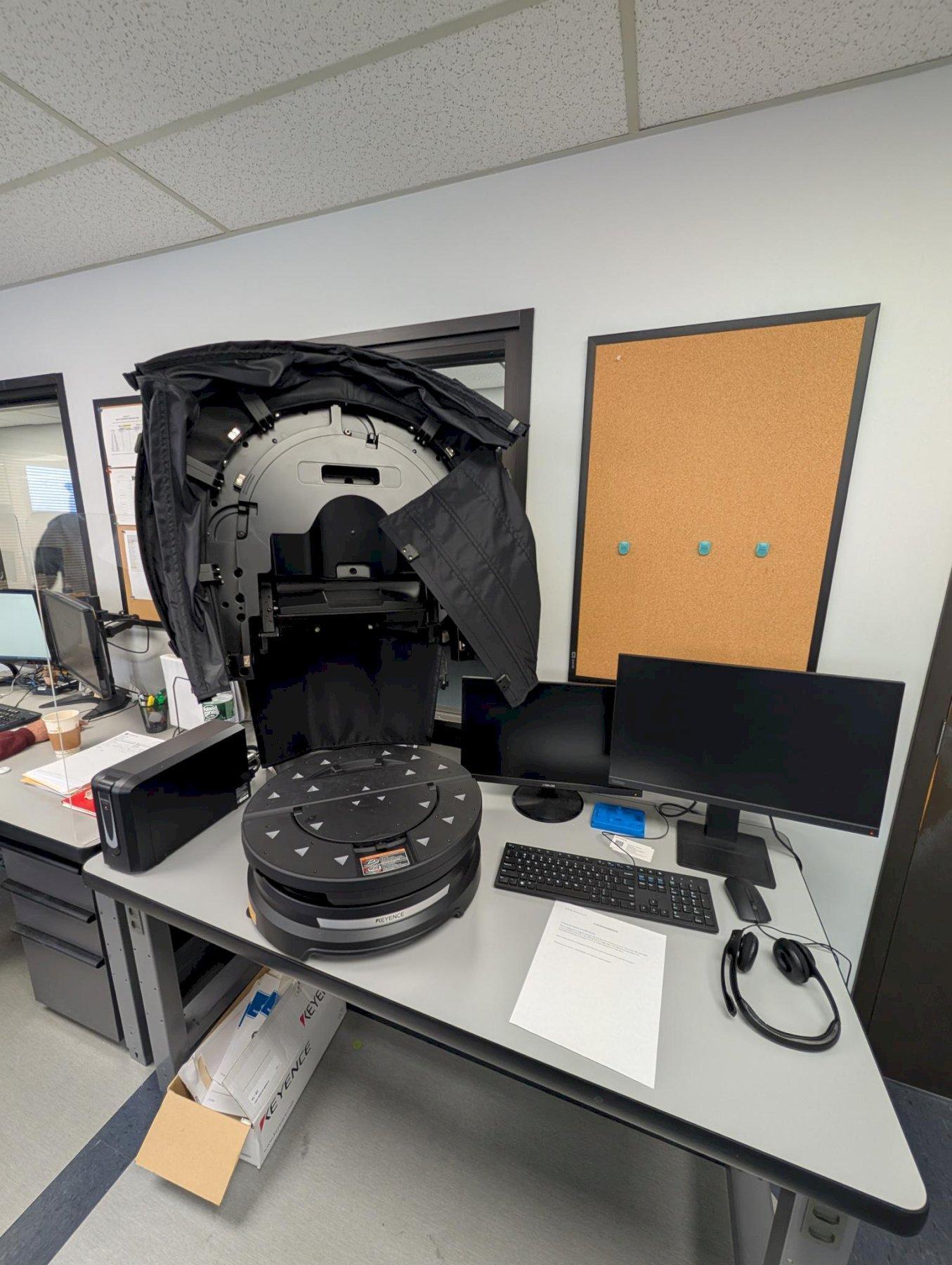

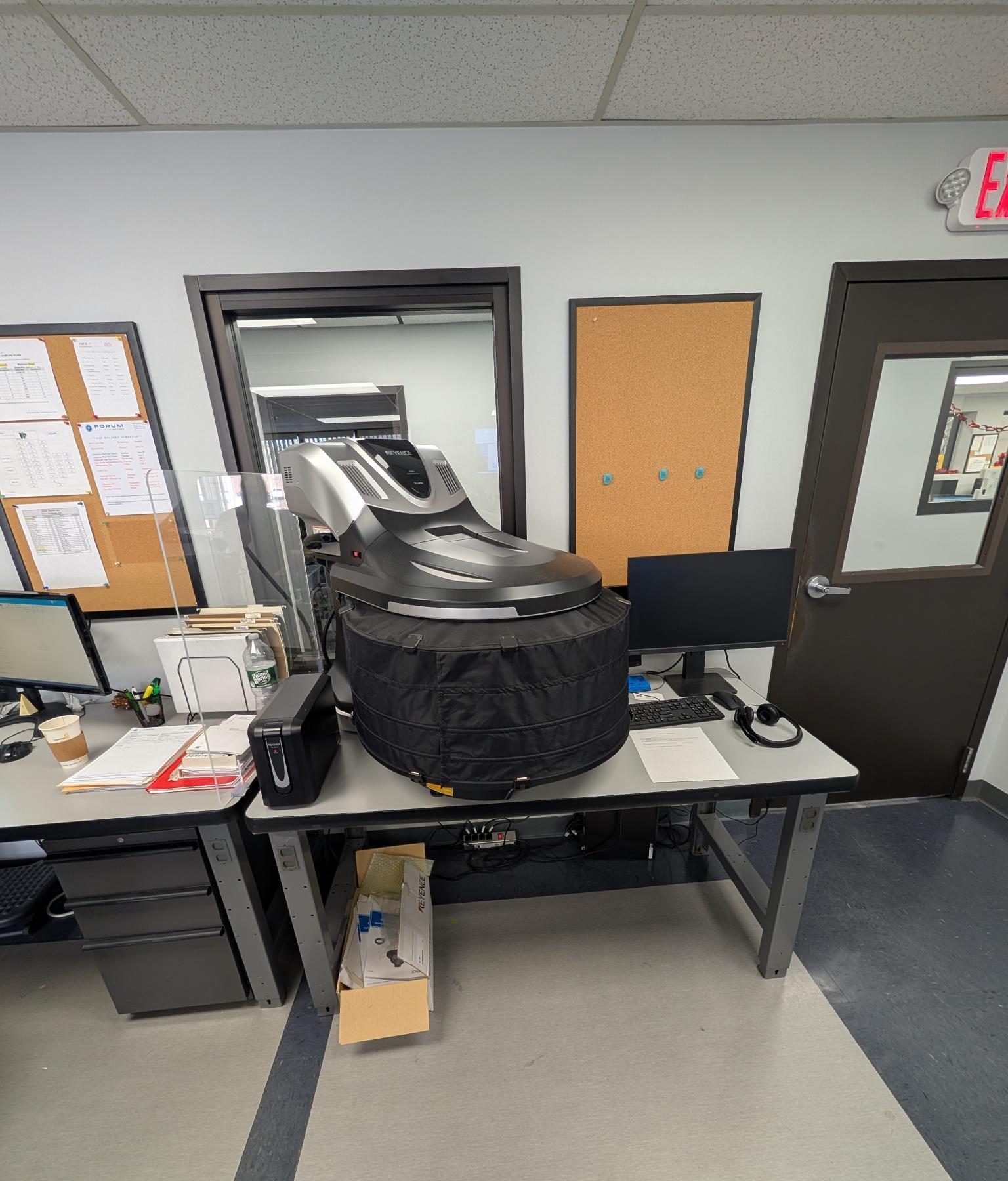

Keyence VL-770 3D Scanner CMM, 2023 – Fully Equipped, Low Hours

Optical Transmitter System: High-brightness dual projector module Optical Receiver System: Low/high magnification offset dual optical module with wide dynamic range

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Light Sources: Measurement Light Source: Blue LED Color Texture Light Source: LEDs in 3 colors (red, green, blue) Captured Data Format: Full-color textured 3D mesh data Repeatability (σ): 2 μm*1 Measurement Accuracy: ±10 μm*2 Measurement Resolution: 9 million points

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Measurement Modes: Low Magnification: High speed, Normal, Fine (wide field) High Magnification: Normal, Fine (High resolution) Measurement Range: Low Magnification: ø300 × H 200 mm ø11.81″ × H 7.87″(wide field) High Magnification: ø70 × H 50 mm ø2.76″ × H 1.97″(High resolution)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automatic XY Combined Measurement Range Low Magnification (2 × 2 composition): ø500 × H 200 mm ø19.69″ × H 7.87″ Low Magnification (3 × 1 composition): W 580 × D 300 × H 200 mm W 22.83″ × D 11.81″ × H 7.87″*3 High Magnification (2 × 2 composition): ø110 × H 50 mm ø4.33″ × H 1.97″ High Magnification (3 × 1 composition): W 150 × D 70 × H 50 mm W 5.91″ × D 2.76″ × H 1.97″*3

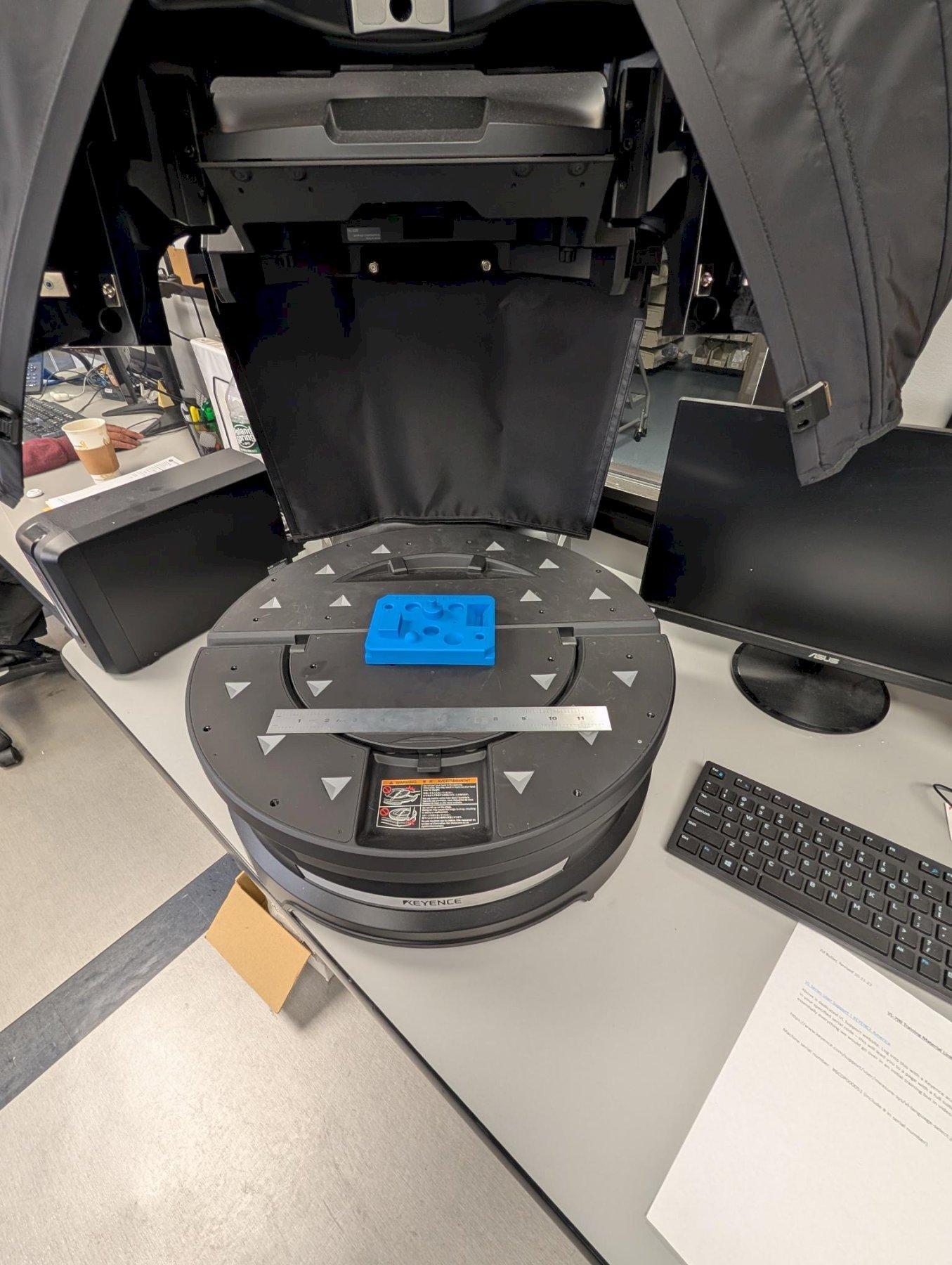

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Stage Configuration: Motorized XYθ stage mechanism Stage Top Panel Size: ø500 mm ø19.69″ Stage Rotation: 360° (infinite rotation) Stage Movement Range: ø200 mm ø7.87″ Tilt Mechanism: Up to 45° Load Capacity: 50 kg 110.23 lb Control PC: Dedicated PC specified by KEYENCE Power Supply: Power Voltage: 100 to 240 VAC ±10%, 50/60 Hz Power Consumption: Controller/Measurement unit: 320 VA Stage: 80 VA Environmental Resistance: Ambient Temperature Range: +15 to +30°C 59.0 to 86.0°F Ambient Humidity Range: 20 to 80% RH (no condensation) Weight: Controller: 3.7 kg 8.16 lb Stage: 26 kg 57.32 lb Light-blocking Cover: 5.5 kg 12.13 lb Measurement Unit: 19.6 kg 43.21 lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: VL-700 Controlle VL-770 Measurement Unit VL-A3E Accessory Kit VL-C35 Light Blocking Cover VL-B1 Ball Gauge VL-H3G GD&T Software Op-88145 Calibration Board

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
