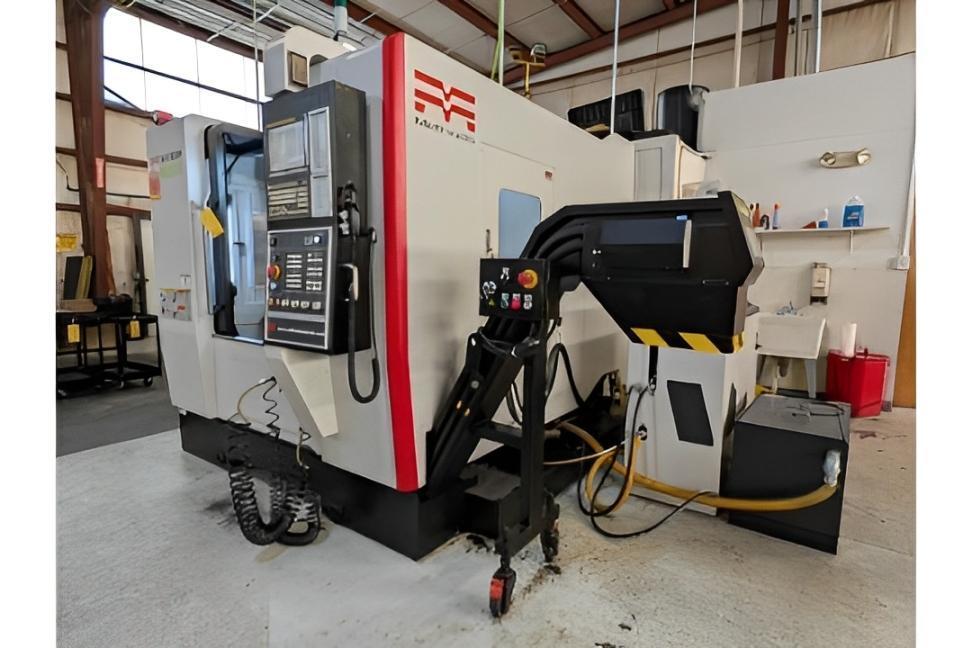

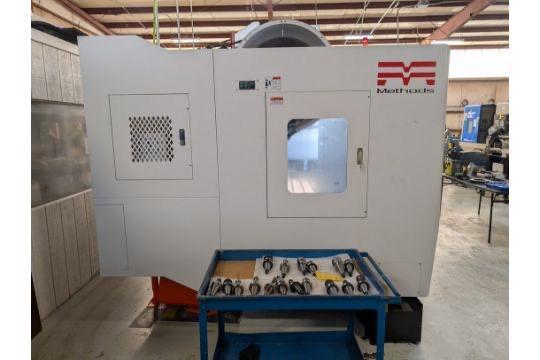

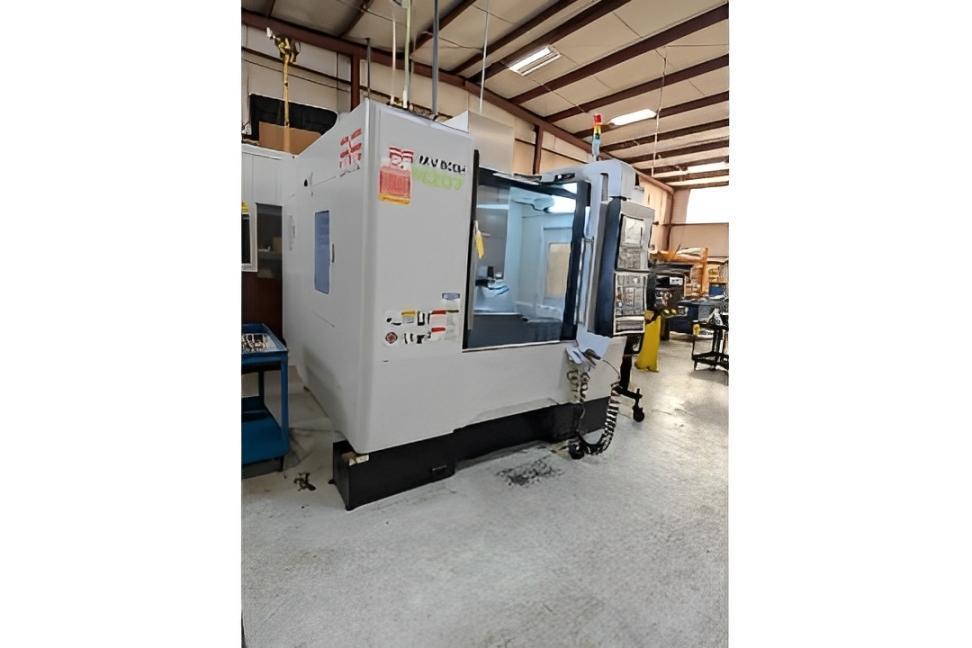

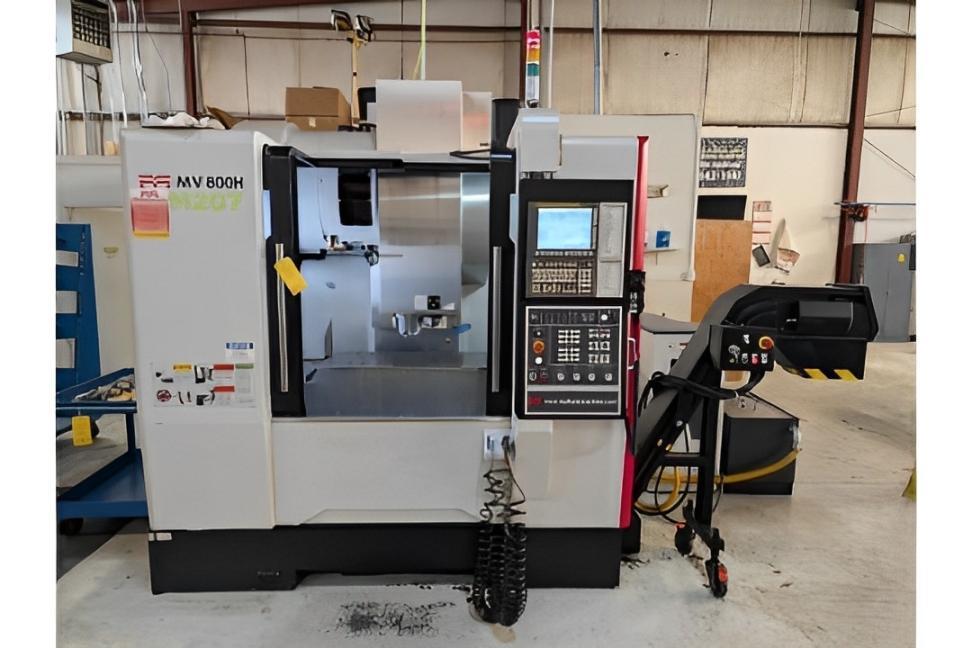

Methods MV-800H 3 Axis VMC, 2020 – 15,000 RPM, LNS Chip Blaster System

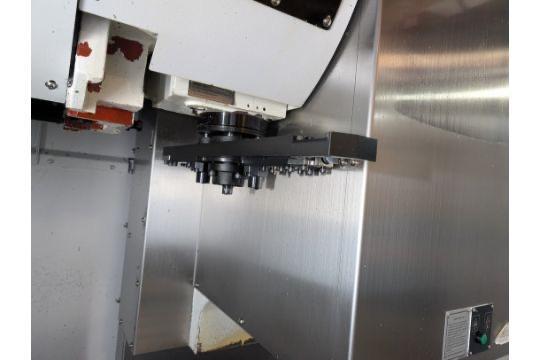

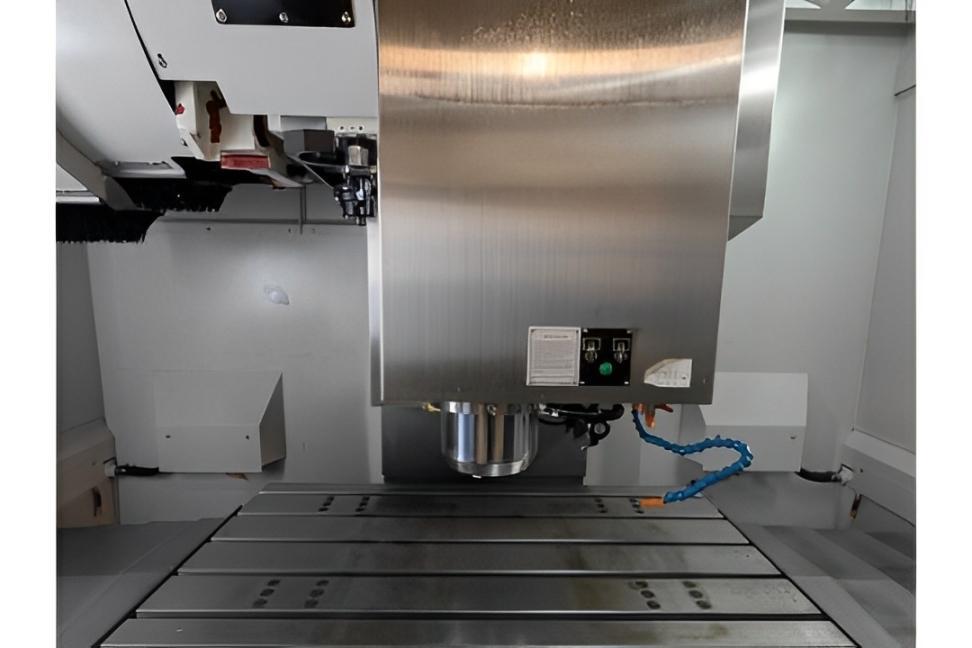

Table Size 37.4″ x 20.5″ Table Capacity 1102 pounds X-Axis Travel 31.5 inches Y-Axis Travel 20.47 inches Z-Axis Travel 19.88 inches Rapid Traverse Rate (X/Y/Z) 2,362/2,362/1,181 ipm Spindle Taper CAT 40 Big Plus Spindle Speed 15,000 rpm Main Motor 25 hp Tool Changer Capacity 24 Coolant Thru Spindle yes Machine Dimensions 137″ x 109″ x 118″ – Floor Space Machine Weight 15200 pounds

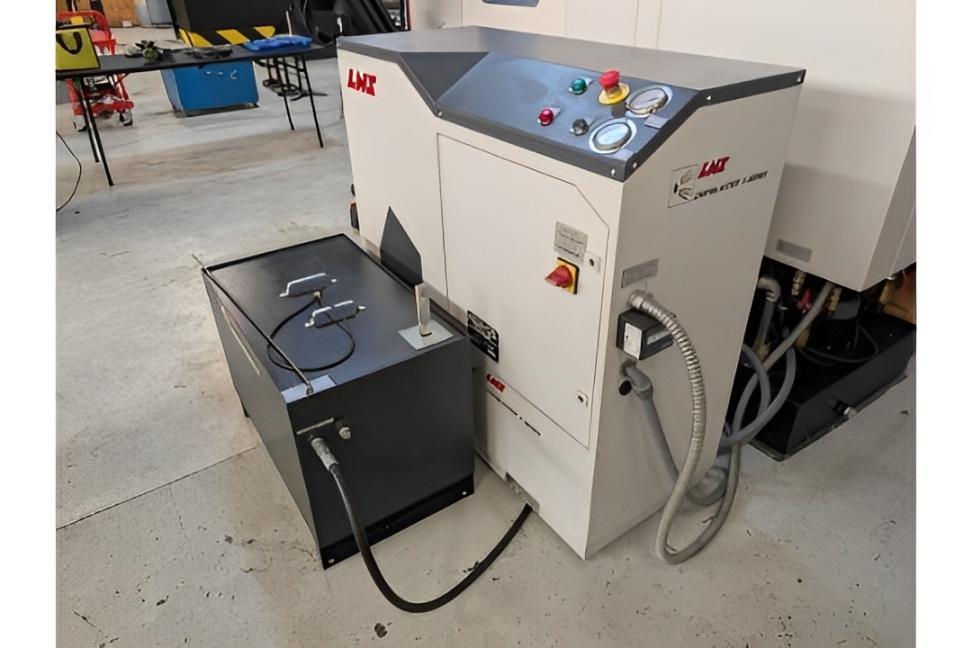

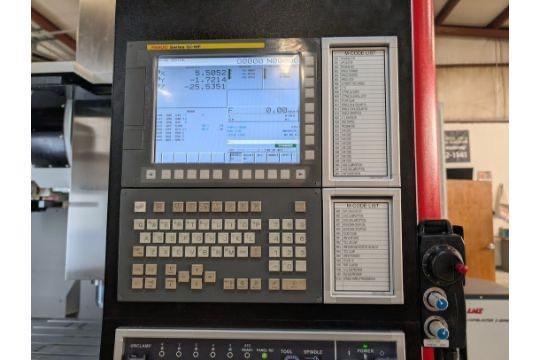

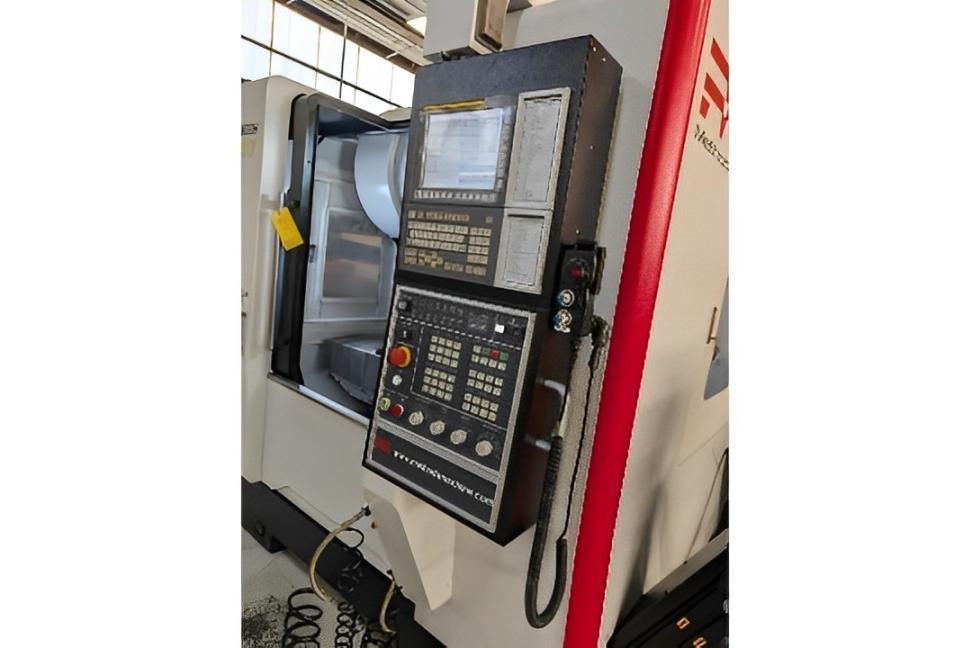

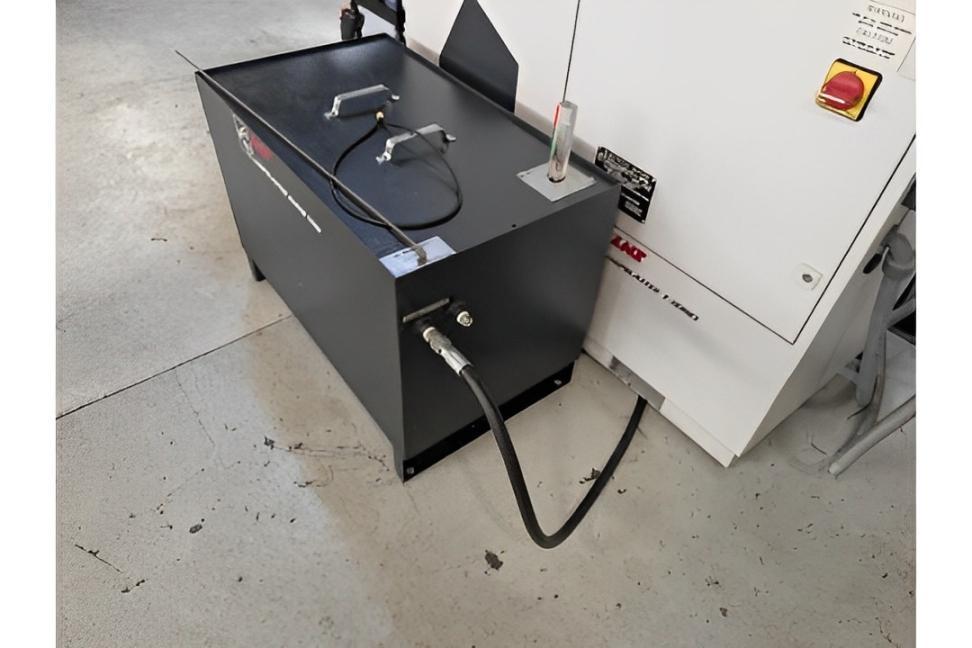

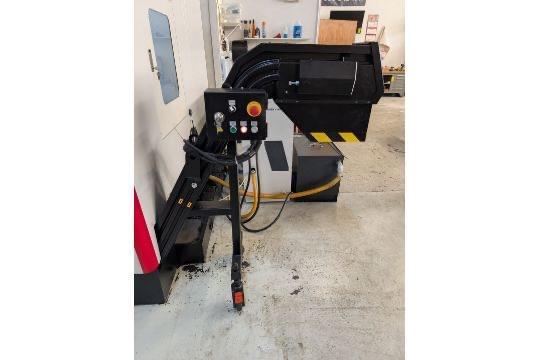

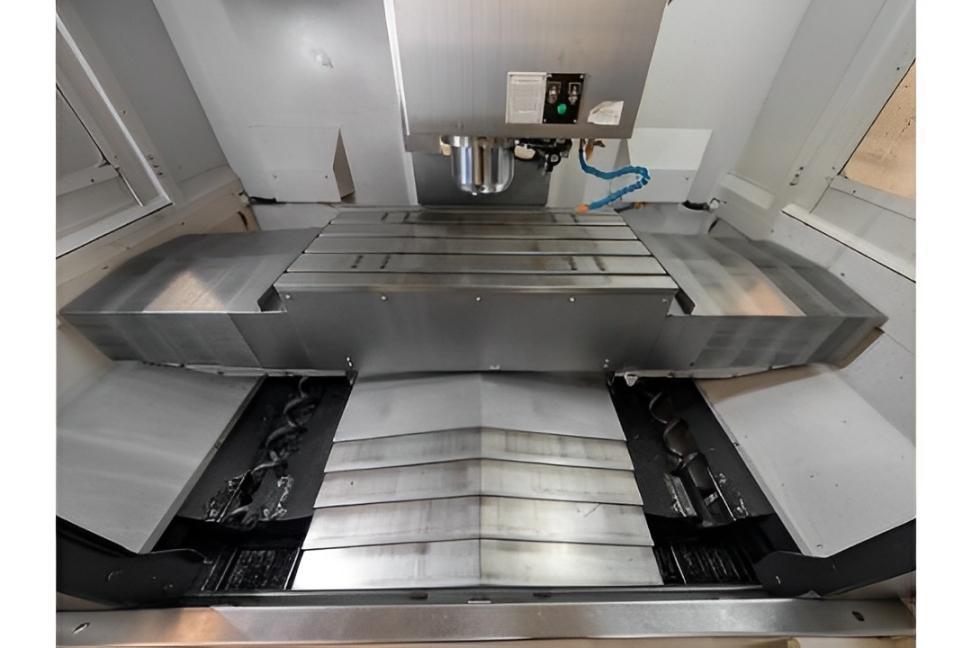

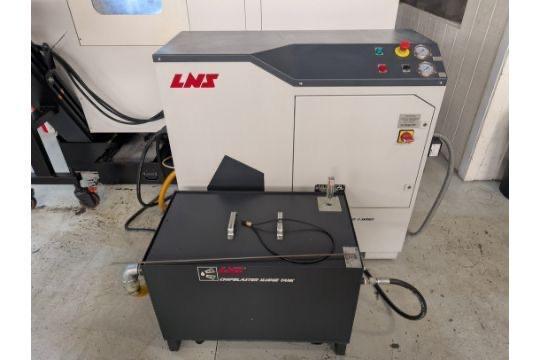

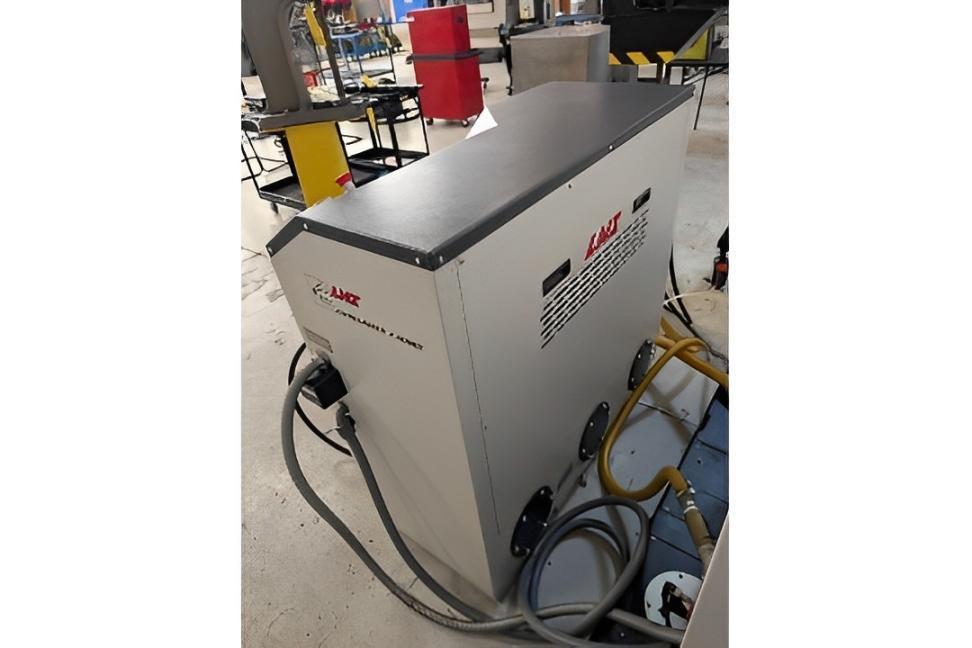

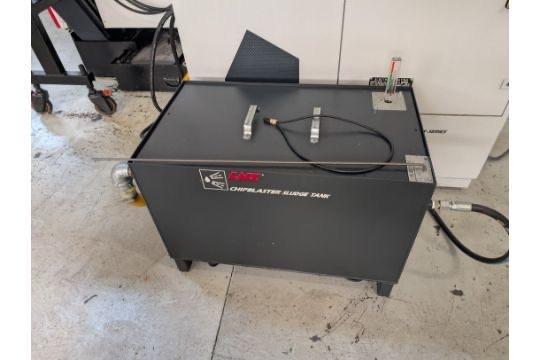

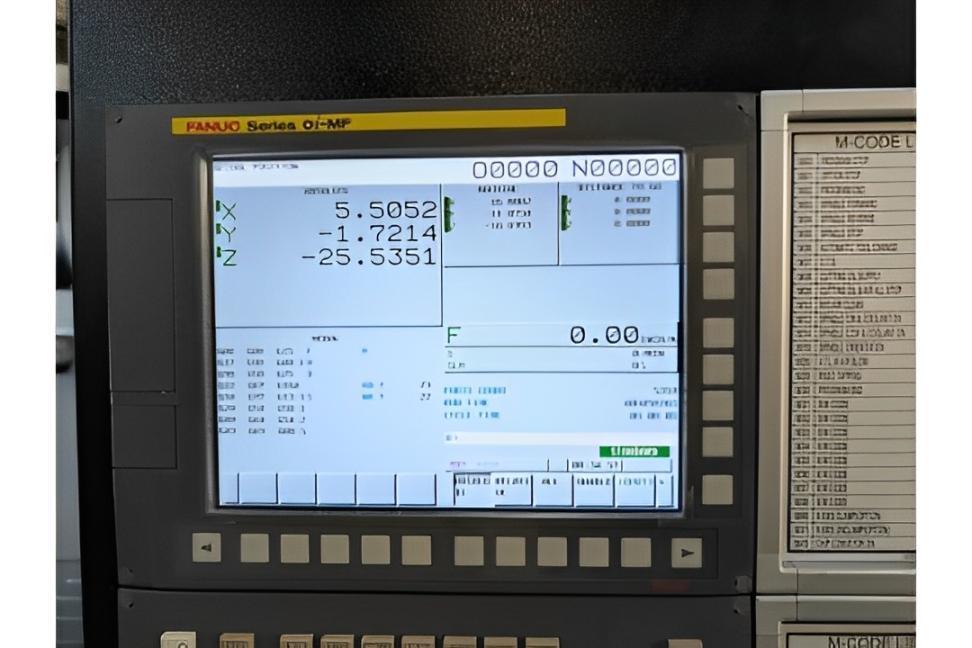

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc 0i-MF CNC Control Fast Data Server w/ 4GB Flash Card (MMT-37055) 400 Block Look Ahead (#A02B-0340-R386) Manual Guide i (Conversational Programming) AICC II 200 Block Look Ahead LNS Chip Blaster System Chip Conveyor Coolant Tank & Pump X/Y Axes Roller Type Linear Guides Z Axis Box Way Dual Chip Screws Spindle Chiller

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
