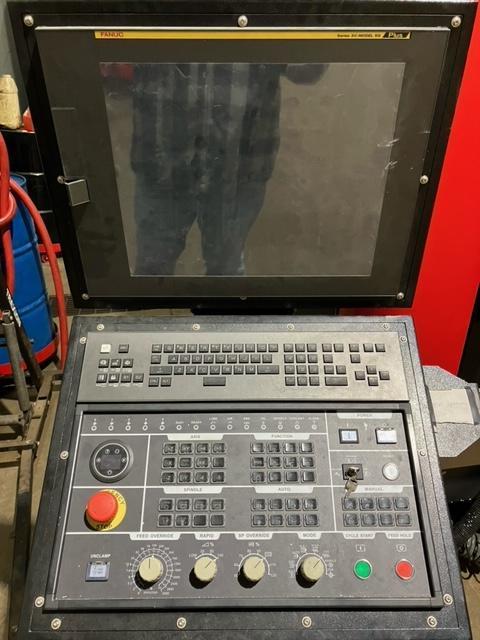

X Travel – 15.7 Y Travel – 13.8 Z Travel – 13.8 B axis – Tilting -50° ~ +110° C axis – Rotary 360° Max Table Load – 441 lbs Spindle – 15,000 RPM Tape – Big Plus / CAT40 Spindle Power – 10 HP Number of Tools – 48 139x130x118 – 13,250 lbs Control – Fanuc 31i-MB5 Oil/Air Lubricated Spindle, Spindle Chiller, Spindle Air Dryer, Spindle Motor Plate Cooling, and Thermal Compensation Blum NT-Series Laser Tool Length Measurement System Blum TC-60 Spindle Probe w/ Table Center Point Calibration Ball & Kinematic Software Heidenhain Linear Scales in the X/Y/Z Axes, Heidenhain Rotary Scales in the B & C Axes Robust Bridge Type Construction with 1.771” (45mm) Linear Roller Guide Ways in the X/Y-Axes and 1.377” (35mm) Z-Axis Full Circular Hydraulic Brake System for Rigid B & C Axis Clamping Coolant System includes Spindle Coolant Nozzels (4), Spindle Coolant Ring Nozzels (4), Chip Wash Down, and Coolant Gun Spindle Air Blast Nozzles (2) and Air Gun

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
