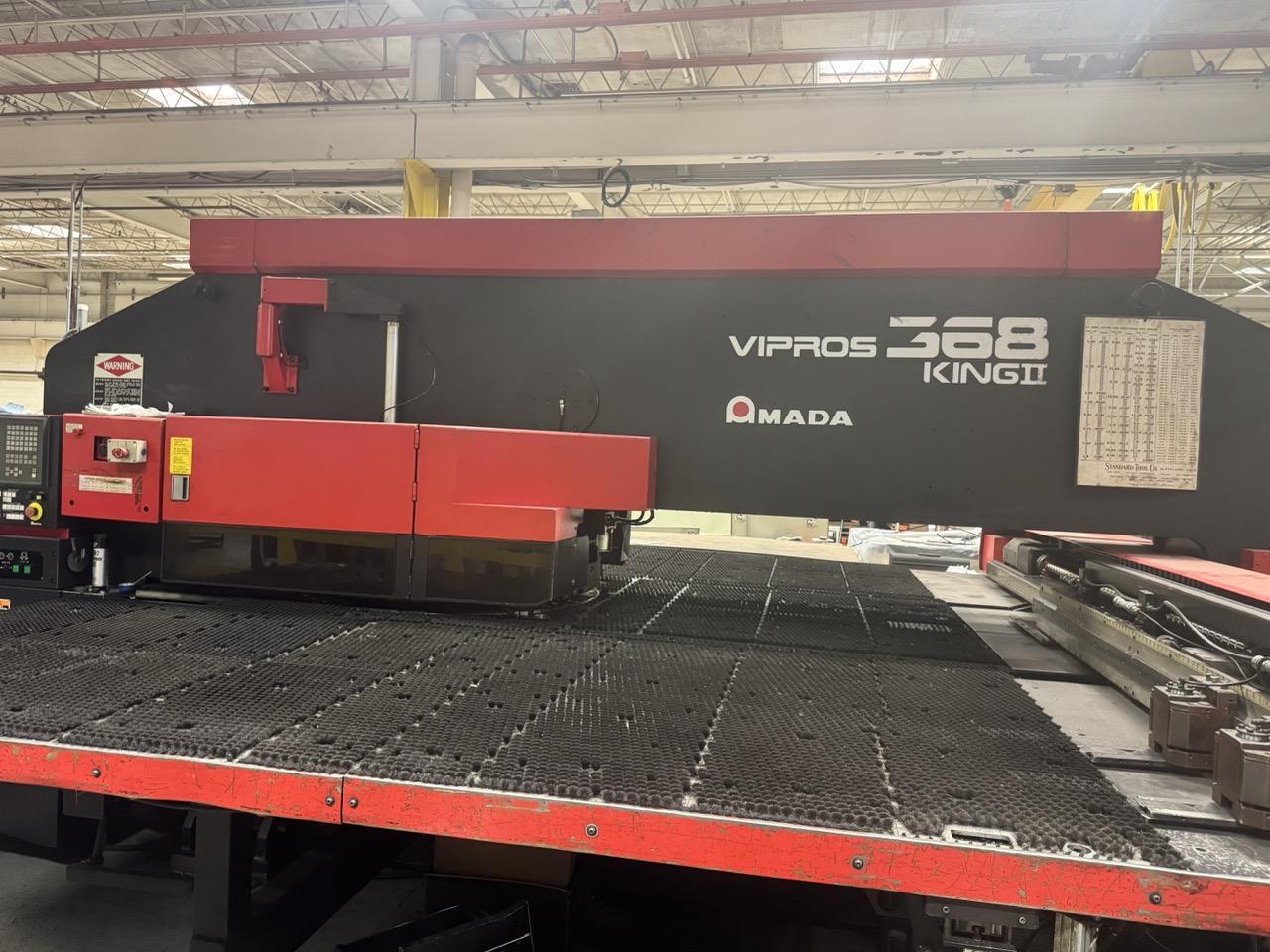

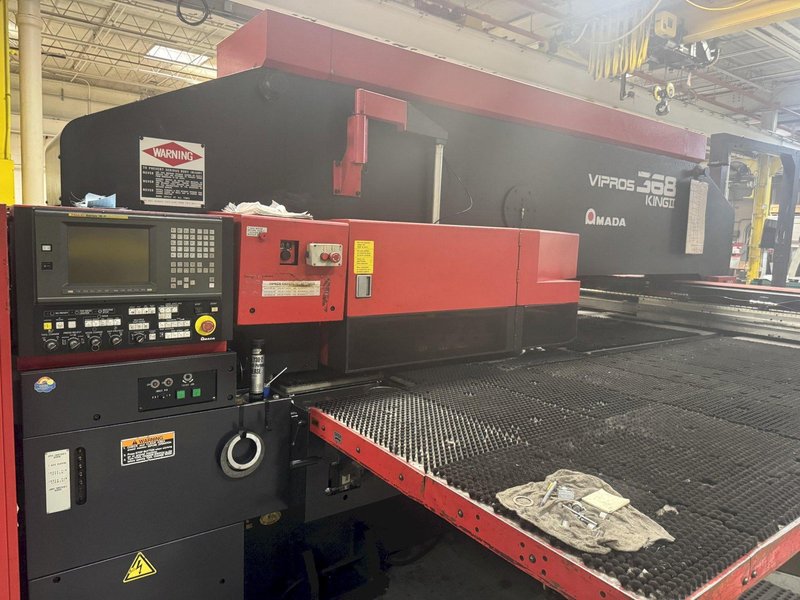

33 Ton Amada Vipros 368 King II Turret Punch, 1999 – Fanuc Control

Tonnage Capacity: 33 Tons Maximum Sheet Size: 60″ (Y) x 157.50″ (X) with repositioning Maximum Axis Travel: 60″ (Y) x 78.74″ (X) Max. Linear Table Speed: 3150″ per min. Punching Accuracy: +/-0.004″ Hole to Hole Maximum Sheet Thickness: 0.125″ Maximum Material Weight: 132 lb. Press Stroke: 1.575″ Maximum Hole Diameter: 4.5″ Tool Type: Amada Thick Turret Turret Rotation Speed: 30 RPM Turret Capacity: 58 Stations (4 auto-index) Minimum Command Unit: 0.001″ (X, Y) Minimum Travel Unit: 0.001″ (X, Y)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fanuc Series 18-P Control
