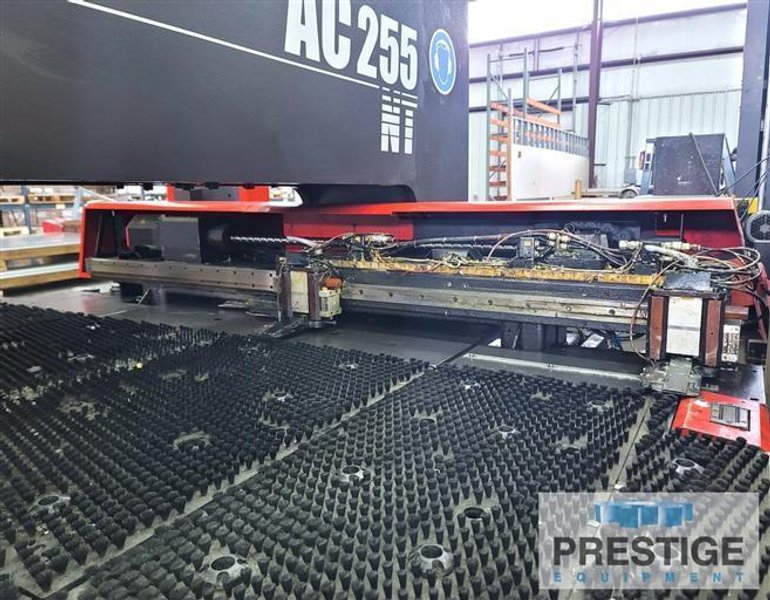

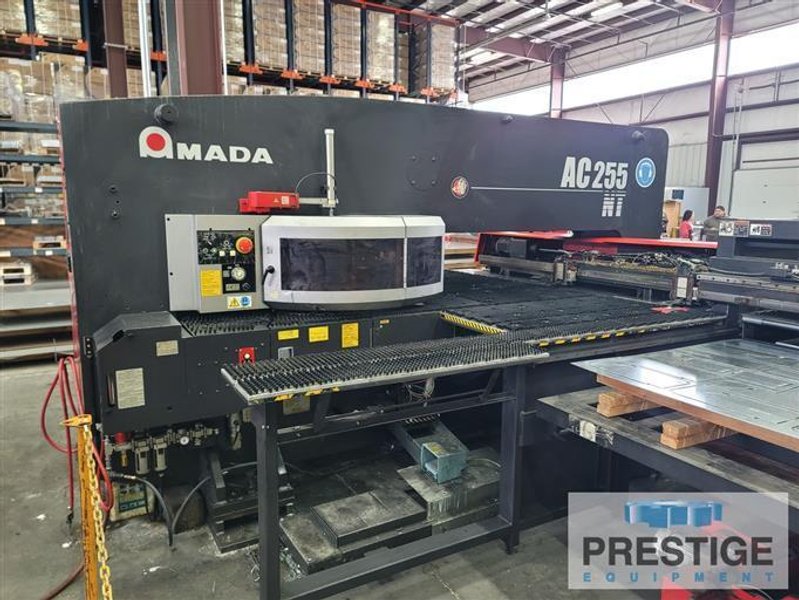

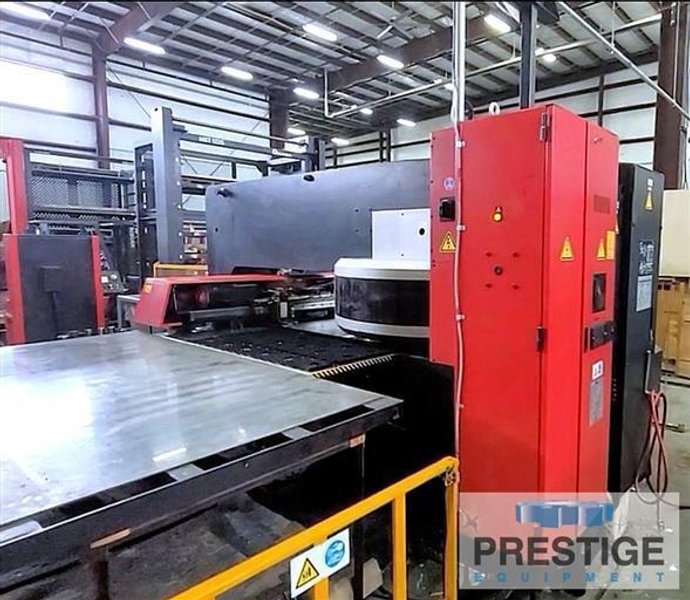

AMADA AC 255NT 22 Ton CNC Servo Electro Turret Punch
Brand
Category
Type
Model
AC255NT
Stock #
44590
Year
2008
Condition
Not specified
Location
Not specified
|
CAPACITY:
Tonnage Capacity 22 Tons Table Travel 50" x 50" Maximum Material Thickness 1/8" Maximum Punch Diameter 3-1/2" Hit Rate 480 HPM Hit Rate 1" Pitch 370 HPM Marking Speed 900 HPM X-Axis Positioning Speed 3,950 IPM Y-Axis Positioning Speed 2,362 IPM Stroke Length 1.65" Approximate Machine Weight 26,437 Lbs Equipped With: Fanuc AMNC-NT CNC Control & Digital AC Servo Drives AC Servo Driven Electric Punch Drive Brush Table 51-Station Turret With (4) Auto Index Stations (No Tooling or Holders Included) Auto Sheet Repositioning |
