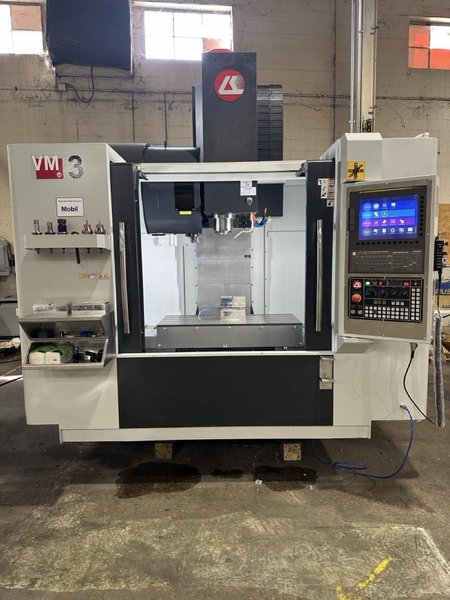

LK Machinery VM3 CNC VMC, 2024 – Never Put Into Production, Brand New Discounted Price
Brand
Category
Model
VM3
Stock #
396389
Year
2024
Condition
Not specified
Location
Not specified
|

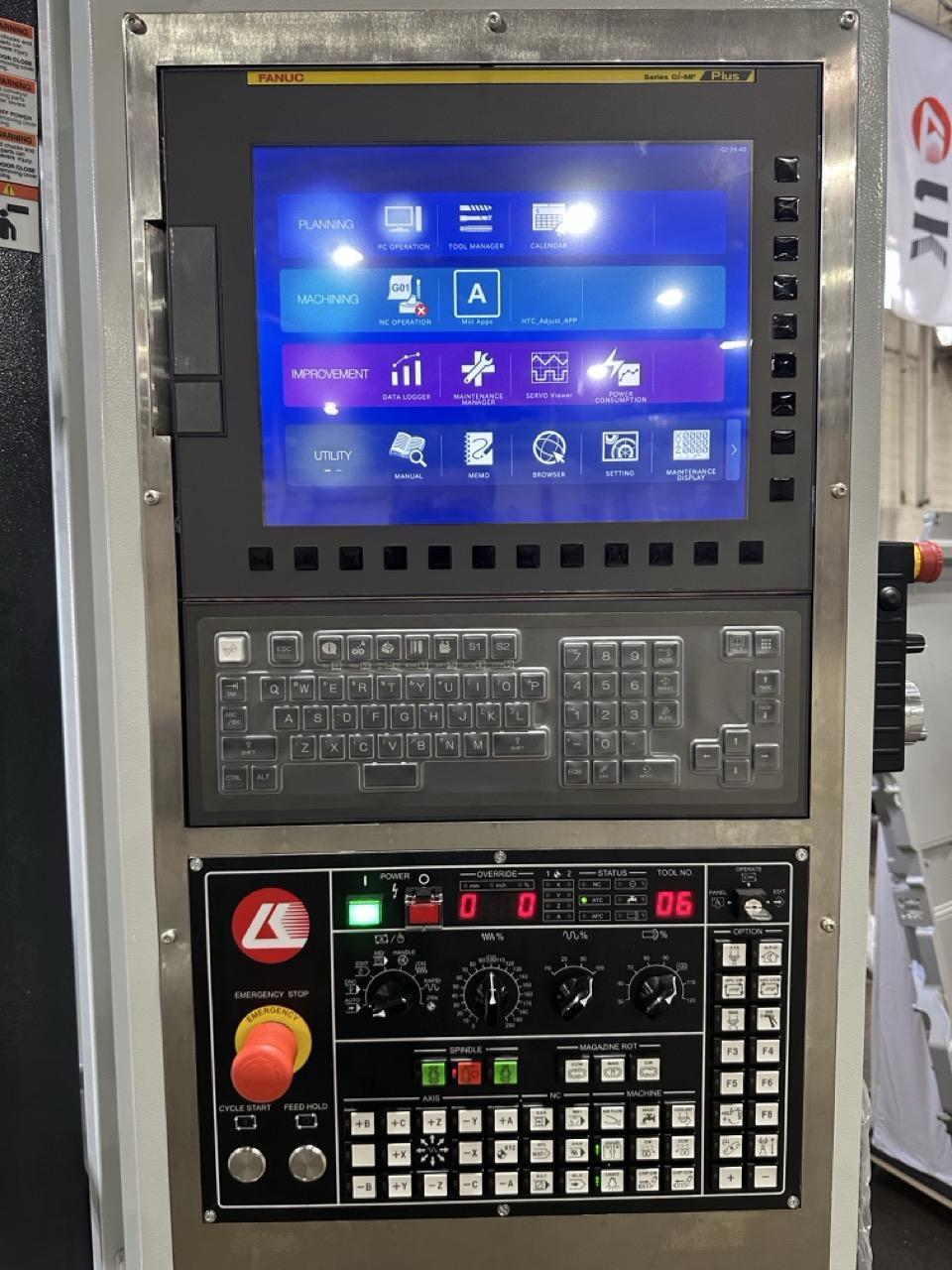

Controller (PLC) – Fanuc 0i-MF PLUS
15″ Touchable LCD Screen
Convection Heat exchanger in control box
RJ-45 Interface (for computer connection)
Automatic power off
Spindle speed: 12000 rpm, #40 DDS Type
Spindle nose : CAT-40

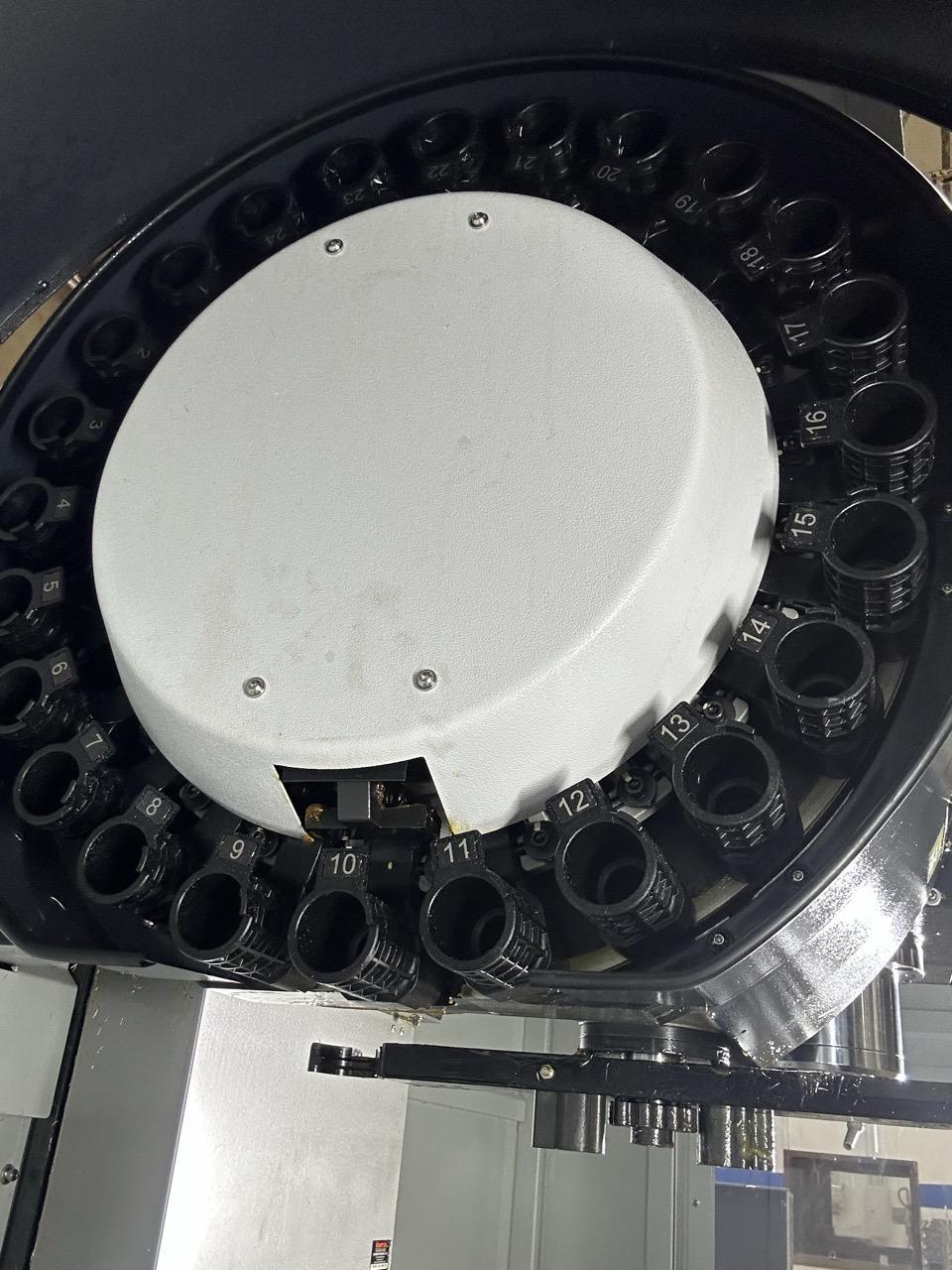

Arm type tool changer: 24 sets

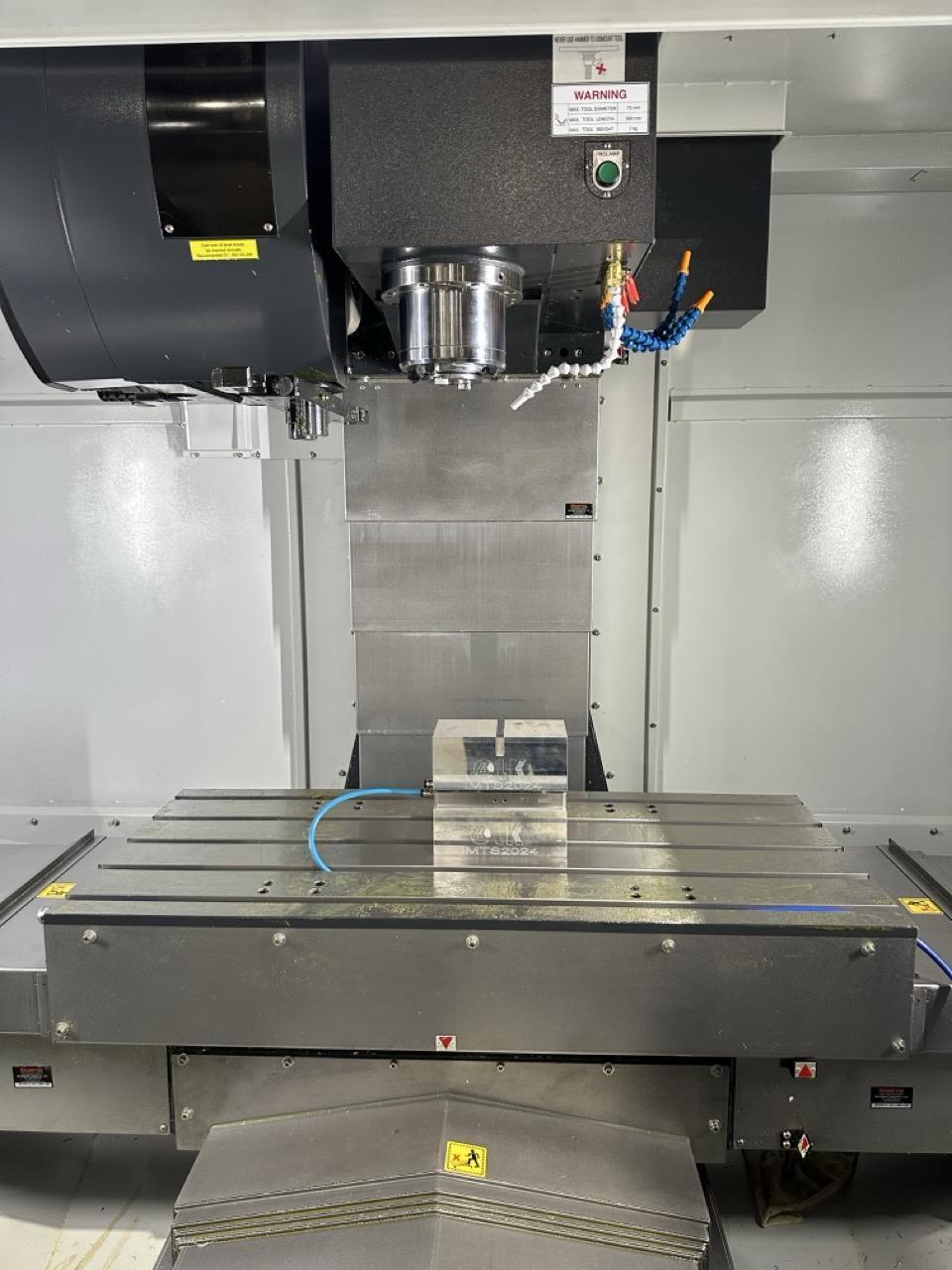

Table size: 1120 x 500 mm
Max. table load: 1000 kgs
Distance from spindle center to table surface: 100 – 710 mm
T-slot (Number*pitch): 5 * 100 mm
T-slot size: 18 mm
Travel (X/Y/Z): 1000 x 500 x 610 mm
Rapid traverse (X/Y/Z): 48/48/48 M/min.
Cutting feedrate: 1-20 m/min
Operation finish lamp

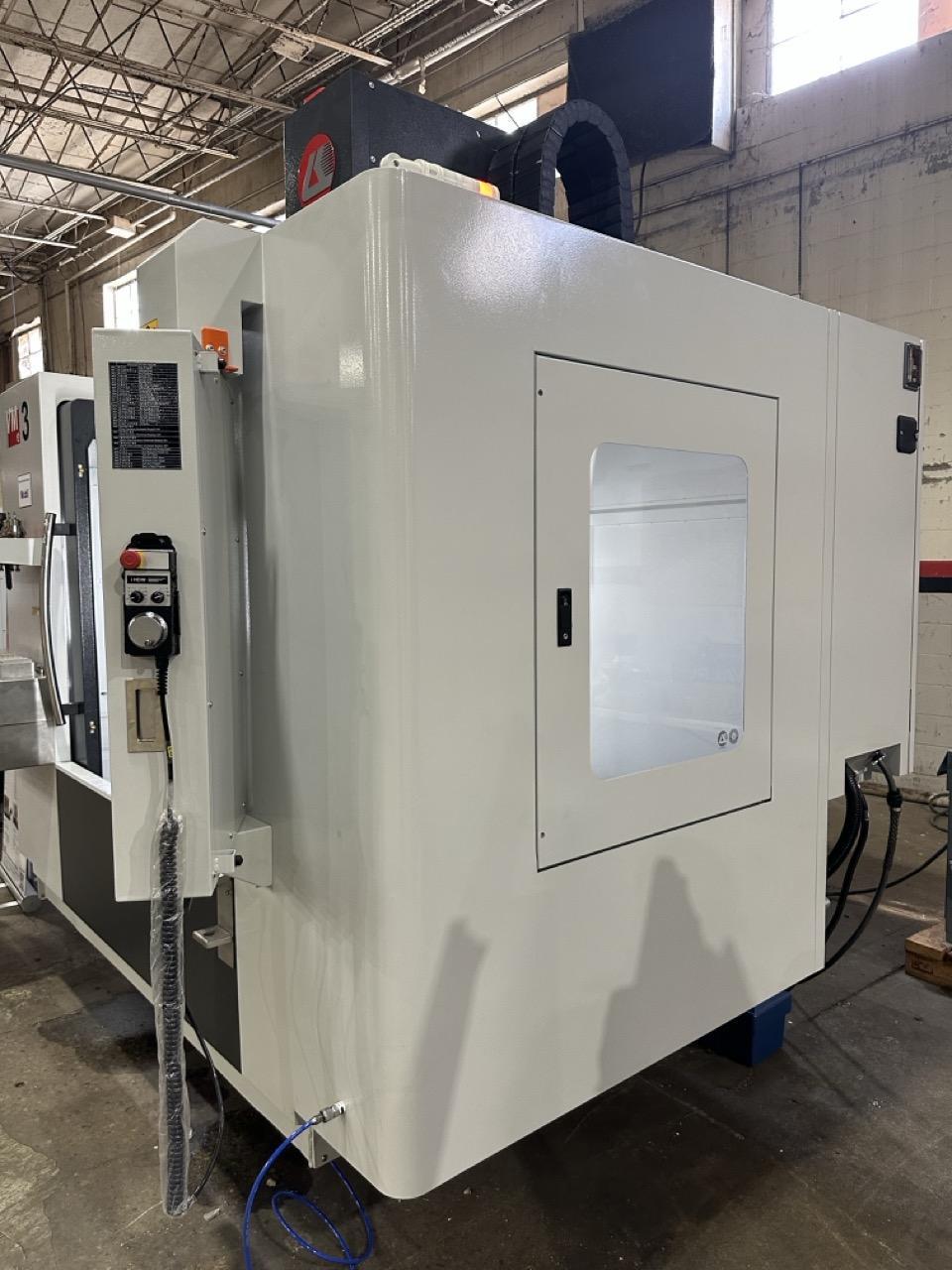

Manual pulse generator (MPG)
Automatic lubrication system
Ball type linear guideway
Rear Side Chip Removal
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
