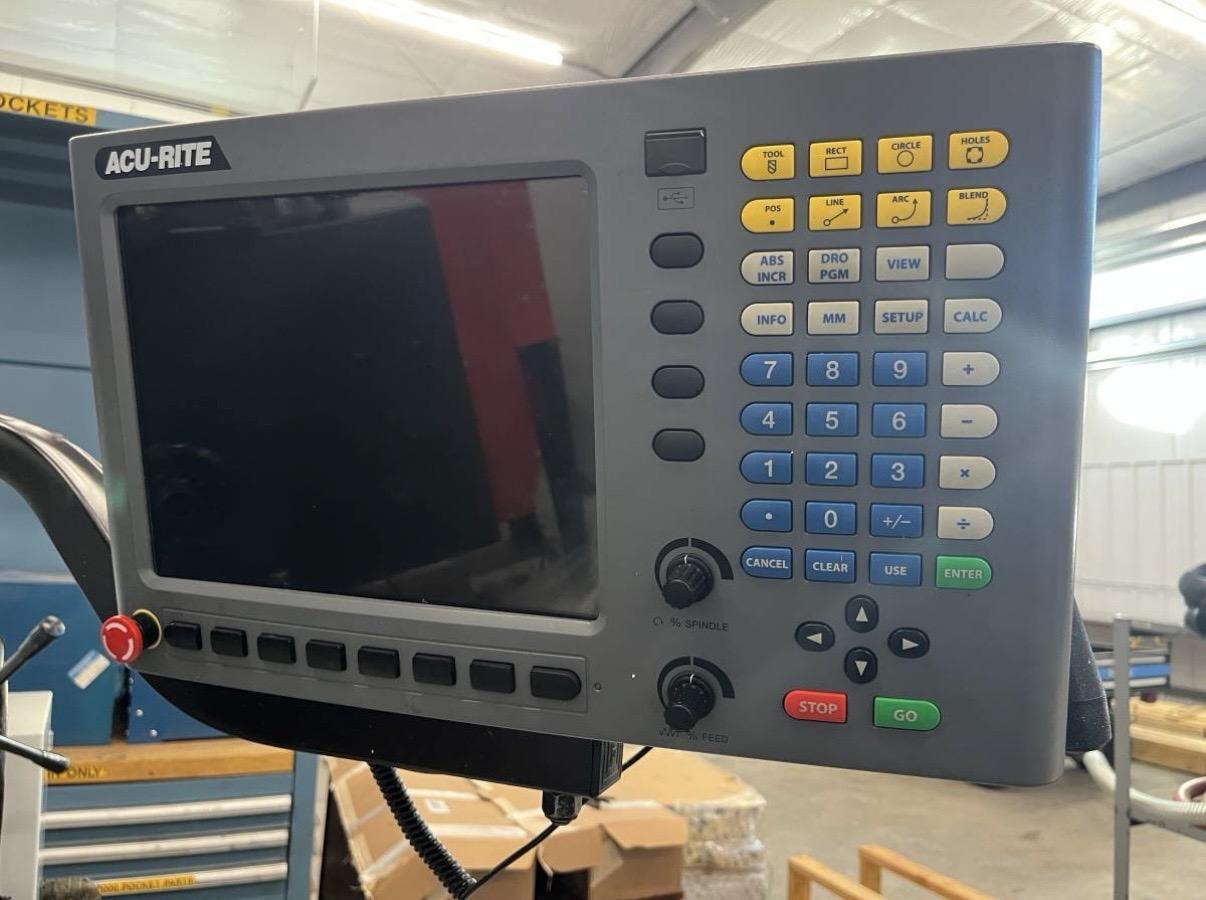

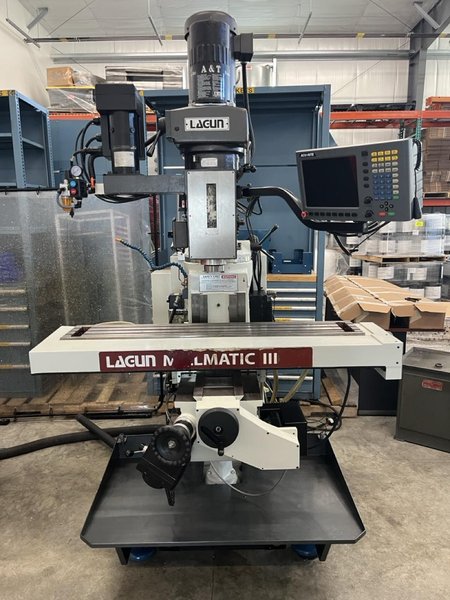

Republic Lagun MM III Manual Vertical Knee Mill, 2020 – Acu Rite DRO
Brand
Category
Type
Model
MM III
Stock #
168810
Year
2020
Condition
Not specified
Location
Not specified
|

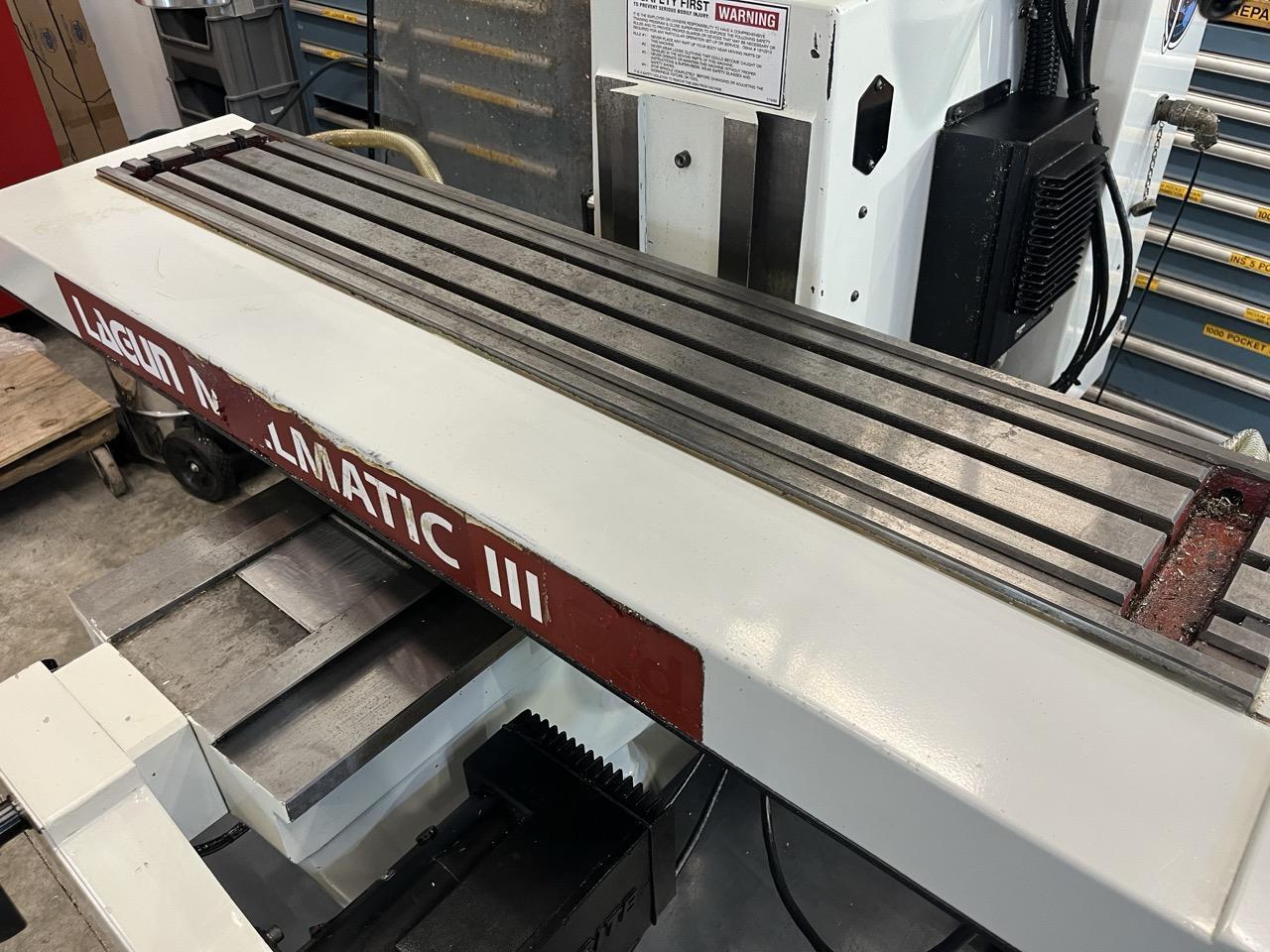

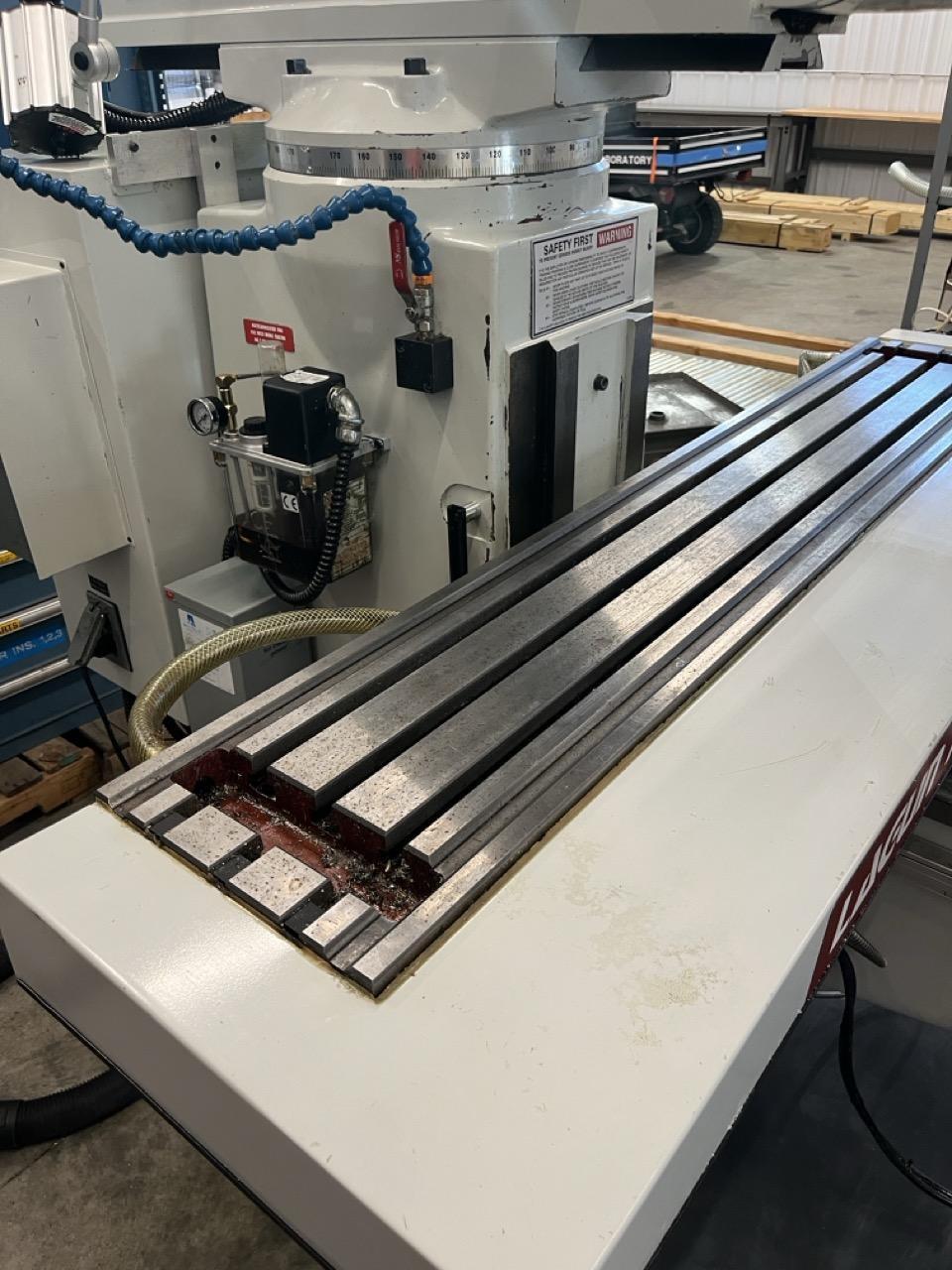

Table Size: 55.25″ x 10″
T-Slots: 3 on 2.5″ centers
T-Slot Size: 5/8″
Max Weight on Table: 750lbs
X-Axis Travel: 36″
Y-Axis Travel: 15.25″
Z-Axis Travel: 16″
RAM Travel: 22.2″
Spindle Taper: R-8
Quill Diameter: 3 3/8″
Quill Travel, Z-Axis: 5″
Main Motor: 5 hp
Electronic Variable Speed (EVS), 2 Ranges: 55 to 4,250 rpm
Head Swivel: +/- 90°
Head Tilt: +/- 45°
Distance, Spindle-Column: 5″ to 27″
Distance, Spindle-Table: 0″ to 18″
Column Turret Diameter (graduated): 15″
Knee Width: 11.5″
Knee-Column Bearing Length: 18″
Saddle & Table Bearing Length: 23″
RAM & Turret Bearing Length: 19″
RAM Total: 36″
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
