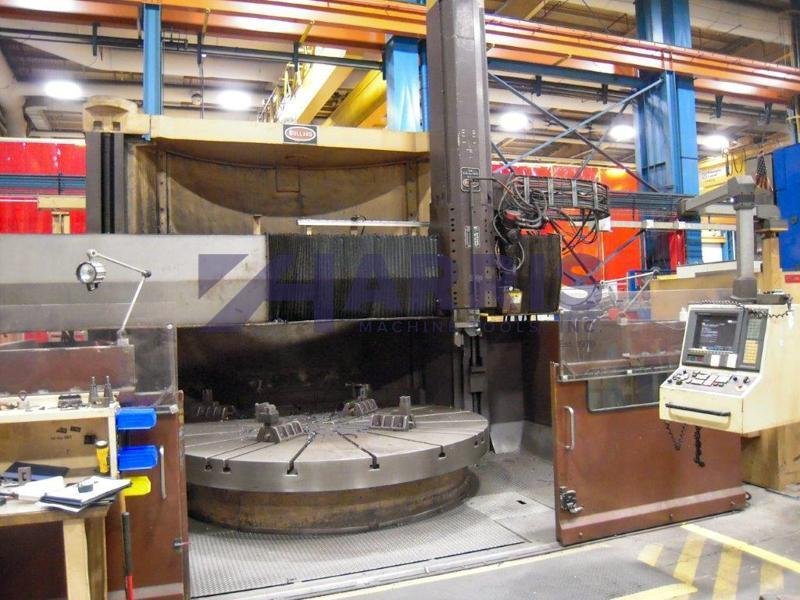

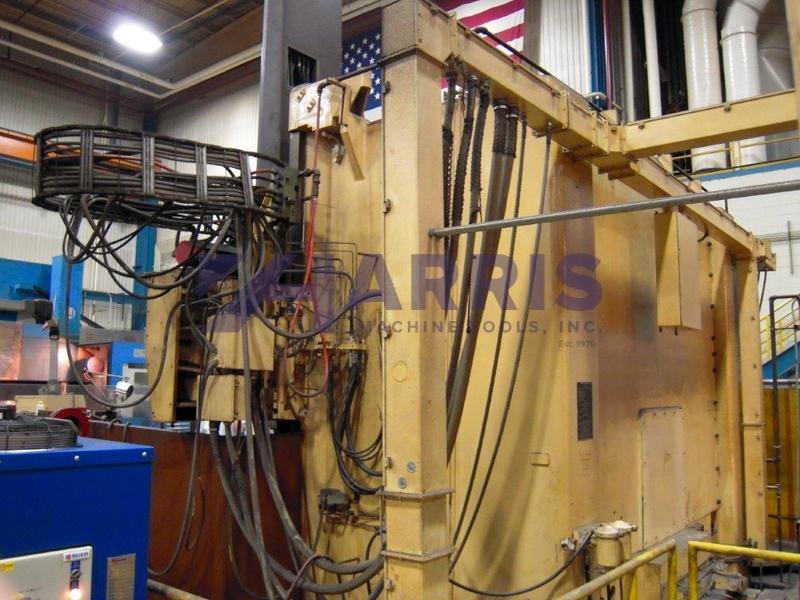

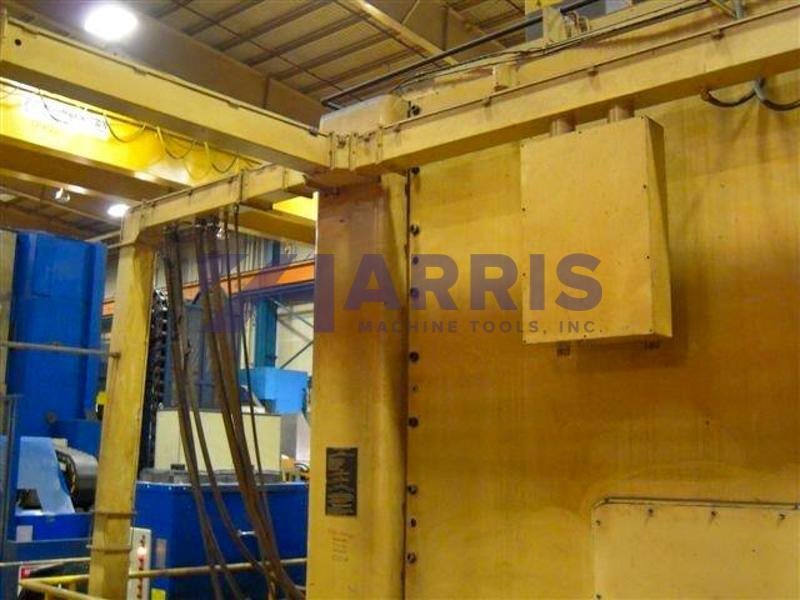

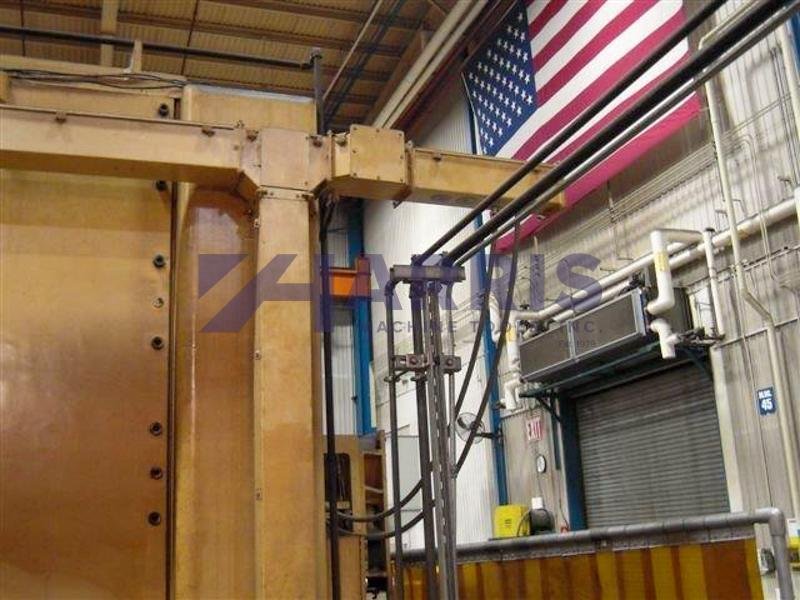

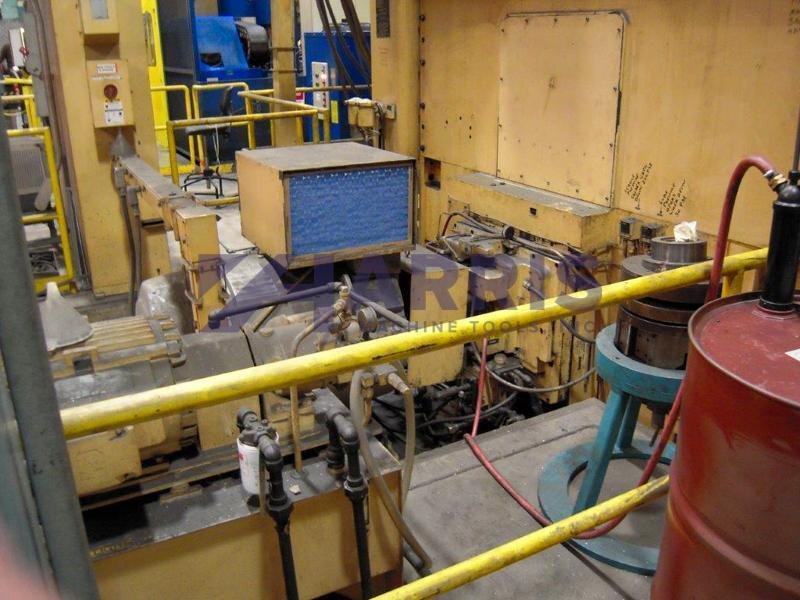

124" Bullard Dyn-au-tape 2 Axis CNC Vertical Boring Mill with Fanuc 15TT Control
Brand
Category
Model
124" DYN-AU-TAPE
Stock #
20659
Year
1972
Condition
Used
Location
Texas

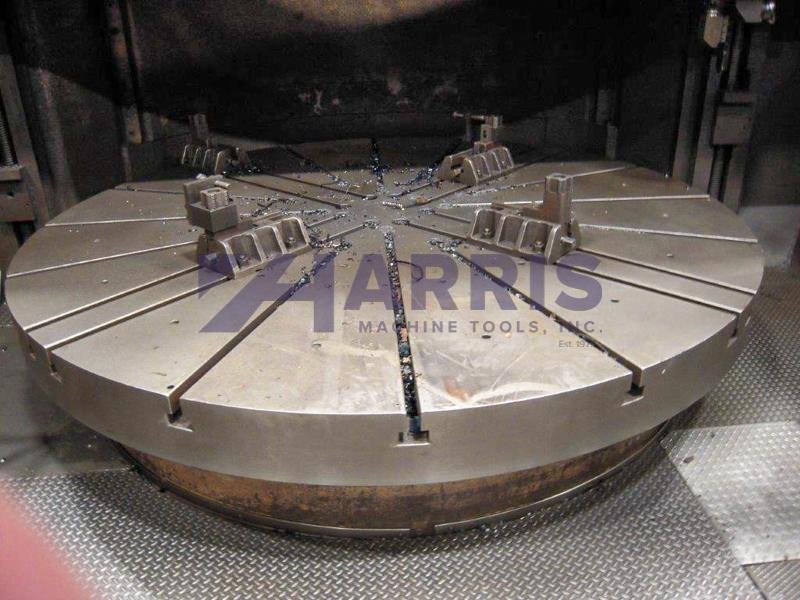

| Table Dia | 124 inches |
| Work Ht-U/R | 71 inches |
| Dimensions | 265”H x 181”W x 239”F-B |
| Weight | 192700 pounds |
| Ram Head Vertical Stroke | 71 inches |
| Ram Head Horizontal Travel | 76 inches |

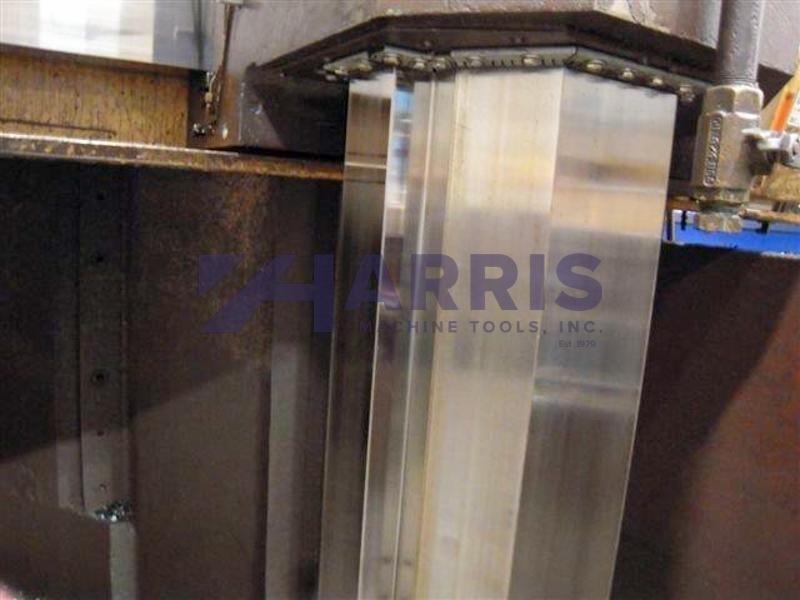

| Ram Width | 12.75 inches |
| Table Speed | .37 - 66 RPM |
| Table Capacity | Radial - 167,337 lbs. |
| Table Capacity | Thrust - 400,312 lbs. |
| Headstock | 2 Range: Constant Torque / Constant Horsepower |
| CNC Control | yes |
| Type Of CNC Control | NEW FANUC CONTROL WITH 100% MANUAL MACHINE HMI (HUMAN MACHINE INTERFACE) |

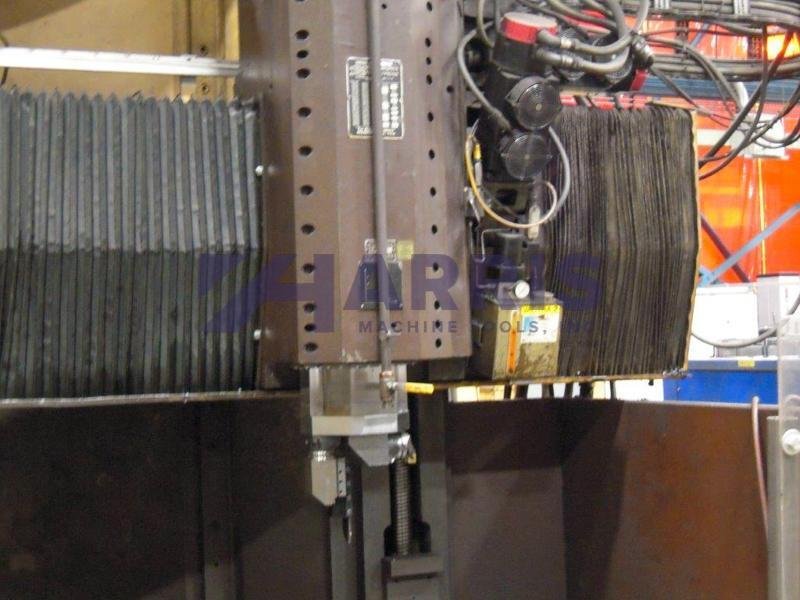

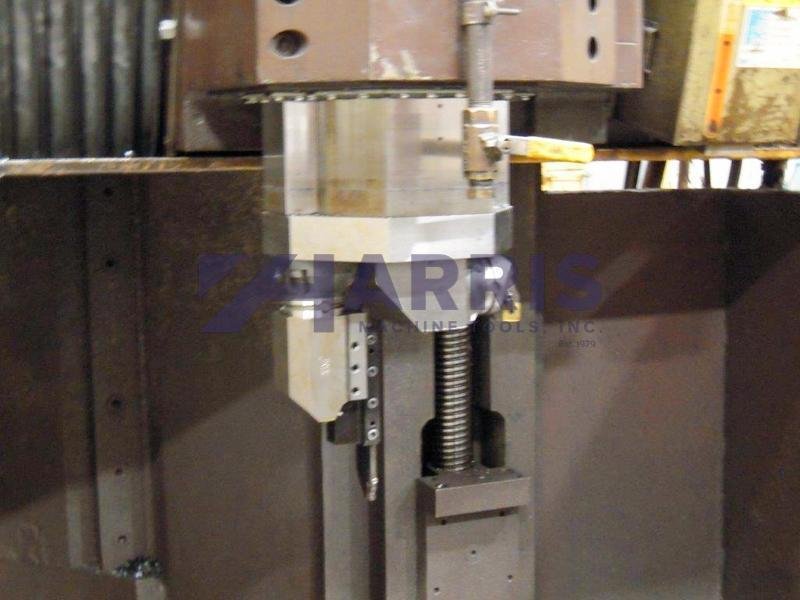

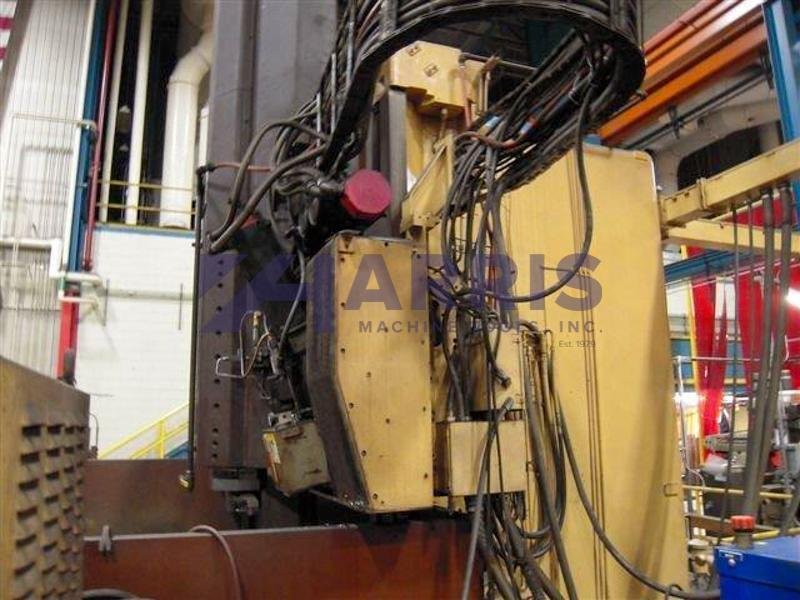

Features: Power Rail Clamping 4 Position Turret index on Ram Head

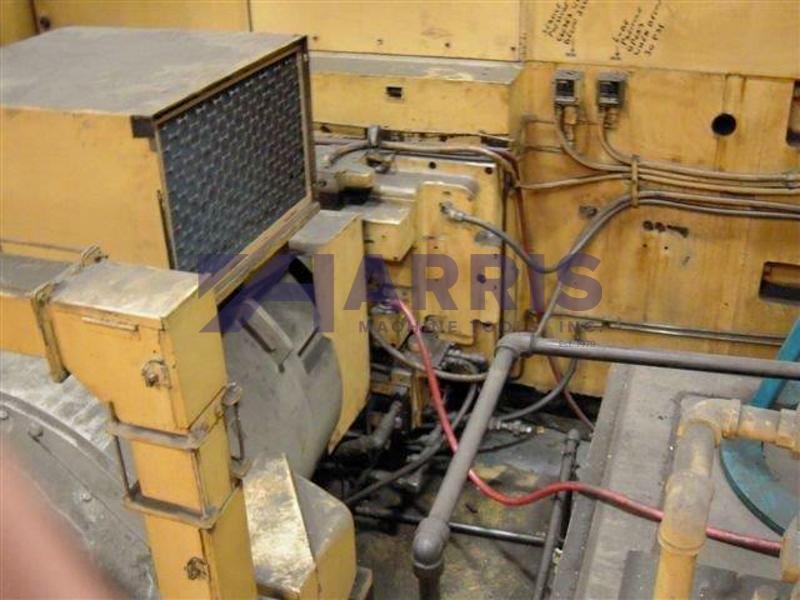

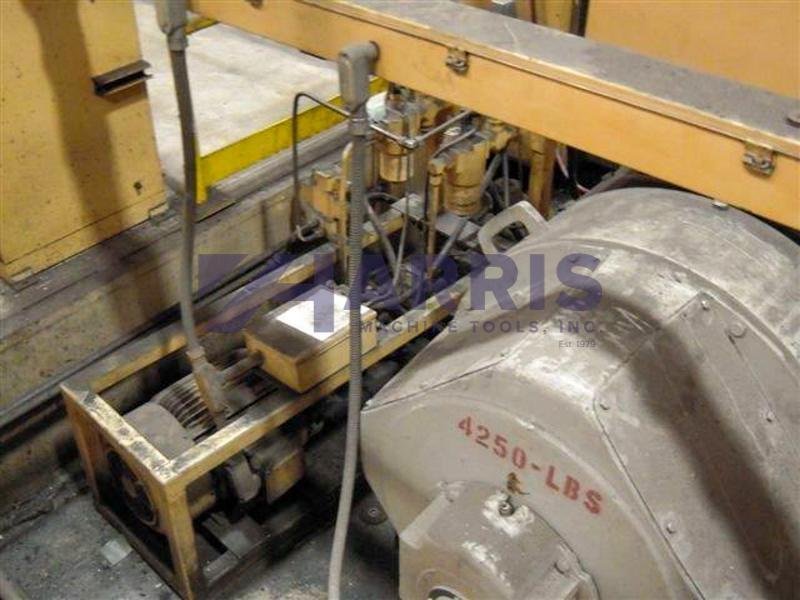

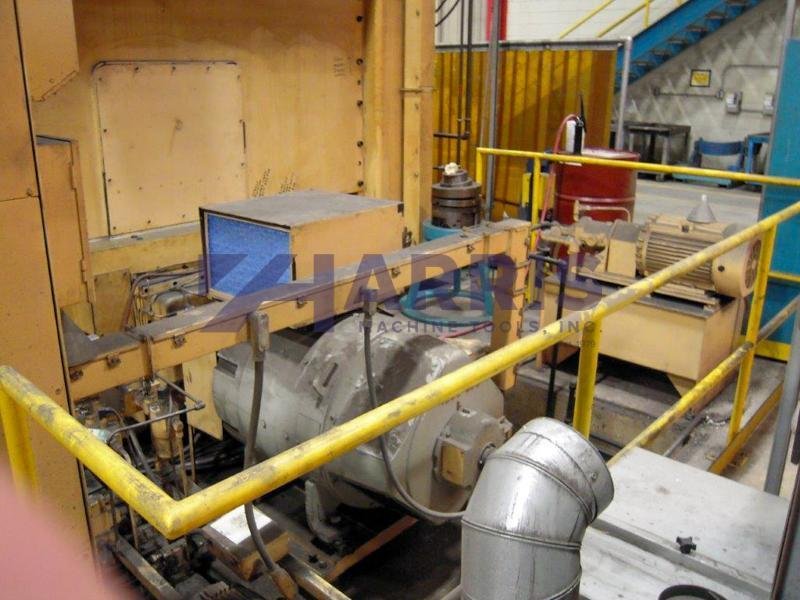

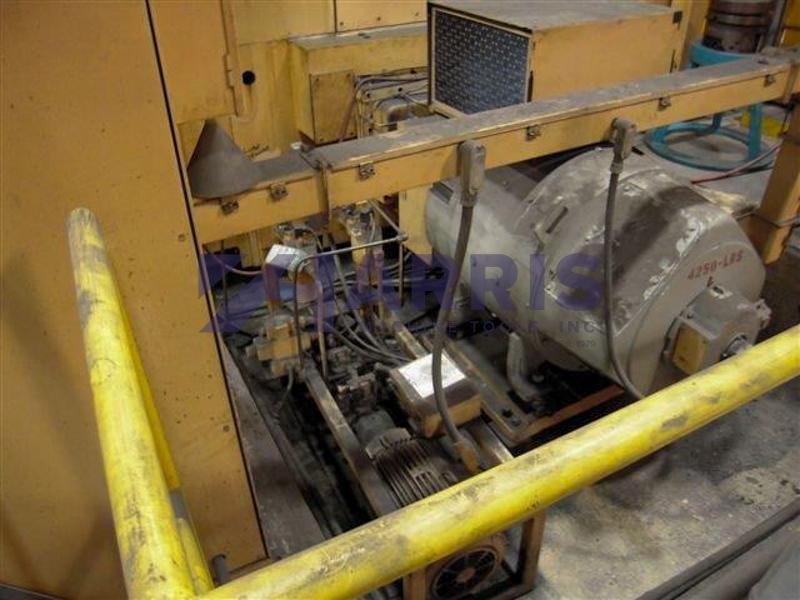

75 HP DC Motor

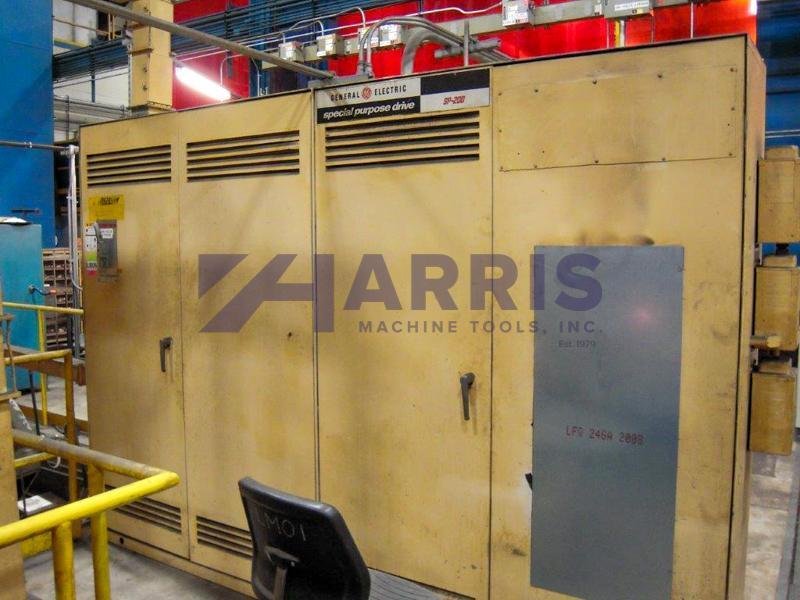

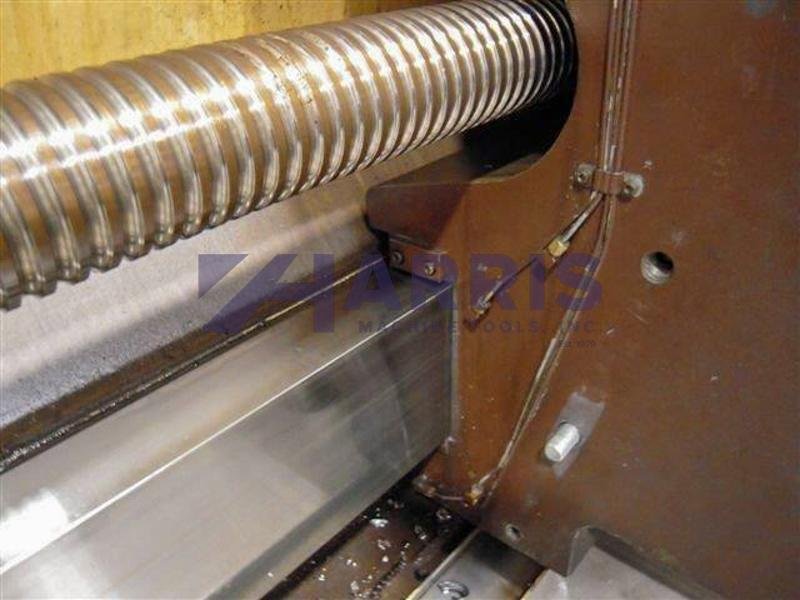

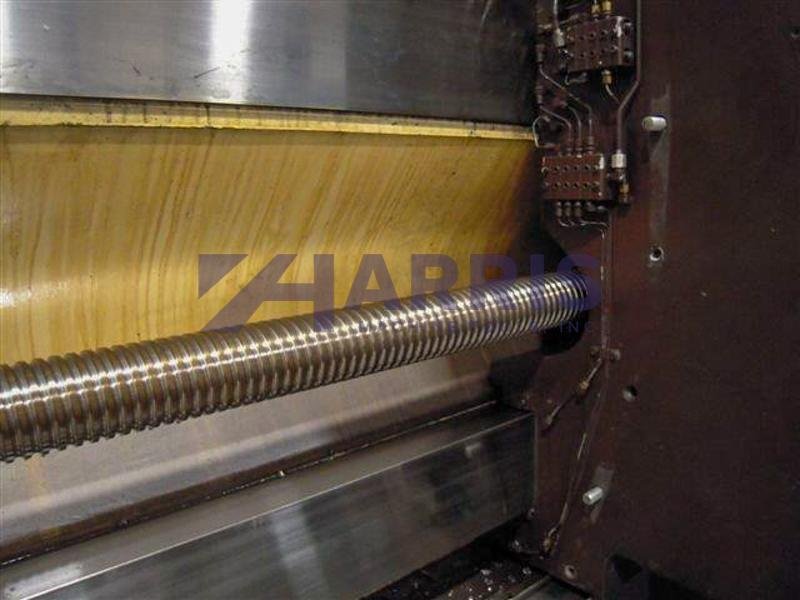

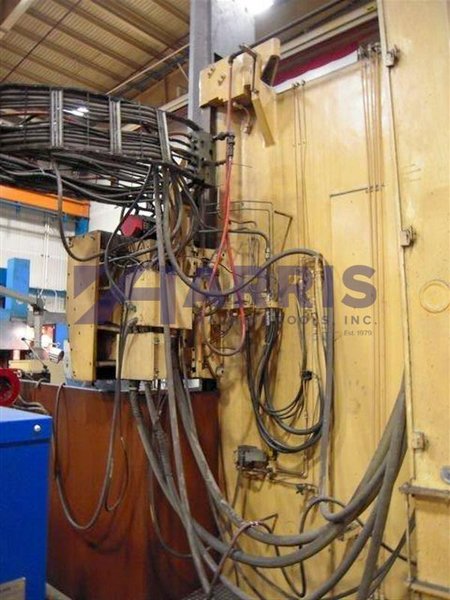

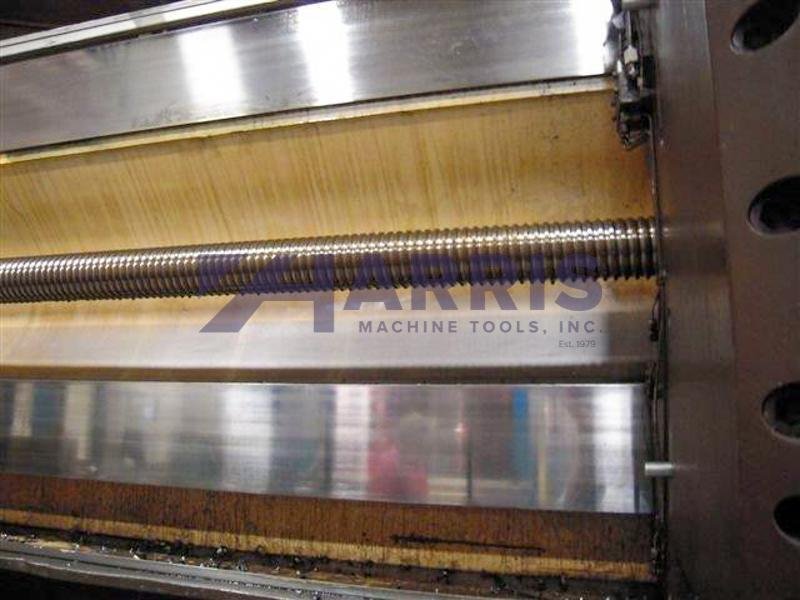

Brief Scope of Work: Rebuild Main table drive motor and install new DC Variable speed Drive. Check and repair or replace as needed all table, transmission and way lubrication systems. Check repair or rebuild as needed X and Z axis ball screws and drive systems. Install all new Electrical system and wiring. New Fanuc CNC control with 100% manual machine operation panel whereby the Fanuc digital feedback is used as DRO system and the machine can function 100% manually via conventional table start/stop, axis movement via joystick control with feed rate override and rapid traverse functions. The Fanuc control provides an incredibly robust and proven back end as well as the capability to run the machine fully CNC in the future. More Detailed scope of work available on request. |
|
