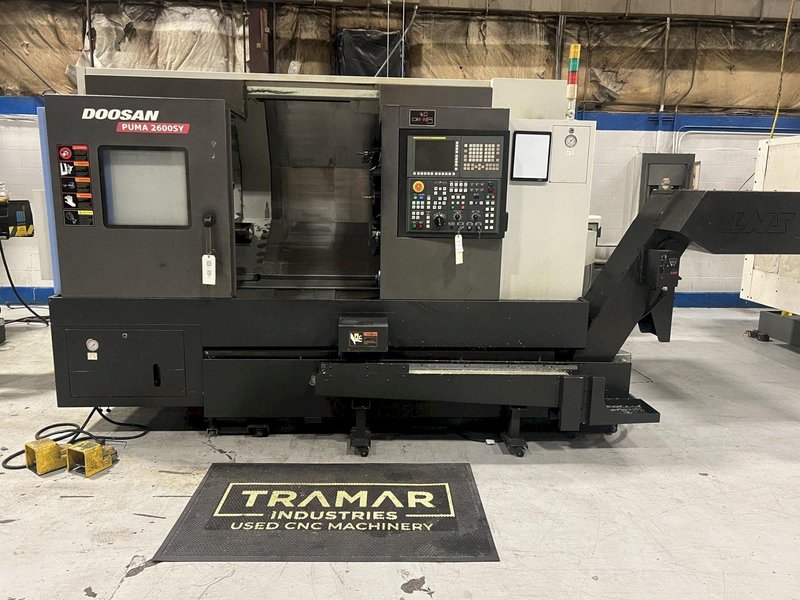

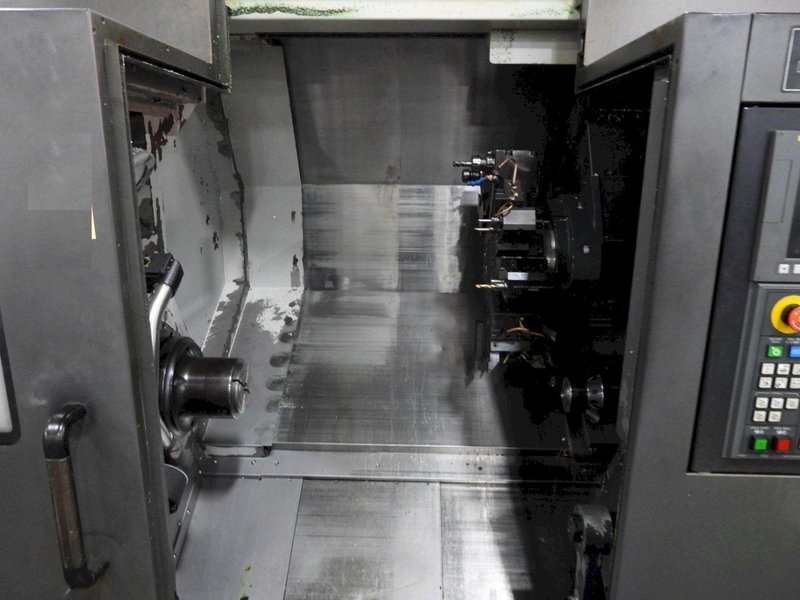

2011 Doosan Puma 2600SY CNC Lathe For Sale
Brand
Category
Model
Puma 2600SY
Stock #
15065
Year
2011
Condition
Used
Location
Not specified
| CNC Control | yes |
| Type Of CNC Control | Fanuc 31i-Model A |
| Swing | 30.7 inches |
| Turning Diameter | 14.8 inches |
| Center Distance | 28.5 inches |
| Chuck Size | Collet |
| Bar Capacity | 3 inches |
| X Axis Travel | 10.2 inches |
| Z-Axis Travel | 32.7 inches |
| C Axis Index | 0.001° |
| Rapid Traverse Rate (X/Y/Z) | 1181/394/1181 ipm |
| Spindle Nose | A2-8 |
| Spindle Speed | 4,000 rpm |
| Main Motor | 30 hp |
| Live Tooling | yes |
| Live Tooling Speed | 5,000 rpm |
| Live Tooling Motor | 7 hp |
| Tailstock | no |
| Y Axis | yes |

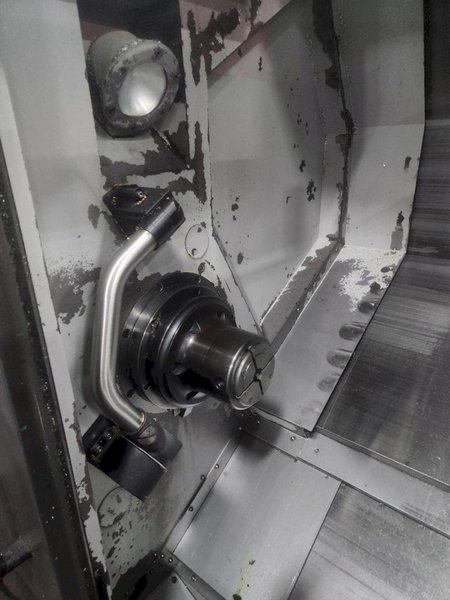

| Sub Spindle | yes |
| Sub Spindle Nose | A2-5 |
| Sub Spindle Chuck | Collet |
| Sub Spindle Speed | 4,500 rpm |
| Sub Spindle Motor (HP) | 10 hp |

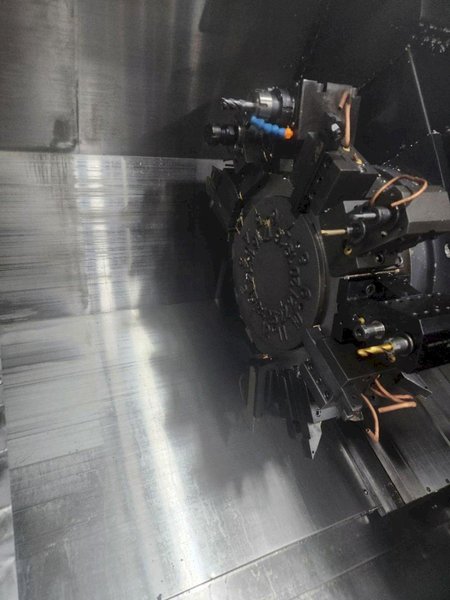

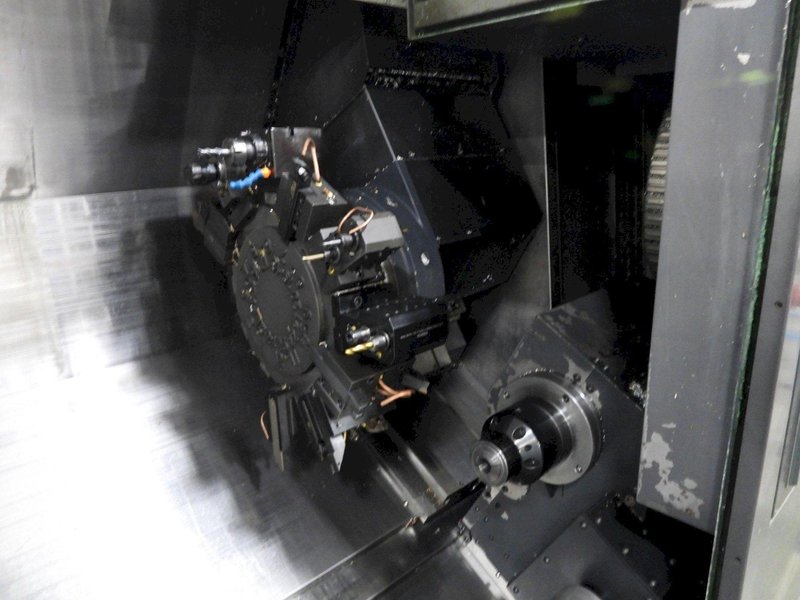

| Turret Capacity | 24 Stations |
| Machine Dimensions | 145" x 74" x 86" |
| Machine Weight | 14190 pounds |
|

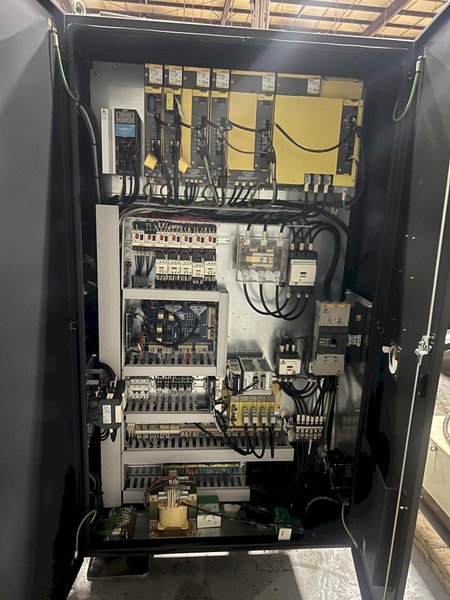

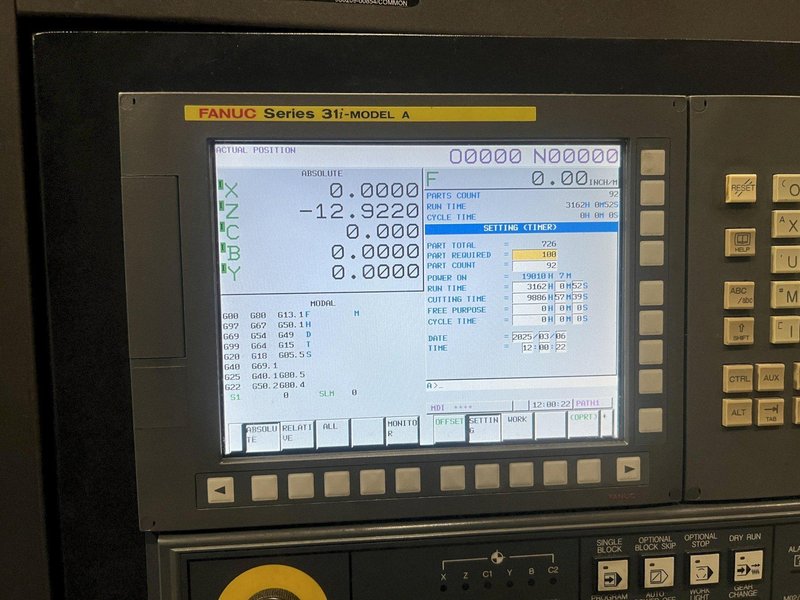

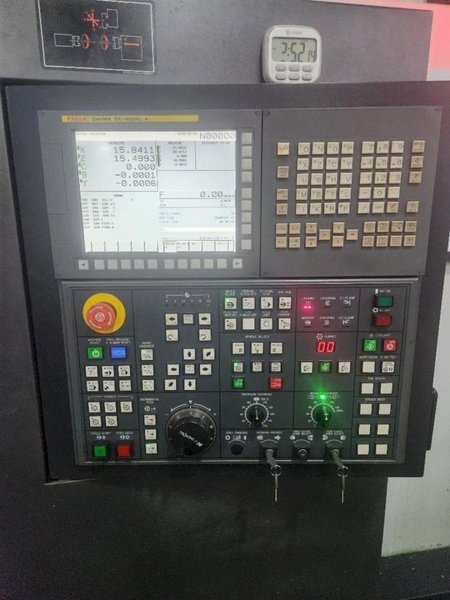

- Fanuc 31i-Model A CNC Control

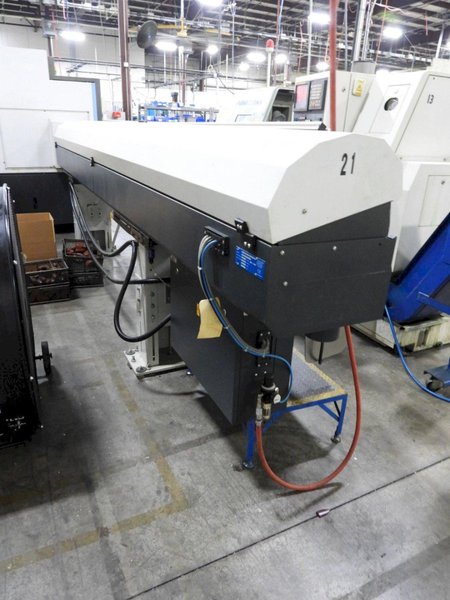

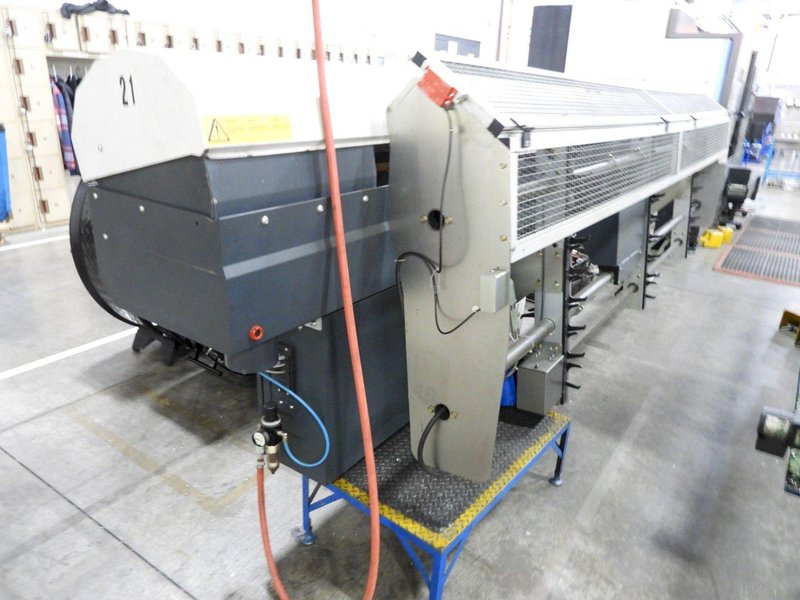

- Chip Conveyor - Coolant Tank & Pump - Parts Catcher - Parts Conveyor - Tool Presetter - Auto Tool Length Measurement - Live Tooling (4 live holders) - Sub Spindle - Y Axis - Embedded Ethernet - Rigid Tapping - 12' LNS Sprint 565 Bar Feeder |
|
Watch 2011 Doosan Puma 2600SY CNC Lathe For Sale
