DMG Mori NLX 4000AY/1500 CNC Lathe, 2018

DMG Mori NLX 4000AY/1500 CNC Lathe, 2018

Brand

DMG MORI

Overview

Type:

CNC Lathes

Manufacturer:

DMG MORI

Model:

NLX 4000AY/1500

Year:

2018

Stock #:

51763

Status:

For Sale

Specifications

ImperialMetric

Swing	39.4"	1,000.8 mm
Max. Turning Length	61.1"	1,551.9 mm
Max. Turning Diameter	19.7"	500.38 mm
X-Axis	12.8"	325.12 mm
Y-Axis	4.7" +/- 2.4"	4.7" +/- 2.4"
Z-Axis	66.3"	1,684 mm
Rapid Traverse X-Axis	1181 ipm
Rapid Traverse Z-Axis	393 ipm
Bar Capacity	4.6"	116.84 mm
Spindle Nose	JIS-A2-15	JIS-A2-15
Power	50 hp	37.3 kW
Max RPM	1,500 RPM	1,500 RPM

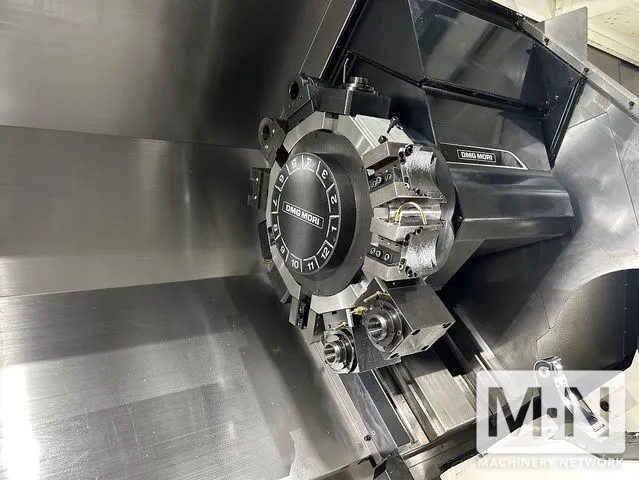

Turret Stations	12	12
Tool Size	1-1/4"	1-1/4"

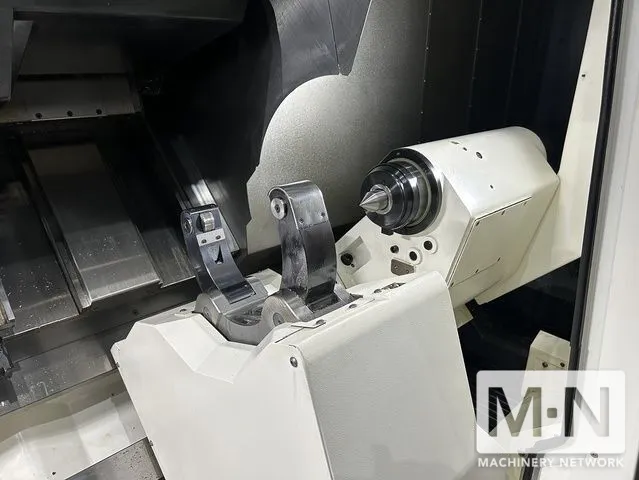

Tailstock	Yes	Yes
Cut Hours	1,800 hr.	1,800 hr.
Dimensions	243" x 98" x 99.8" H	243" x 98" x 99.8" H
Weight	30,580 Lbs	30,580 Lbs

Equipped With:

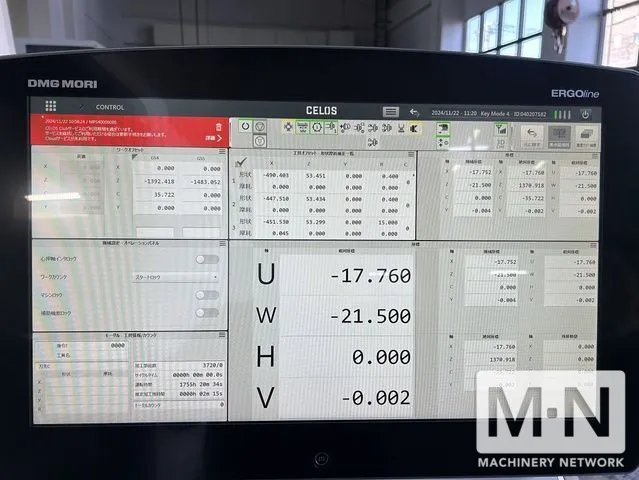

Celos Mitsubishi M370UM CNC Control
Hydraulic Steady Rest
Coolant System
Chip Conveyor
Tool Presetter

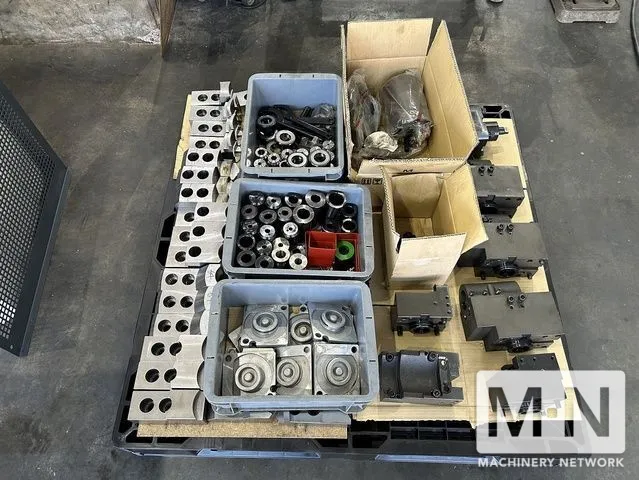

4-Live Milling Tool Holders
2 Boring Bar Holders
