Tonnage | 500 metric-tons |
Shut Height | 290 millimeters |
Vari Speed (Yes/No) | yes |
Bed W | 600 millimeters |
Bed L | 1100 millimeters |
Crank (Single/Double) | double |
Air Clutch (Yes/No) | yes |

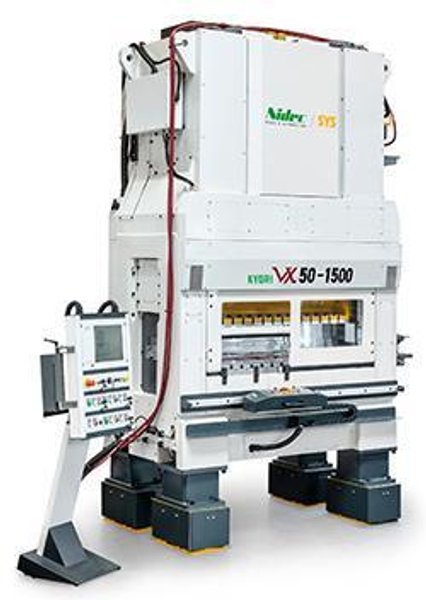

Technical specification:
tonnage: 500 KN
drive: flywheel with dynamic balancer
feeding direction: left to right (right toleft also possible)
colour: Kyori white RAL 7035
position of main drive: right
ram adjustement range: 55 mm
shut height max.: 290 mm
max. upper die weight: 300 kg - higher upper die weight is possible with reduced performance
safety doors: front and back
tool load area light: 2 LED-lights
bolster area (LxW): 1100 (1140 ) x 600 mm
bolster design: T-slot
bolster material: steel
bolster thickness: 220 mm
base plate opening (LxW): 800 x 160 mm
ram area (LxW): 1100 x 420 mm
ram design: T-slot
dimensions: 2300 x 1740mm
total height: 3780 mm
weight: (approx.) 14.000 kg
strip inlet height: has to be defined
strip inlet width: max. 280 mm
cooling system: liquid cooling system, for electrical cabinet ; AC servo main drive and machine oil
Feeding system:Tandem-Servo-Feed TPV30
Optional available: Integrated SprockedWheel |
