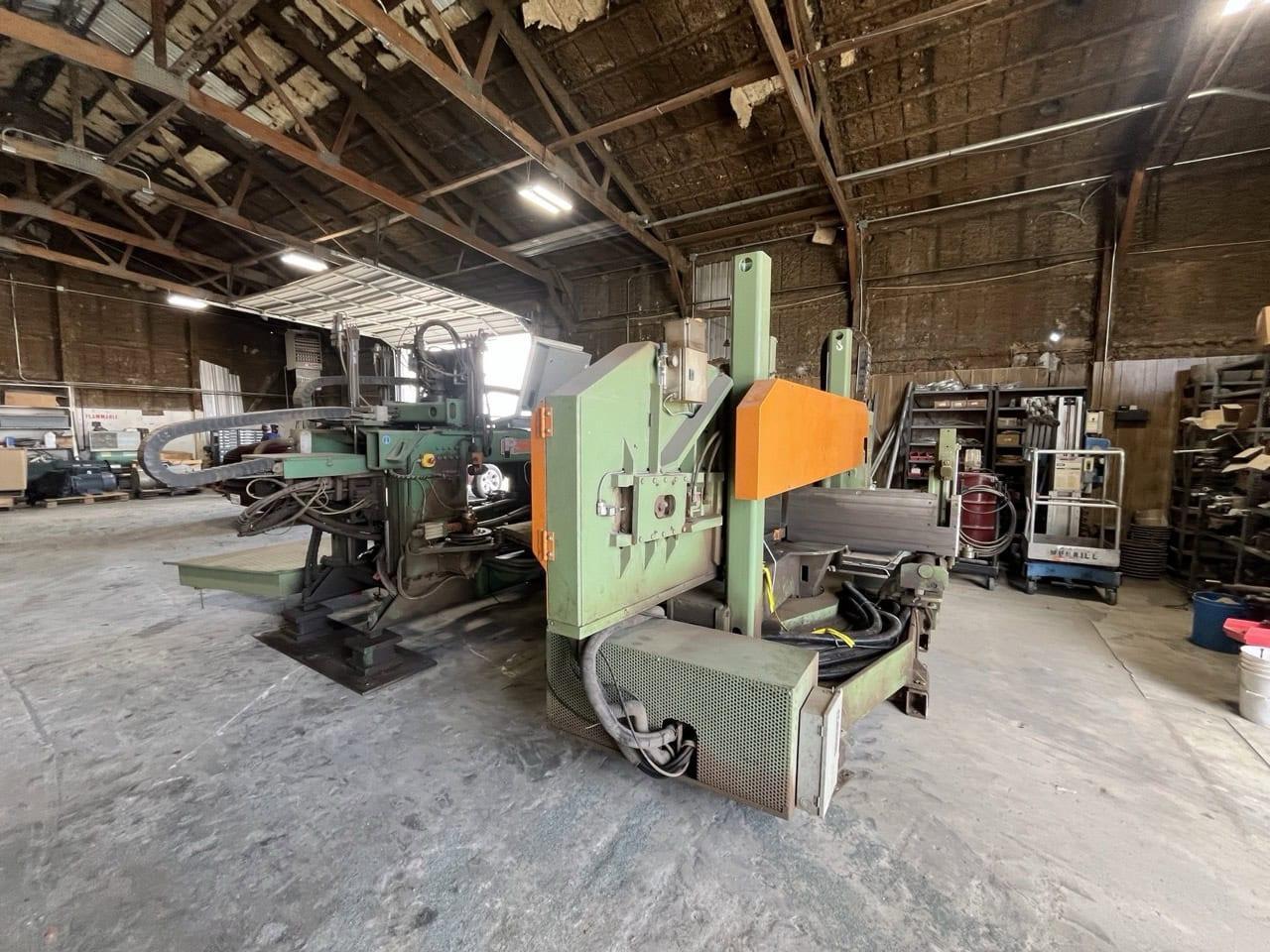

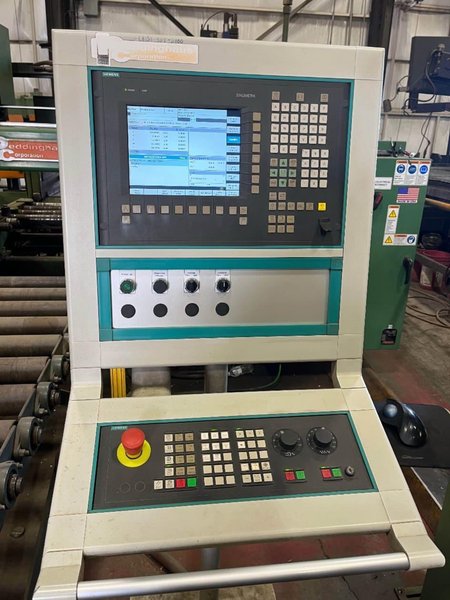

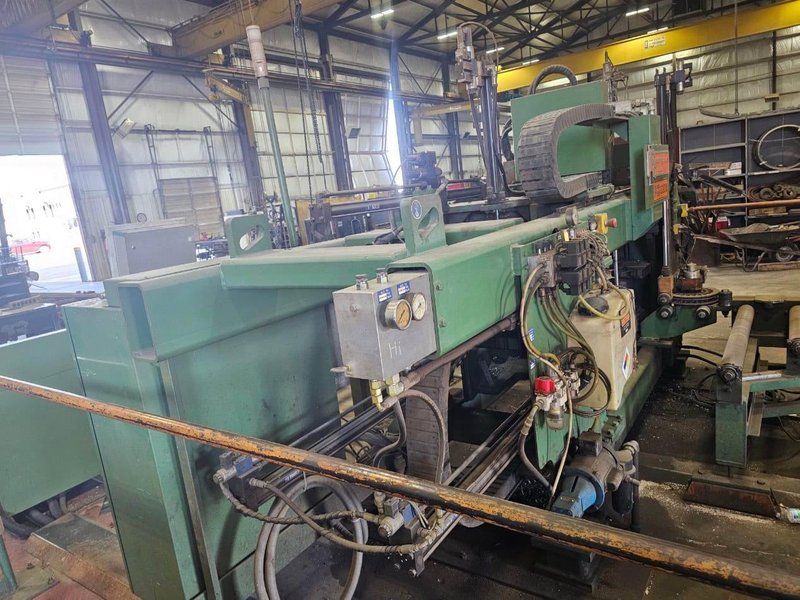

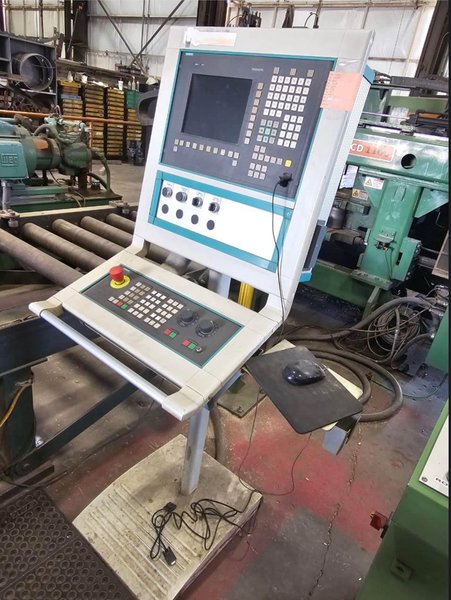

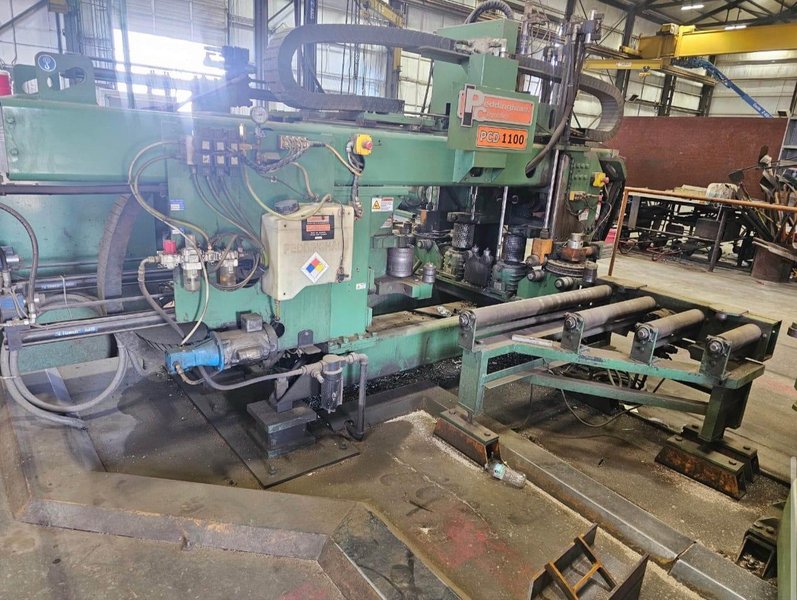

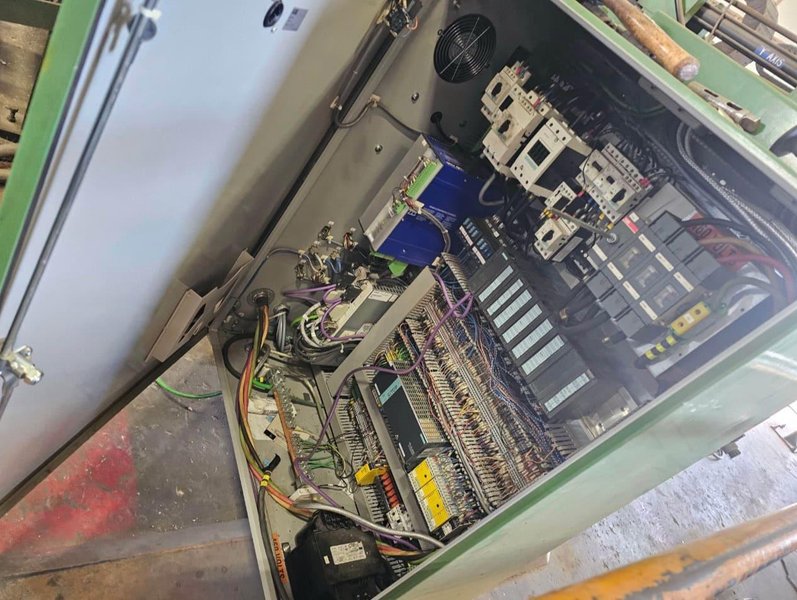

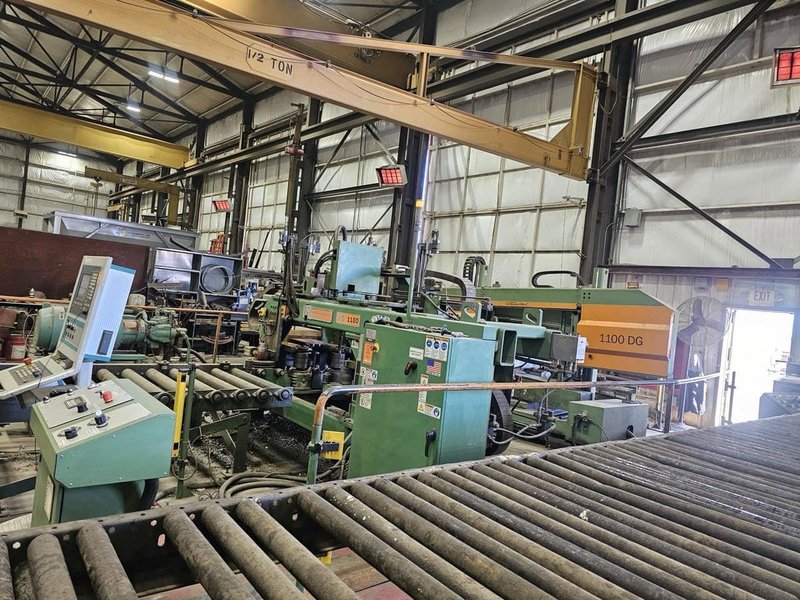

Peddinghaus PCD-1100 Beam Drill Line with 1100-510 DG Miter Saw, 2009

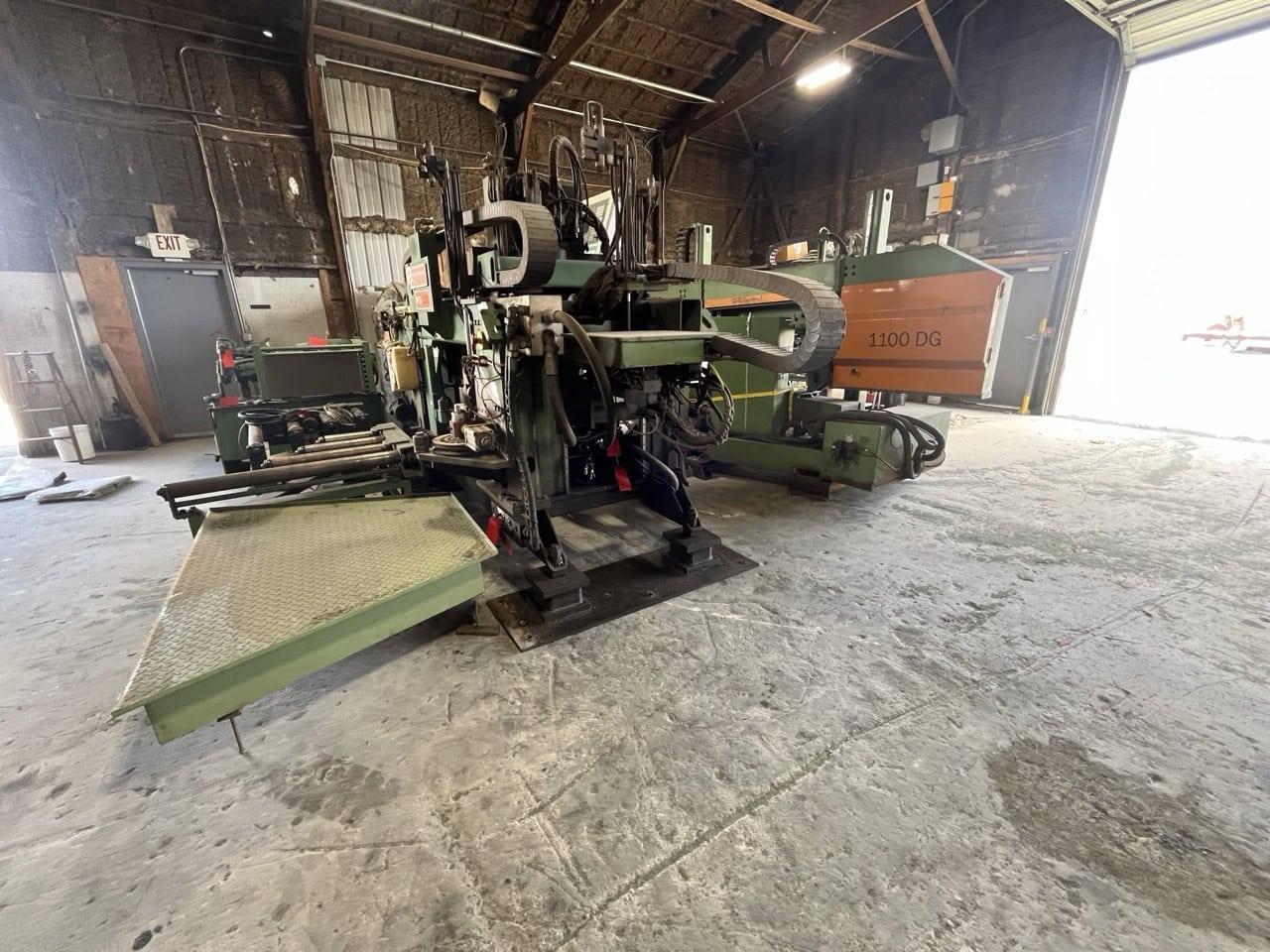

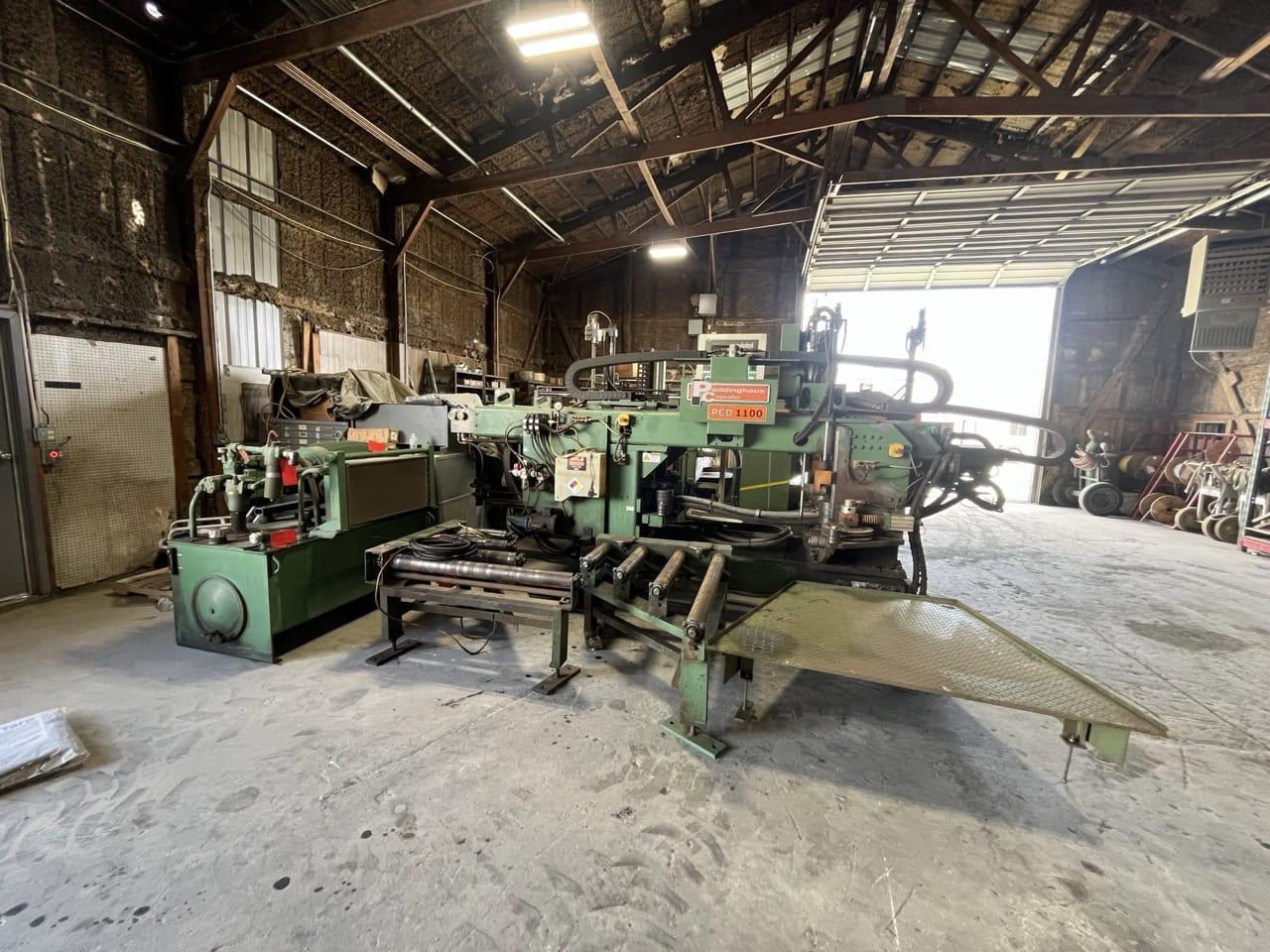

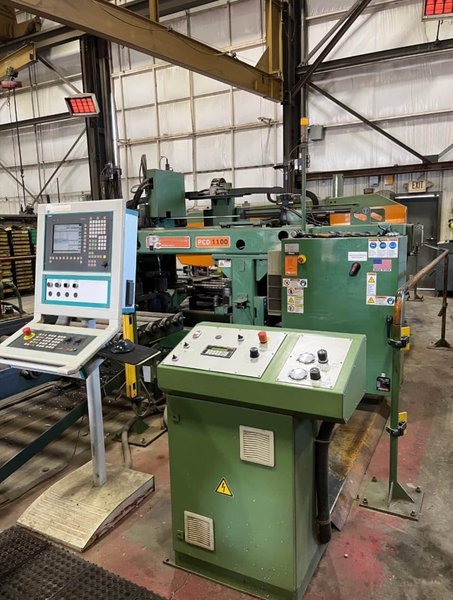

Beam Drill Line: Maximum Machining Width: 43.31″ Maximum Machining Height: 18″ Minimum Machining Width: 3″ Minimum Length of Piece Part: 62″ Minimum Bar Stock Thickness: 3/4″ Number of Drill Spindles: 3 Drill Diameter Capacity: 1-9/16″ Spindle Power: 13.5 hp Spindle Speeds: 200 – 850 rpm Spindle Stroke: 13″ Positioning Stroke on Flange Drills: 0″–18″ Positioning Stroke on Web Drill: 0″– 43.31″ X-Axis Feed Rate: 130 fpm Maximum Workpiece Weight: 18,000 lbs

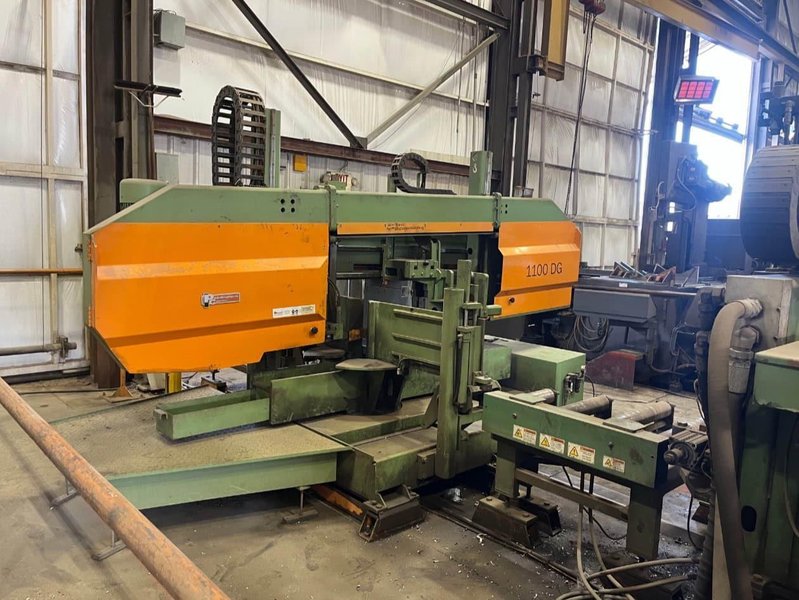

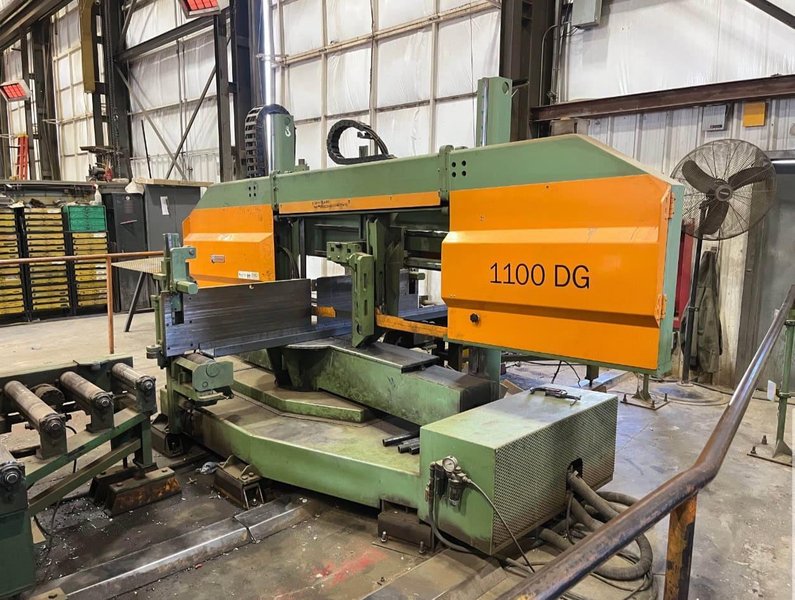

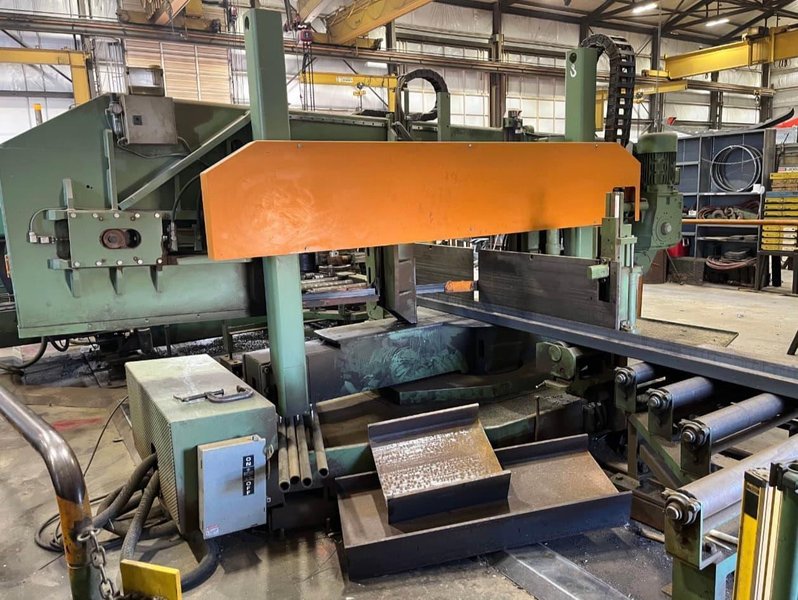

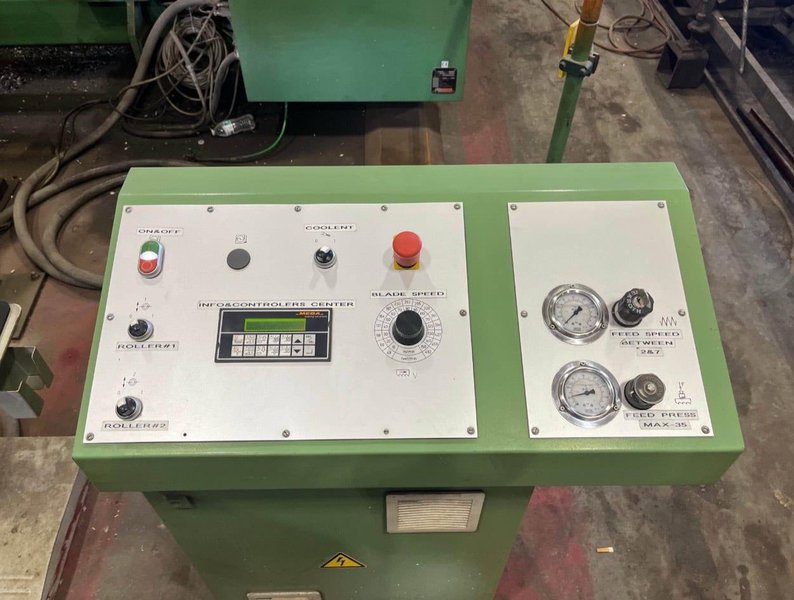

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Miter Saw: Motor Power: 10.2 hp Cutting Capacity: 44″ x 20″ Weight Limit: 18,000 lbs Miter Cutting Angles: Capable of 90°, 45°, and 30° cuts, with a maximum of 60° in both left and right orientations

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
