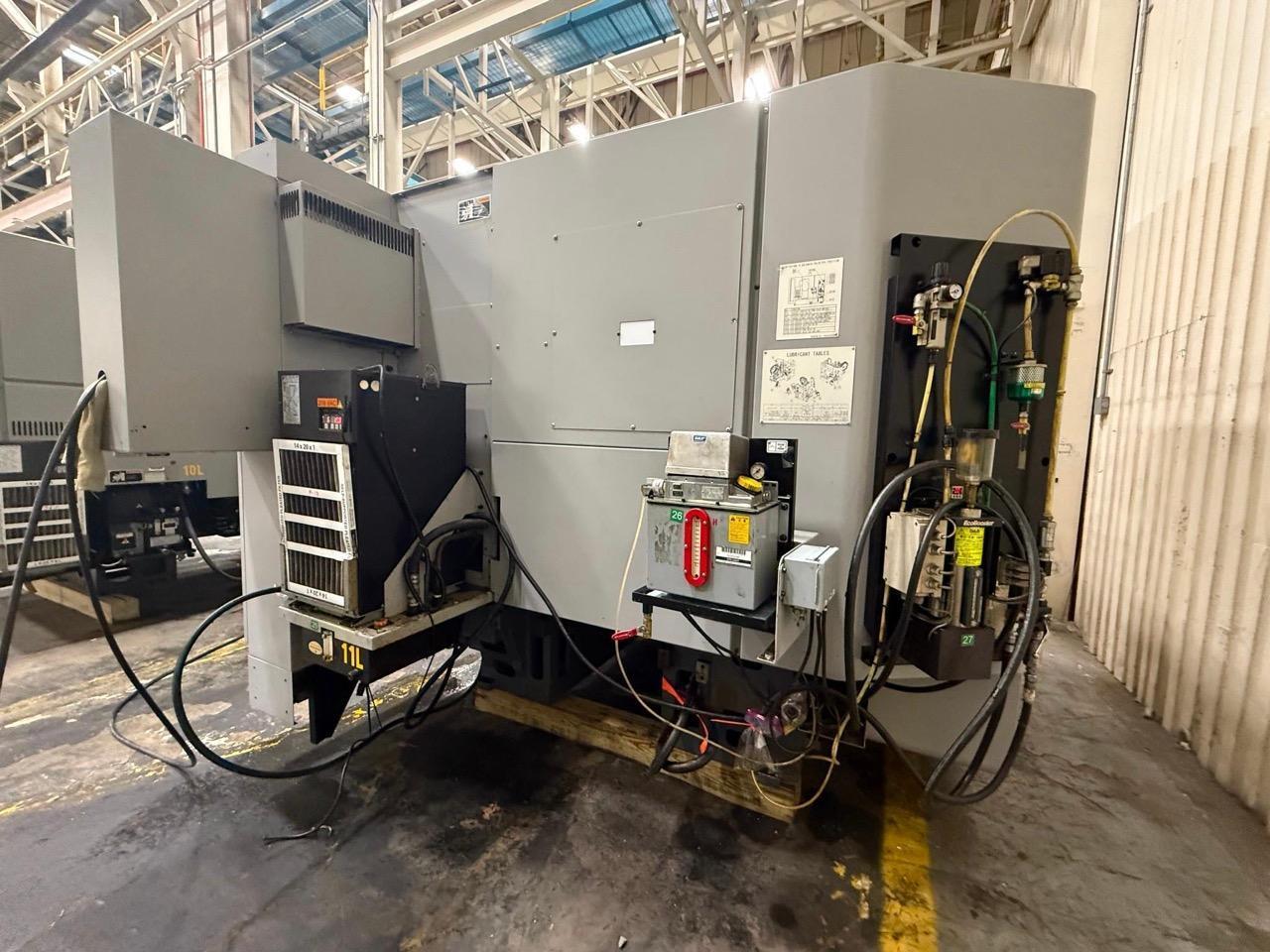

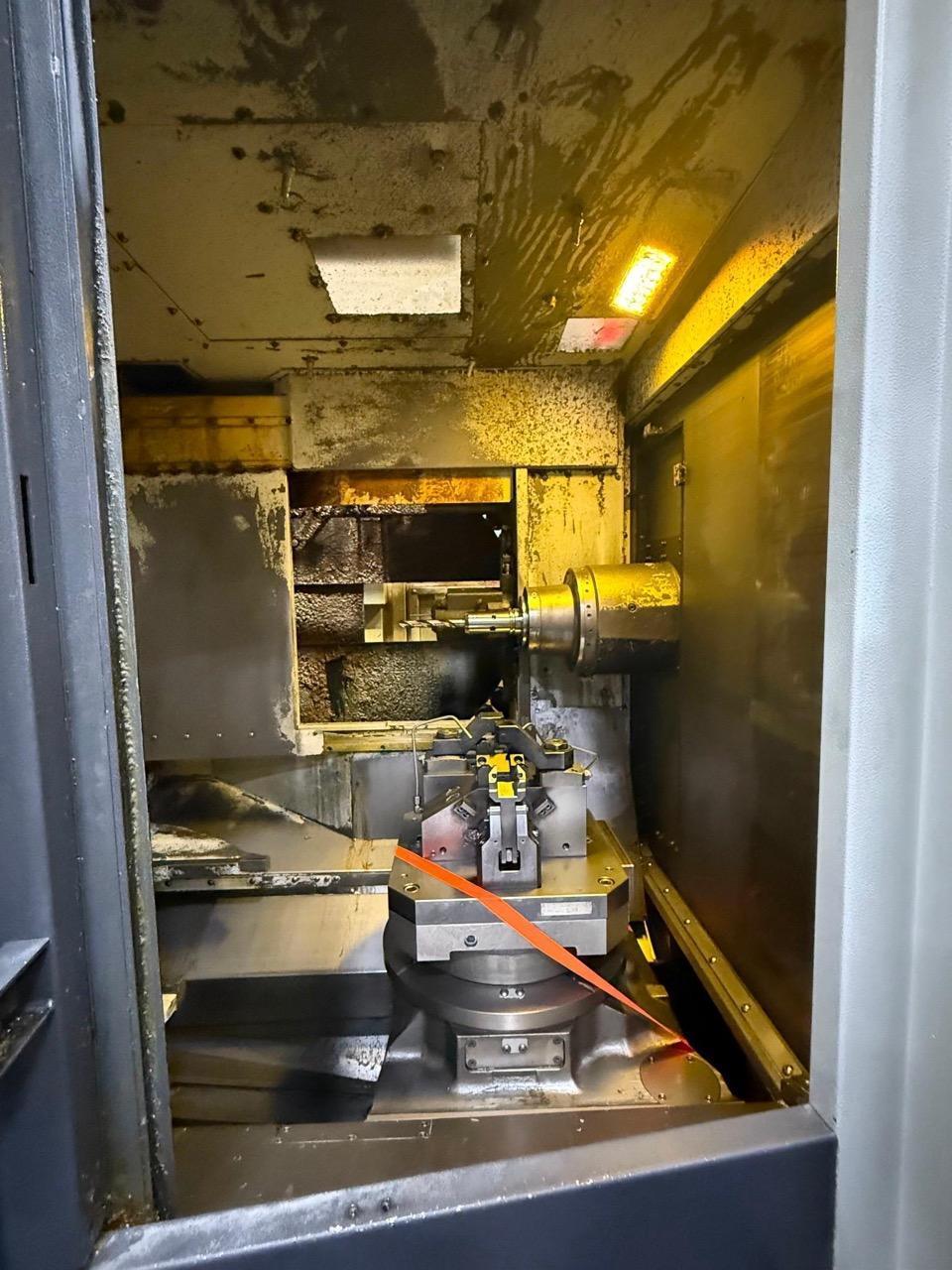

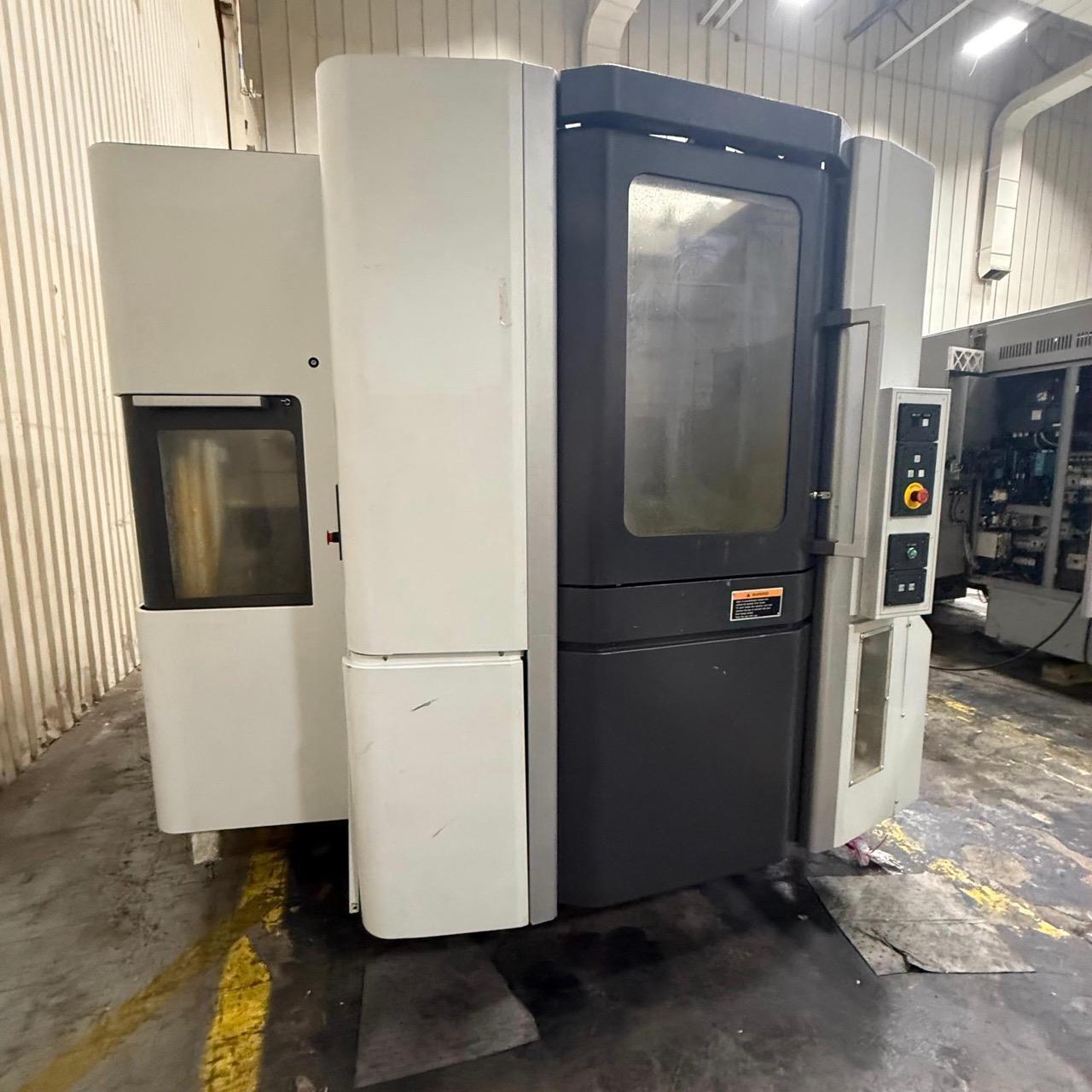

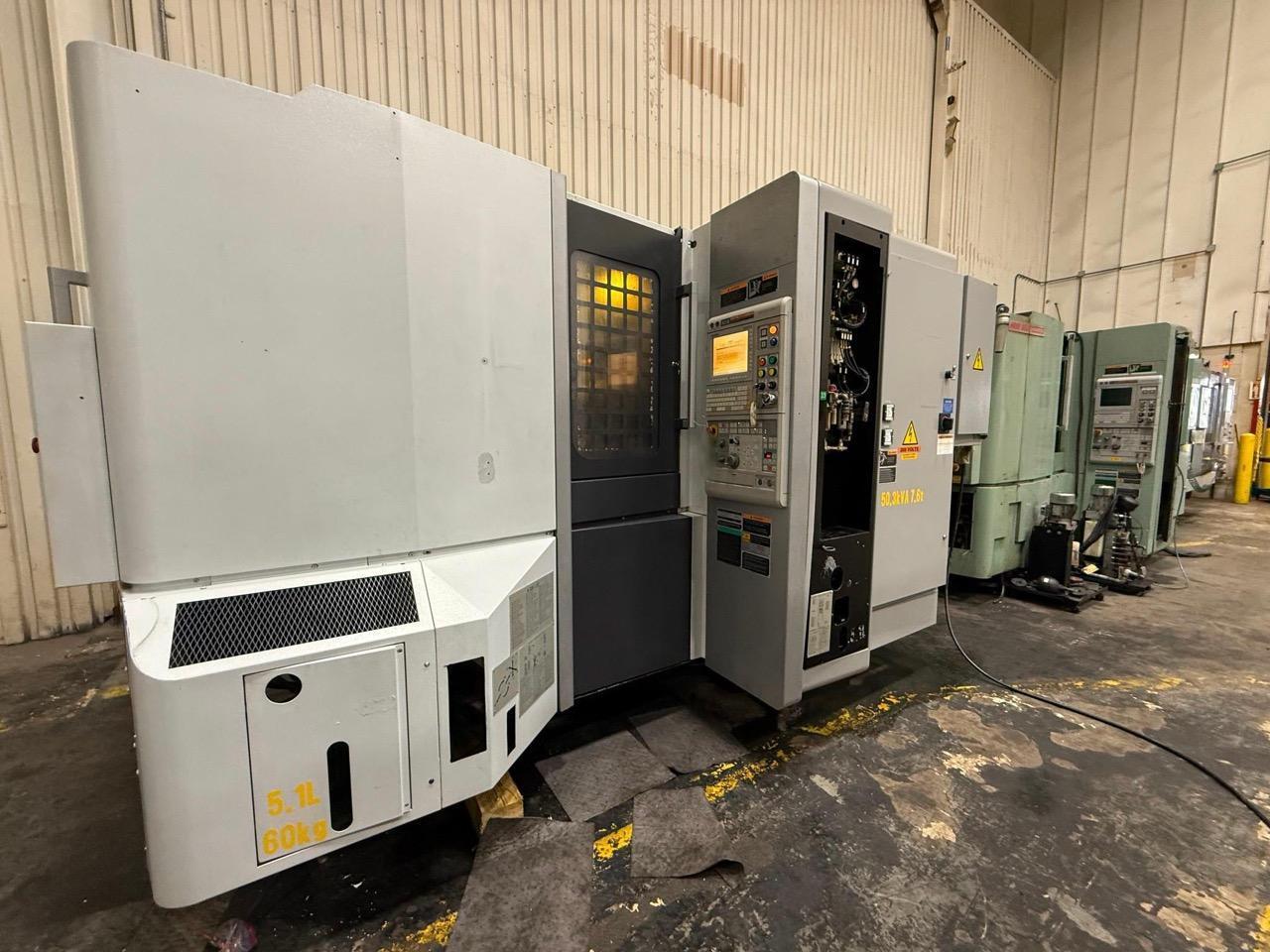

Mori Seiki NHX4000 400mm CNC HMC, 2012 – ChipBlaster Coolant Filtration System, Chip Conveyor, Tooling

Pallet Size: 15.7″ (2) Travel – X, Y, Z Axis: 22.0″ (X), 22.0″ (Y), 26.0″ (Z) Pallet Index: .001 Degree Spindle Speed: 12,000 RPM Spindle Taper: HSK-A63 Spindle Motor: 20 / 15 HP Spindle Center to Table Top: 2.4″ – 24.4″ Spindle Nose to Table Center: 2.8″ – 28.7″ Tools: 40 Rapid Traverse Rates: 2,362 IPM Tool Change Time (T-T / C-C): 0.9 / 2.8 Seconds Pallet Change Time: 8 Seconds Pallet Load Capacity: 880 lbs Max Workpiece Diameter / Height: 24.8″ / 34.6″ Max Tool Diameter: 2.7″ / 6.6″ Max Tool Length: 17.7″ Max Tool Weight: 17.6 lbs Weight: 16,720 lbs Dimensions: 165.9″ L x 107.1″ W x 98.9″ H

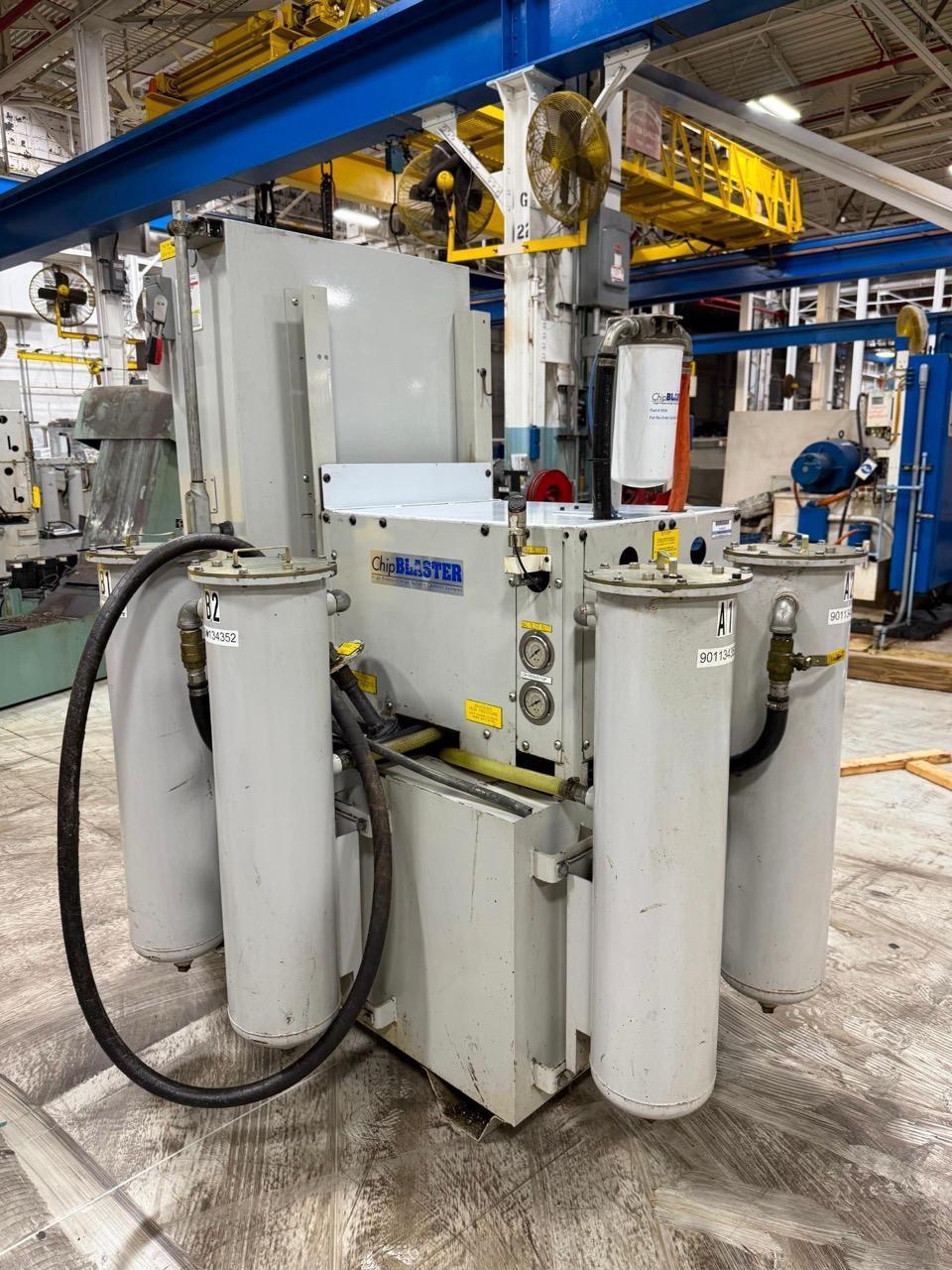

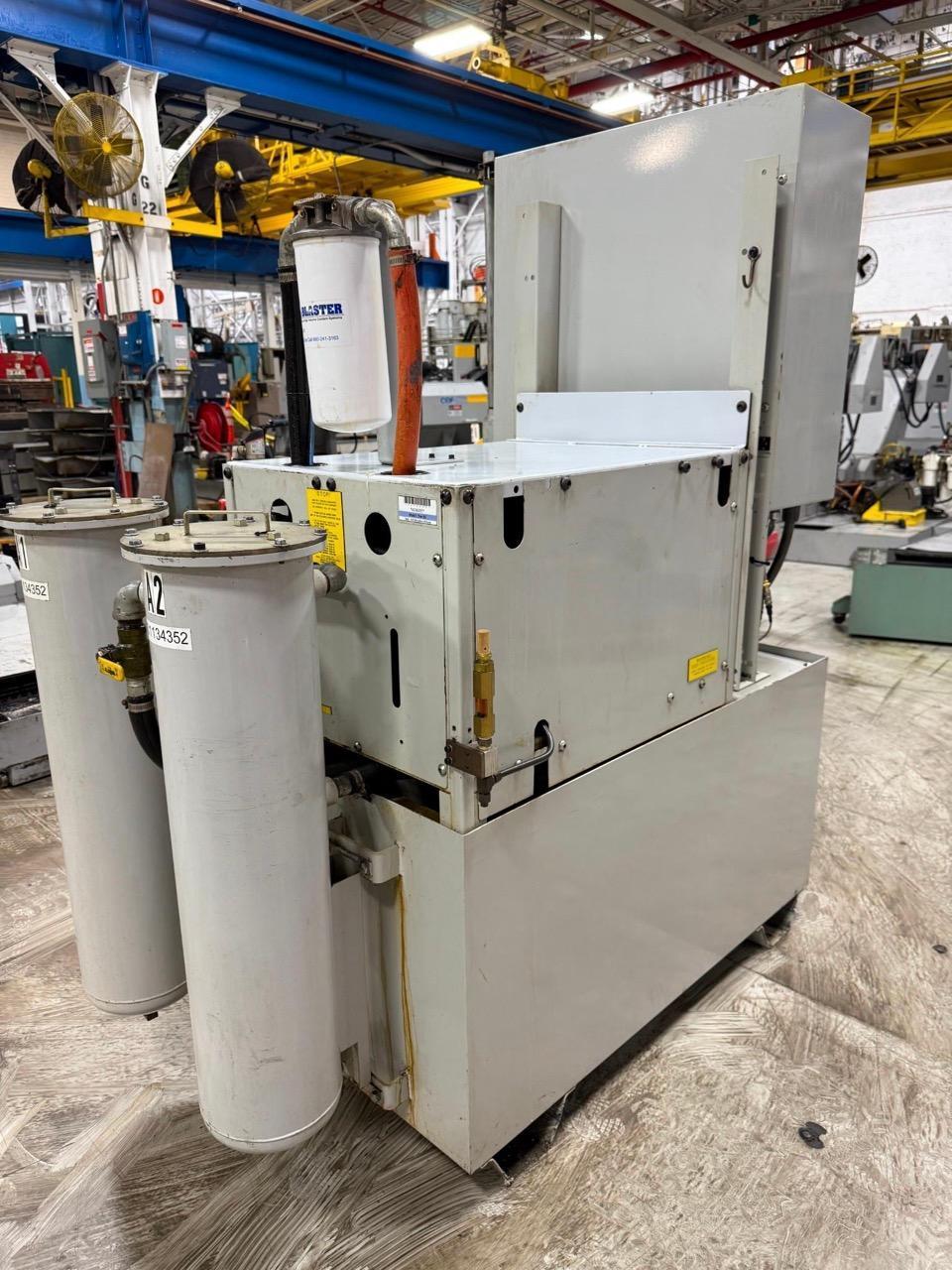

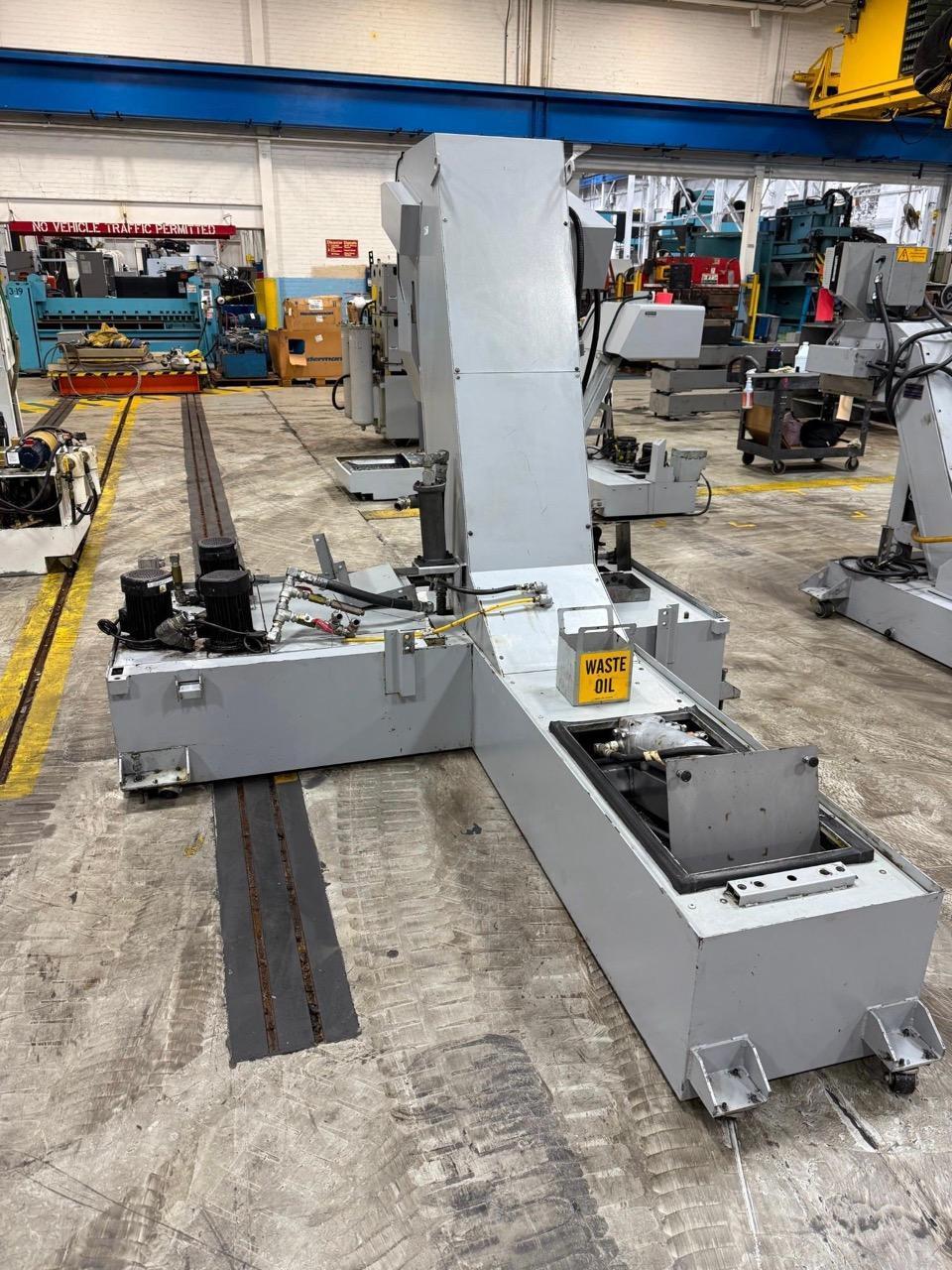

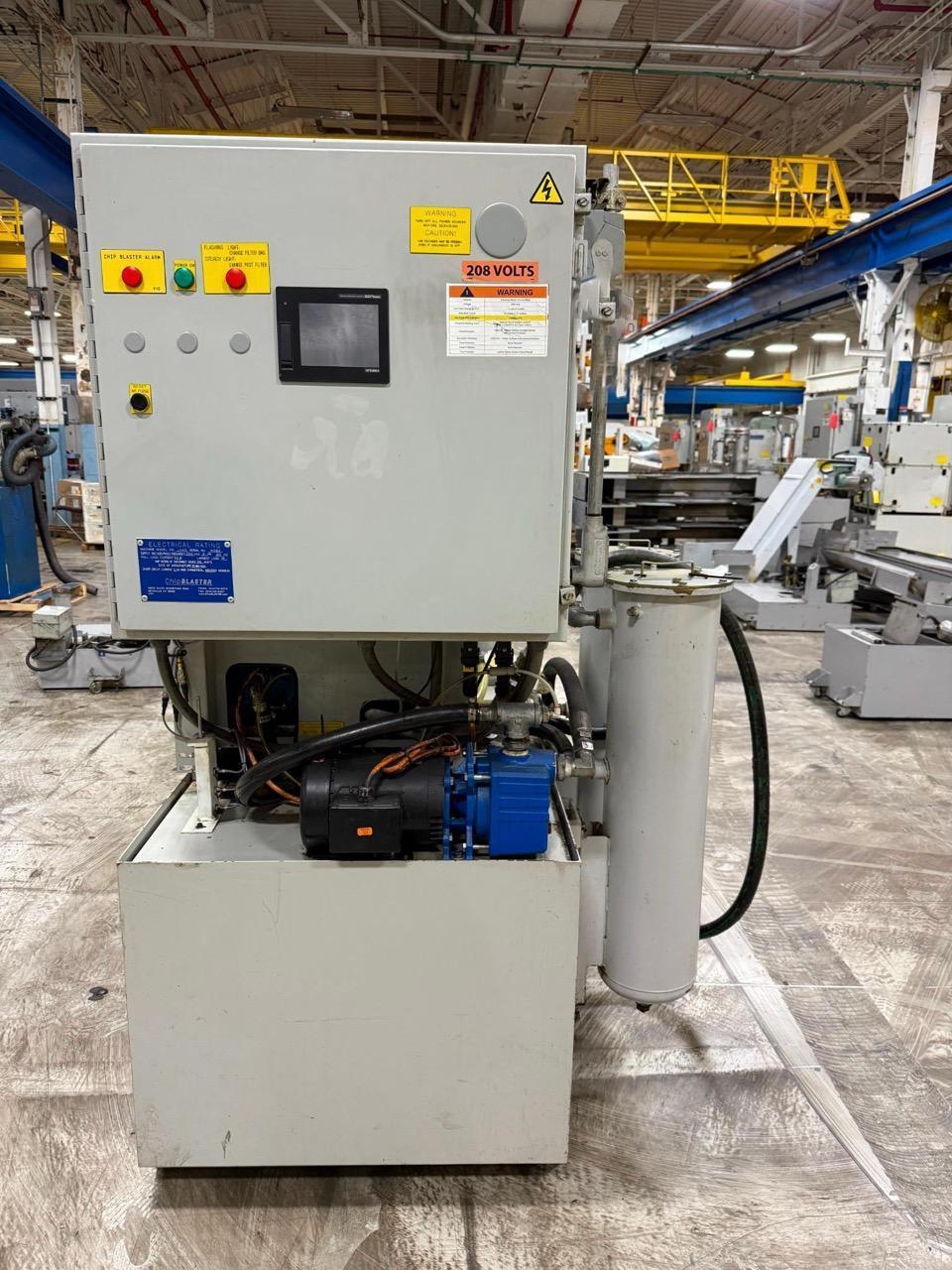

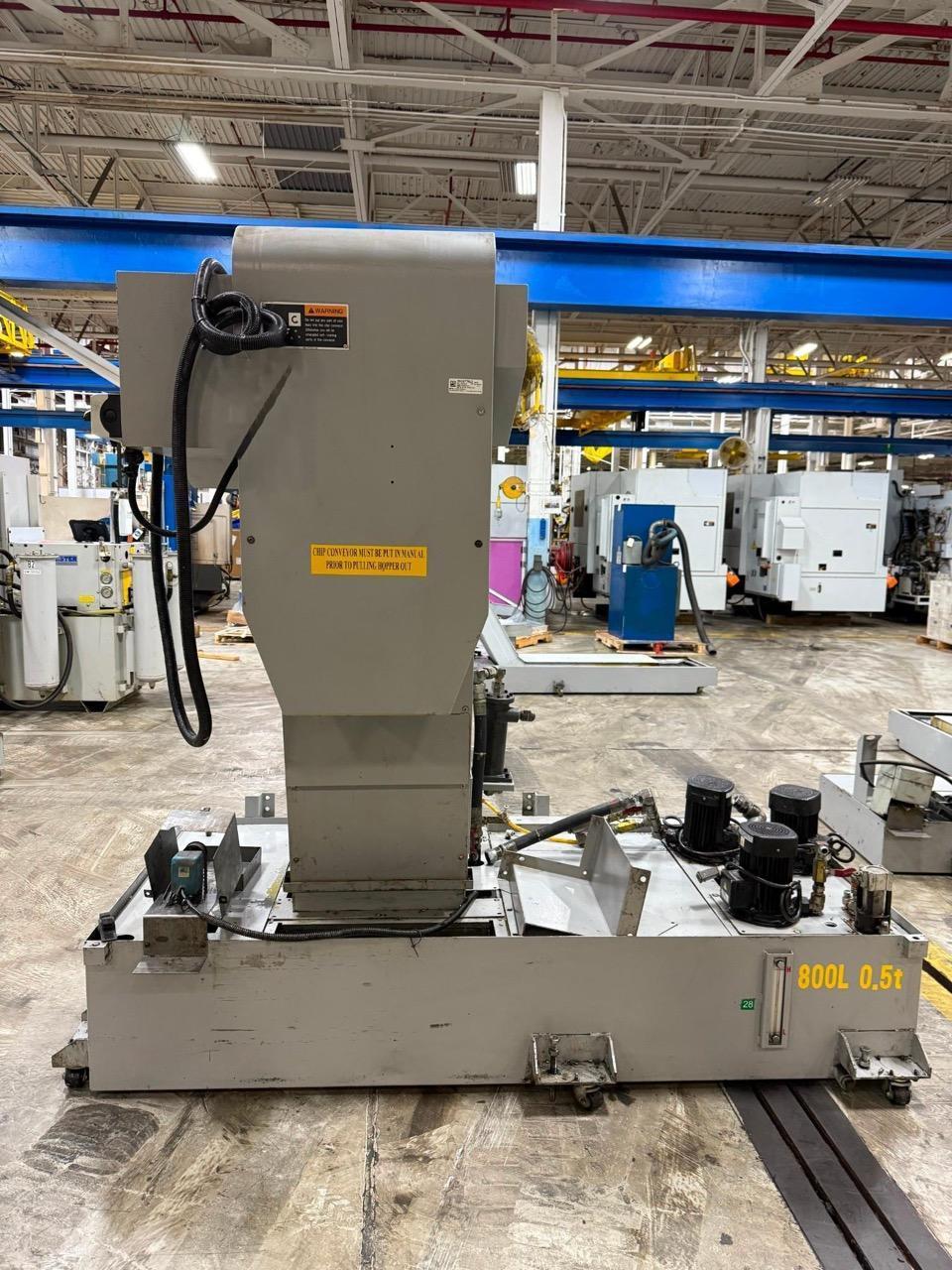

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Tooling ChipBlaster Coolant Filtration System Chip Conveyor Mori Seiki M730BM Control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
