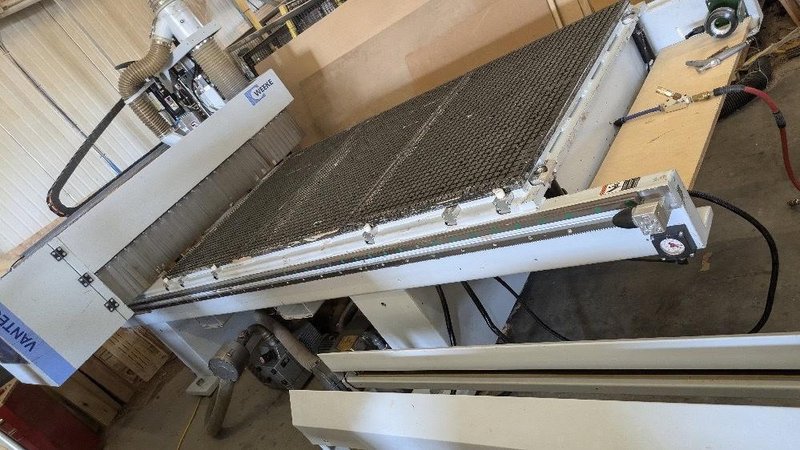

5’x10′ Weeke Optimat NBP084 Vantech480 CNC Router, 2016
Brand
Category
Type
Model
Optimat NBP084
Stock #
175879
Year
2016
Condition
Not specified
Location
Not specified
|

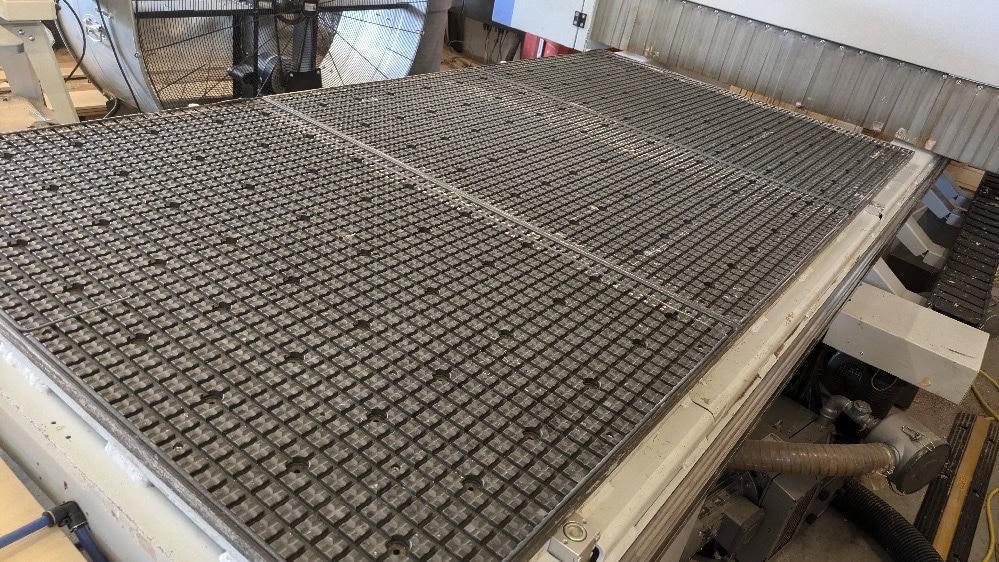

Table Size: 5 feet by 10 feet
X-Axis Travel: 169.3 inches
Y-Axis Travel: 77.4 inches
Z-Axis Travel: 9.6 inches
Spindle Motor: 13 horsepower
Spindle Speed: Up to 24,000 RPM
Spindle Taper: HSK 63
Maximum Vector Speed:
X and Y Axes: 3,779.5 inches per minute
Z Axis: 984 inches per minute
Approximate Power Usage: 27.5 kW
Pneumatic Pressure Requirement: 100 PSI
Floor Space Footprint: Approximately 278.7 inches (length) by 192.1 inches (width)

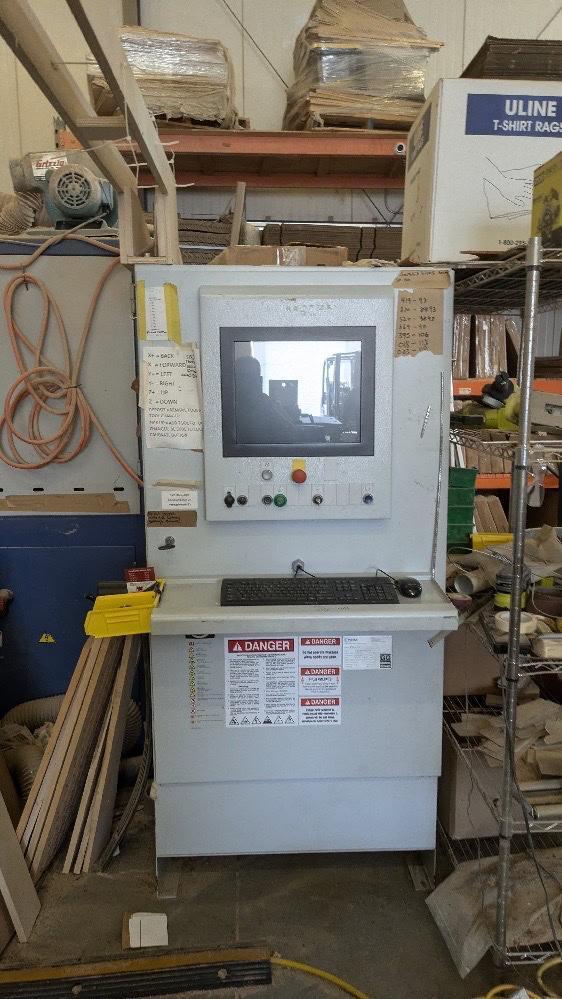

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control: Stand Alone Weeke Control Cabinet W/ Cooling All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
