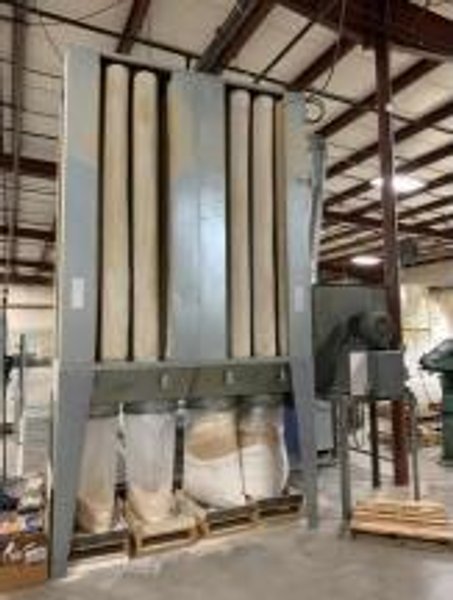

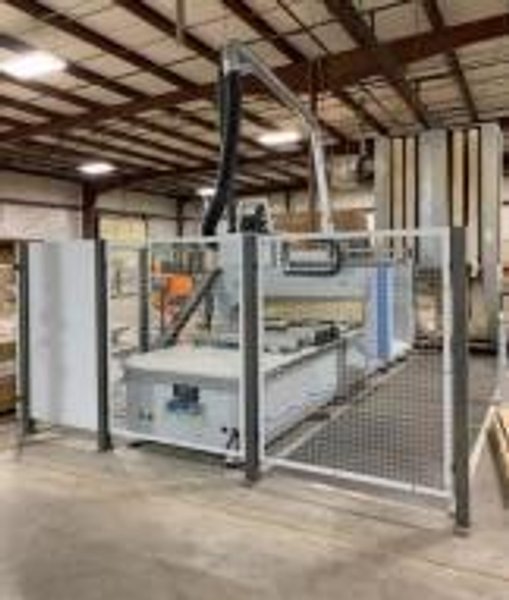

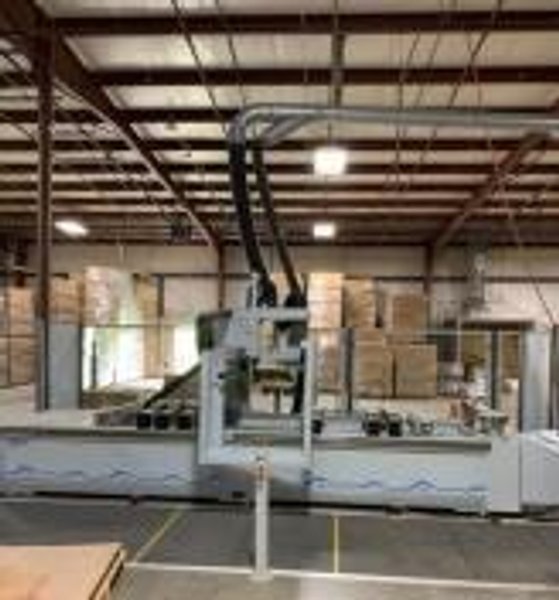

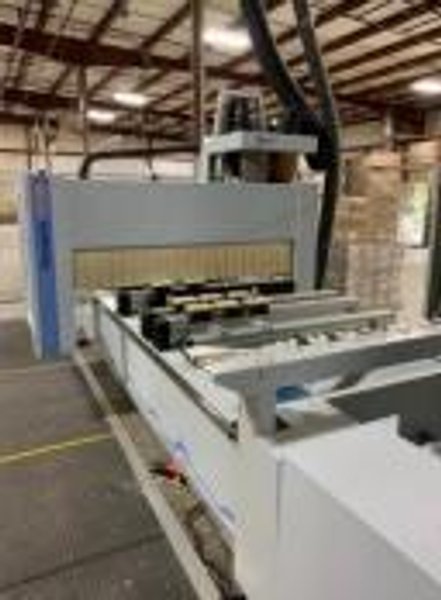

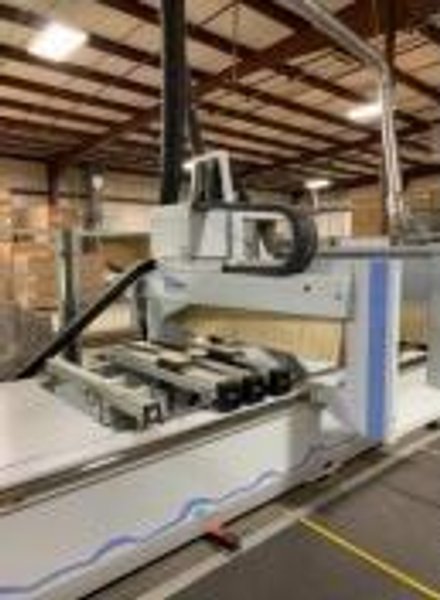

Weeke Venture 107M CNC Router, 2015 – 120″ x 50x Travels, Model BMG111, Free Standing Dust Collector, Safety Cage

X-axis working range: 3,130 mm (123.2 in) Y-axis working range: 1,250 mm (49.2 in) Z-axis working range: 100 mm (3.9 in) Maximum workpiece thickness: 150 mm (5.9 in) X/Y-axis travel speed: 80 m/min (262 ft/min) Z-axis travel speed: 20 m/min (66 ft/min)

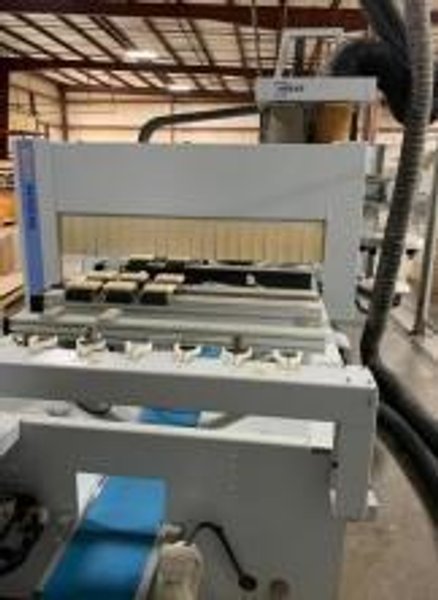

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Vertical drilling spindles: 12 spindles for face drilling. Horizontal drilling spindles (X-axis): 4 spindles for edge drilling on the X-axis. Horizontal drilling spindles (Y-axis): 2 spindles for edge drilling on the Y-axis.

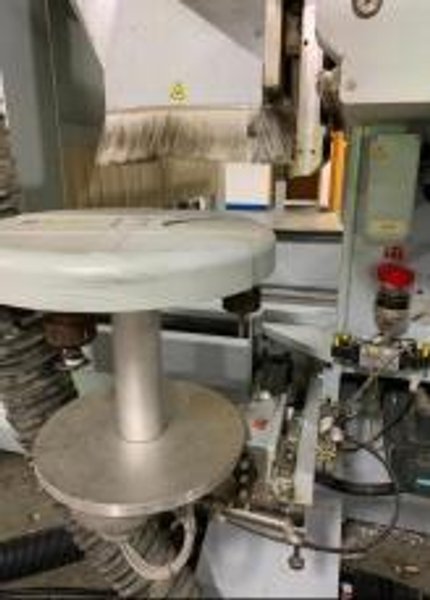

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main spindle power: 9 kW (12 hp). Tool holder: HSK F63 adapter. Variable speed: 1,250 to 24,000 RPM. C-axis: 360° for horizontal processing. Tool changer positions: 16 positions via a combination of side-mounted and head-mounted magazines.

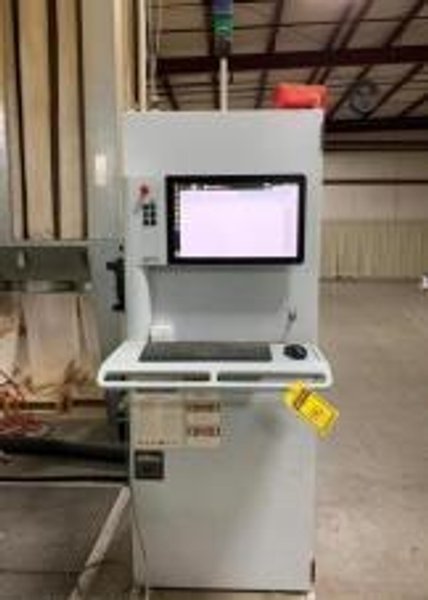

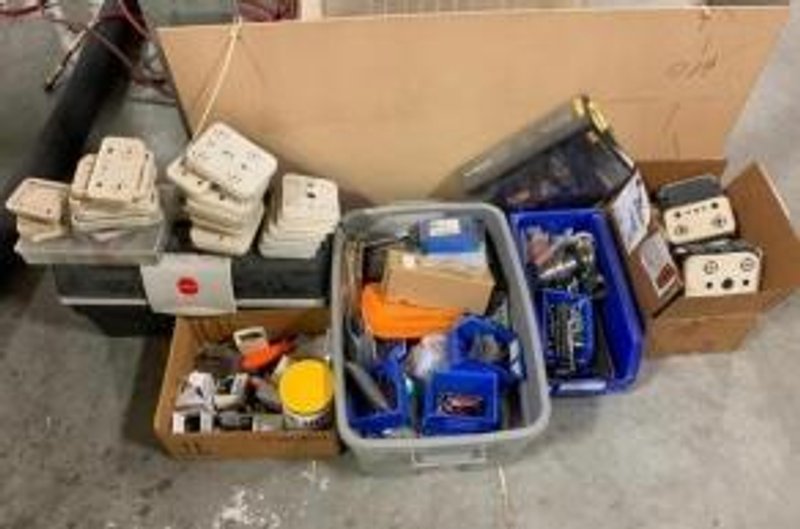

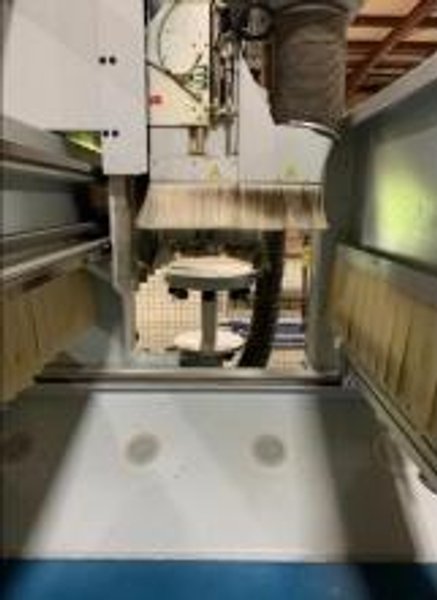

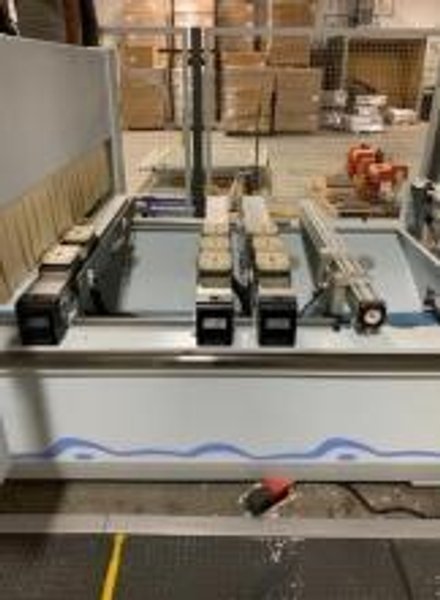

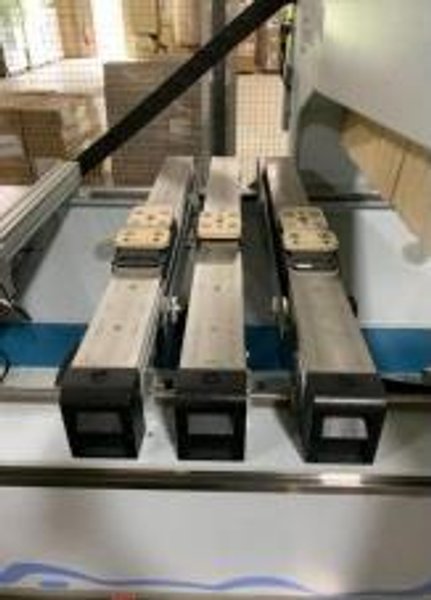

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Model series: BMG 111 Working field: Divided into two work zones Working table: Pod and rail system with six support rails and vacuum pods for workpiece clamping Operating software: Power Control with WoodWOP Safety features: Includes front safety mats to stop the machine if an operator enters the work area.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
