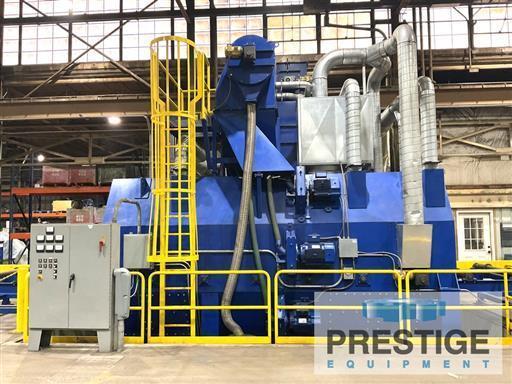

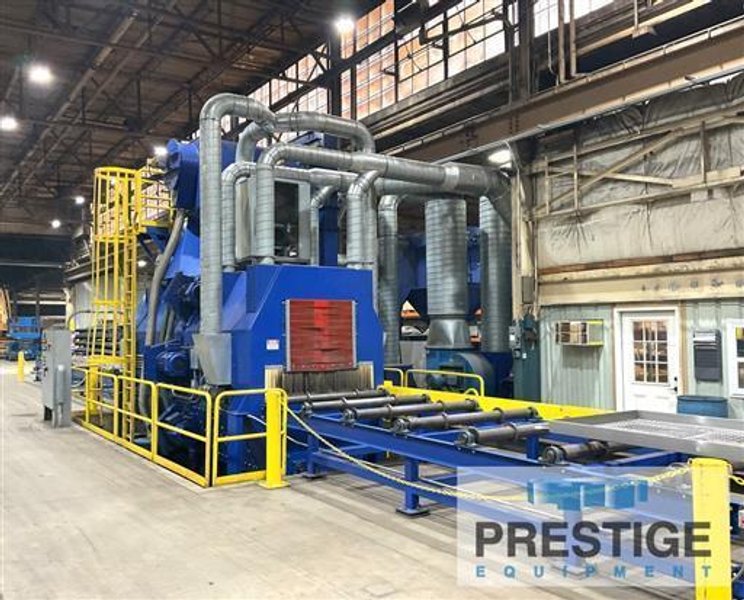

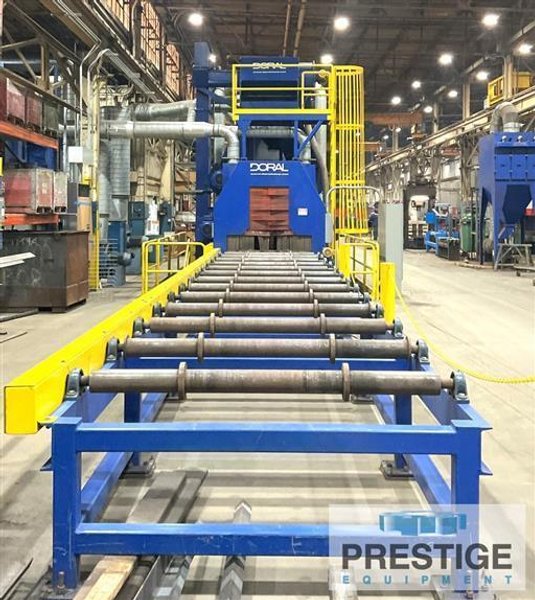

Doral 6048 6-Wheel Structural Plate Shot Blast System

MAXIMUM WORK:
Maximum Plate Width 62"
Maximum I-Beam 30" x 48"
Misc Parts Based On work fixture Design

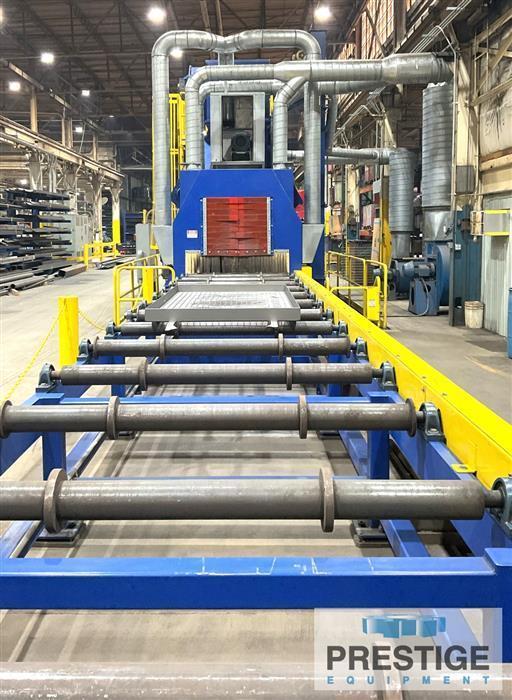

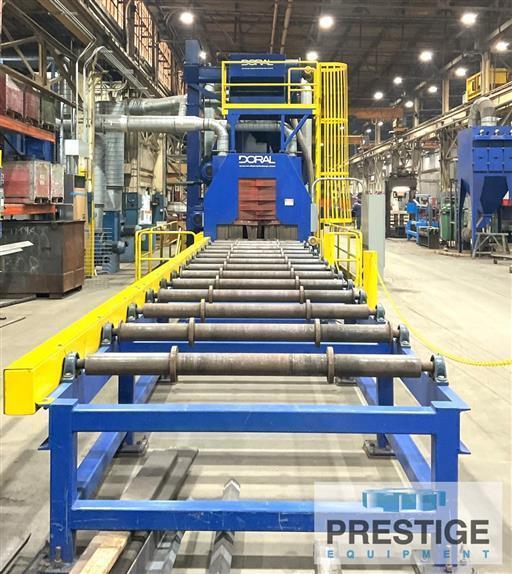

WORK CONVEYORS:
Speed, Variable Powered
Roller Width 68"
Total Length, Entry & Exit 103'
Length, Entry 40'
Length, Machine 26'
Length, Exit 40'
Roller Spacing Centerlines 36"
Floor to Top Of Rollers 36"
Roller Diameter 4.5"

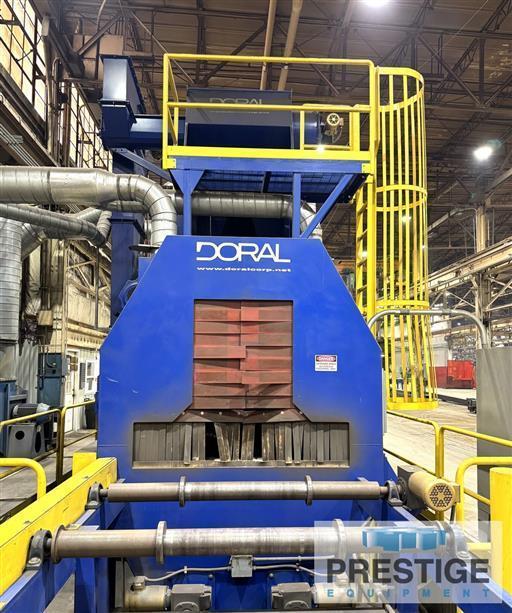

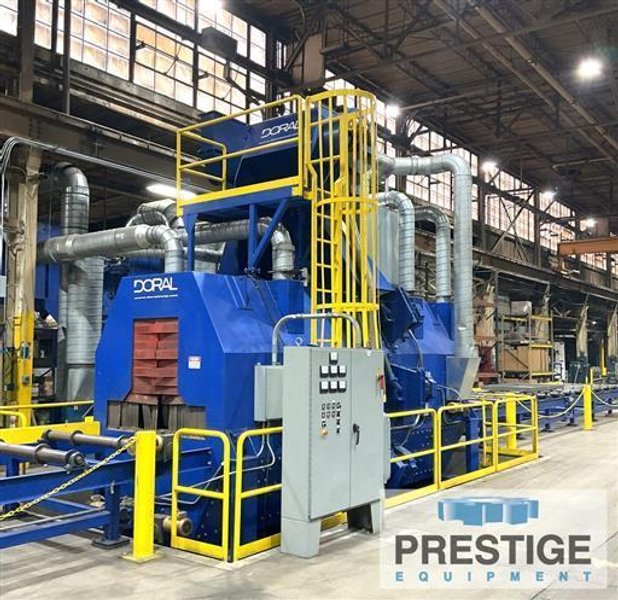

BLAST CABINET DIMENSIONS:
Length 21'
Width 15'
Height 12'6"
Floorline To Top Of Elevator 16'6"
Pit, Width 15'
Pit, Length 26'
Height, Bottom to top of Elevator 20'
CABINET CONSTRUCTION:
12 to 14% Manganese Steel 1/2" Thick Blast Zone & Other Abrasive Contact areas
3/16" & 1/4" Thick Mild Steel Entry & Exit Vestibules
Length, Entry Vestibule 5'2"
Length, Blast Cabinet 8'
Length, Exit Vestibule 7'3"
Rubber curtains & cast poly finger seals provide abrasive retention in Vestibules

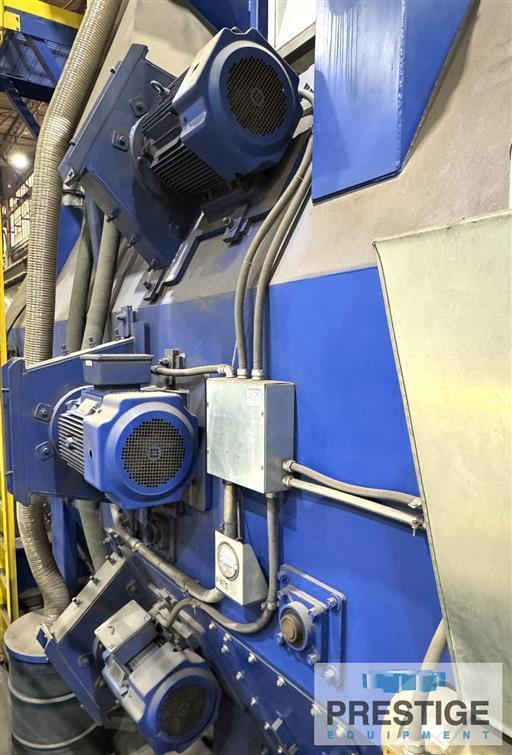

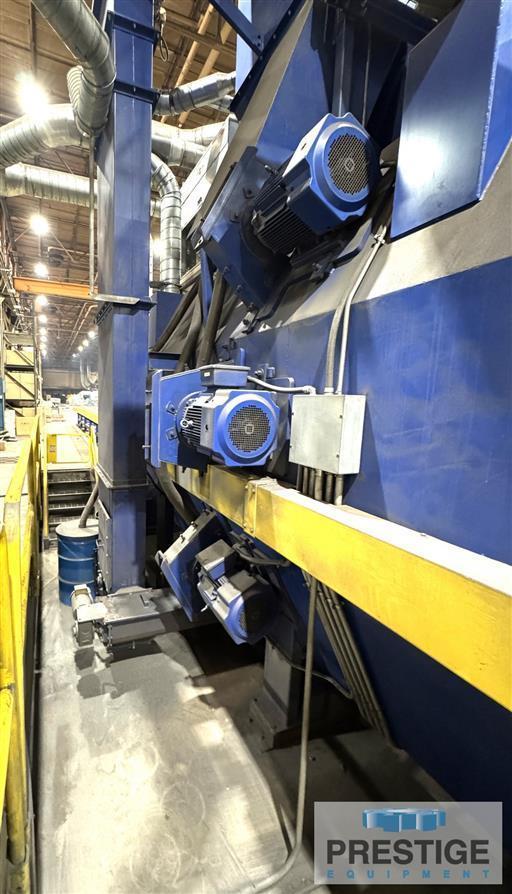

SHOT BLAST WHEELS:

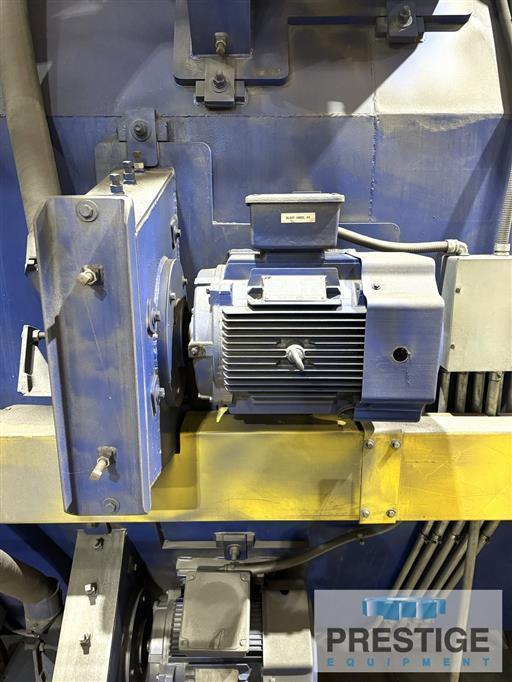

North Star Blast Wheels direct drive premium wear plate package
Horsepower 25 HP / 3600 PRM
No Of Blast Wheels 6
Position, top, bottom, center 2,2,2
Diameter 16"
(8) Blades Center Feed
1/2" Thick 1-Piece front & rear Manganese steel liners
1" Thick cat wear alloy liners top & end liners 5-piece
Air Force One 30 HP Abrasive Blow Off

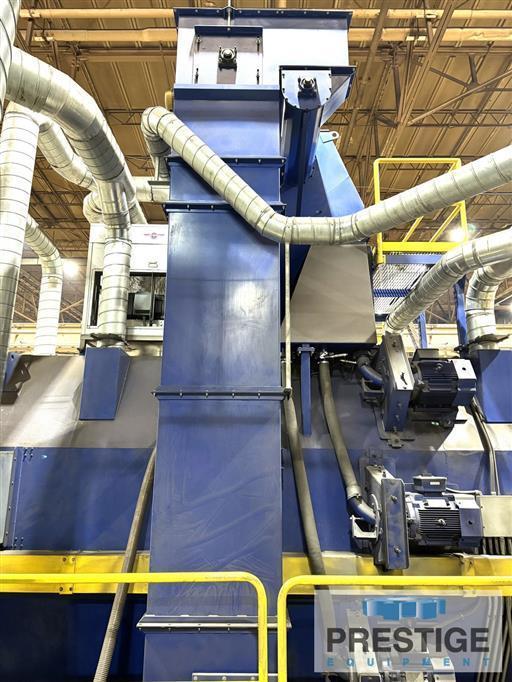

ABRASIVE RECOVERY SYSTEM:
Lower & upper screw conveyors
Bucket elevator with cast iron buckets
Single lip airwash Seperator with screen trays
Adjustable air volume
2 HP Screw conveyor
5 HP Bucket Elevator

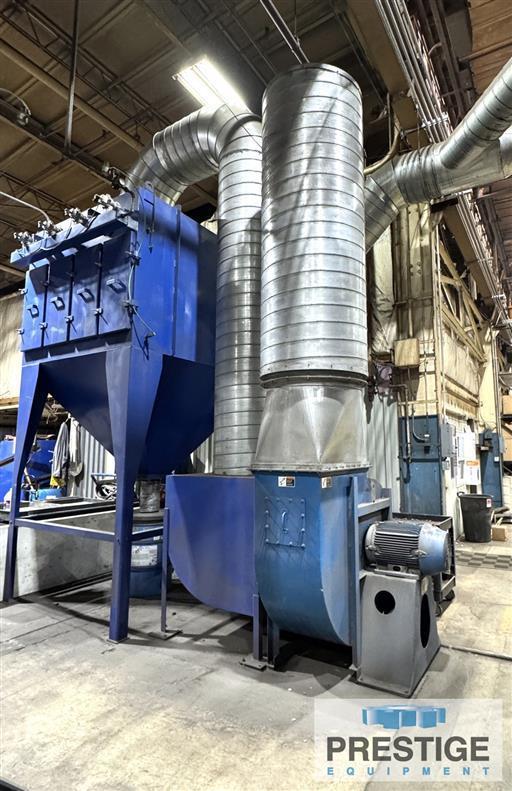

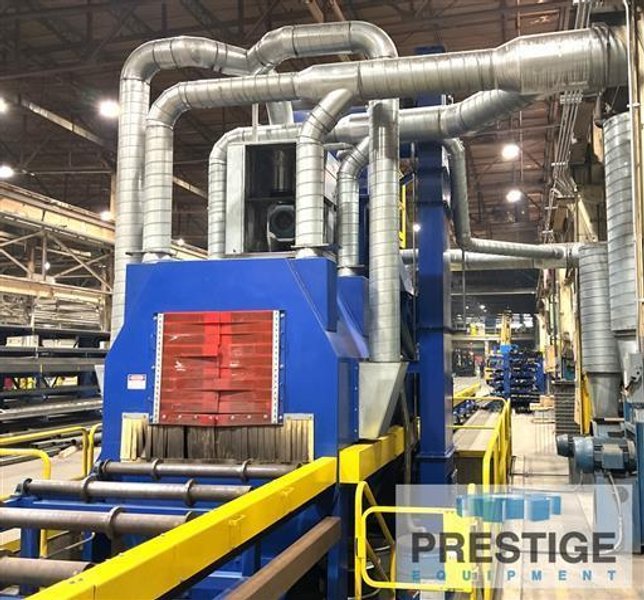

DUST COLLECTION:
SSC-12 SOC Cartridge Dust Collector Blower 20 HP, 7,200 CFM
SSC-20 SOC Cartridge Dust Collector Blower 25 HP, 10,000 CFM

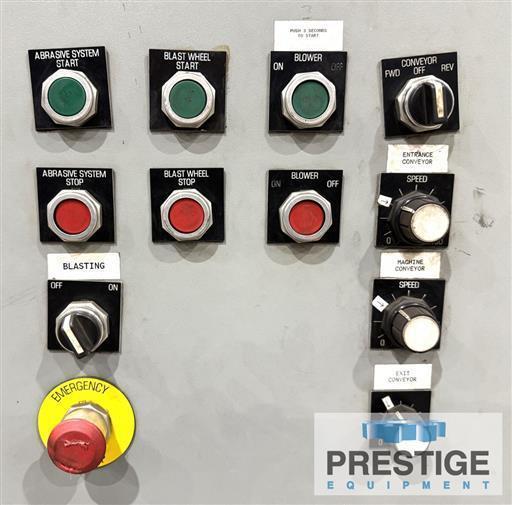

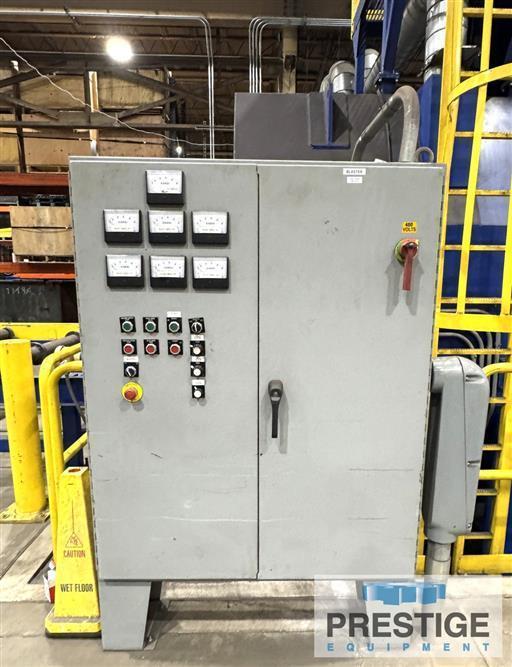

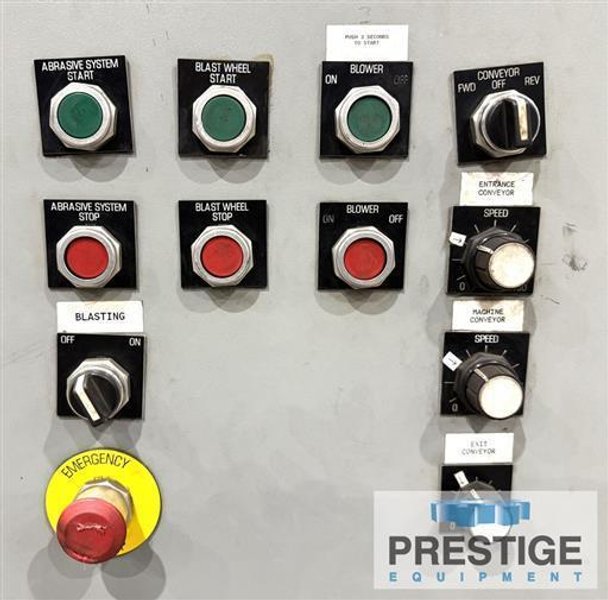

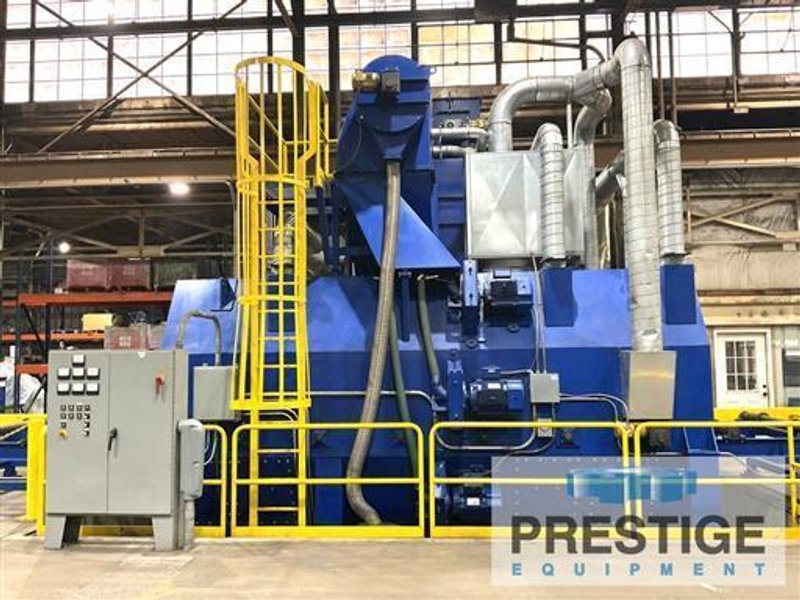

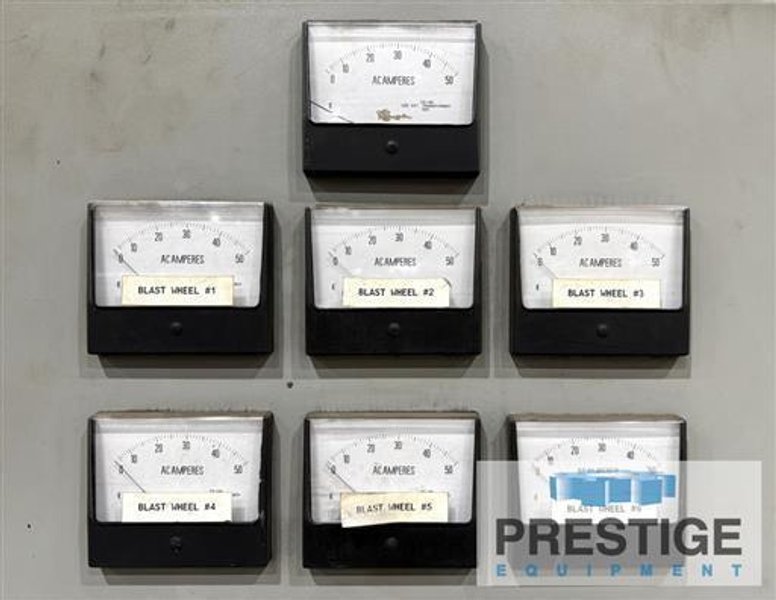

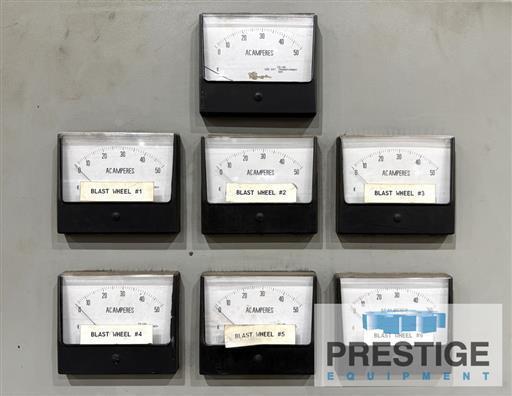

ELECTRICAL CONTROLS:
Nema 12 floor mounted cabinet, 72" H x 48" W
Main Breaker, 480 V, 3 PH,60HZ, 400 AMP, All IE Control Components
120 V Control Voltage
E-STOPS Located On main Panel & Work Conveyors
NOTE:
Excellent Condition, Under 100 Blasting Hours
