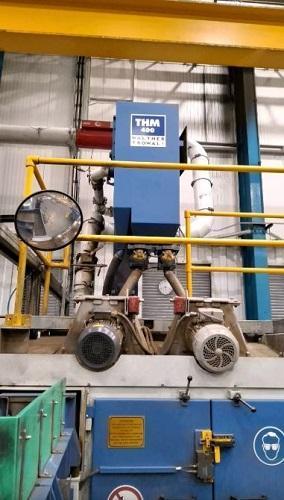

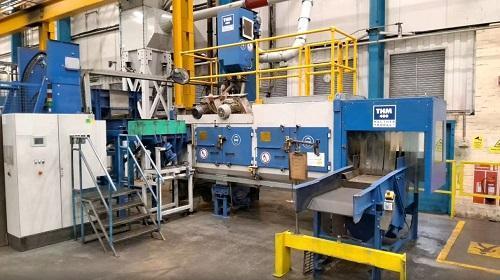

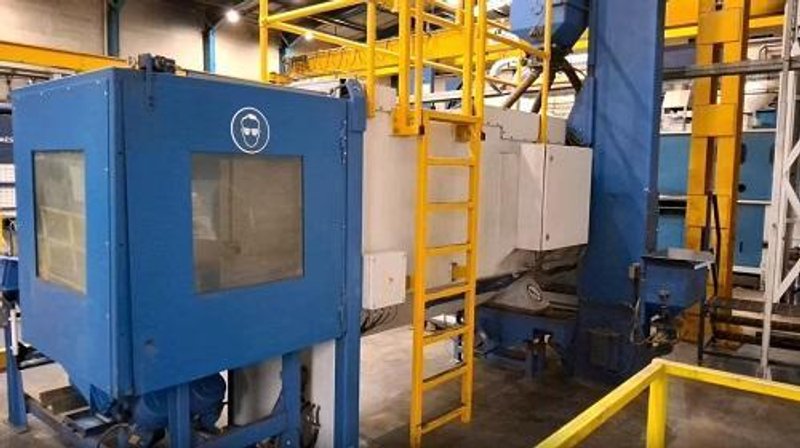

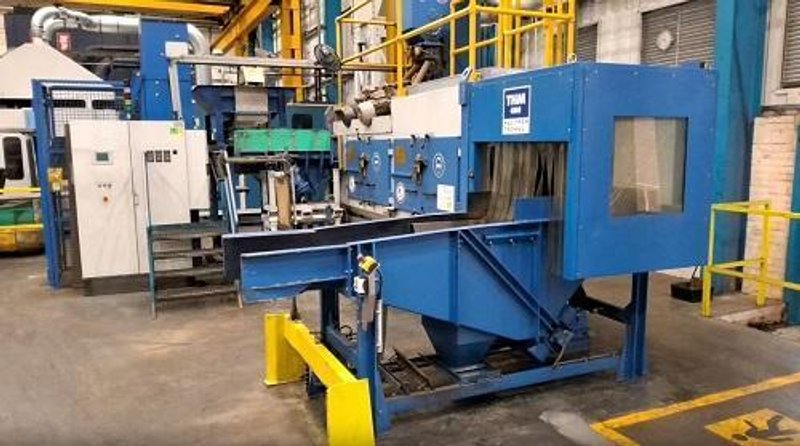

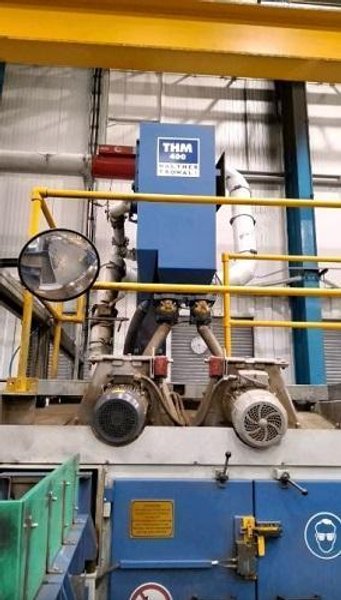

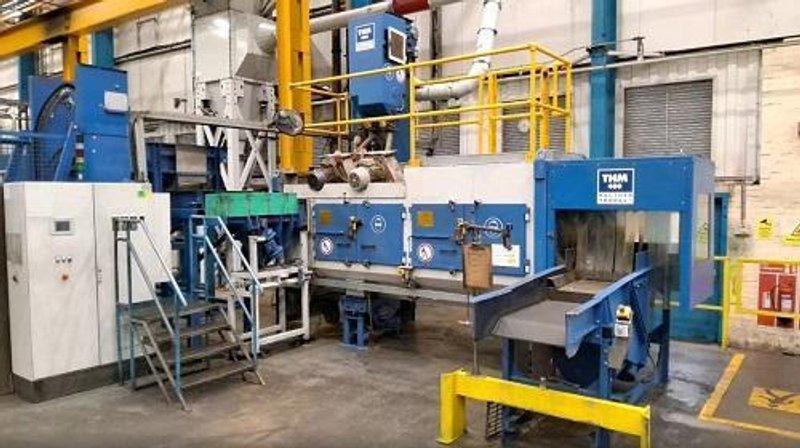

WALTHER TROWAL THM400/2 SHOT BLAST MACHINE (2013)
Brand
Model
THM400/2
Stock #
116880
Year
2013
Condition
Used
Location
Not specified
|
WALTHER TROWAL THM400/2 SHOT BLAST MACHINE (2013)
YEAR - 2013
MODEL - THM-400/2
BLAST WHEELS - 2
AMPERAGE PER WHEEL - 14
SPEED PER WHEEL - 3400/PER MINUTE
TRANSPORT TIME - 180/SECONDS
SHOT BLAST TIME - 120/SECONDS
LOAD CARRYING CAPACITY OF THE TROUGHED BELT CONVEYOR
FILLING AMOUNT, TOTAL 100 KGS
MAX. WEIGHT PER PIECE 2 KGS
SMALLEST DIMENSION PER WORKPIECE
CA. 25 X 25 X 5 MM
LARGEST DIMENSION PER WORKPIECE
150 X 150 X 80 MM
DIAMETER OF THE TROUGHED BELT CONVEYOR 400 MM
NUMBER OF BLAST WHEELS 2 X 320 MM WIDE
POWER OF BLAST WHEELS 7.5 KW
OPERATIONAL VOLTAGE 400 V AC
ELECTRICAL CONNECTION VALUE APPROX. 44 KVA
REQUIRED SUCTION CAPACITY OF THE DEDUSTING SYSTEM 3000 BM 3 /H
FLOW RATE IN THE COLLECTING PIPE OF THE CONDUIT 20 M/S
REQUIRED STATIC NEGATIVE PRESSURE IN THE COLLECTING MUFF 600-800 PA
INITIAL FILLING OF BLAST MEDIA 120 DM 3
|
