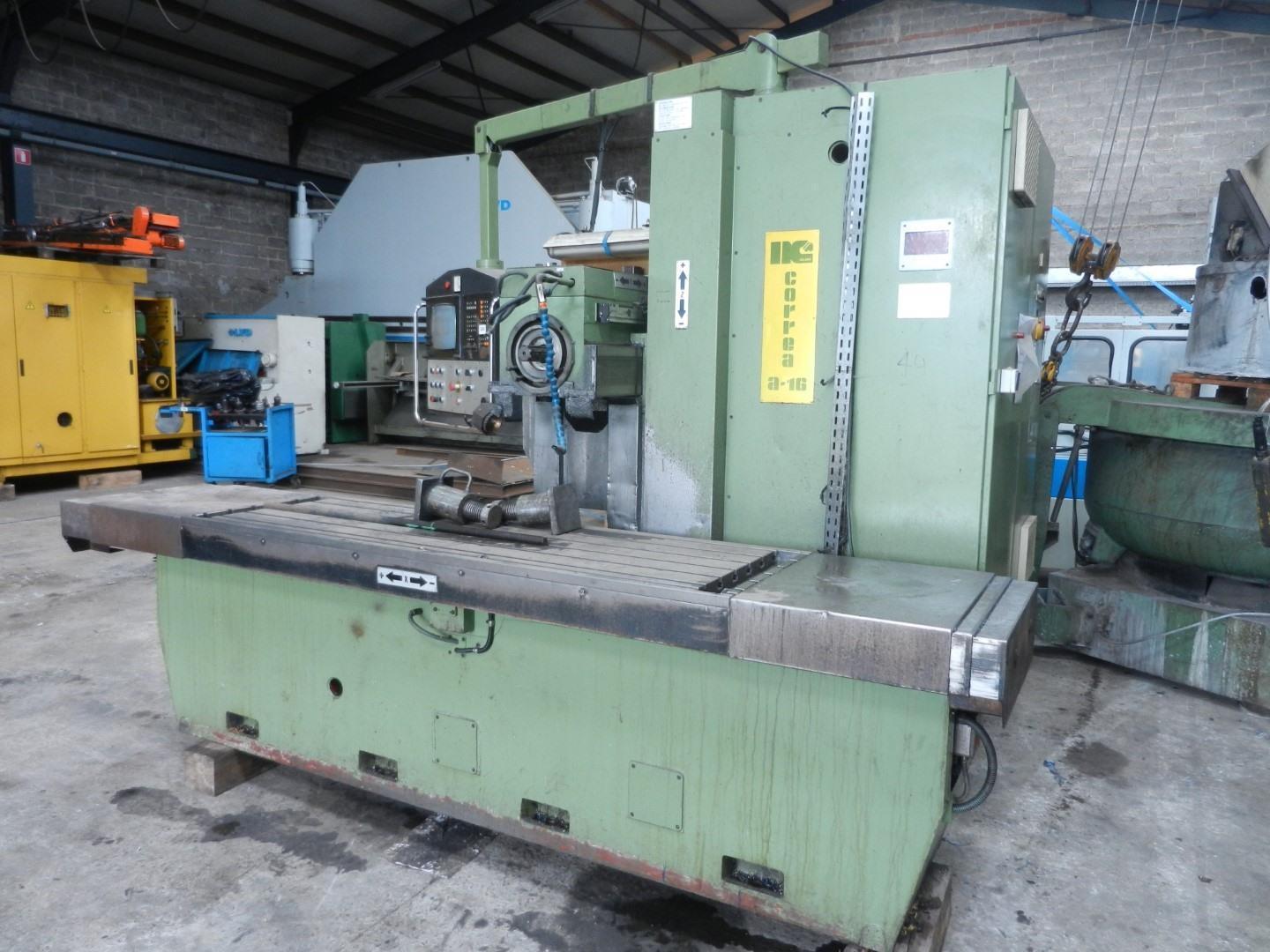

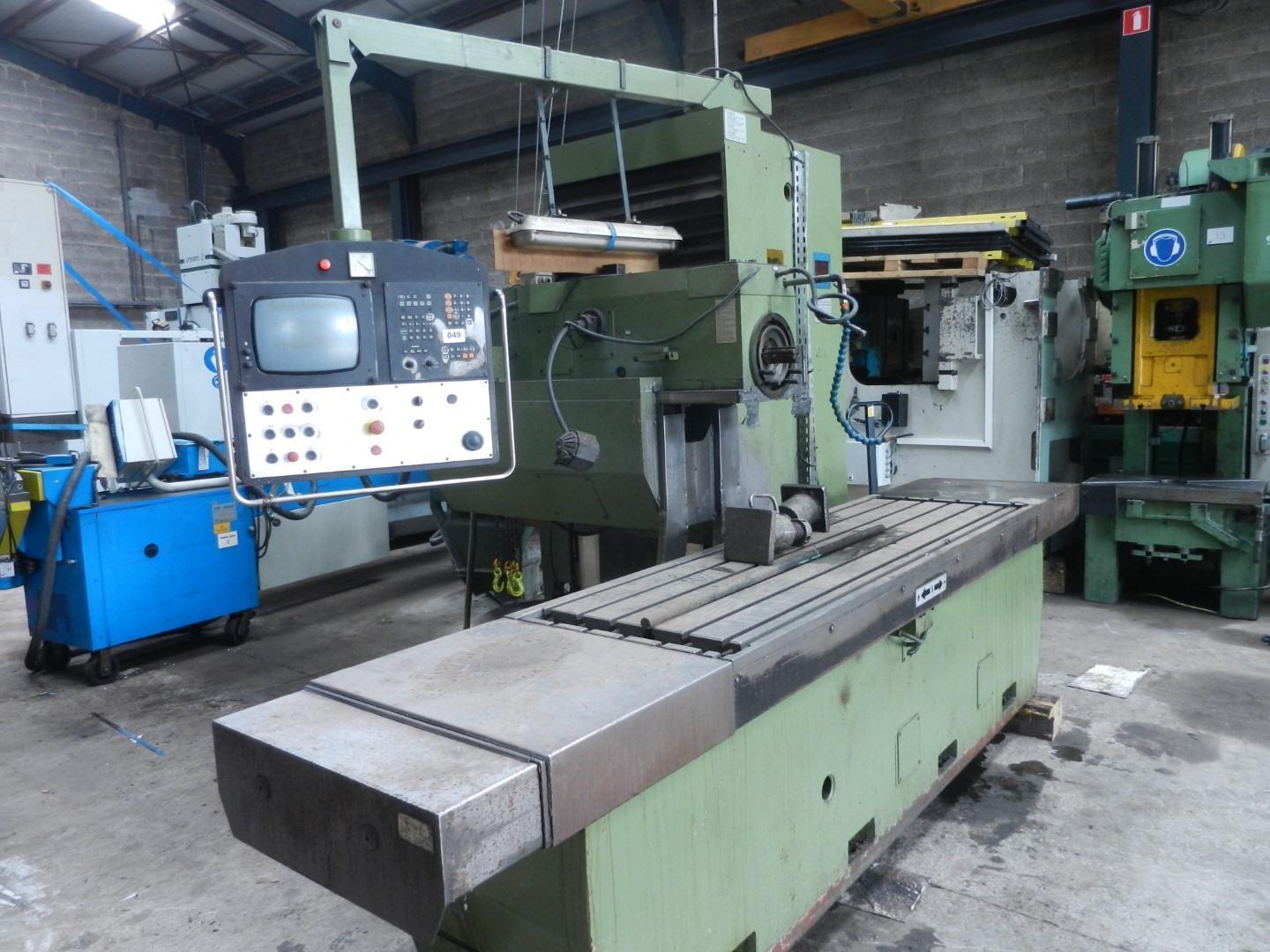

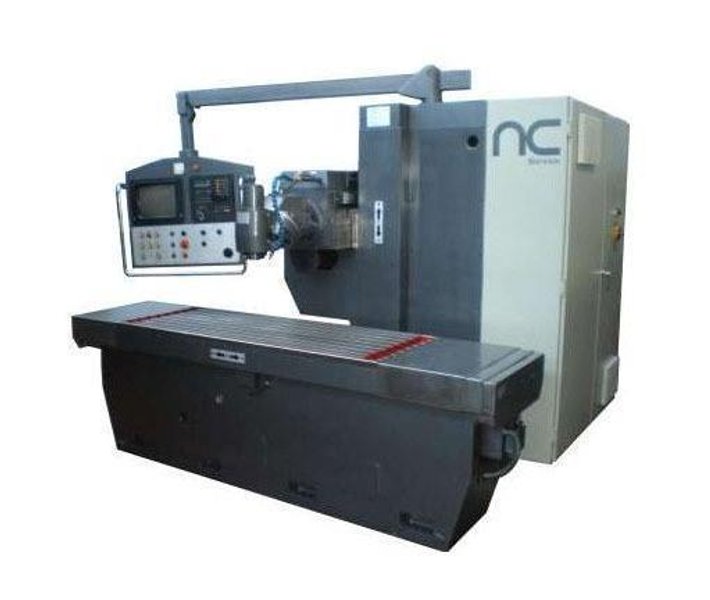

Correa A10 X: 1300 - Y: 630 - Z: 630mm

Brand

CORREA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

Longitudinal travel X-axe 1300 mm
Cross travel Y-axe 630 mm
Travel Z-axe 630 mm
Dimensions clamping space- table 1700 x 630 mm
Power on spindle 15 kW
Admission in millinghead (ISO) ISO 50
Max speedrange 80 - 3150 rpm
Control Heidenhain TNC 355
Power needed (KVA) 380 V - 50Hz

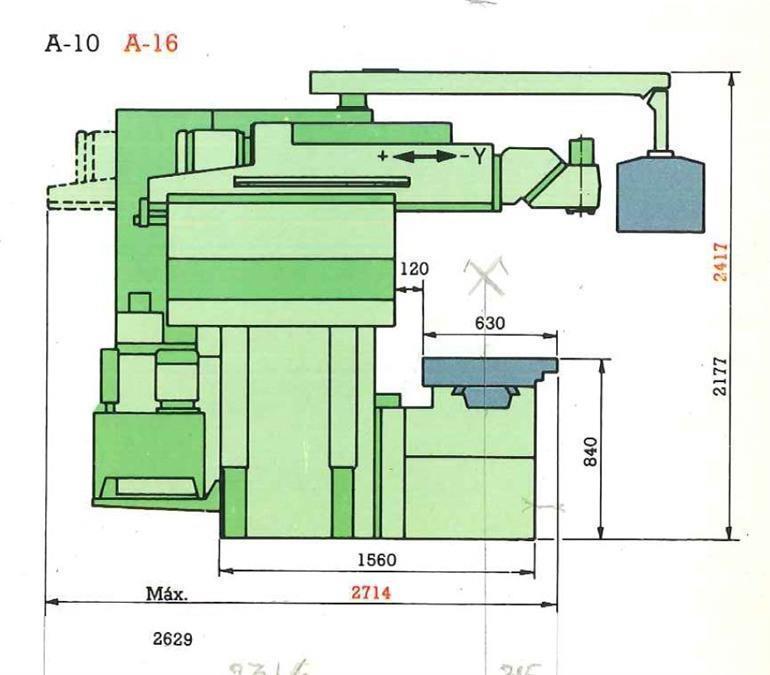

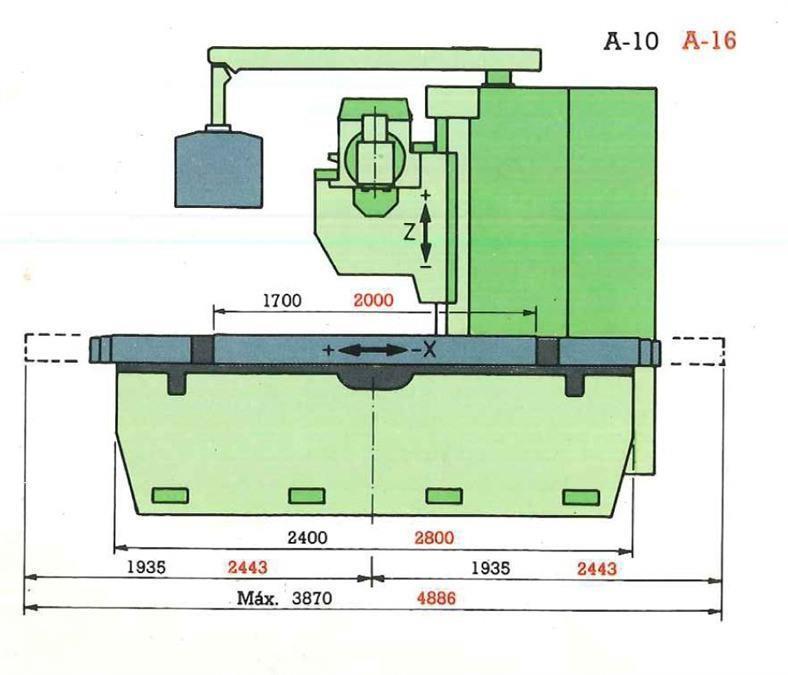

Length 4780 mm
Depth 2465 mm
Height 2175 mm
Weight 6,8 ton
ACCESSORIES & TOOLING yes

Additional info

4 axes

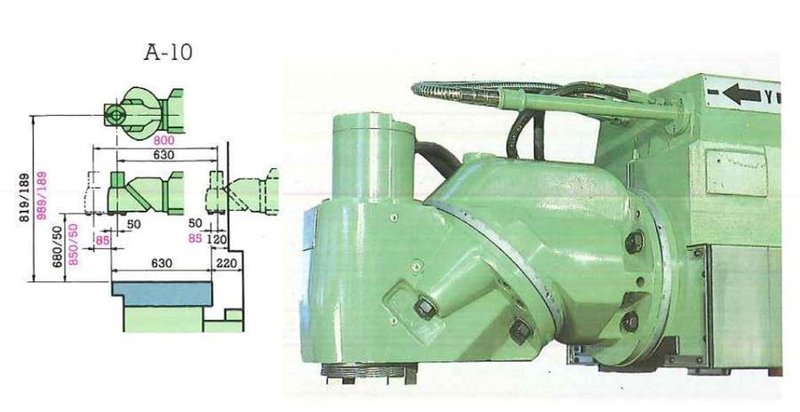

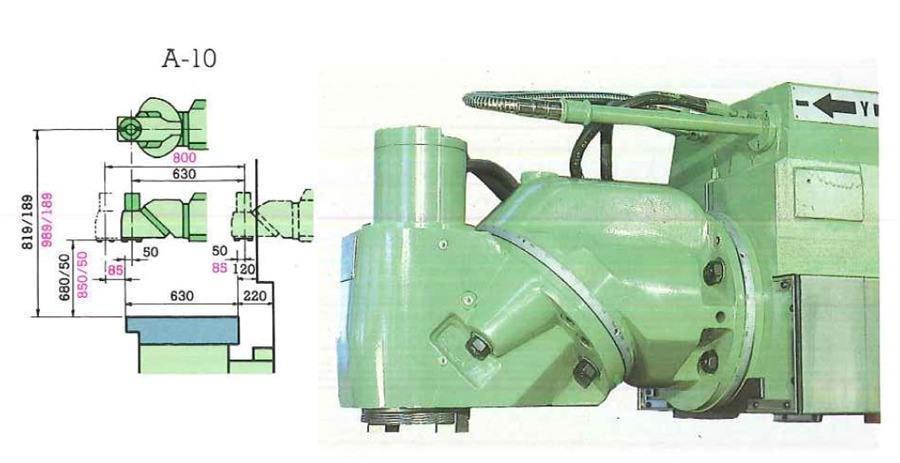

2x 360° turnable (manual) milling head - Huron Type

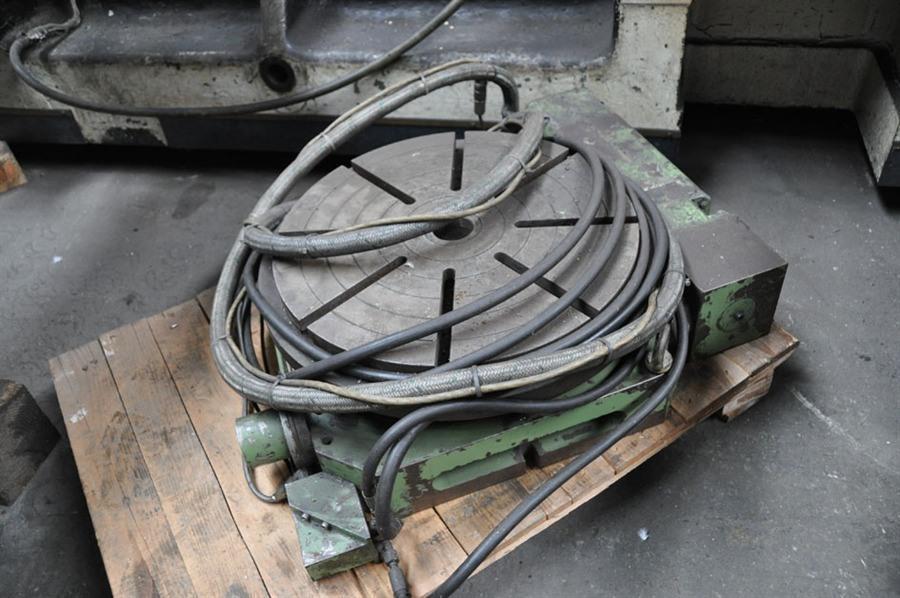

with extra CNC turning table (dia: 500mm)
including tools
T-slots: 7 x 18H8
Distance between T-slots: 71 mm
max weight on table: 3 tons
With the huron head in the highest position the workpiece can have a maximum height of 989 mm.

No files or videos to display
