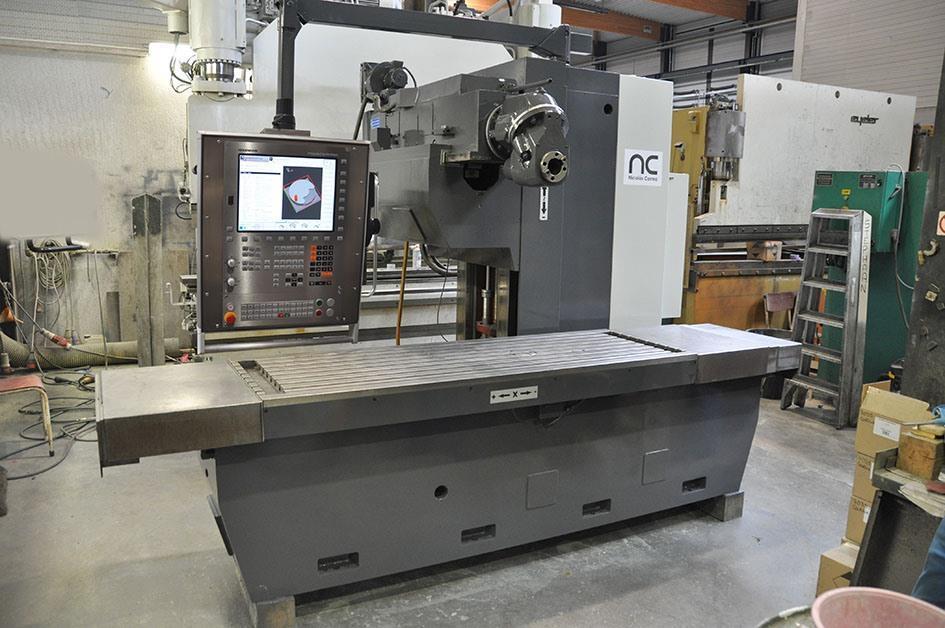

Correa A16 X: 1800 - Y: 800 - Z: 800 mm

Brand
CORREA
Category
CNC, Metalworking & Manufacturing
Type
Milling Machines
Model
A16 X: 1800 - Y: 800 - Z: 800 mm
Stock #
B.03 10743
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Longitudinal travel X-axe 1800 mm
  • Cross travel Y-axe 800 mm
  • Travel Z-axe 800 mm
  • Dimensions clamping space- table 2000 x 630 mm
  • Power on spindle 15 HP
  • Admission in millinghead (ISO) ISO 50
  • Max speedrange 25 > 3250 rpm

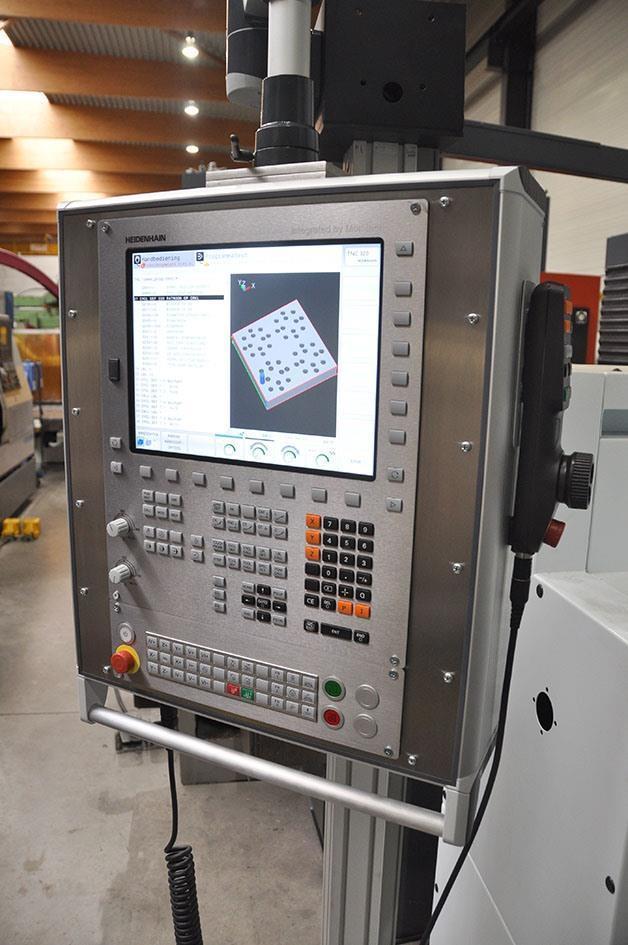

  • Control Heidenhain 320/620
  • Length 5000 mm
  • Depth 2720 mm
  • Height 2420 mm
  • Weight 8,5 ton
  • ACCESSORIES & TOOLING yes

Additional info

  • CNC 3 axes
    T-slots: 18 x H8
    Distance between T-slots: 80 mm

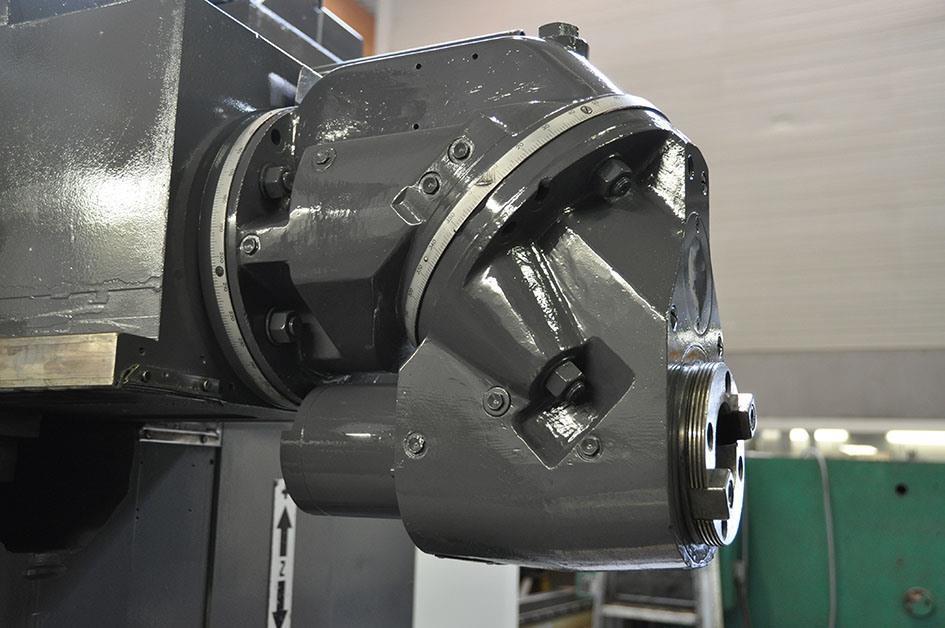

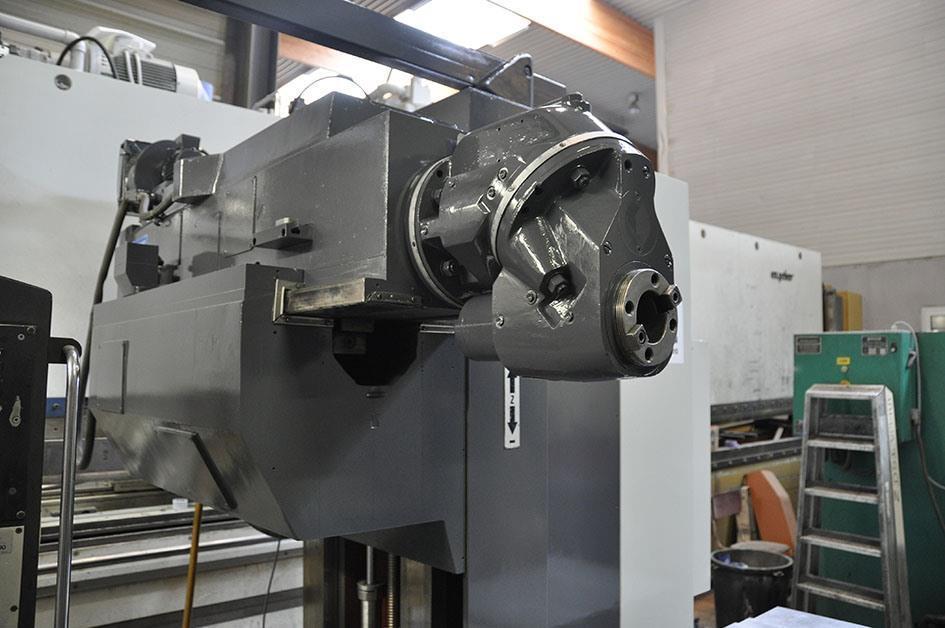

    With huron head in highest position the workpiece can have a maximum height of 1153 mm



No files or videos to display
