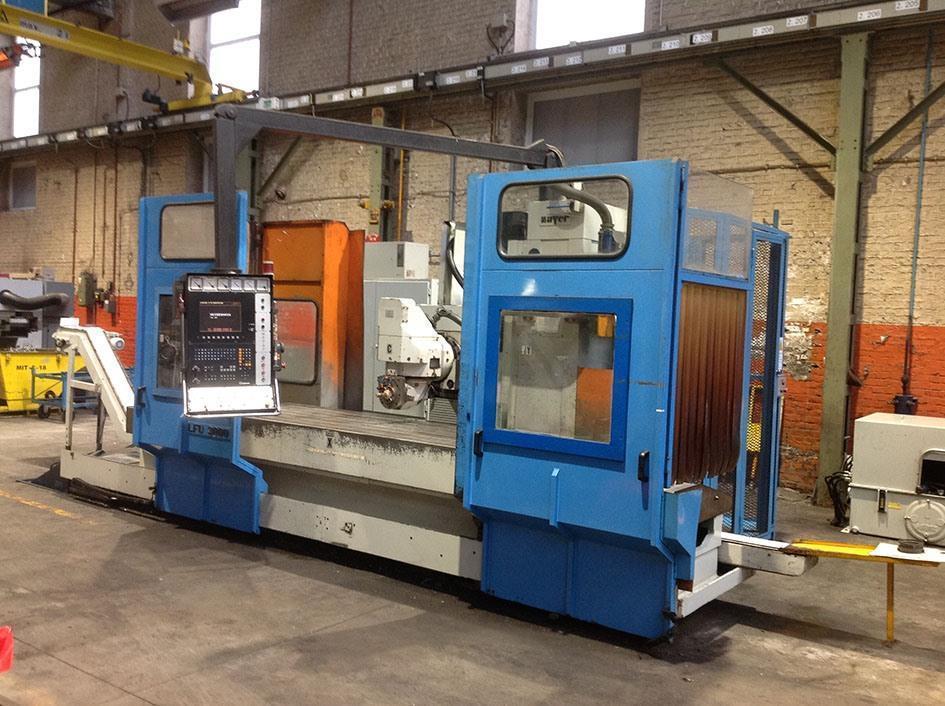

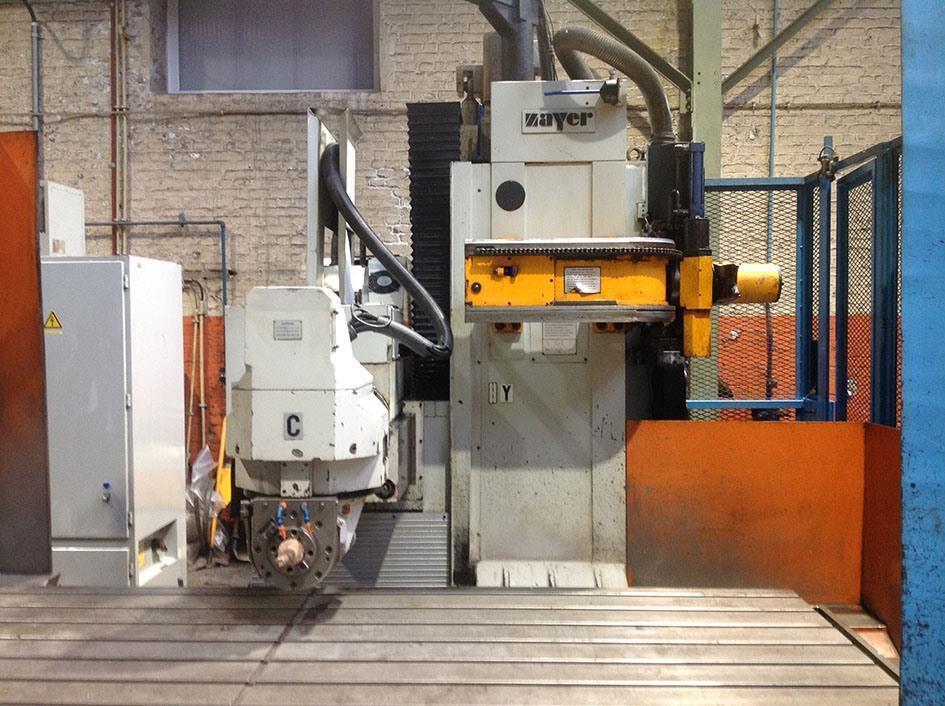

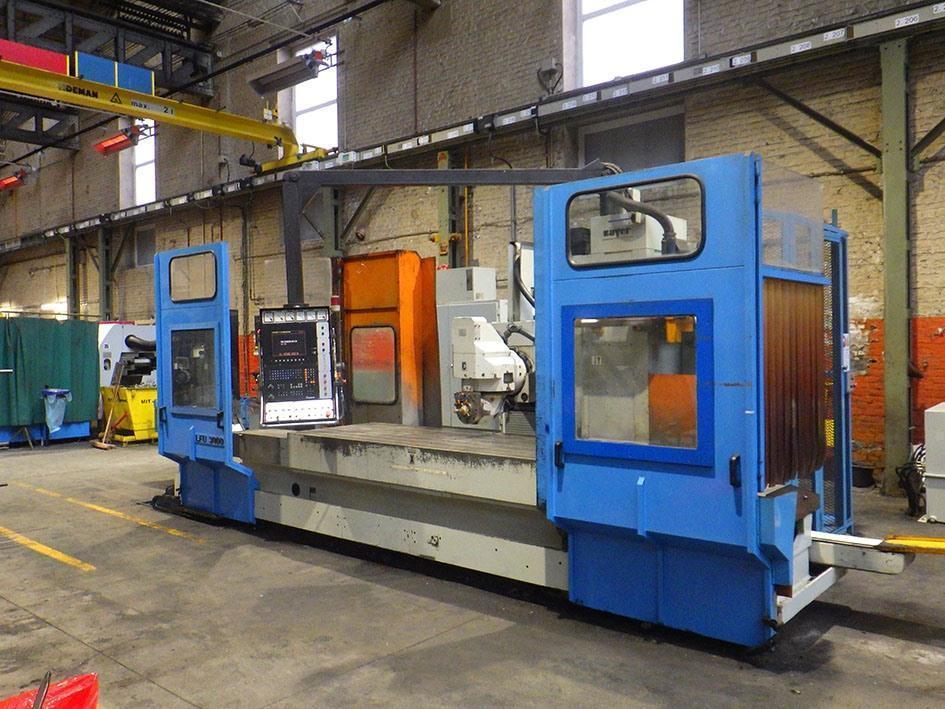

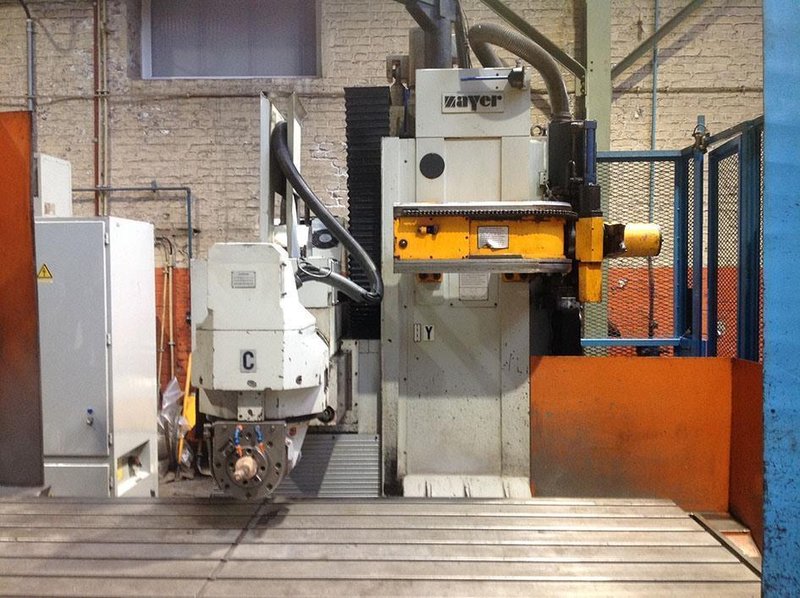

Zayer X: 2700 - Y: 1200 - Z: 1000 mm CNC

Brand
ZAYER
Category
CNC, Metalworking & Manufacturing
Type
Milling Machines
Model
X: 2700 - Y: 1200 - Z: 1000 mm CNC
Stock #
B.03 10951
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Longitudinal travel X-axe 2700 mm
  • Cross travel Y-axe 1200 mm

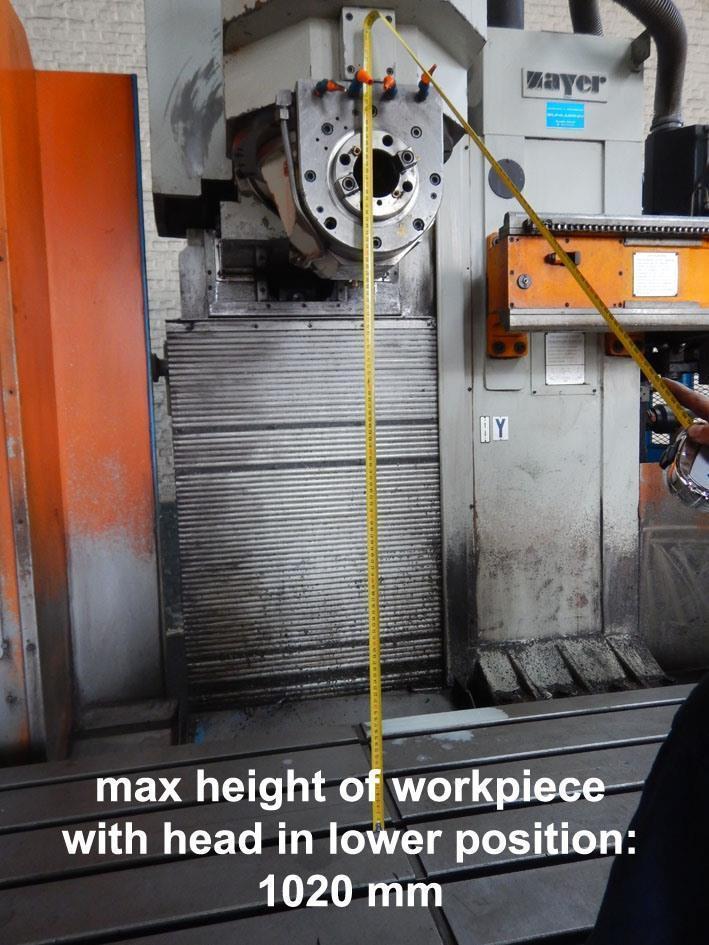

  • Travel Z-axe 1000 mm
  • Dimensions clamping space- table 3000 x 1000 mm
  • Power on spindle 26 kW
  • Admission in millinghead (ISO) ISO 50
  • Max speedrange 1800 rpm

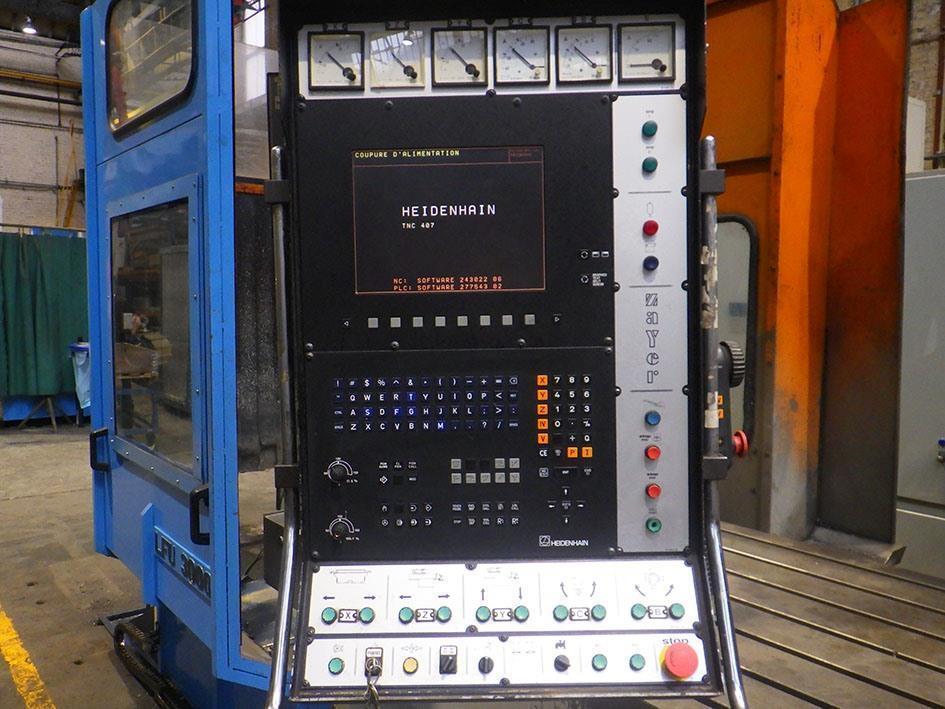

  • Control Heidenhain TNC 407
  • Power needed (KVA) 68 kVa
  • Length 7357 mm
  • Depth 3400 mm
  • Height 3107 mm
  • Weight 15,5 ton
  • Cooling system yes

Additional info

  • Type: LFU 3000

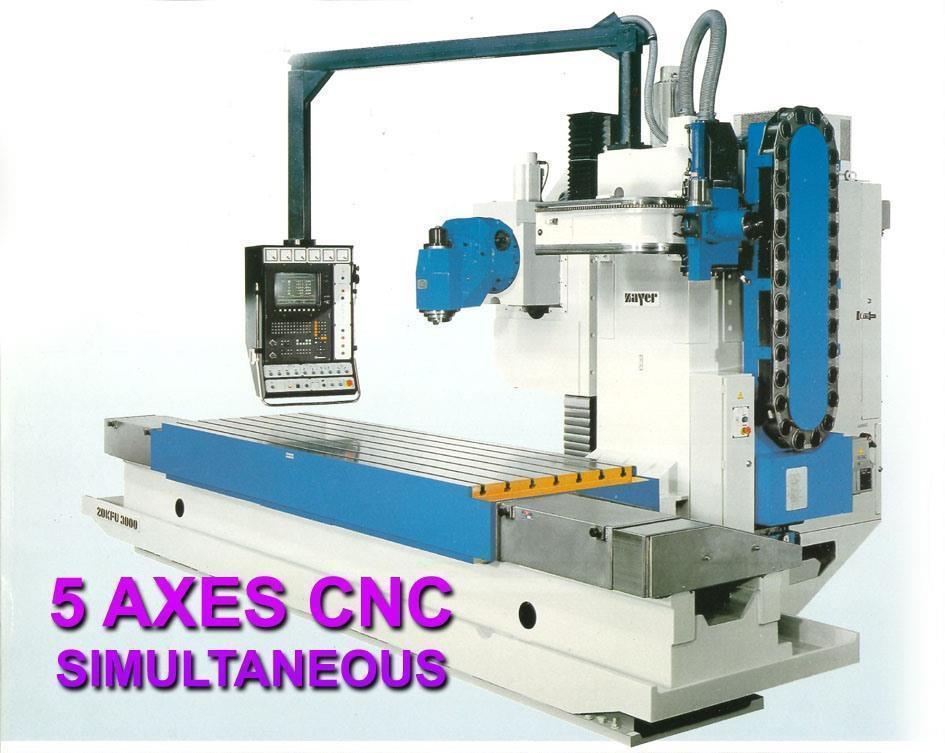

    5-axis simultaneous milling

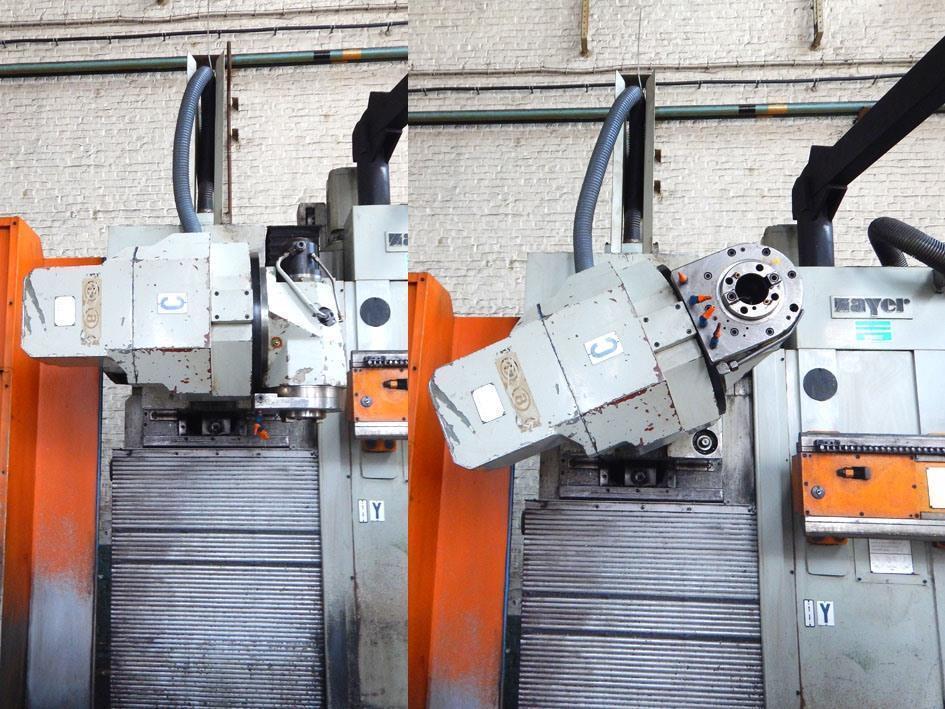

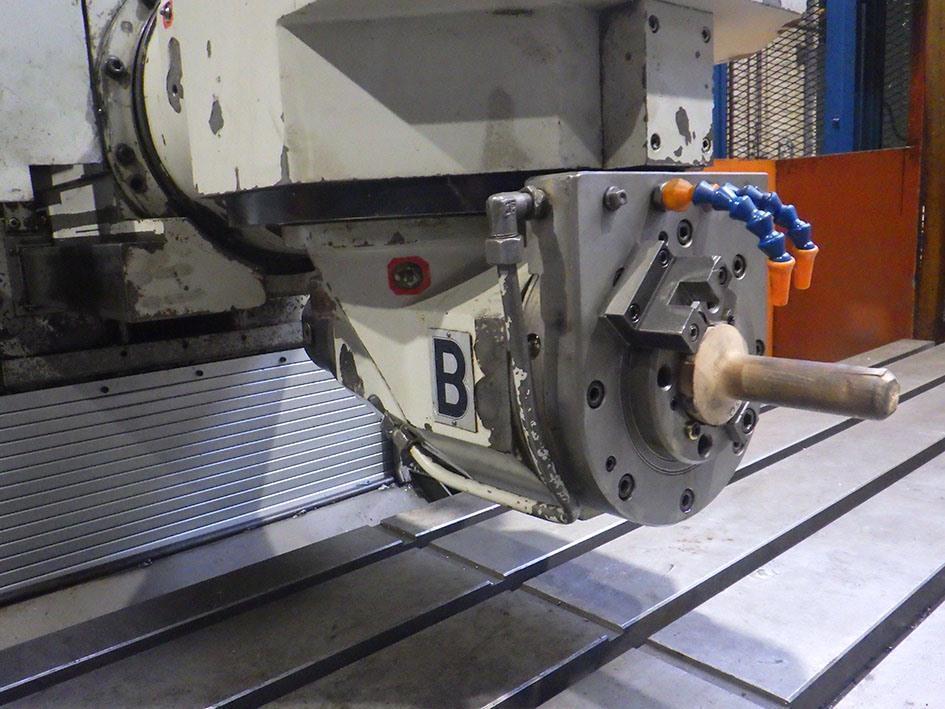

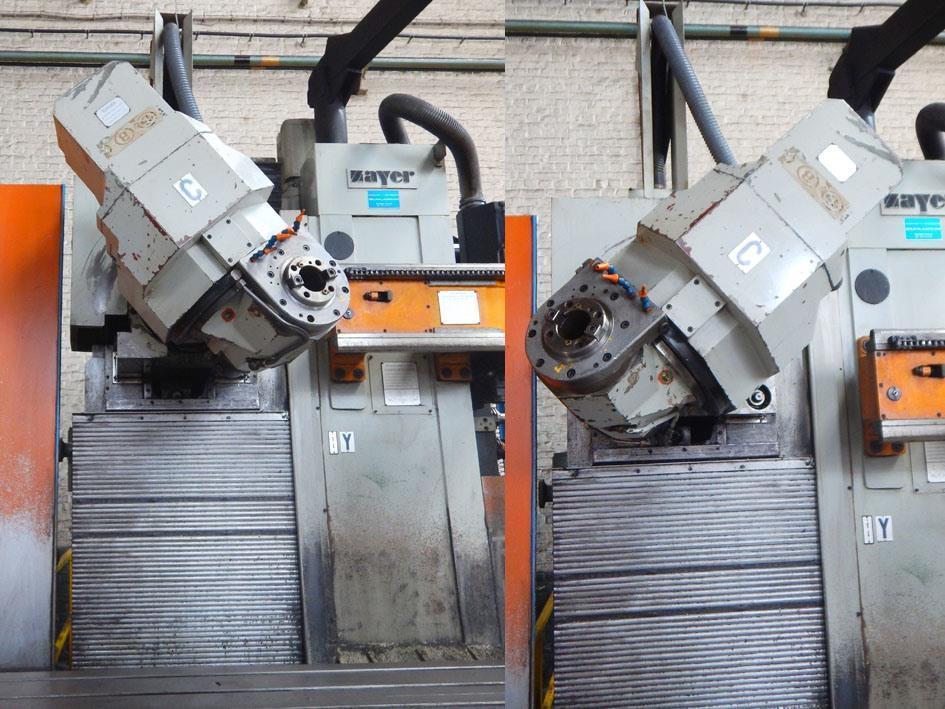

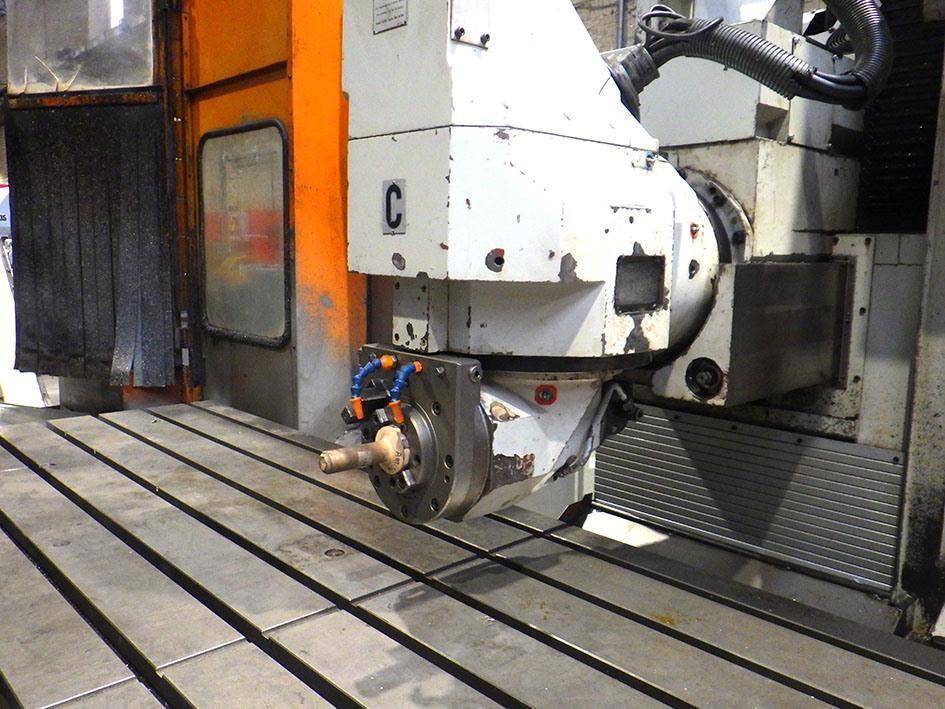

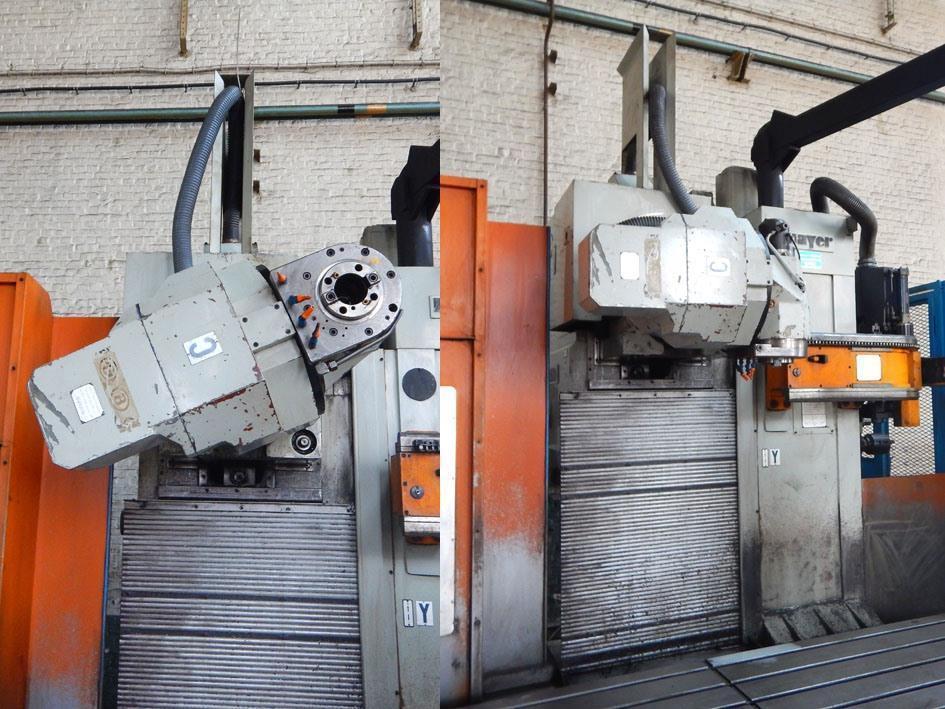

    Orthogonal CNC indexing milling head
    cooling by spindle
    30 position tool changer

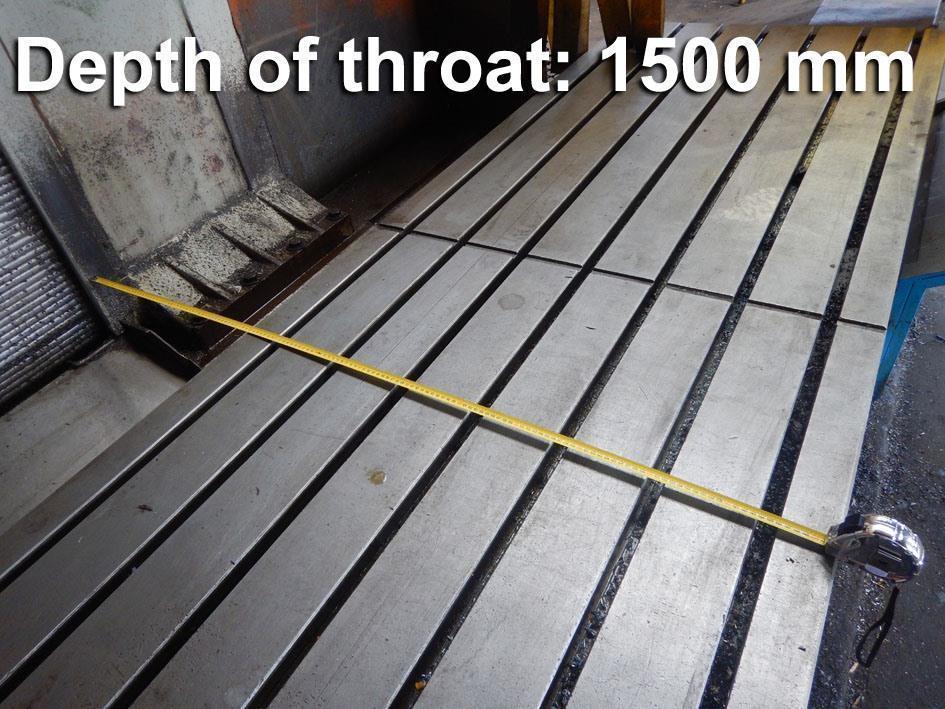

    Depth of throat: 1500 mm
