Stanko UFO 649

Name: Used STANKO UFO 649 For Sale B.03 4271
Brand: STANKO
SKU: B.03 4271
Availability: PreOrder

Brand

STANKO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

Longitudinal travel X-axe 10000 mm (2tables together)
Cross travel Y-axe 2400 mm
Travel Z-axe Z1:1450 mm + Z2:630mm
Dimensions clamping space- table 1250 x 9200 mm
Max height workpiece 1600 mm
Power on spindle 42 kW/moment 540kpn
Type of millinghead Vertical + extra's
Admission in millinghead (ISO) ISO 60
Max quill travel Z' Z2:630 mm
Admission in boring head (ISO) ISO 60
Max speedrange 80 - 630 rpm
Length 22850 mm
Depth 5200 mm
Height 6000 mm
Weight 90000 kg

Additional info

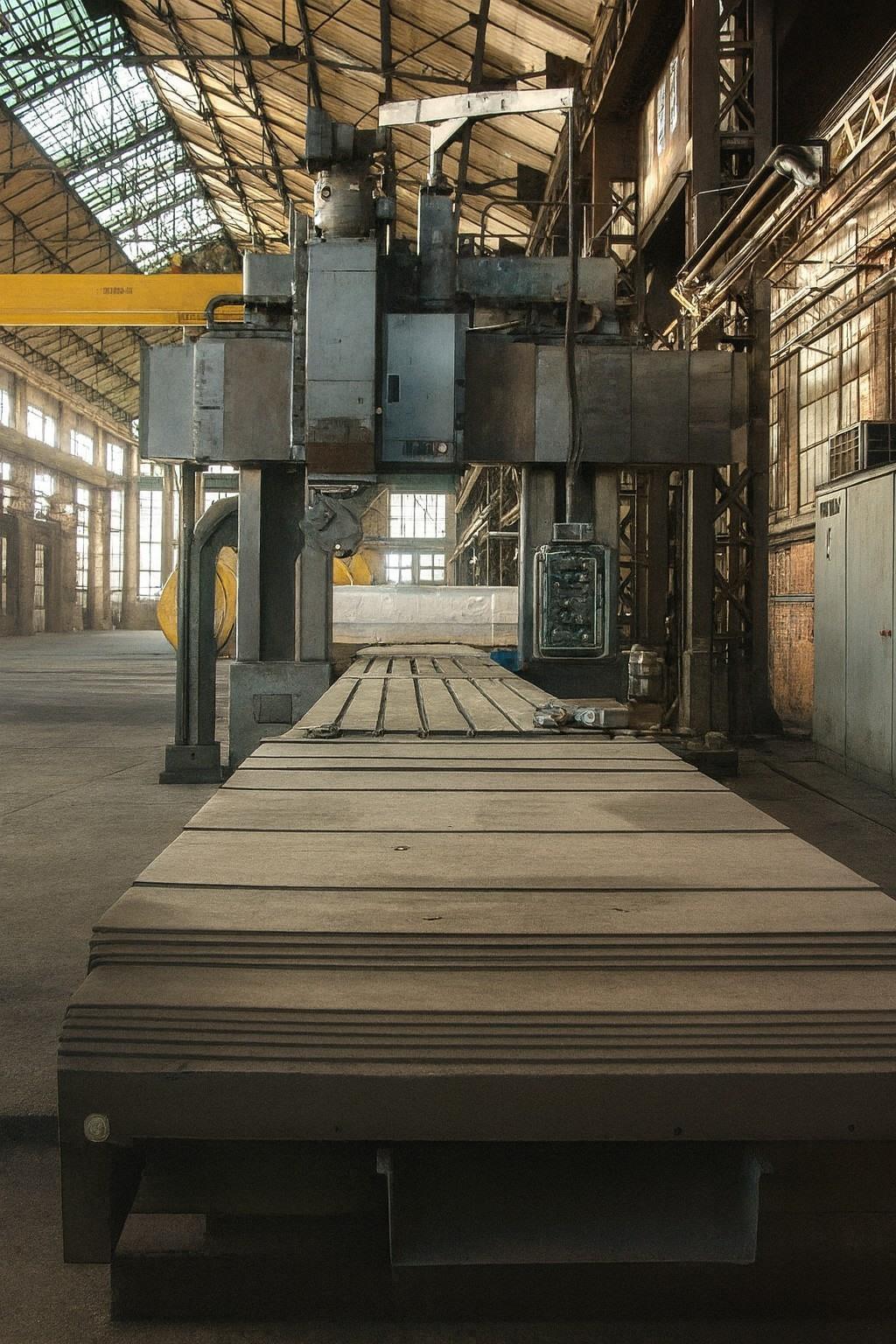

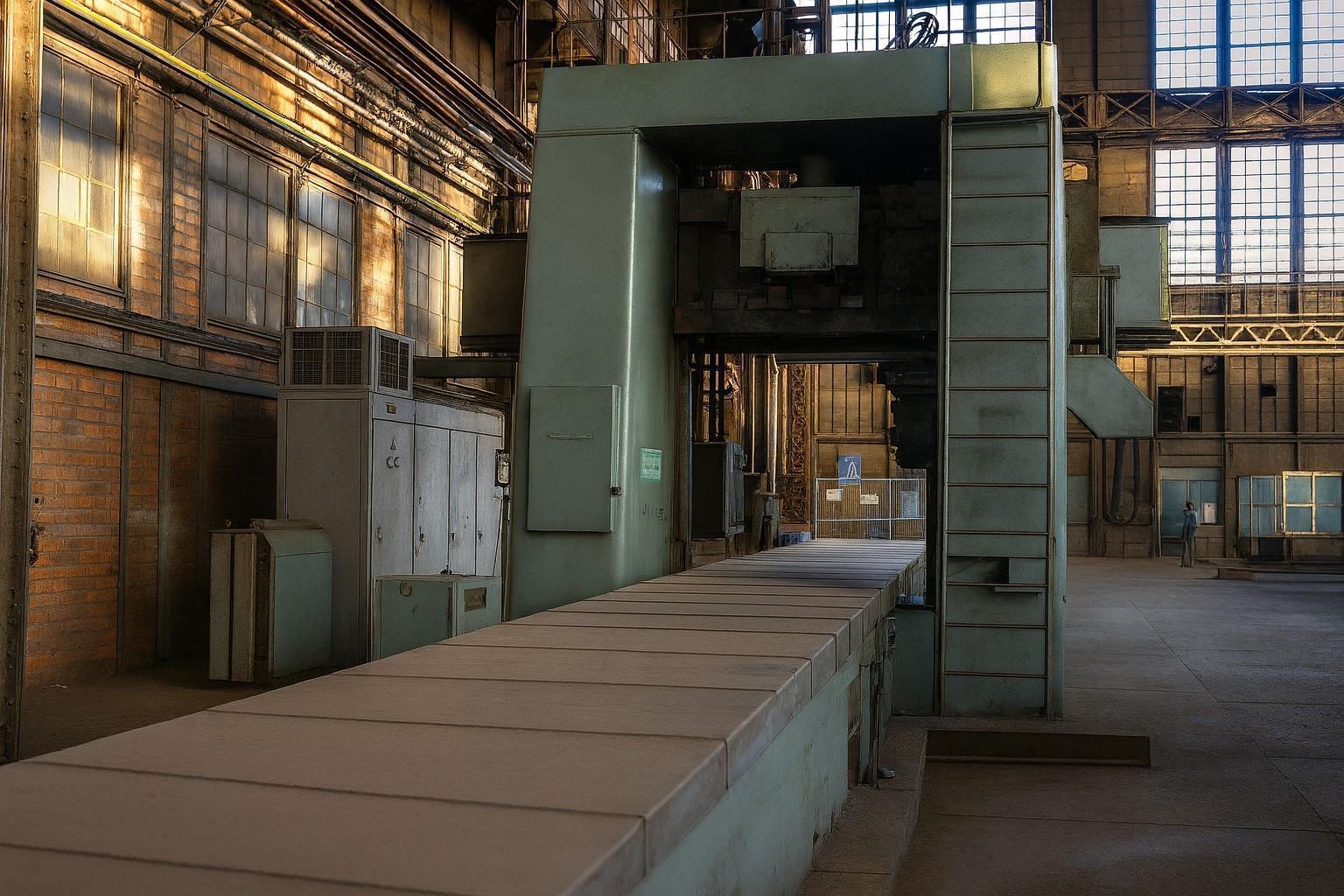

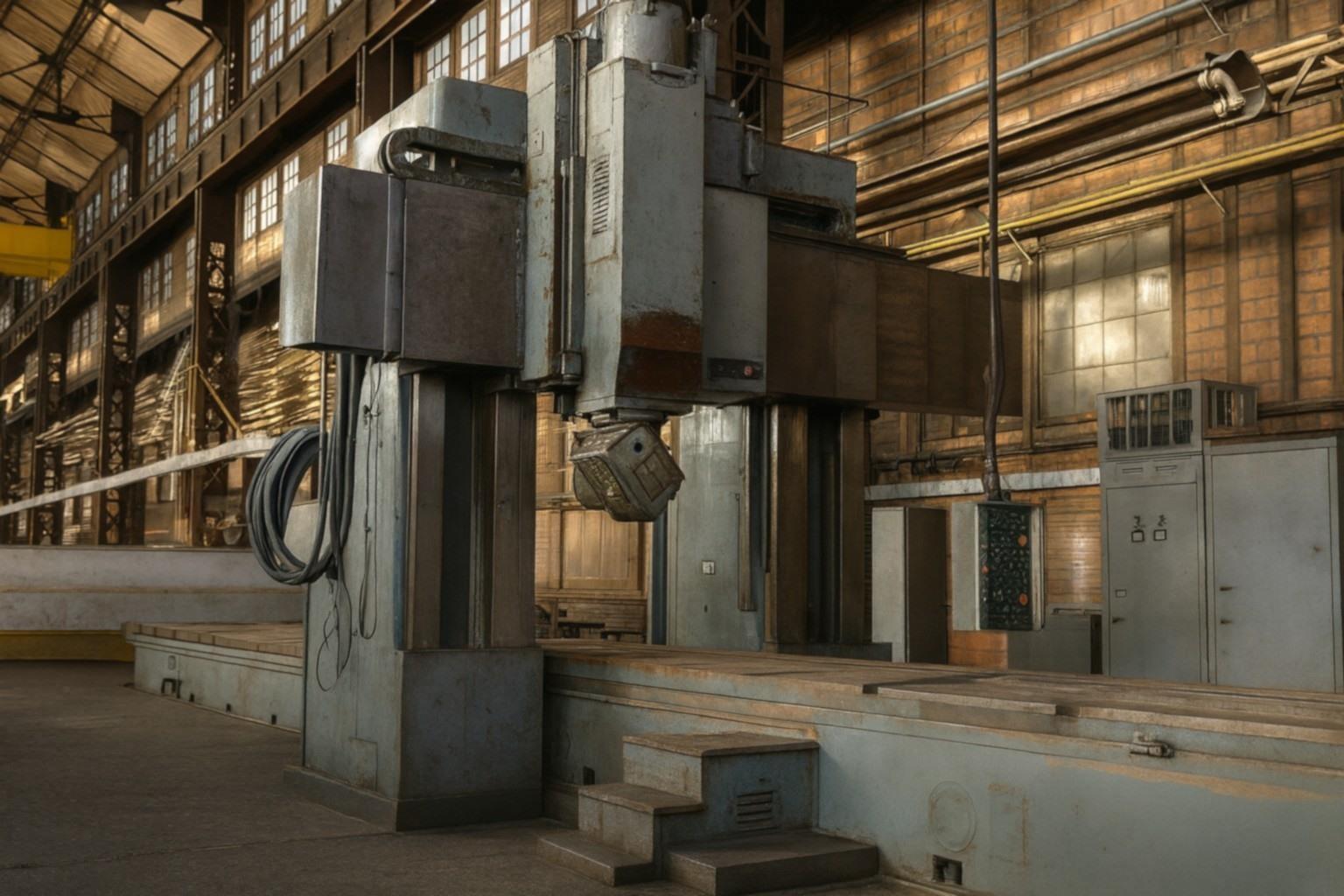

Portal bed milling machine with movable table.

Z1 height displacement (bridge): 1450 mm
Z2 height travel (ram milling head): 630 mm

X-displacement:
2 Linked tables: 10000 mm
Individual table: 4800 mm

Max. weight on table: 25 tons
Including 1 angle milling head 1 x 90° - 28 kW - ISO 50
Includes 1 universal milling head: 2 x 180° - ISO 50 - 13 kW
Including 1 angle milling head extended 2 x 360° - ISO 50 - 13 kW
Spindle extension: 650 mm
