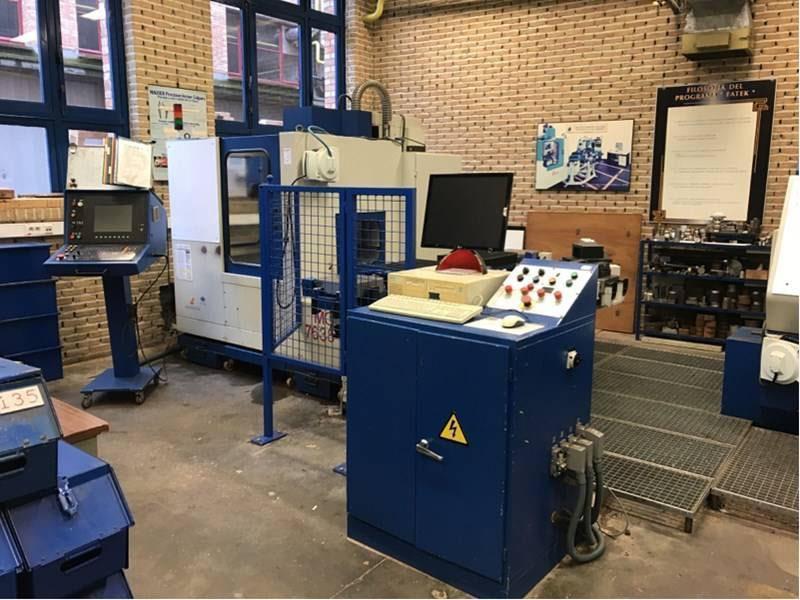

Lagun MC-7638 X: 585 - Y: 406 - 432 mm CNC

Name: Used LAGUN MC-7638 X: 585 - Y: 406 - 432 mm CNC For Sale D.01 12722
Brand: LAGUN
SKU: D.01 12722
Availability: PreOrder

Brand

LAGUN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

X-axis 585 mm
Y-axis 406 mm
Z-axis 432 + 111,5 mm
Table dimensions 400 x 400 mm
Max weight on the table 350 kg
Admission in spindle (ISO) BT40
Power on the spindle 5,5/7,5 kW

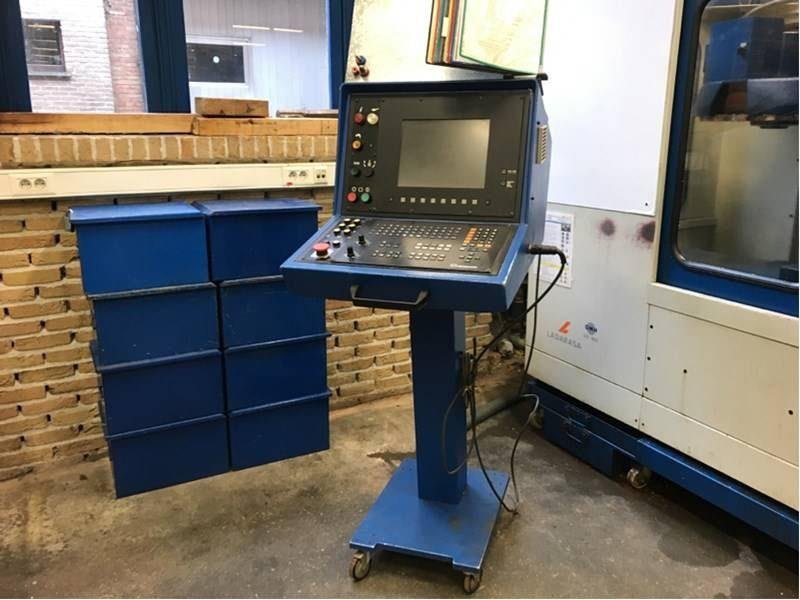

Control Heidenhain TNC 426
Toolchanger yes
Number of toolholders 18 positions
Number of rotations 60 > 6000 rpm

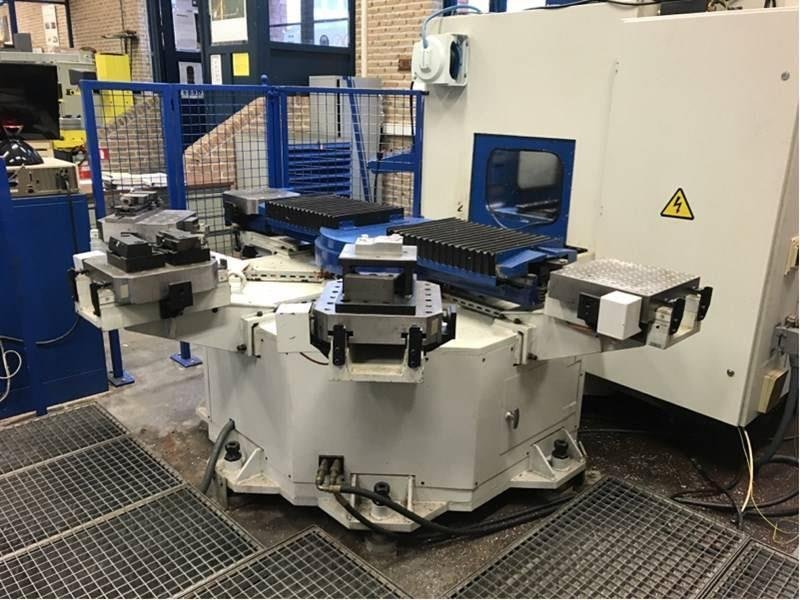

Number of pallets 6x
Power principal motor 10,5 kW
Length 2150 mm
Depth 2600 mm
Height 2450 mm
Weight 3,4 ton

Additional info

min/max spindle to table: 75 / 507 mm
distance table centre to column: 213 - 619 mm
distance spindle centre to column: 405 mm

No files or videos to display
