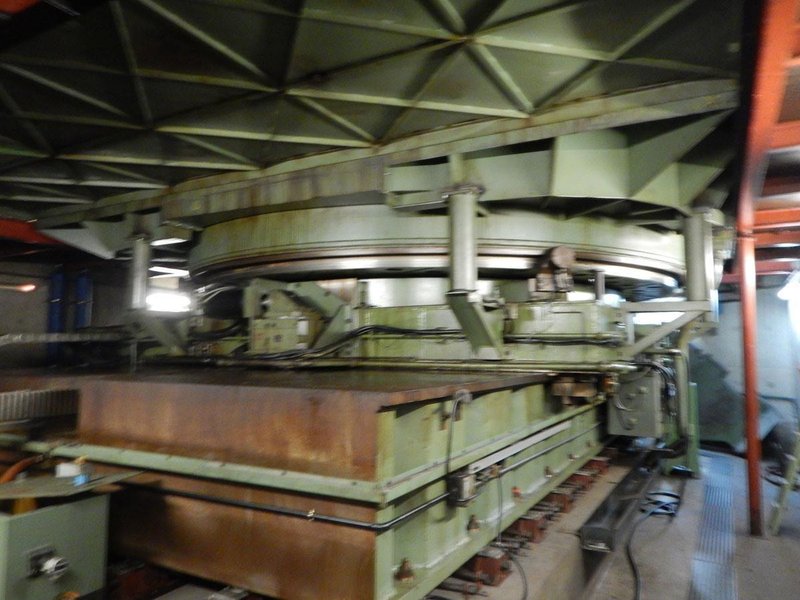

Innse int & ext milling Ø 9800 mm CNC

Brand
INNSE
Category
Lathes & Turning Machines
Type
Turning Centers
Model
int & ext milling Ø 9800 mm CNC
Stock #
A.12 9577
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Additional info

  • Type: TVM 450/5

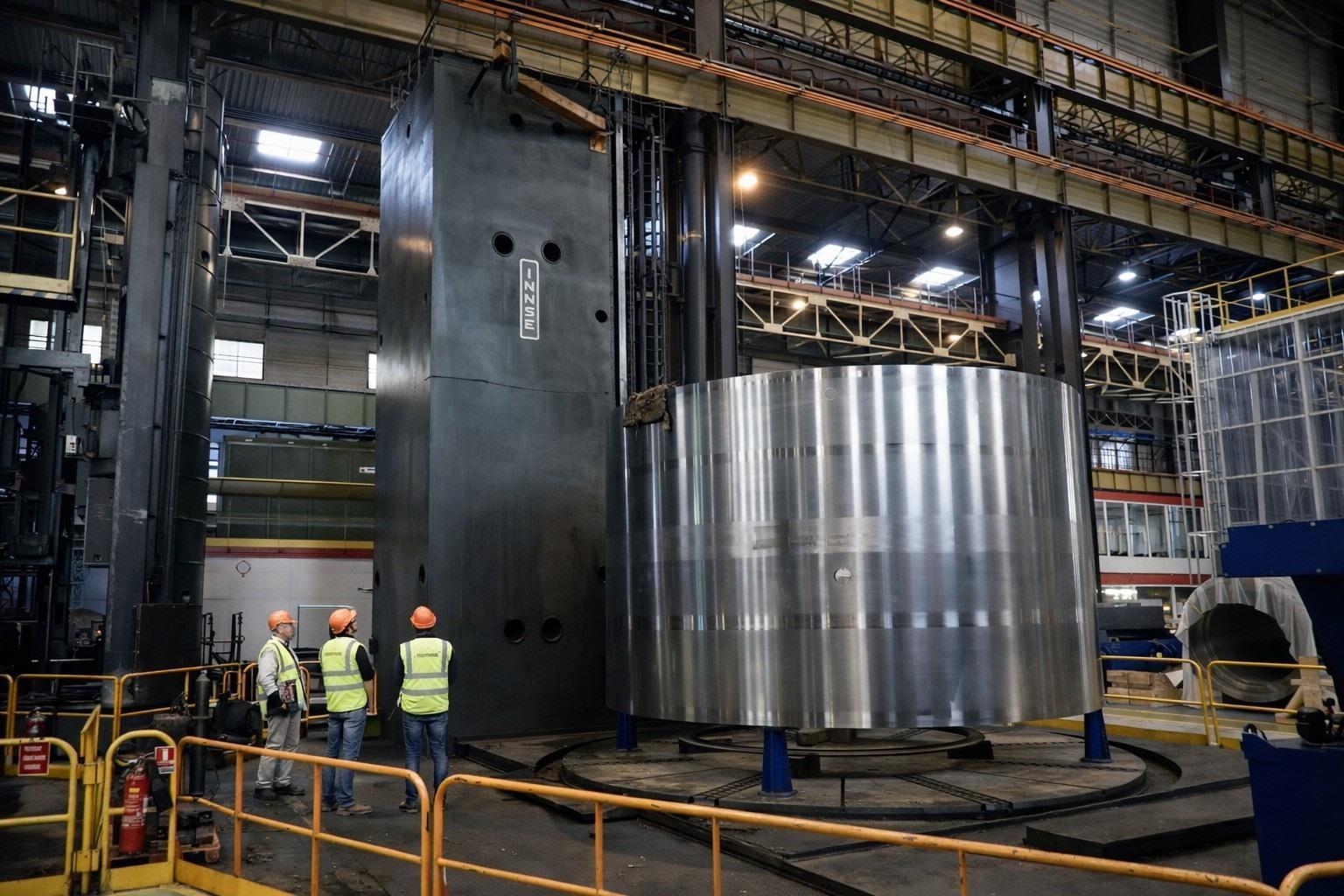

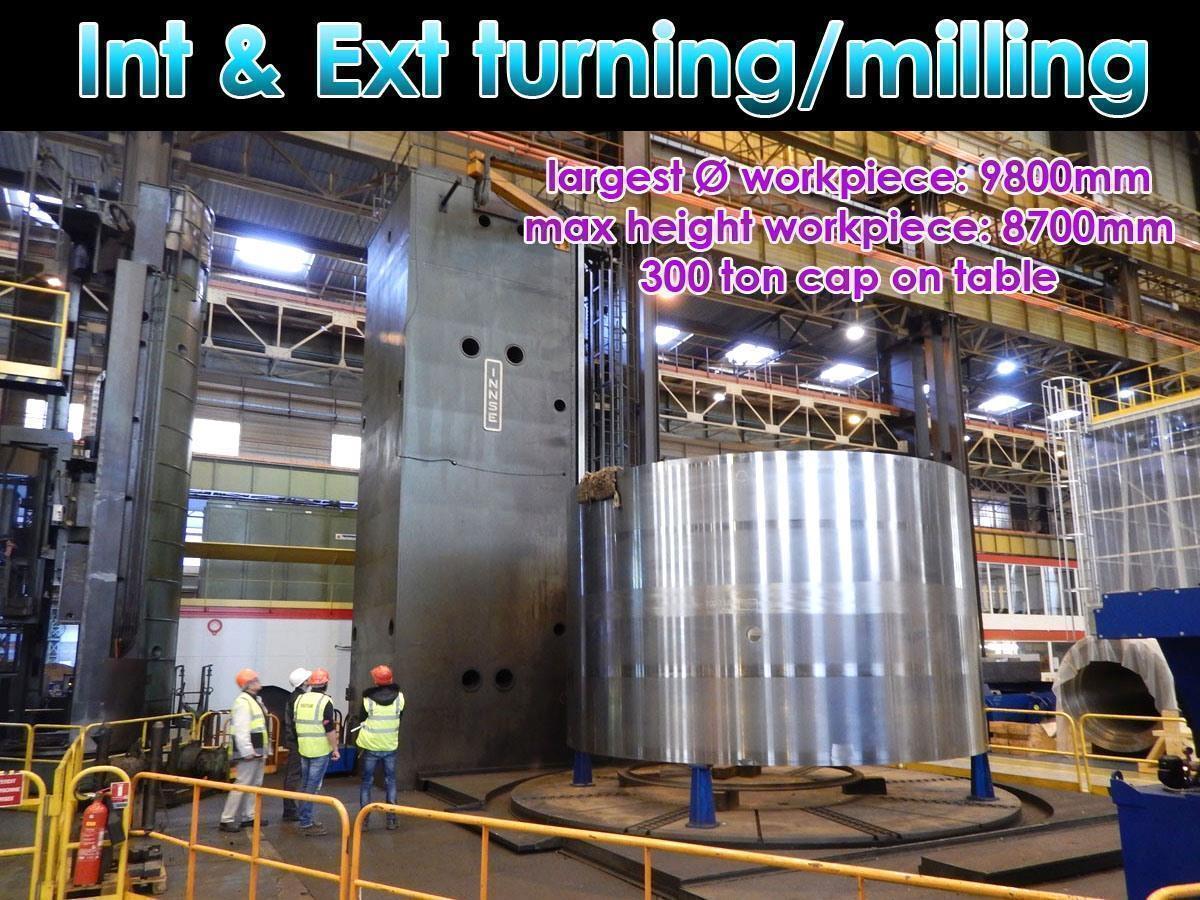

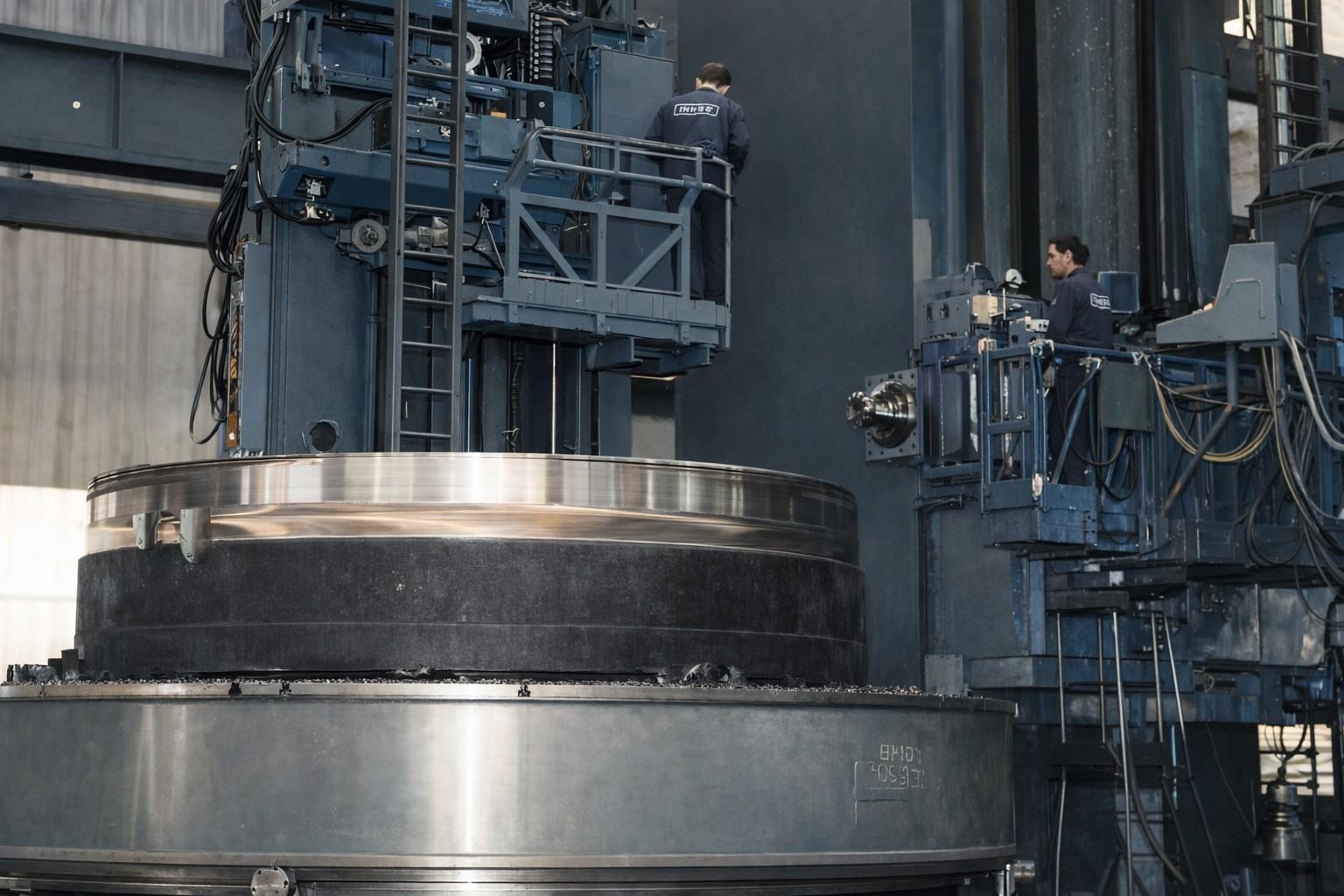

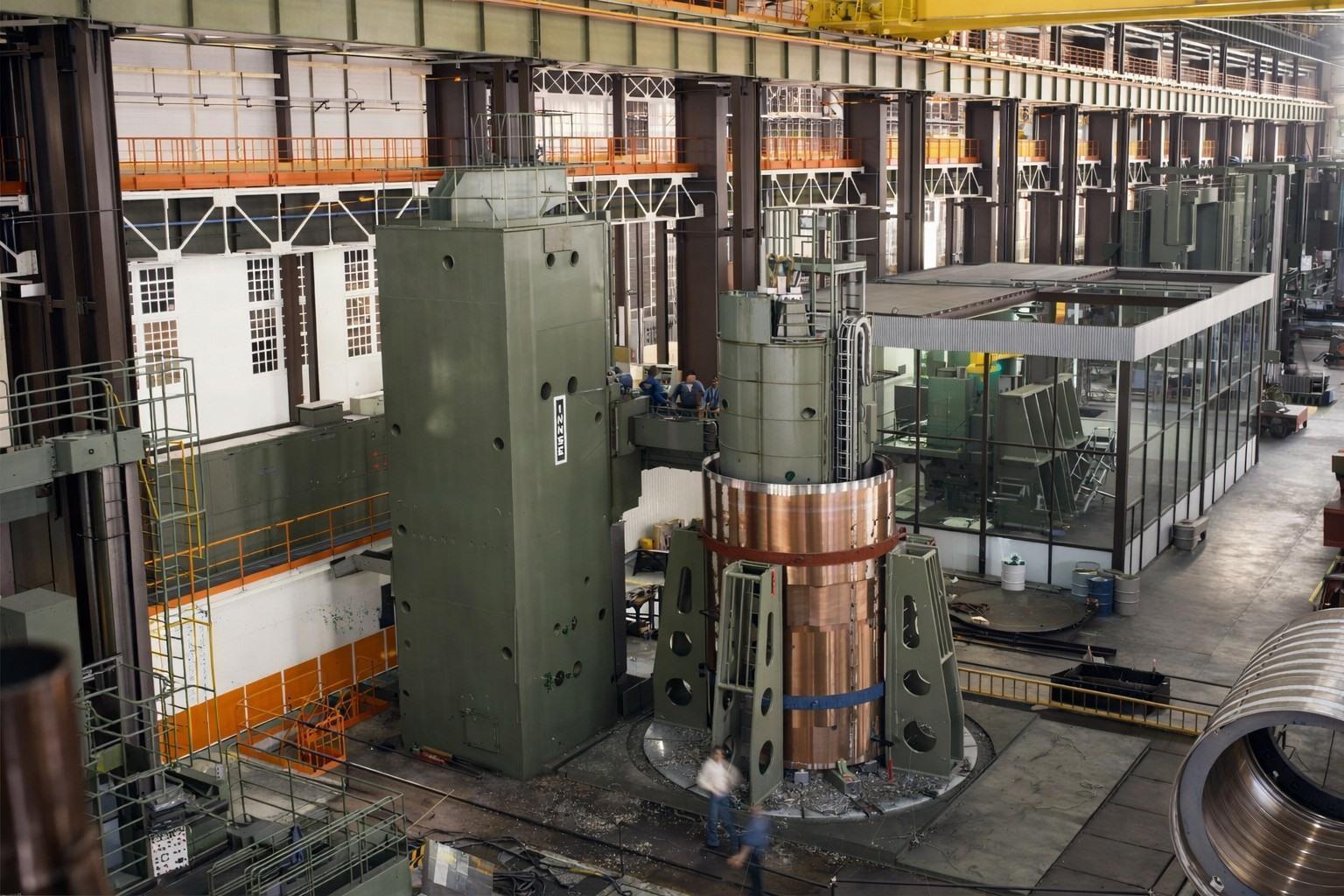

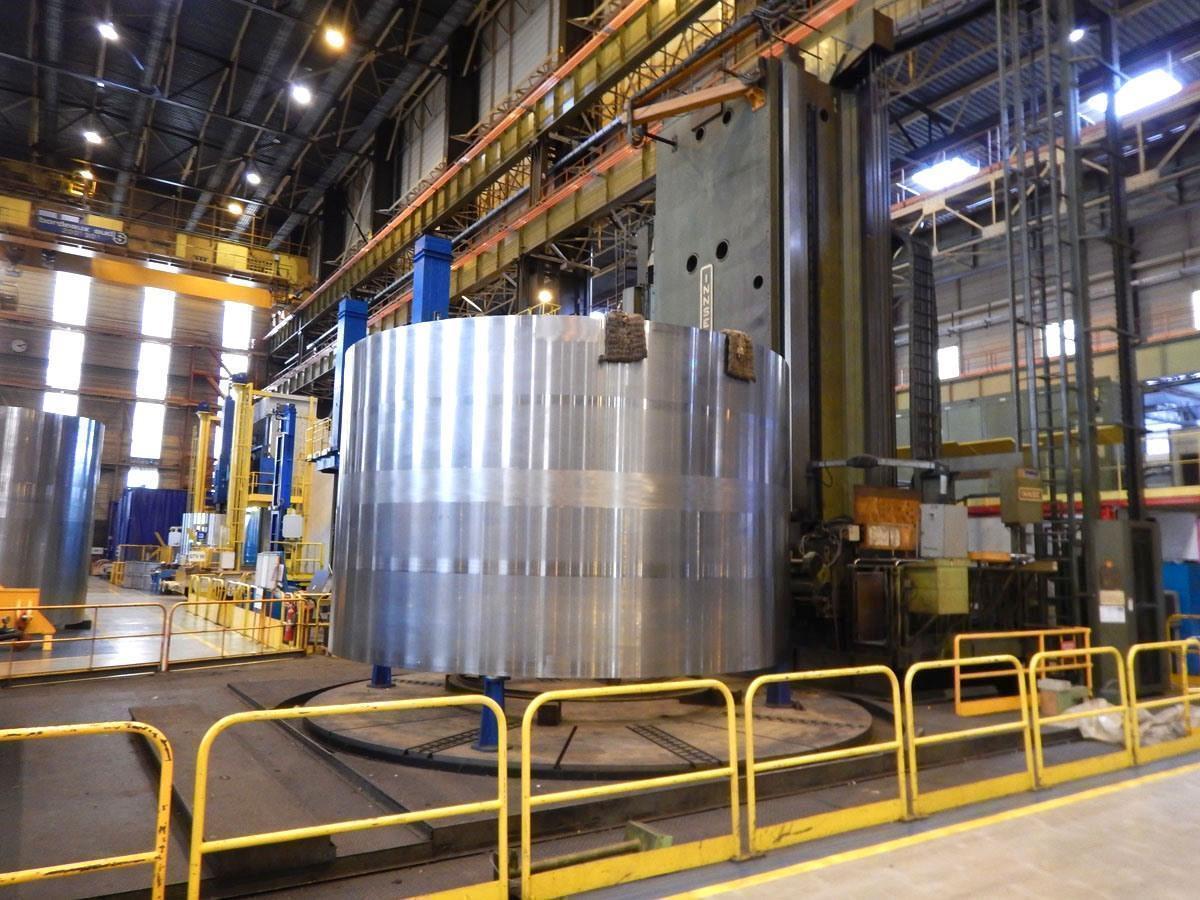

    Exceptional milling machine & turning vertical lathe that can machine very large workpieces. Both the inner and outer diameter of the workpieces can be machined!!

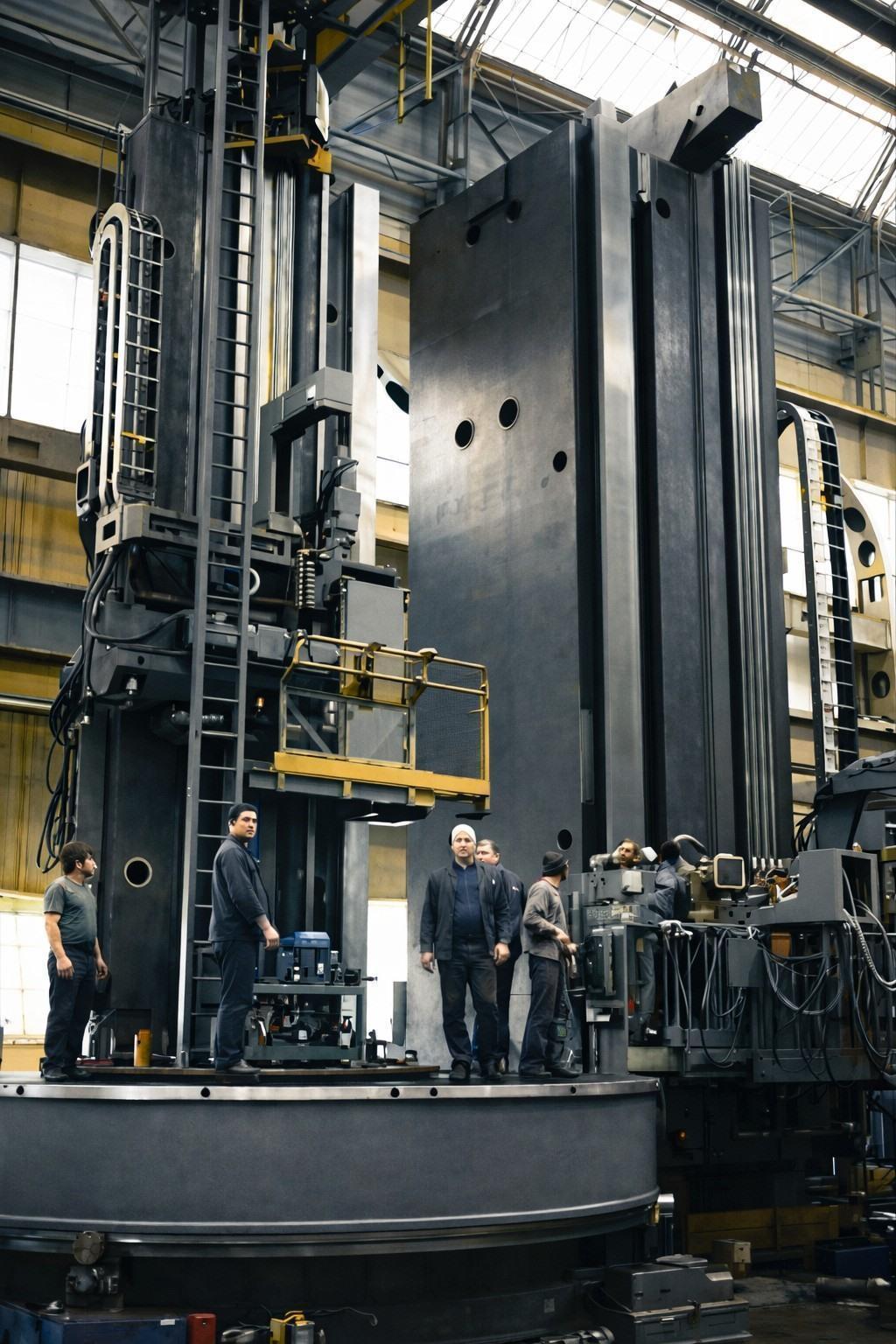

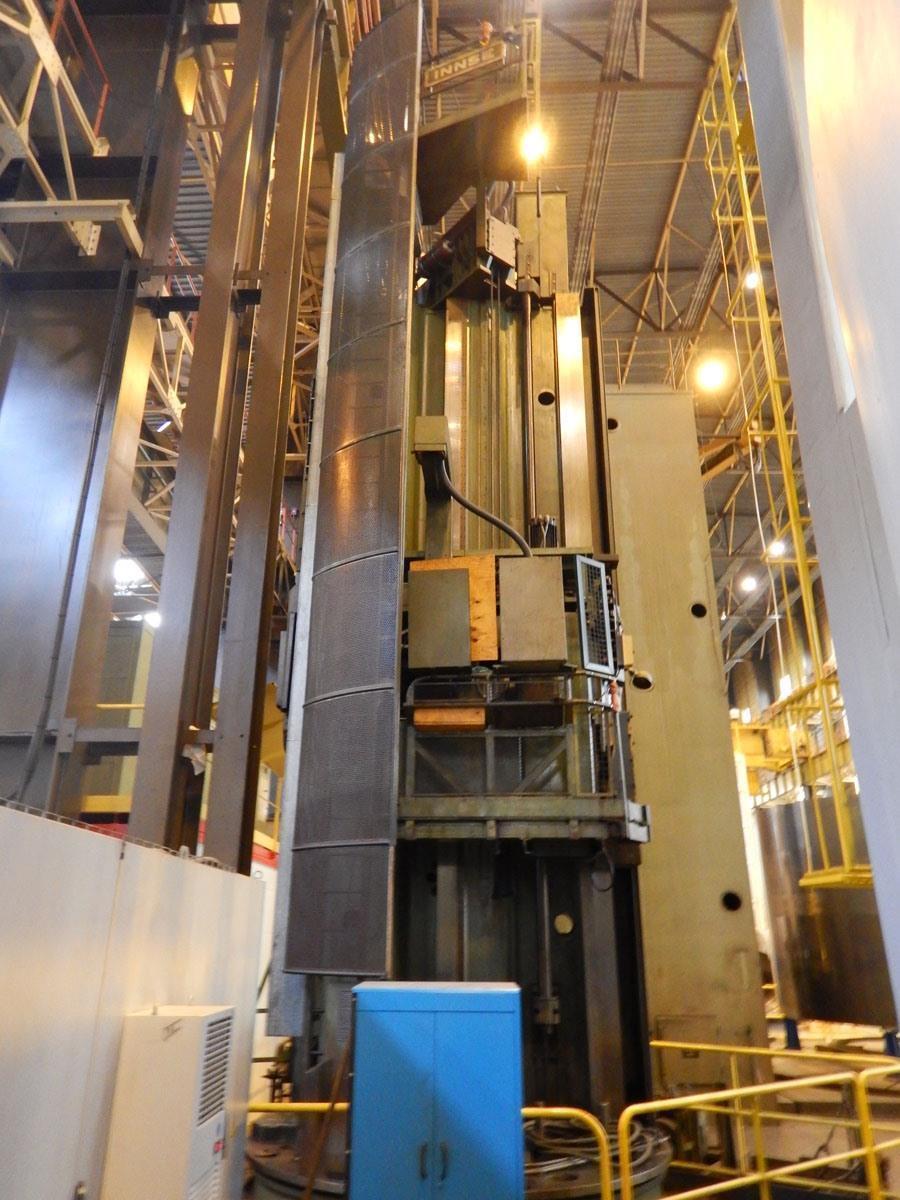

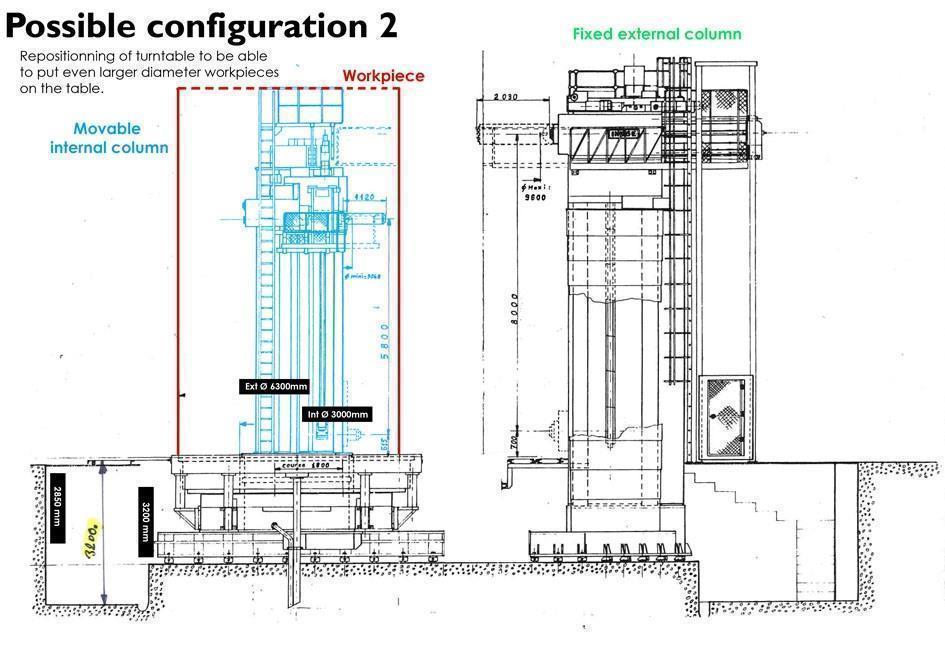

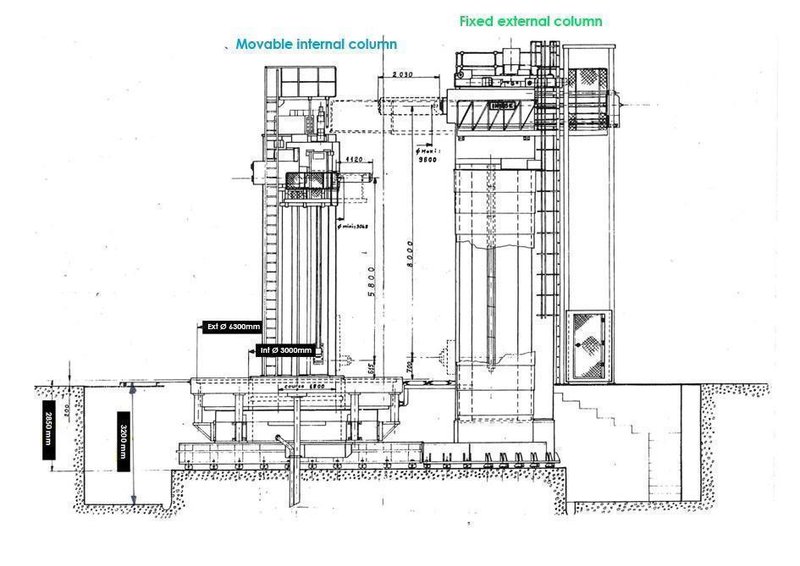

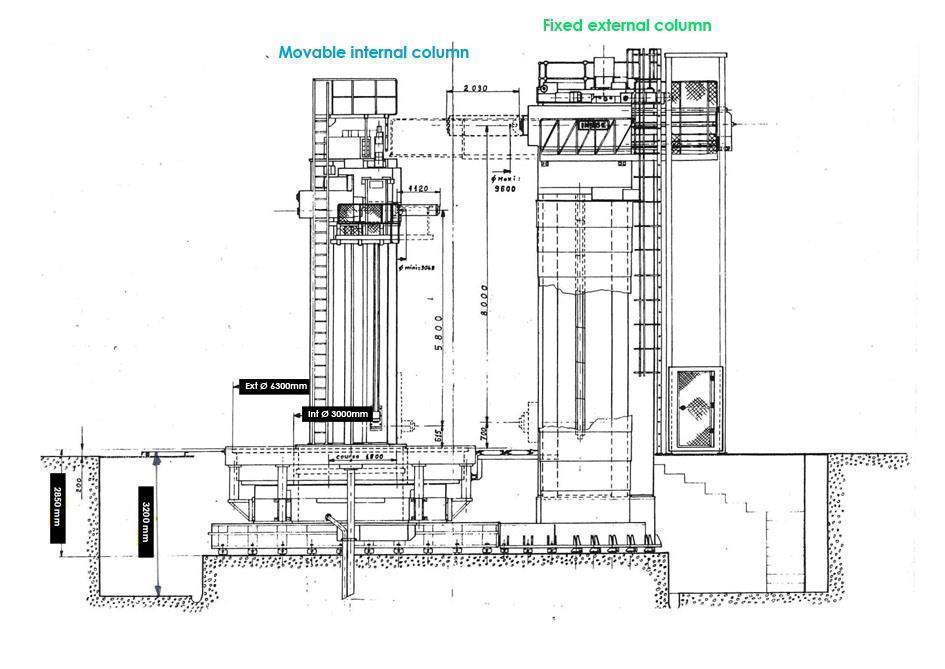

    The machine consists of a fixed outer column and a movable inner column.

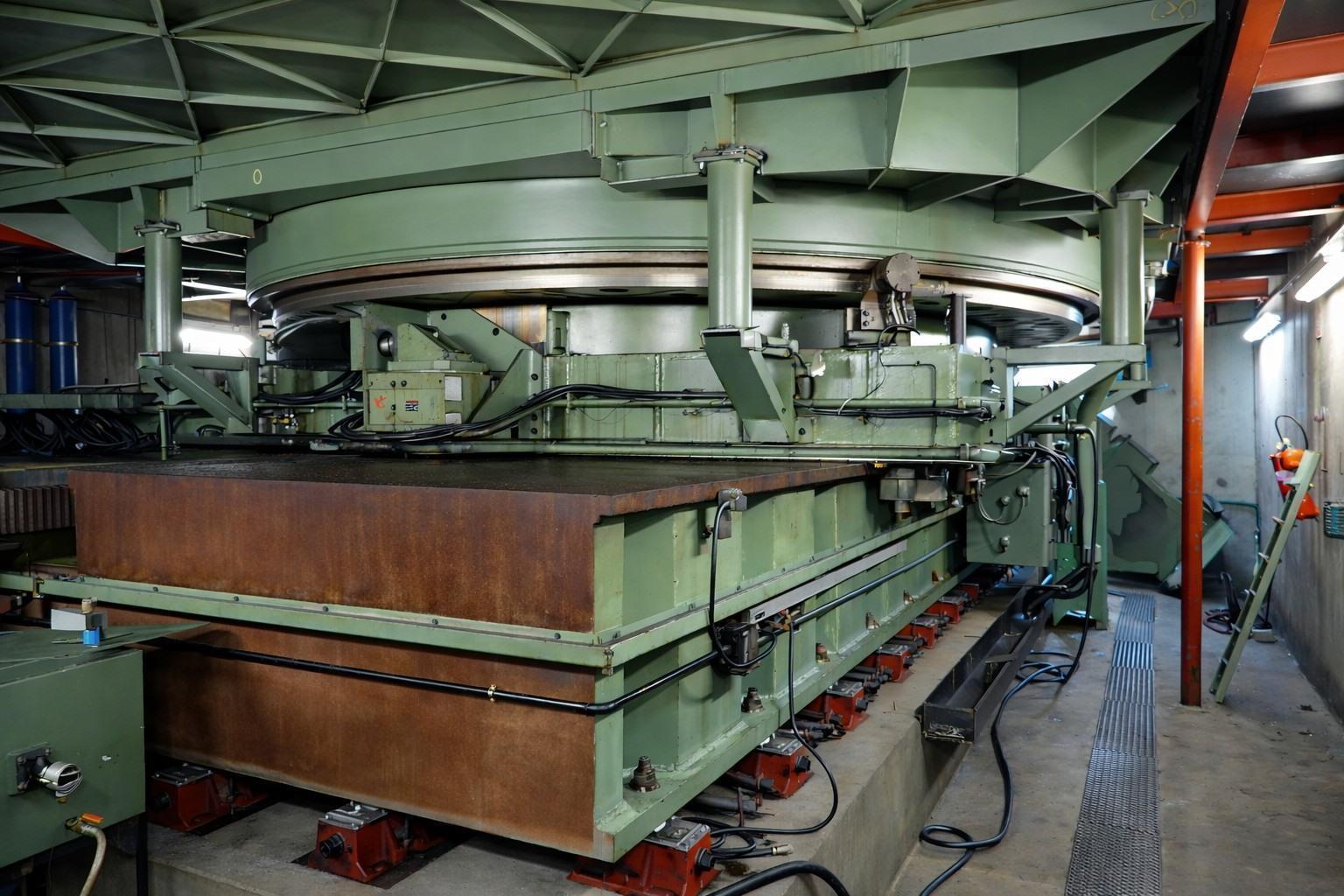

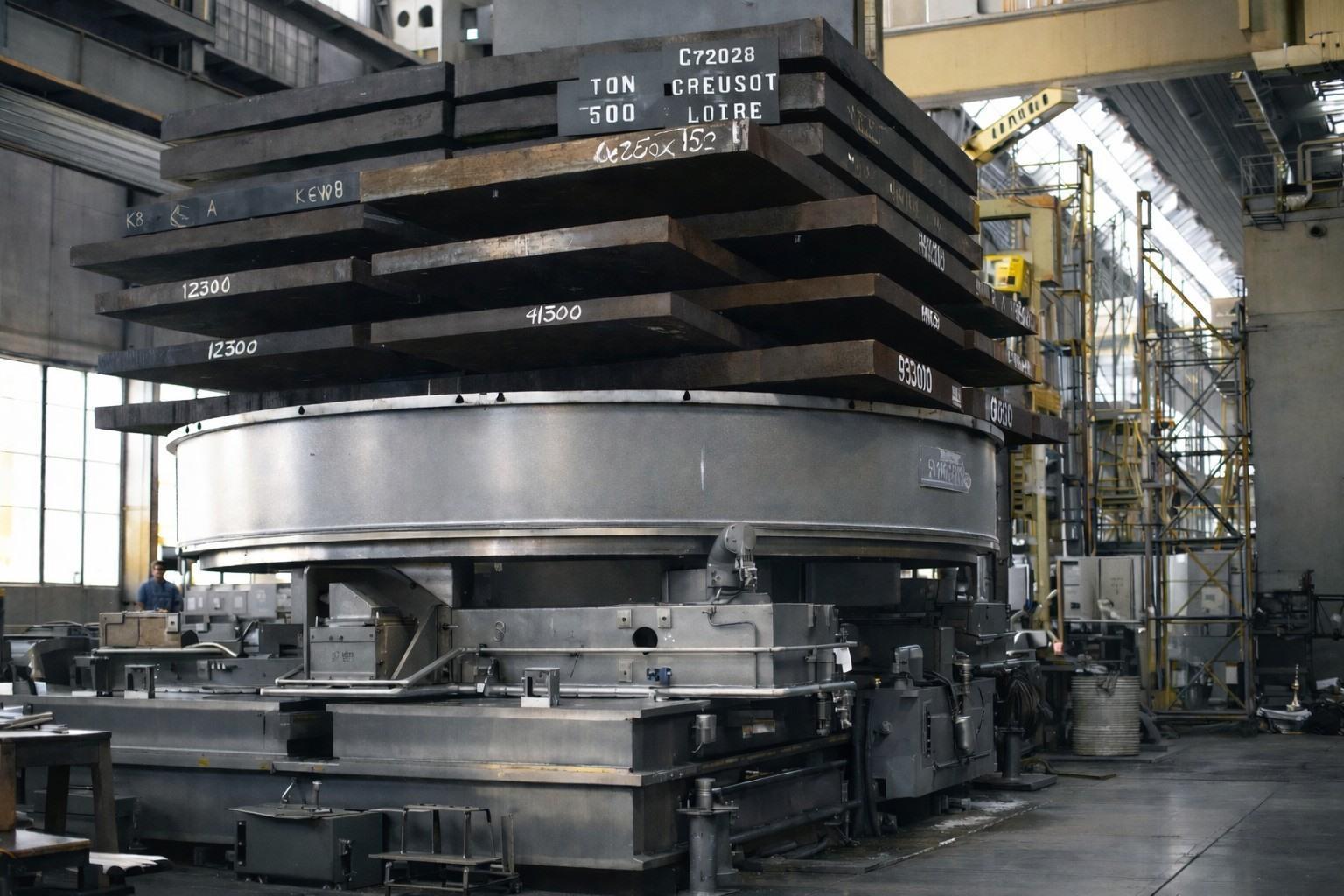

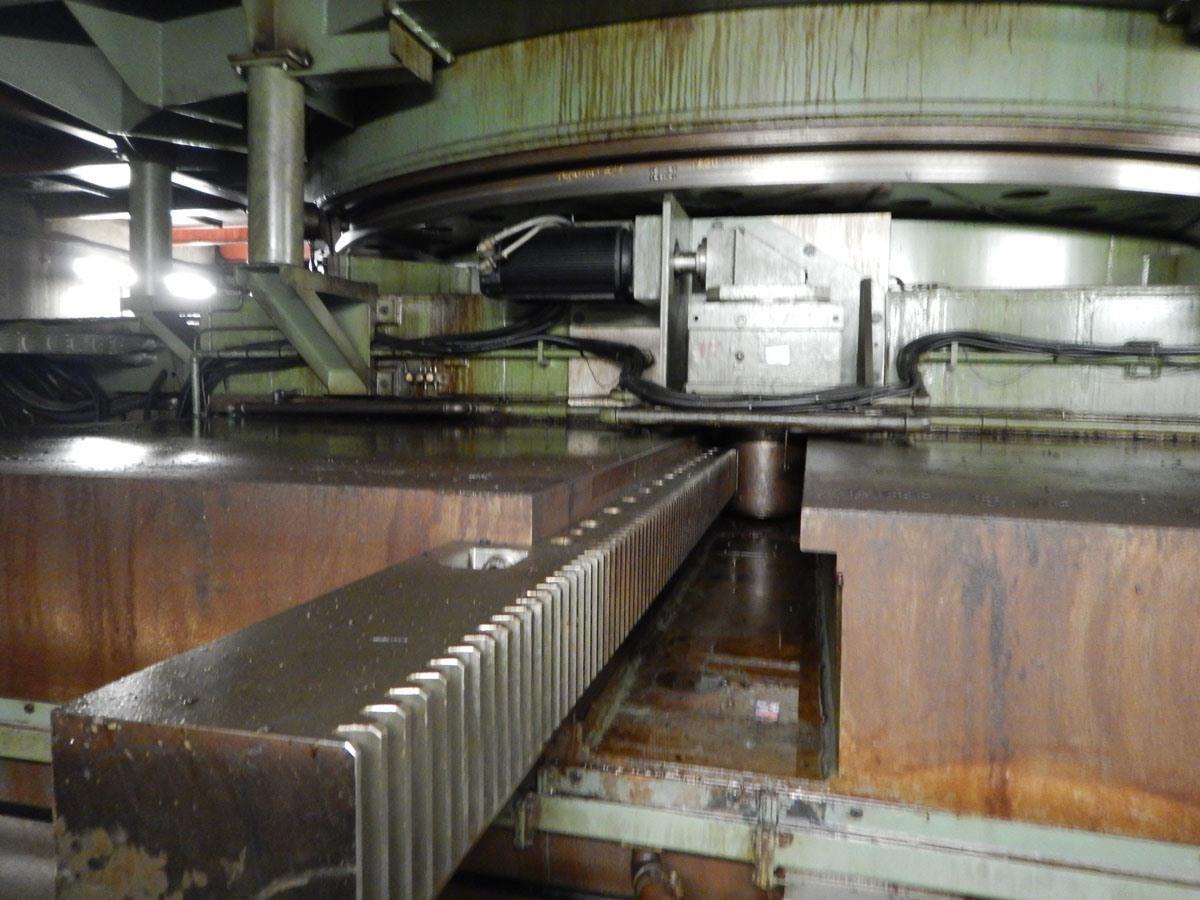

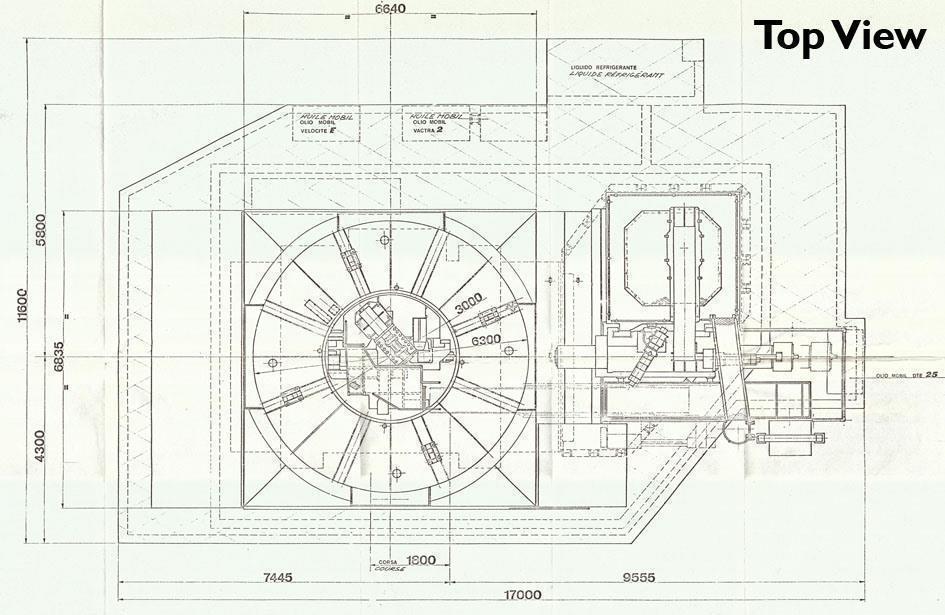

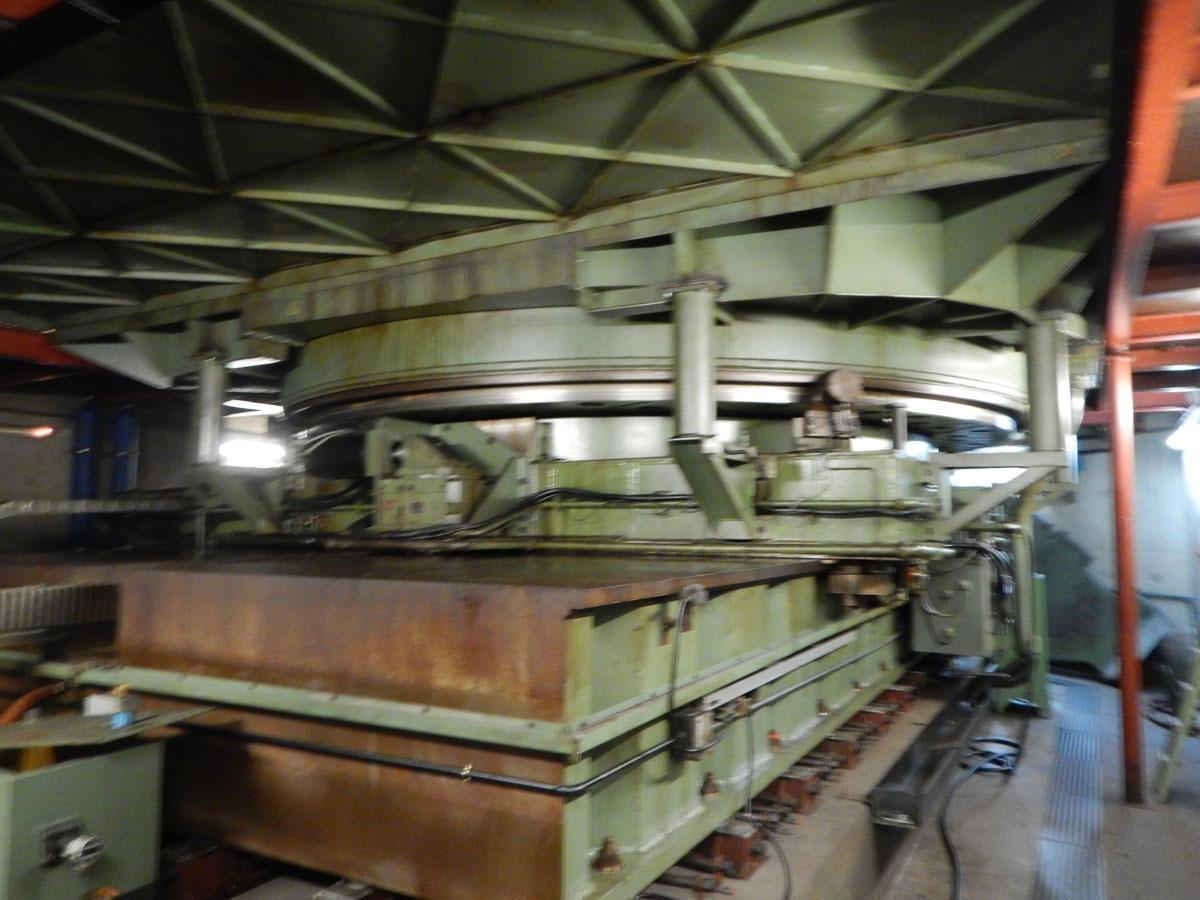

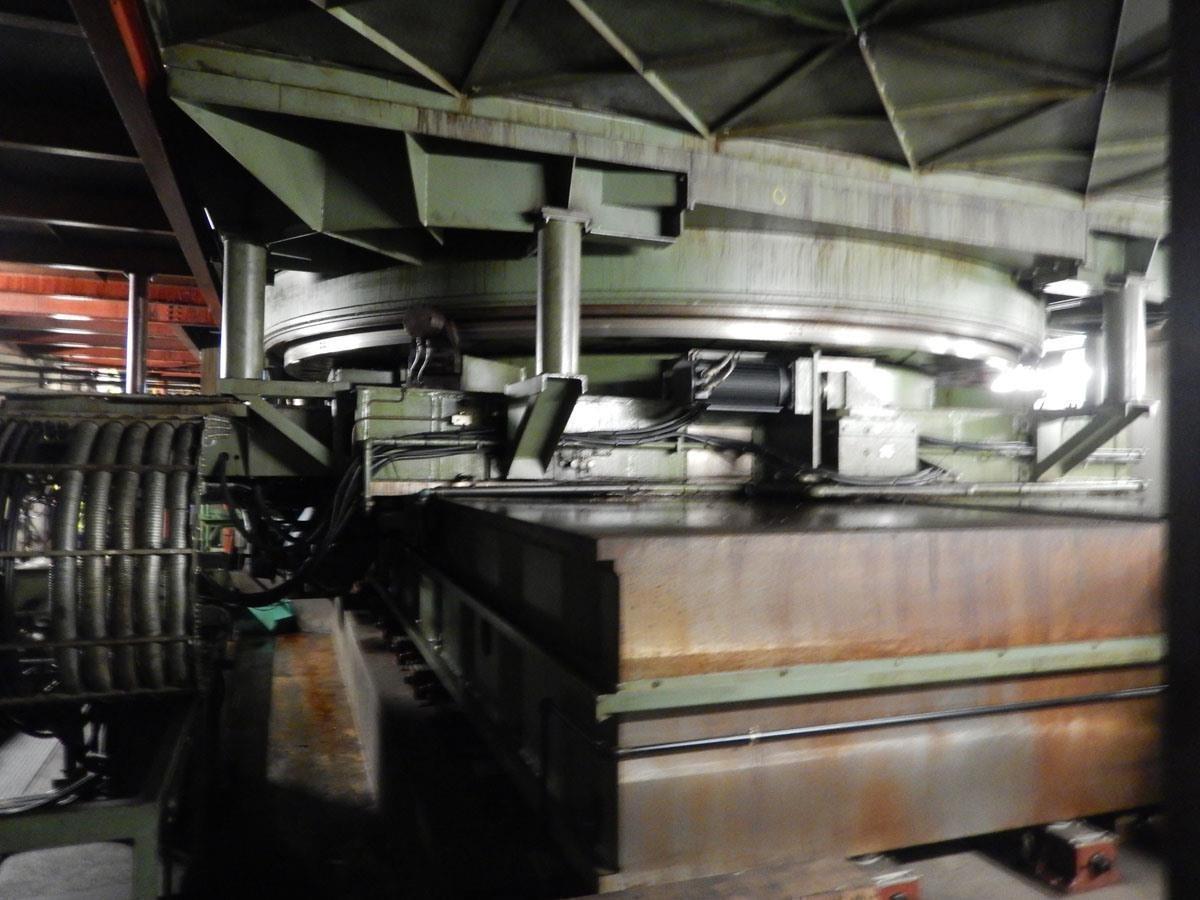

    Turntable:
    > outer diameter: 6300 mm
    > inner diameter: 3000 mm
    > largest diameter of the workpiece: 9800 mm
    > smallest diameter of the workpiece: 2220 mm
    > max weight on table: 300 tons
    > rotation speed: 0.08 > 27 rpm
    > rotational speed when turning/milling: 0.000058 > 1.4 rpm

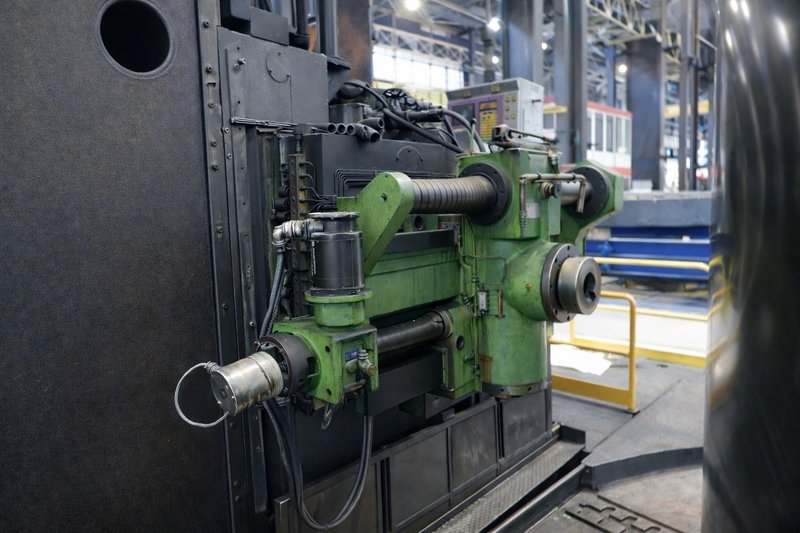

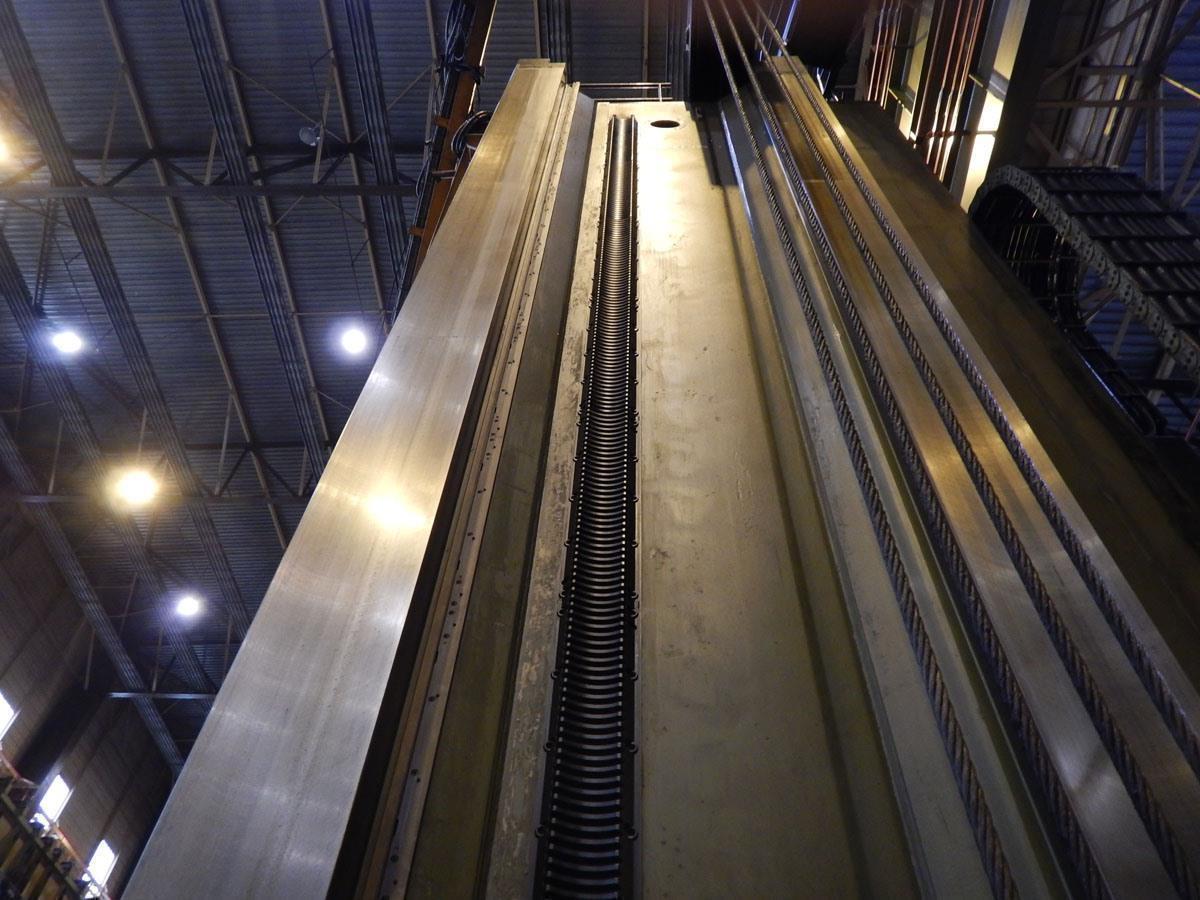

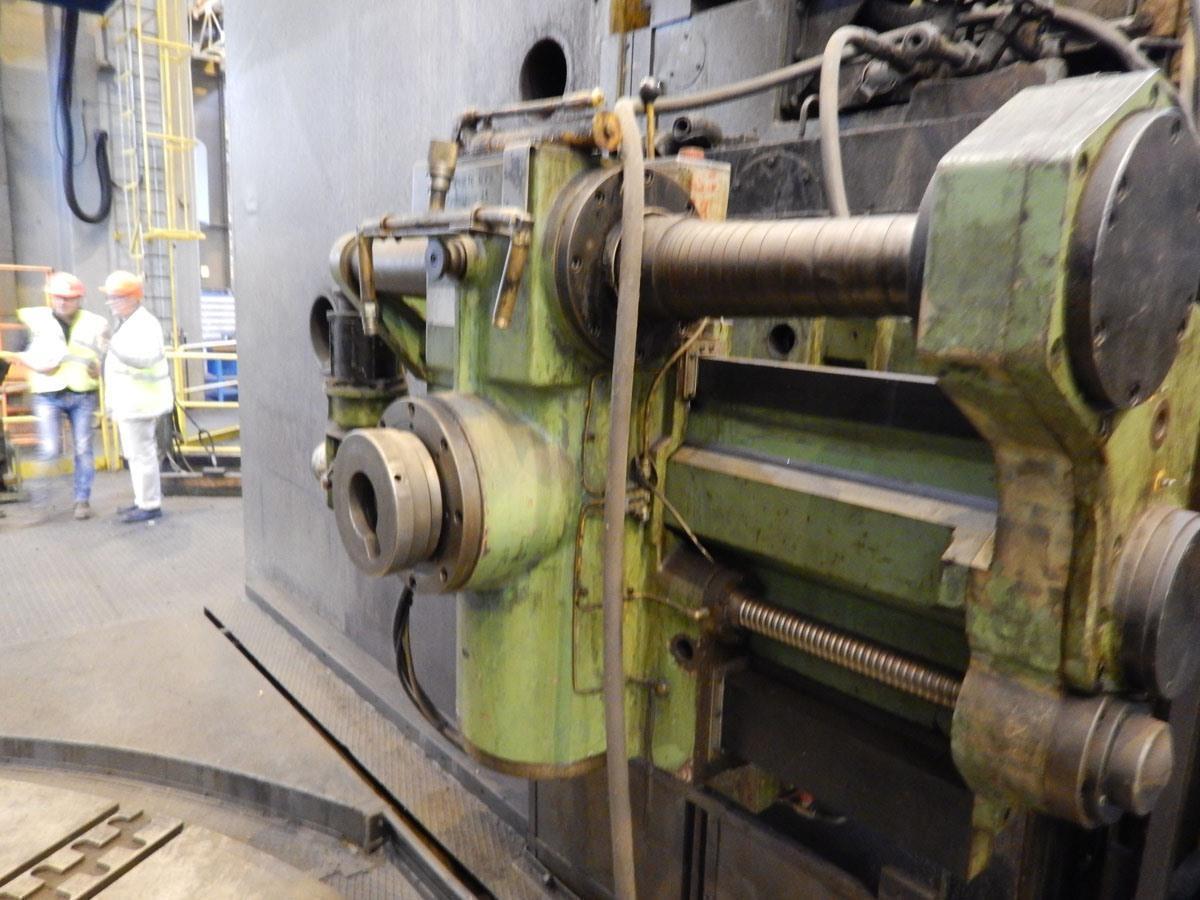

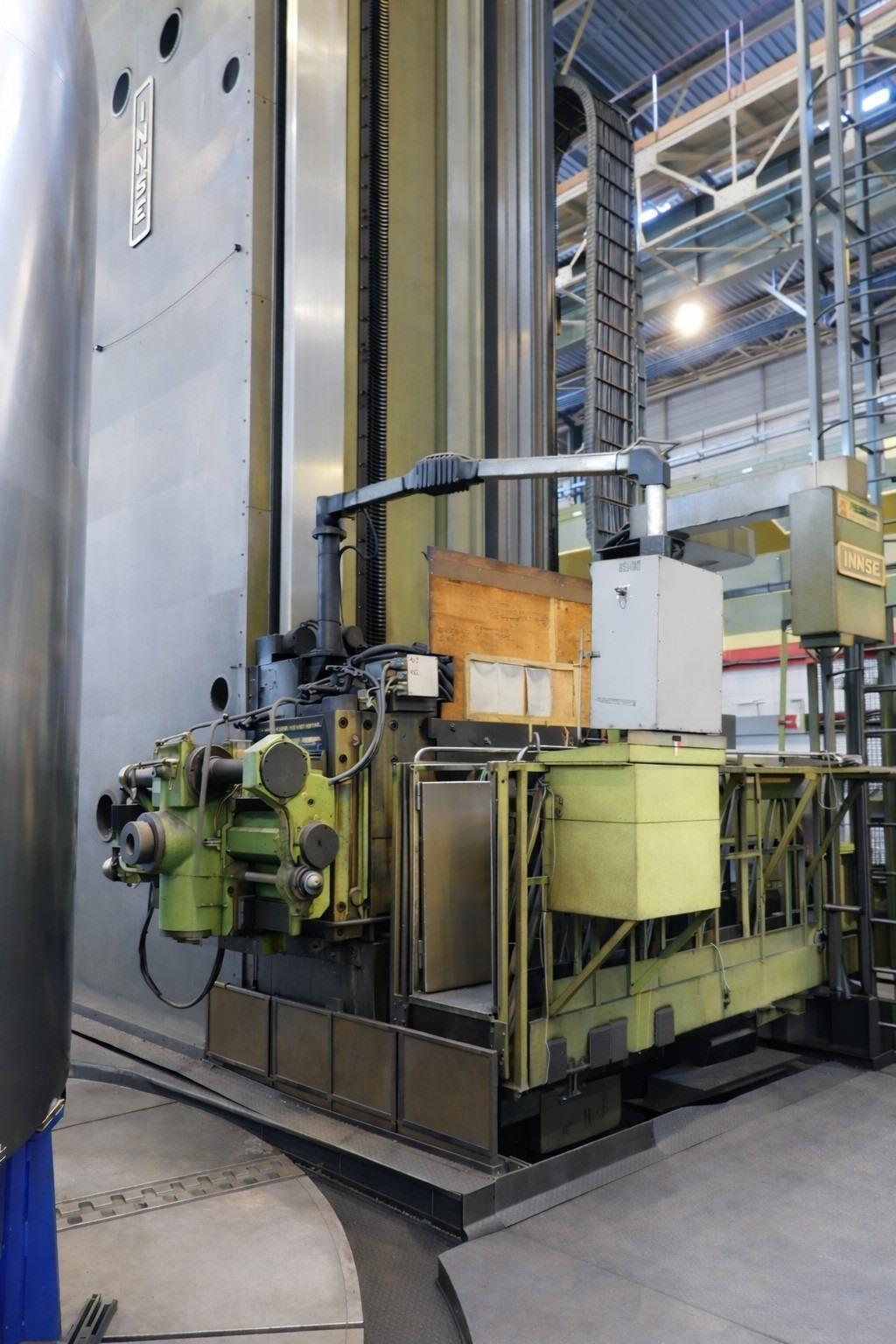

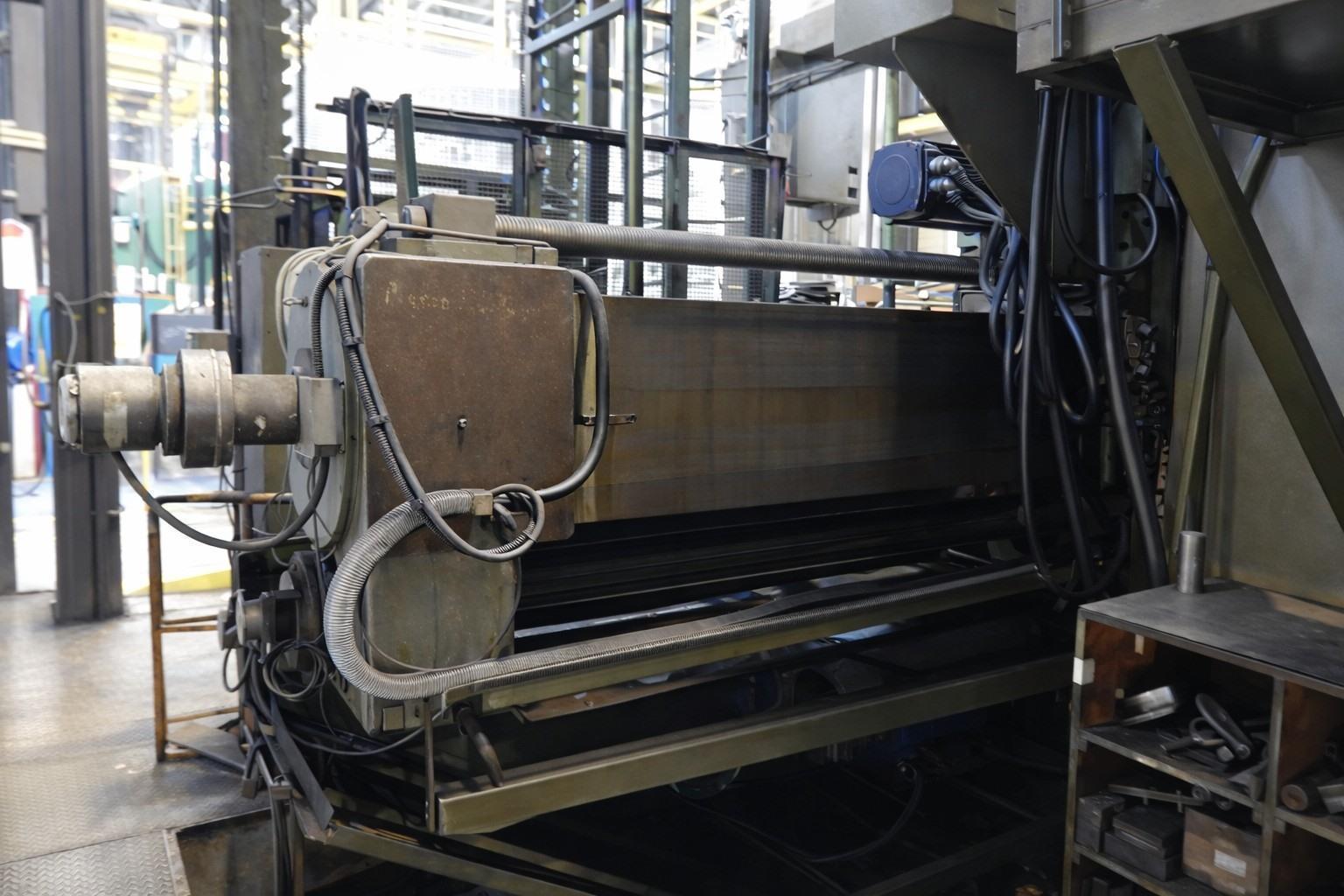

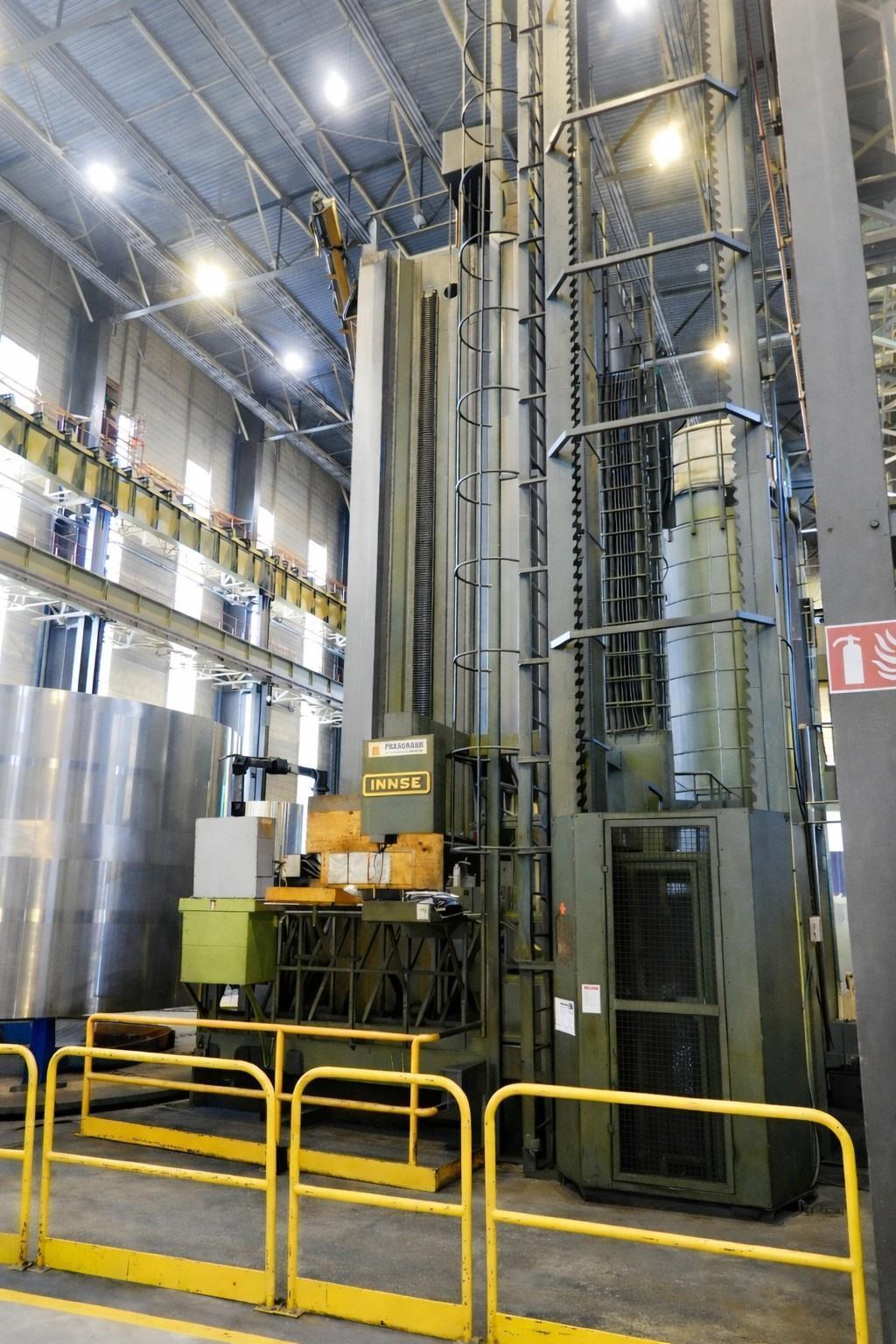

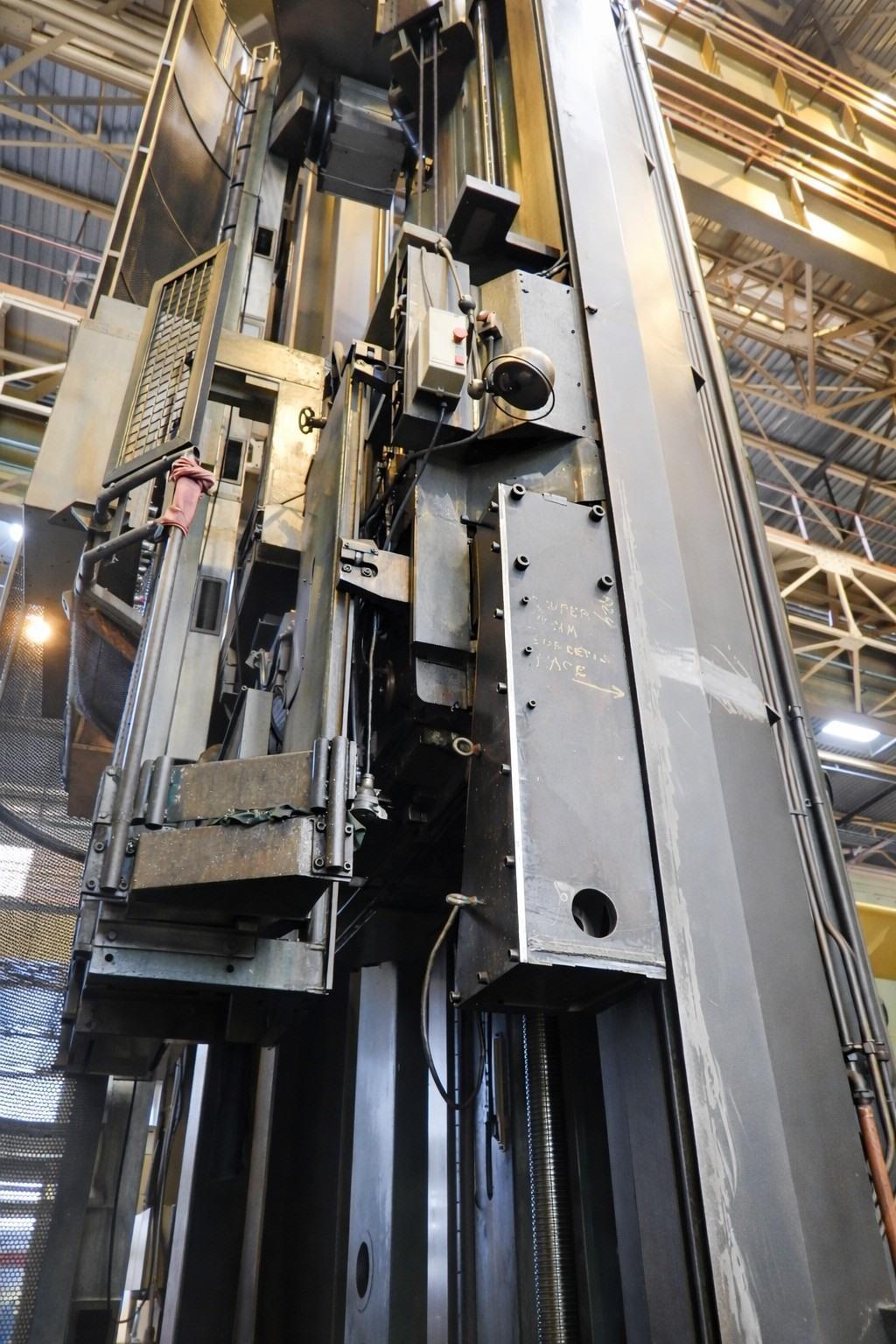

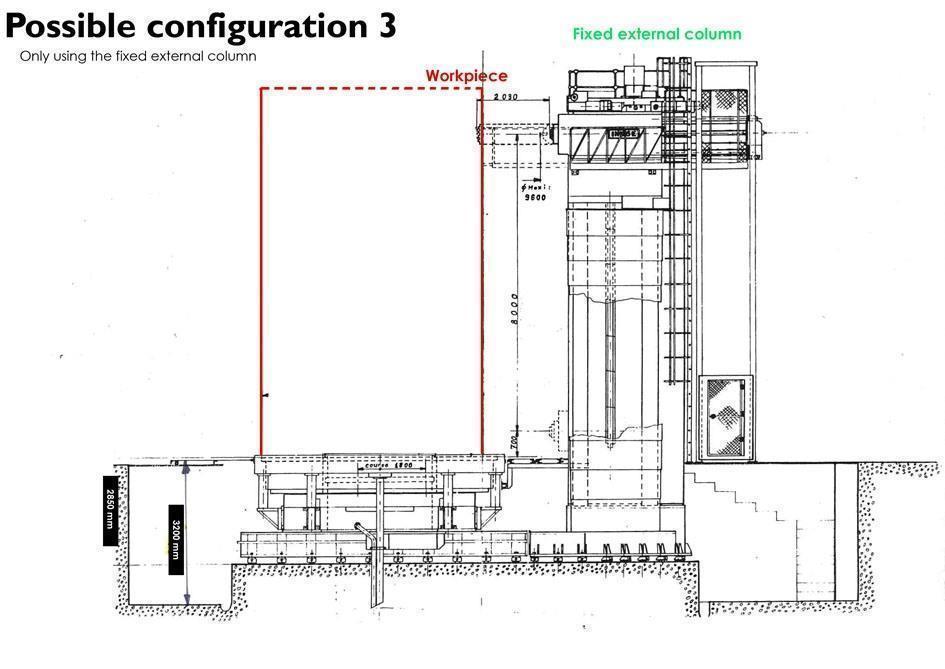

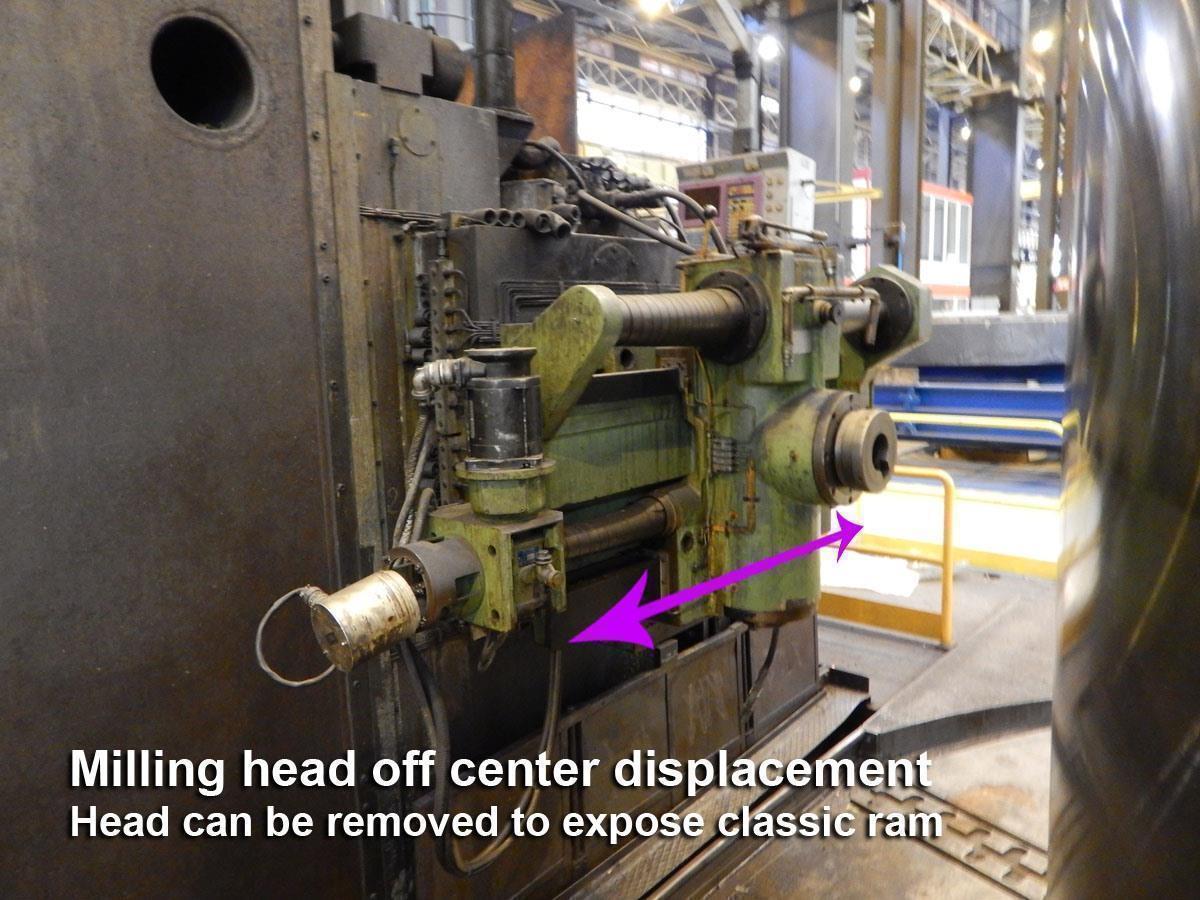

    Fixed external column:

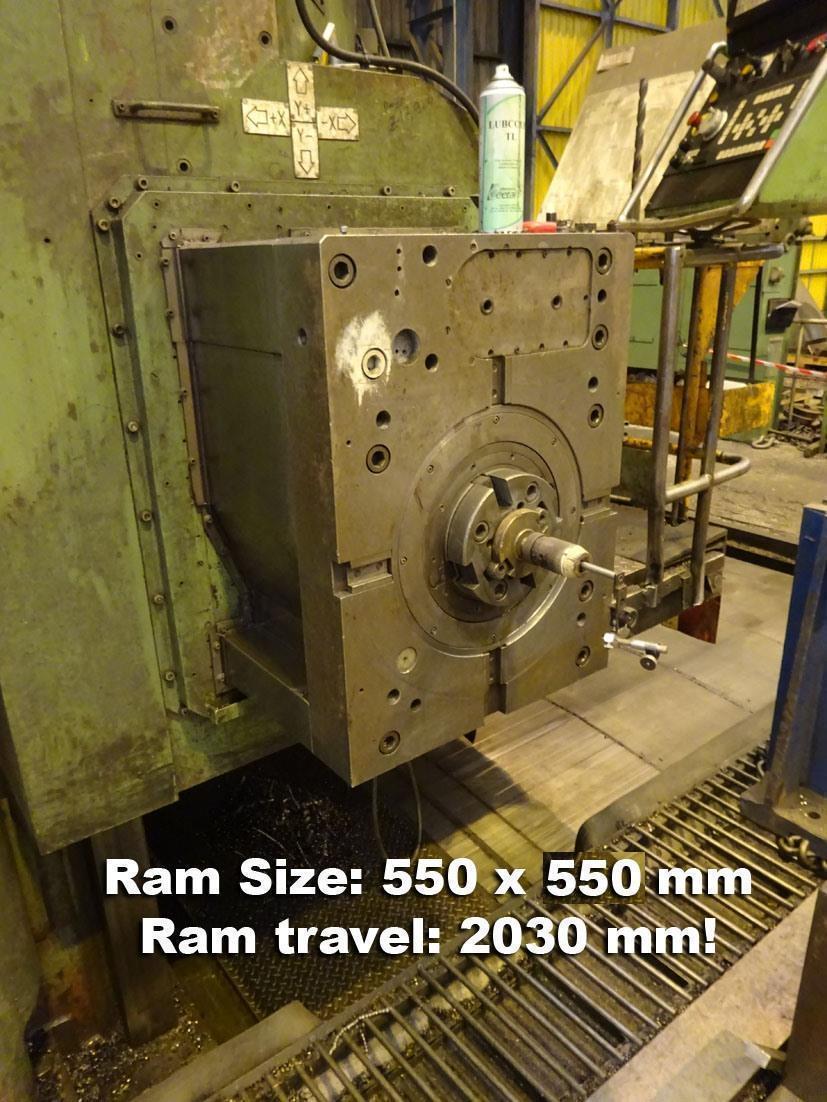

    > ram dimensions: 550 x 550 mm
    > diameter of the spindle: 304.8 mm
    > ISO 60 - 37 kW on spindle
    > maximum height of external turning/milling: 8700 mm
    > min. height of external turning/milling: 700 mm
    > vertical stroke: 8000 mm
    > horizontal stroke: 2030 mm

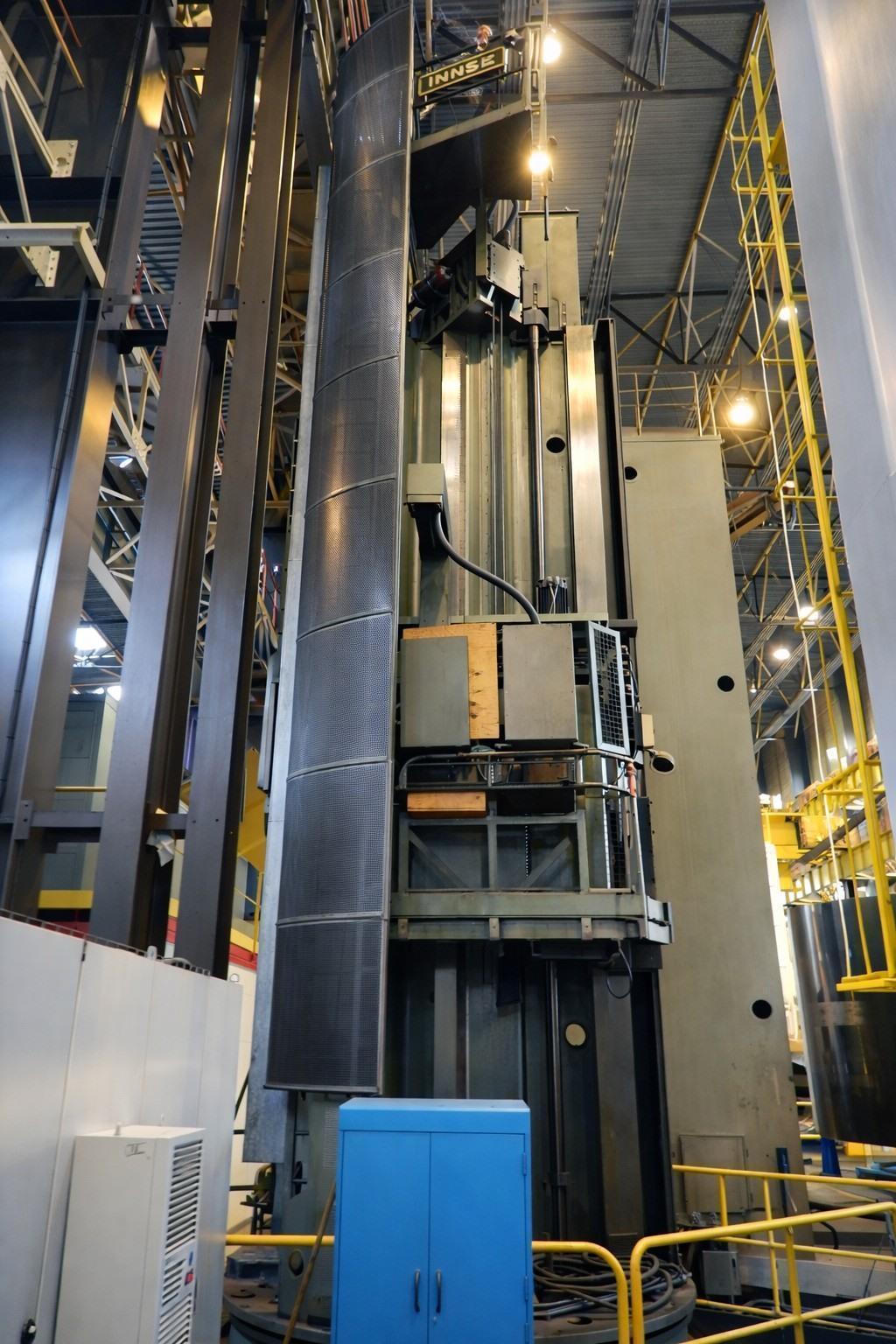

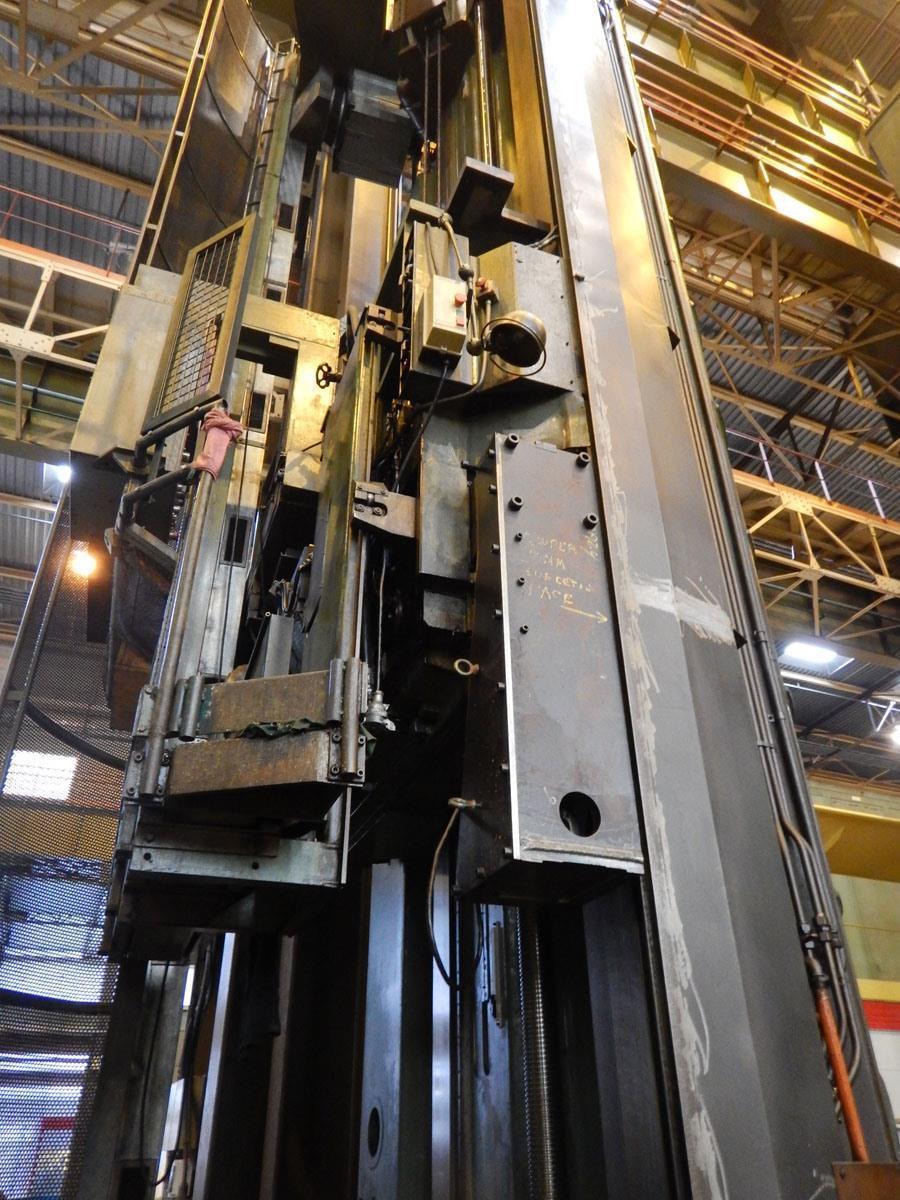

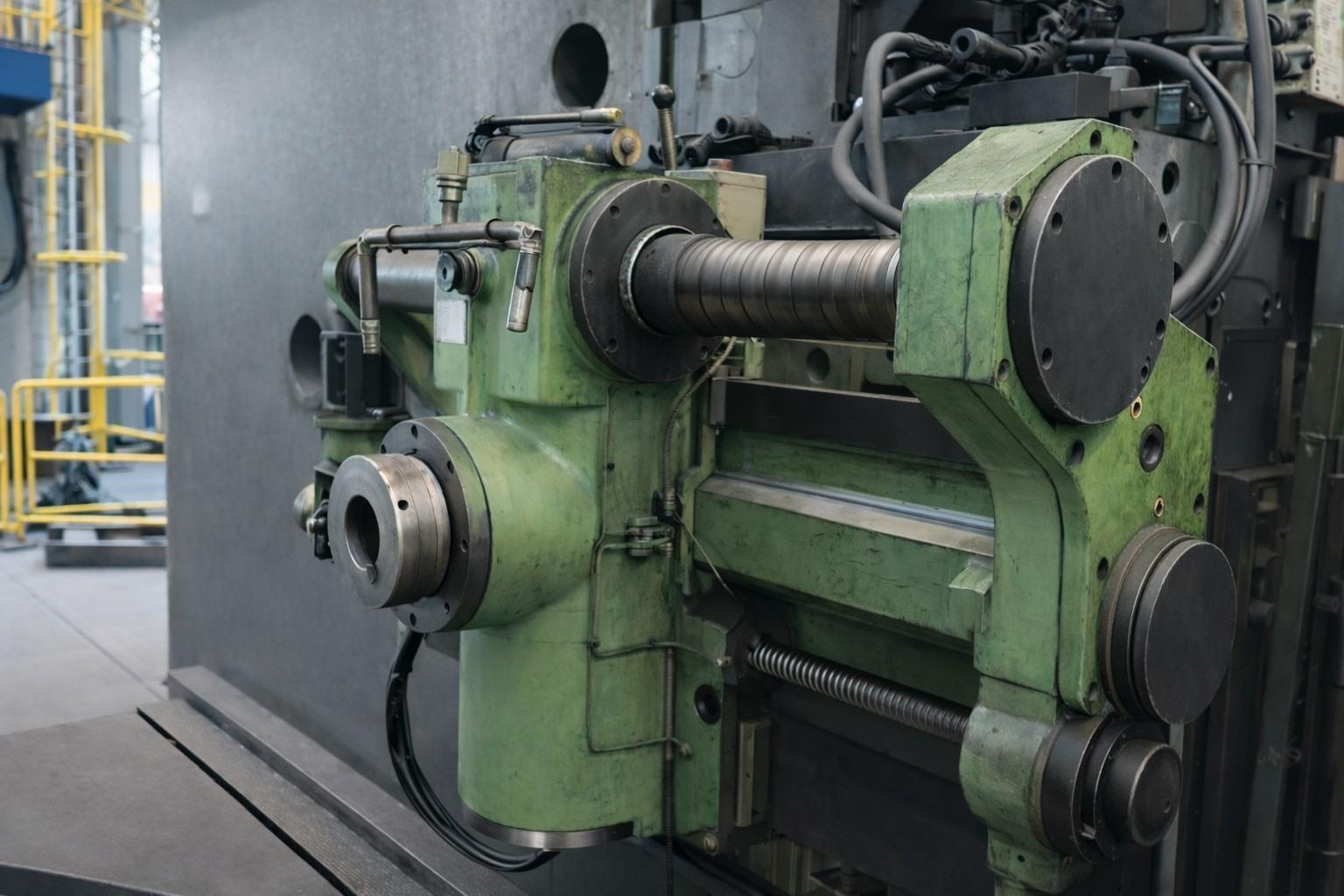

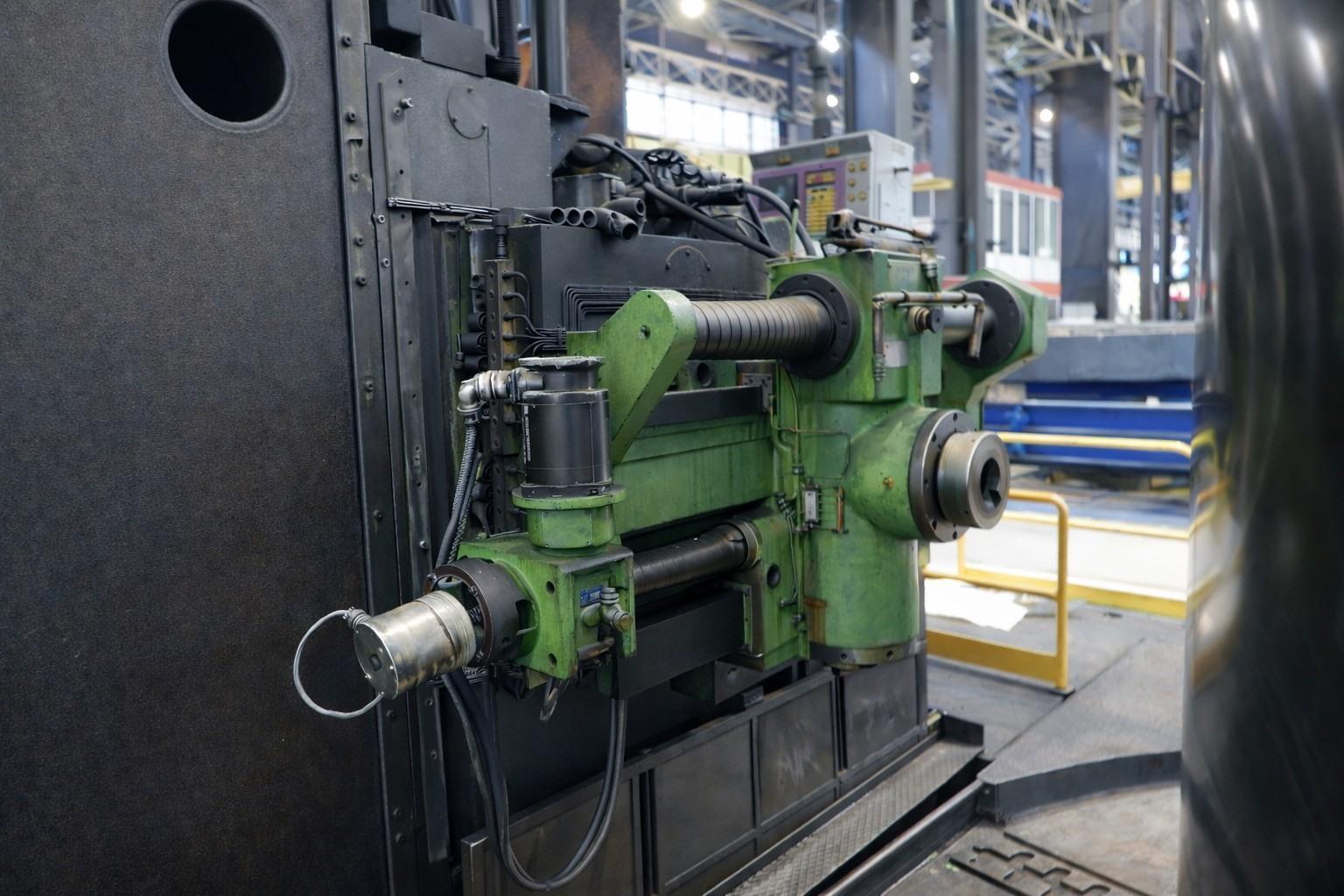

    Movable inner column:
    > ram size: 280 x 280 mm
    > max. diameter of internal turning/milling: 5180 mm
    > min. diameter of internal turning/milling: 3048 mm
    > max. height of internal turning/milling: 5800 mm
    > min. height of internal turning/milling: 615 mm
    > vertical stroke: 5800 mm
    > horizontal stroke: 1120 mm


    Spindle speeds: 1.2 > 601 rpm
    Total power: 250 kW
    5-axis CNC control
