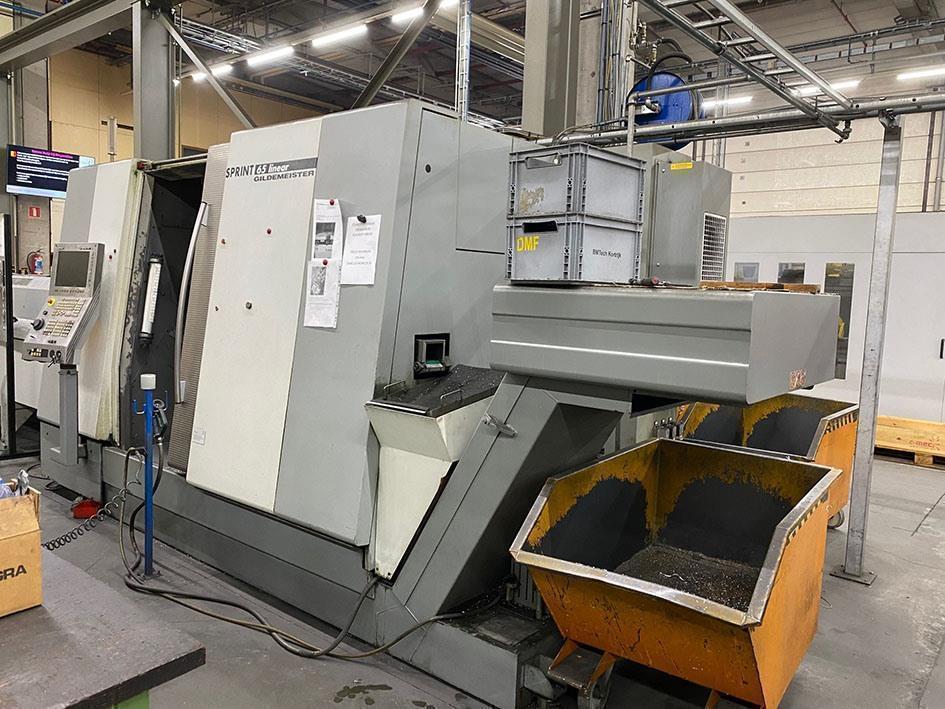

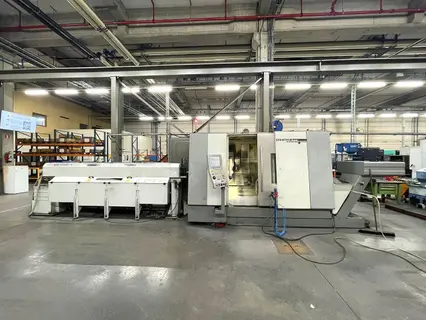

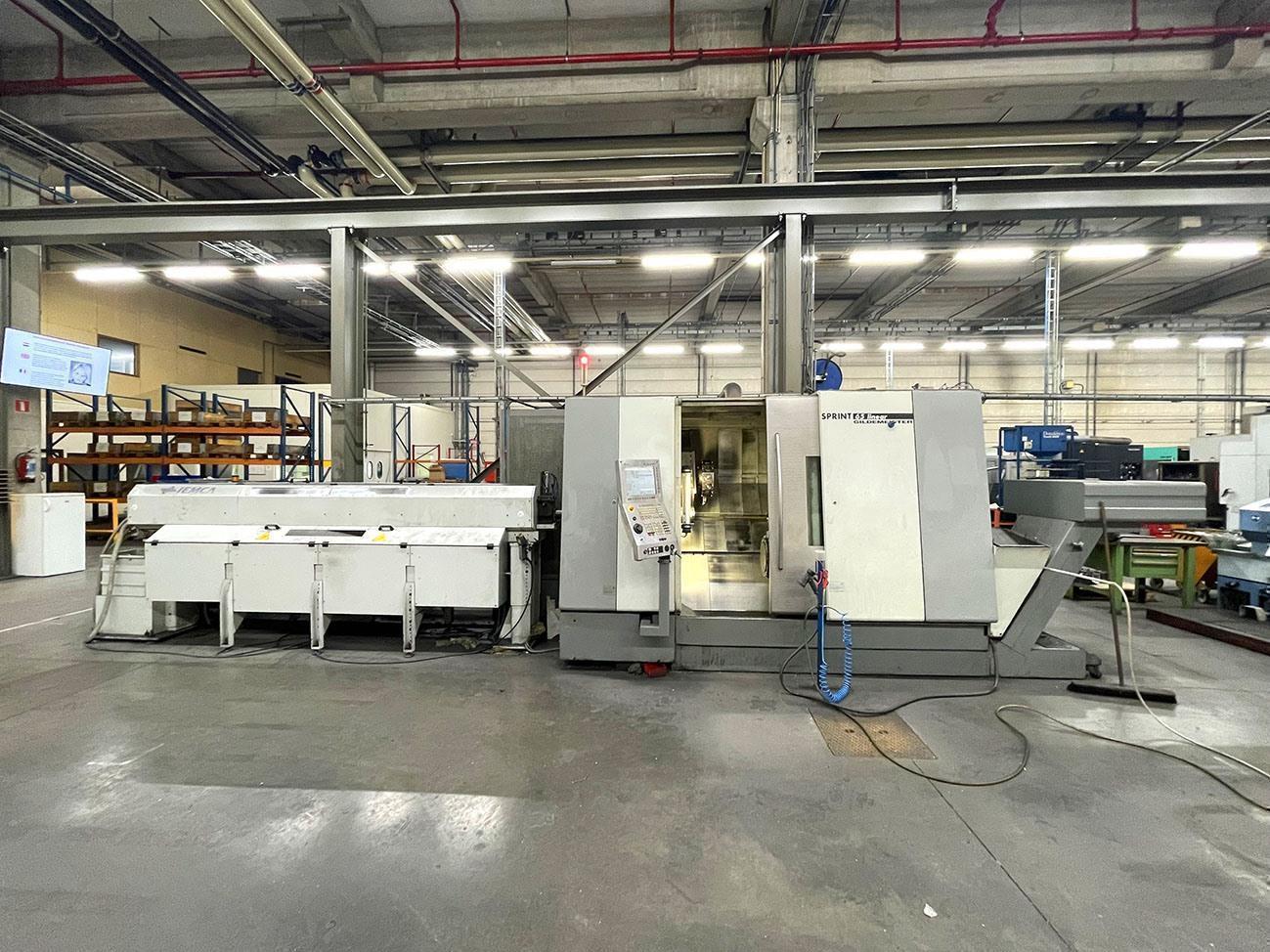

DMG Gildemeister Sprint 65 Linear + Iemca barfeeder

Brand
DMG
Category
Lathes & Turning Machines
Type
Lathes, CNC
Model
Sprint 65 Linear + Iemca barfeeder
Stock #
A.07 12582
Year
Not specified
Condition
Not specified
Location
Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Distance centre tot centre 950 mm
  • Dia of spindle bore 70 & 42 mm
  • Power on the spindle 20 & 17 kW
  • Number of speeds 5000 rpm

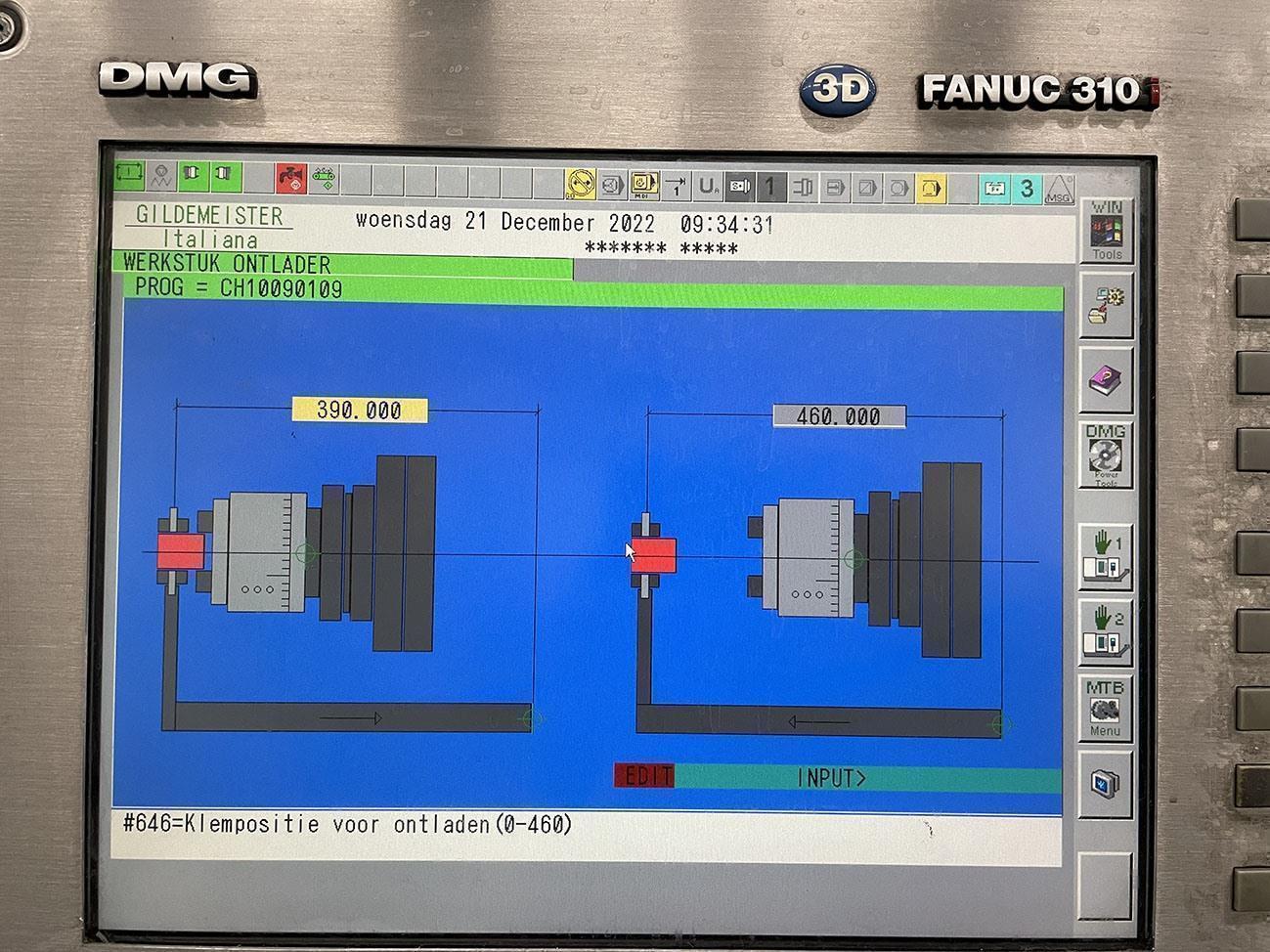

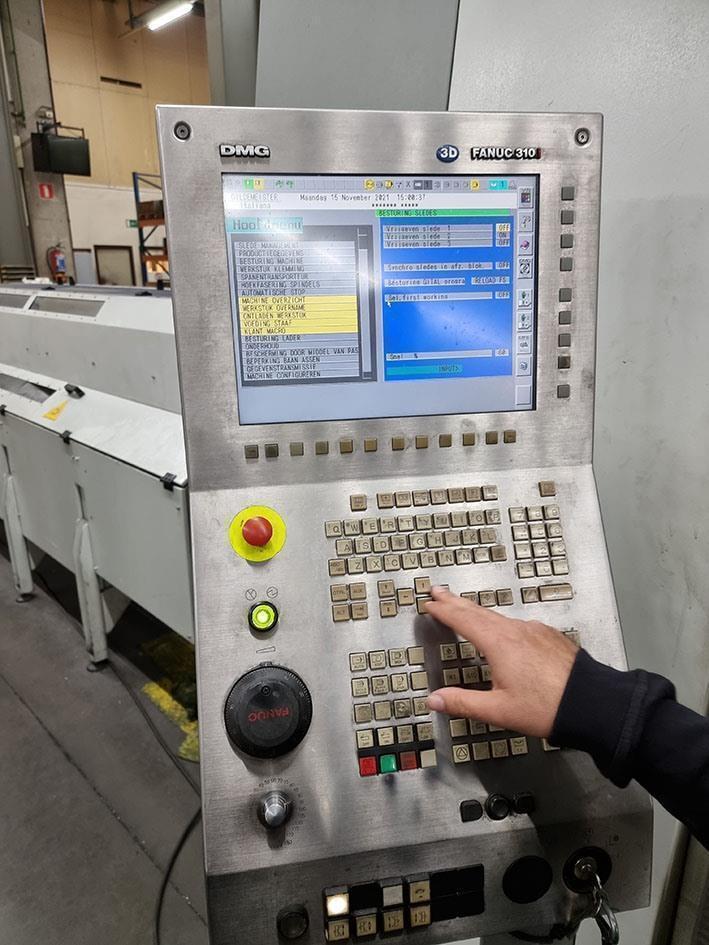

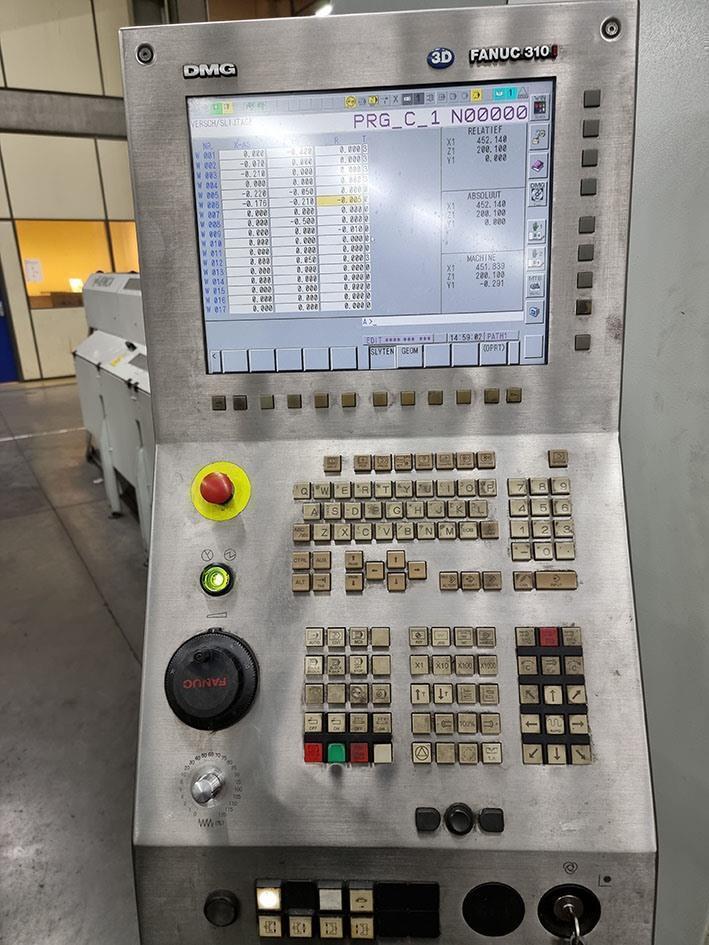

  • Command Fanuc 310i
  • Length 4500 mm
  • Width 1990 mm
  • Height 2300 mm
  • Weight 10 ton
  • Chuck Ø 175 mm
  • Toolchanger yes (2x)
  • Number of tools 12 tools (2x)

Additional info

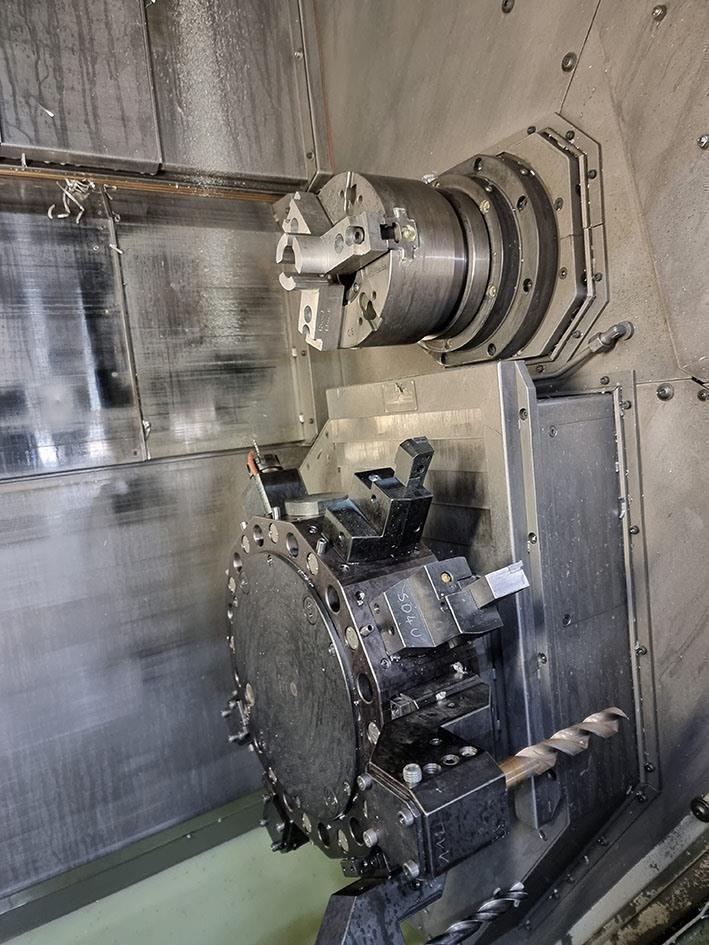

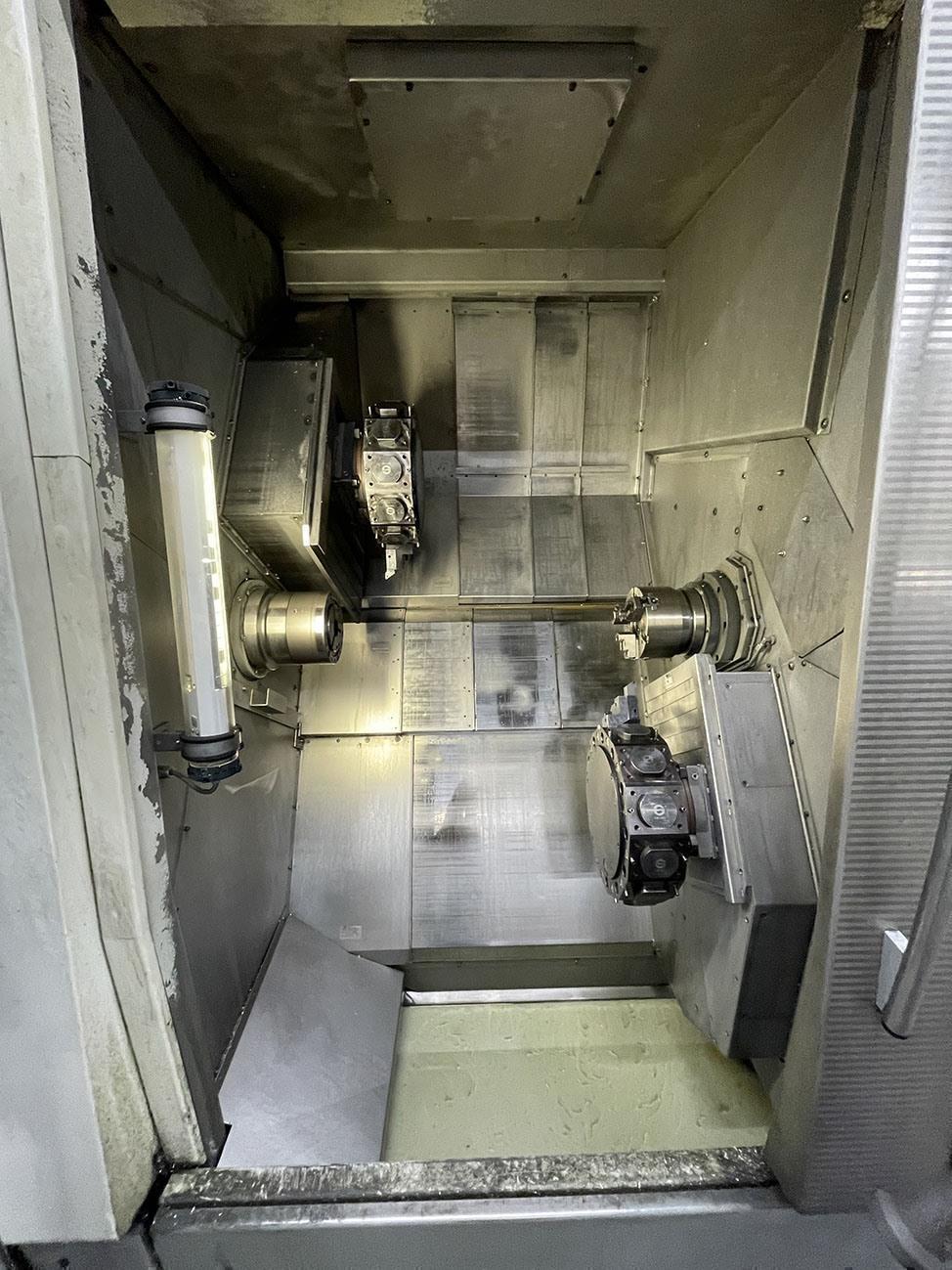

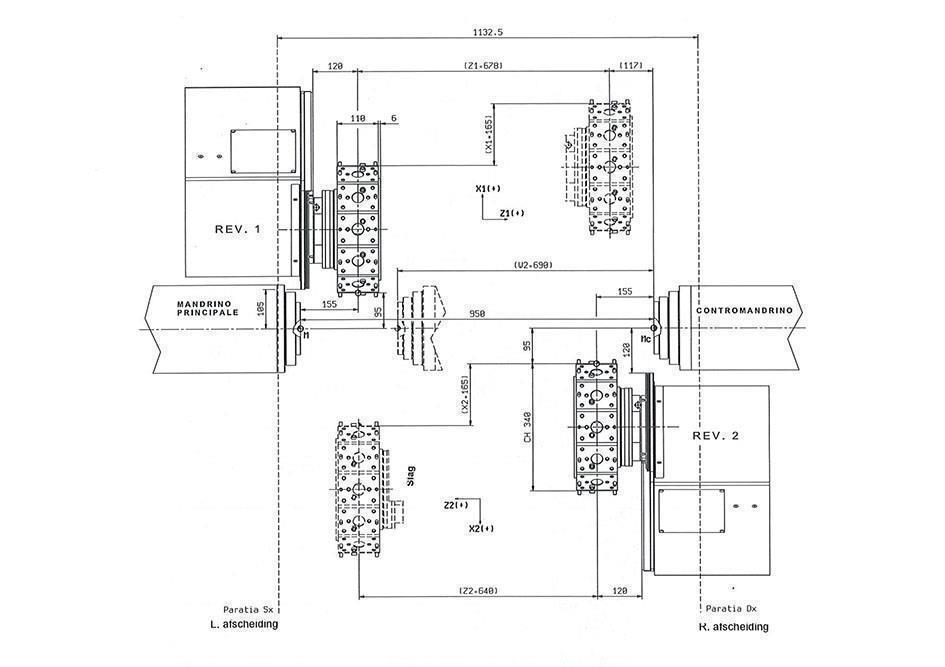

  • Spindle 1: 20 kW - 5000 rpm - spindlebore: 70 mm
    Turret 1: 12 driven tools - 2,5 kW - 4000 rpm
    Driven C-axis

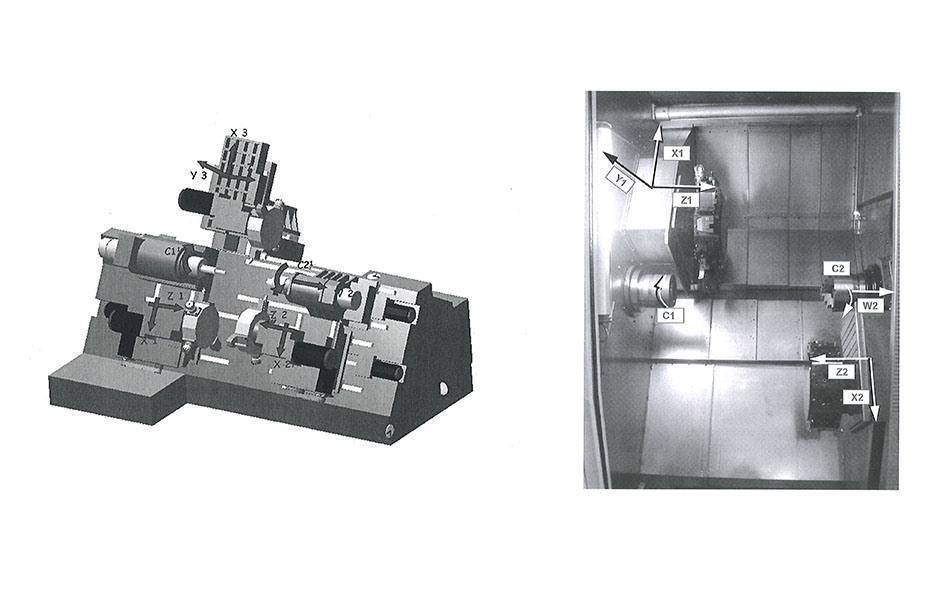

    X1 movement: 165 mm
    Y1 movement: +50/-30 mm
    Z1 movement: 678 mm

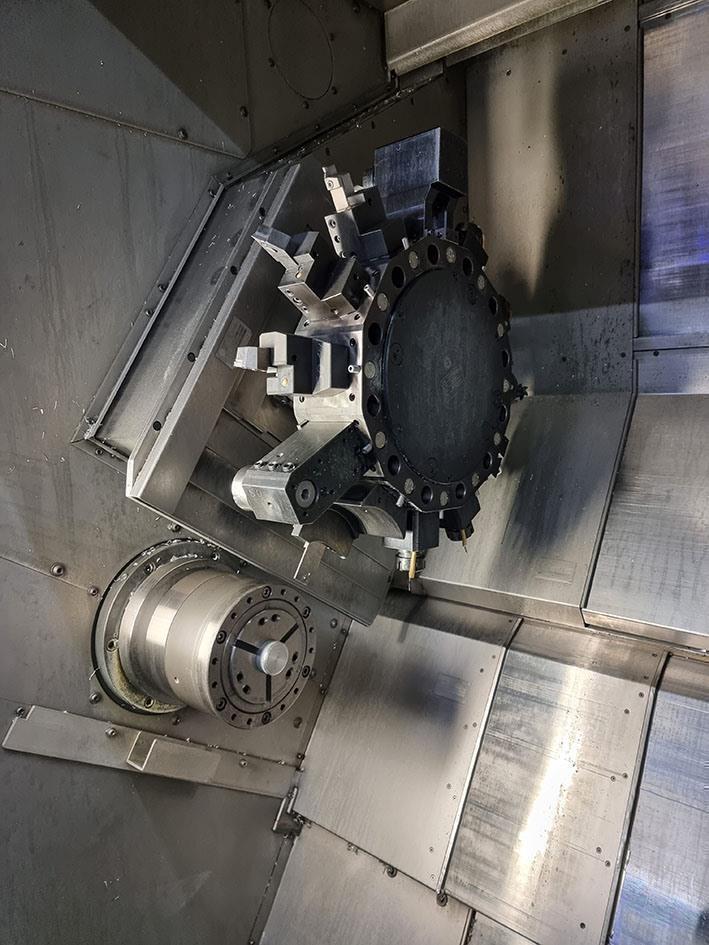

    Spindle 2: 17 kW - 5000 rpm - spindlbore: 42 mm
    Turret 2: 12 driven tools - 2,5 kW - 4000 rpm
    Driven A-axis
    X2 movement: 165 mm
    Z2 movement: 640 mm

    Iemca Master 880 P barfeeder
