Schlatter CNC - GNPB 48/20/280 seam/roll welding

Brand
SCHLATTER
Category
Roll Formers & Rolling Mills
Type
Roll Formers
Model
GNPB 48/20/280 seam/roll welding
Stock #
O.27 5454
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

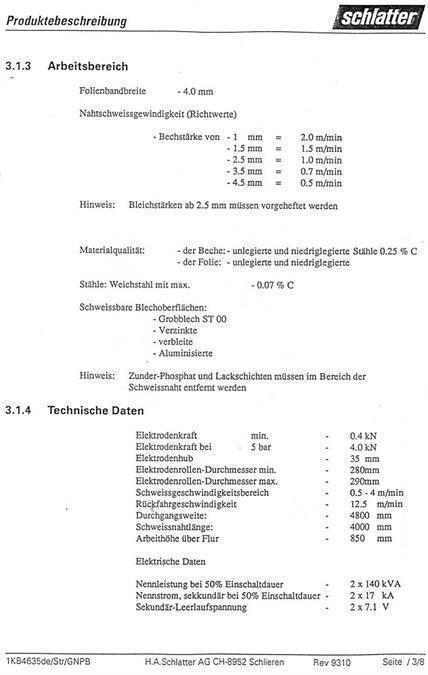

Technical information

  • Work mode 182 kVa
  • Material thickness x width 4000 x 0.8 -> 5 mm
  • Total rated power 380 V

Additional info

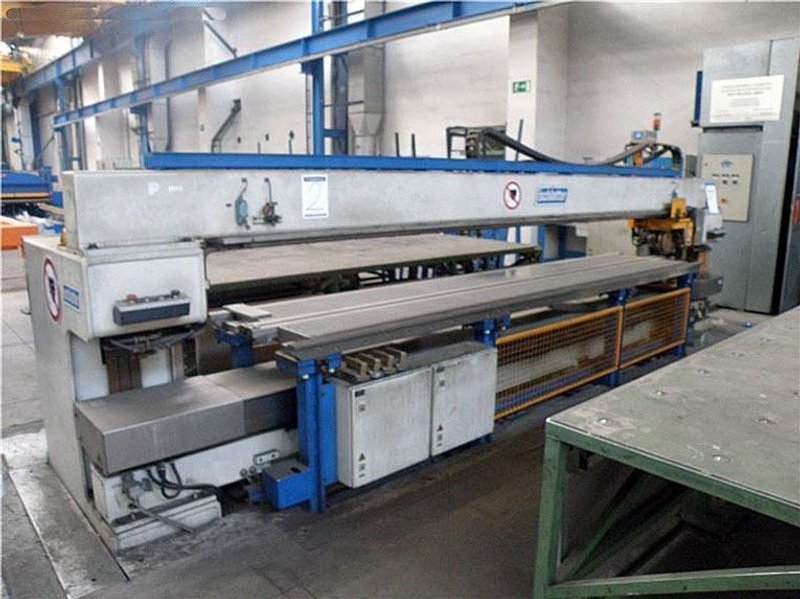

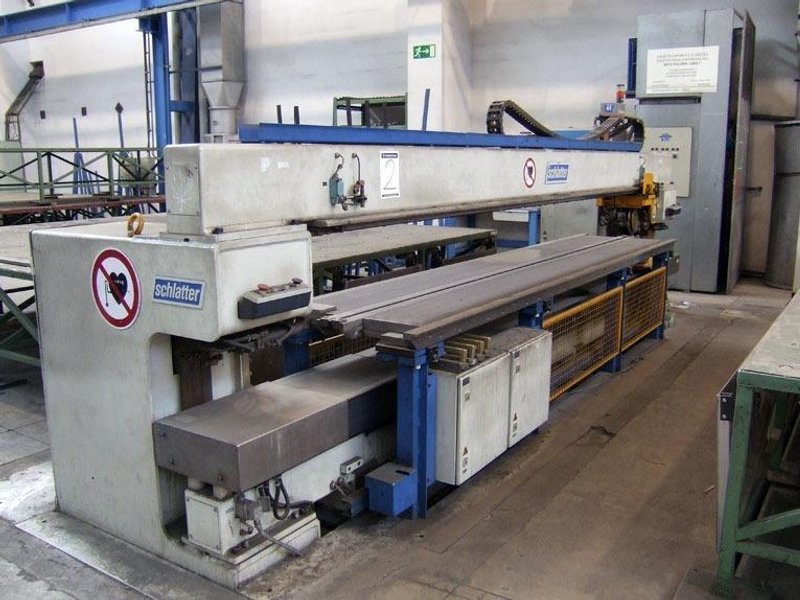

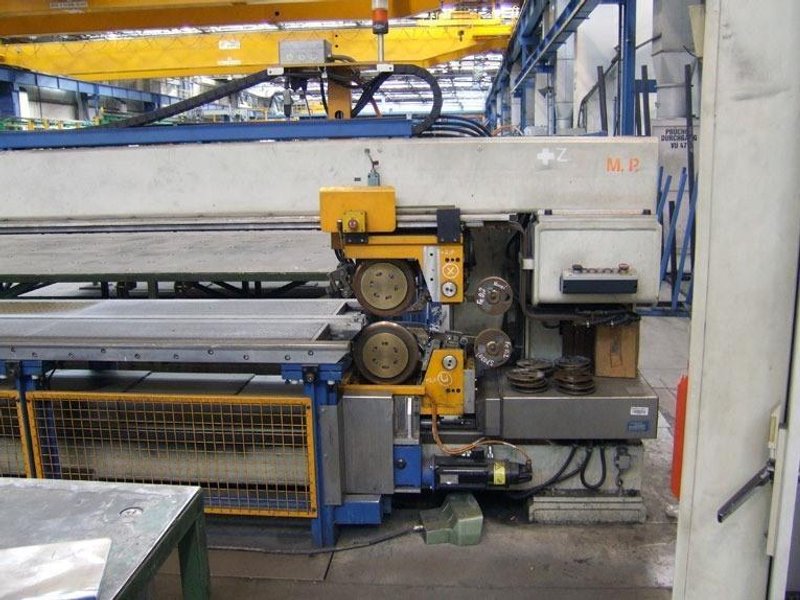

  • CNC controlled seam/roll welding machine
    CNC NahtSchweissmaschine
    Machine CNC de soudage à molettes

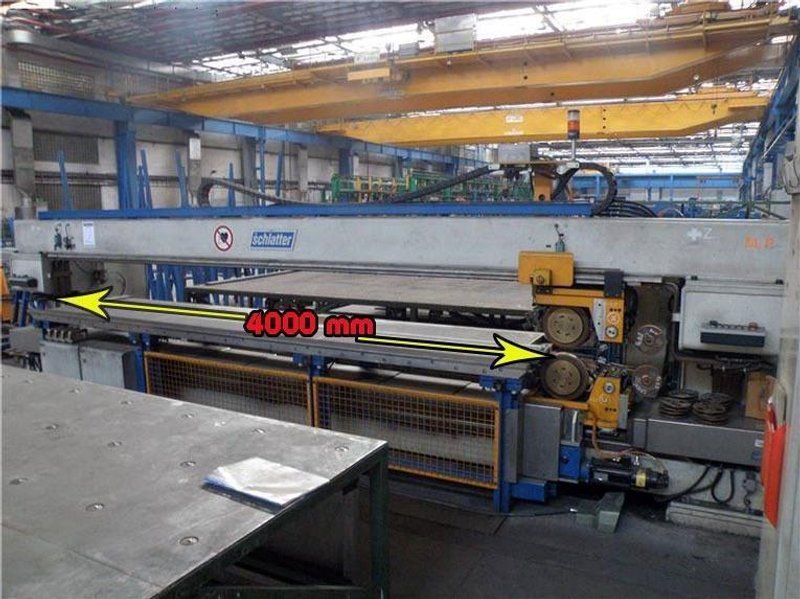

    Max plate width: 4000 mm
    Passage width: 4800mm
    Thickness steel: 0.8 -> 5 mm
    Thickness stainless steel: 0,8 -> 2,5 mm

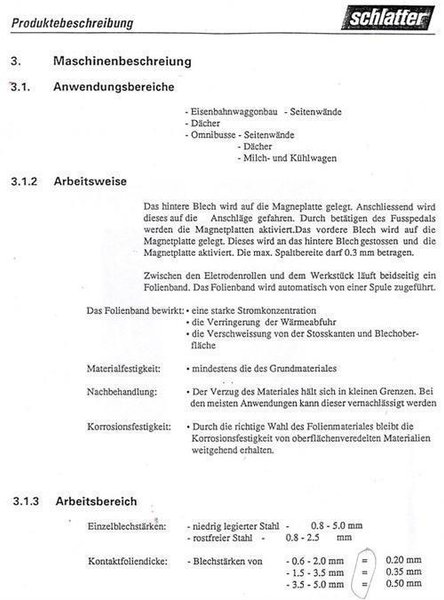

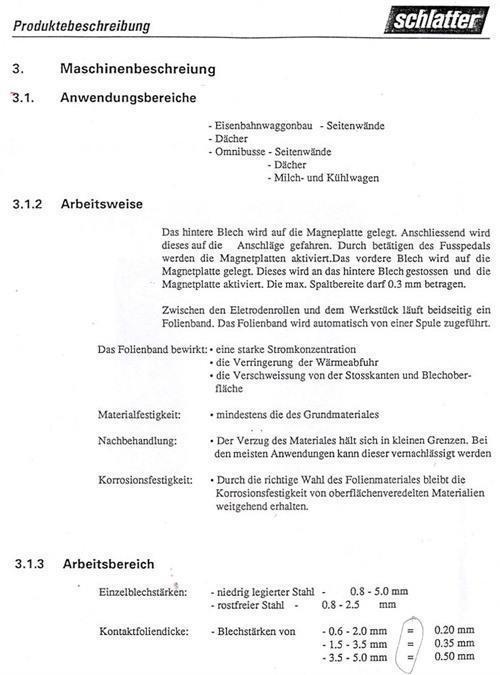

    Application Areas:
    Railway wagon manufacturing – side walls – roofs
    Buses – side walls – roofs – milk tankers and refrigerated vehicles

    Operating Principle:

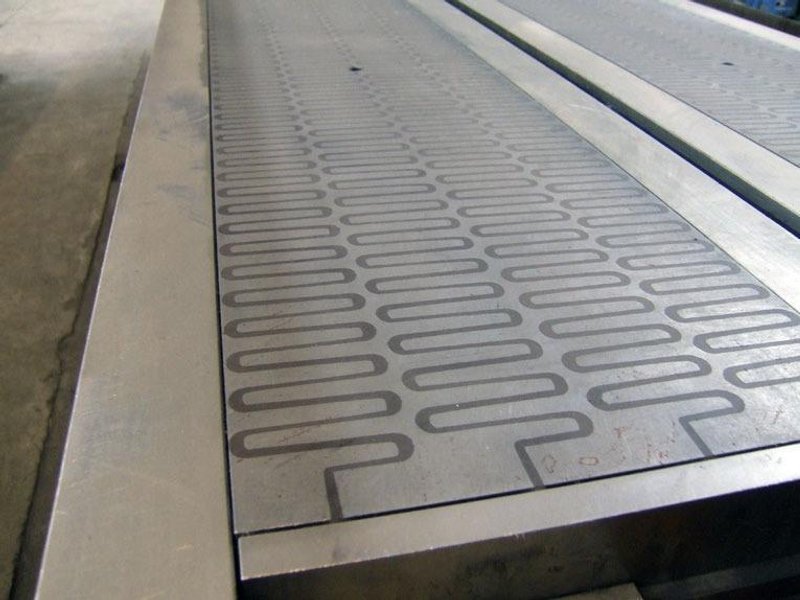

    The rear sheet is placed on the magnetic plate. It is then moved to the stops. By pressing the foot pedal, the magnetic plates are activated.
    The front sheet is placed on the magnetic plate. It is pushed against the rear sheet and the magnetic plate is activated.
    The maximum gap must be 0.3 mm.

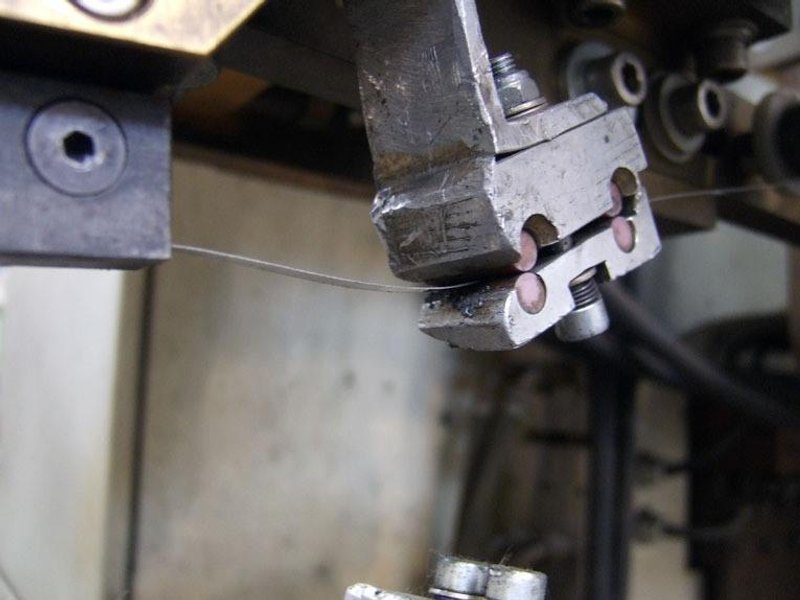

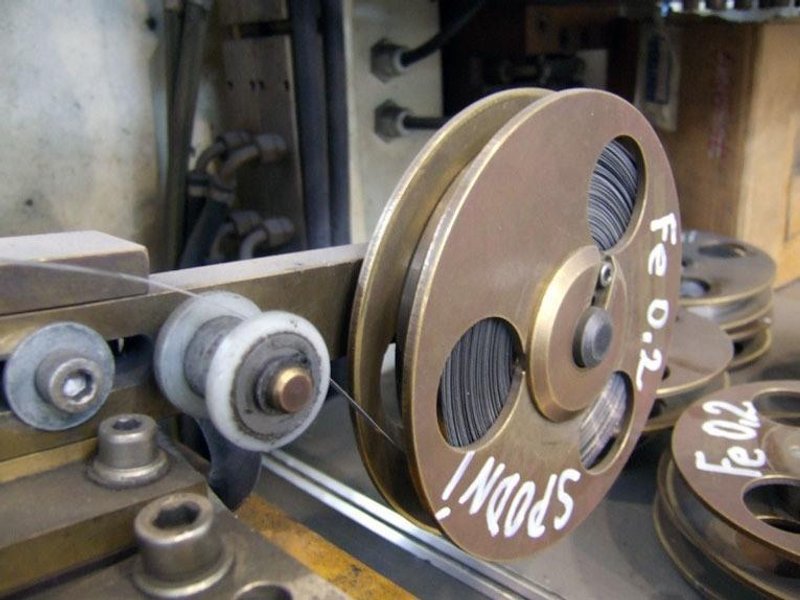

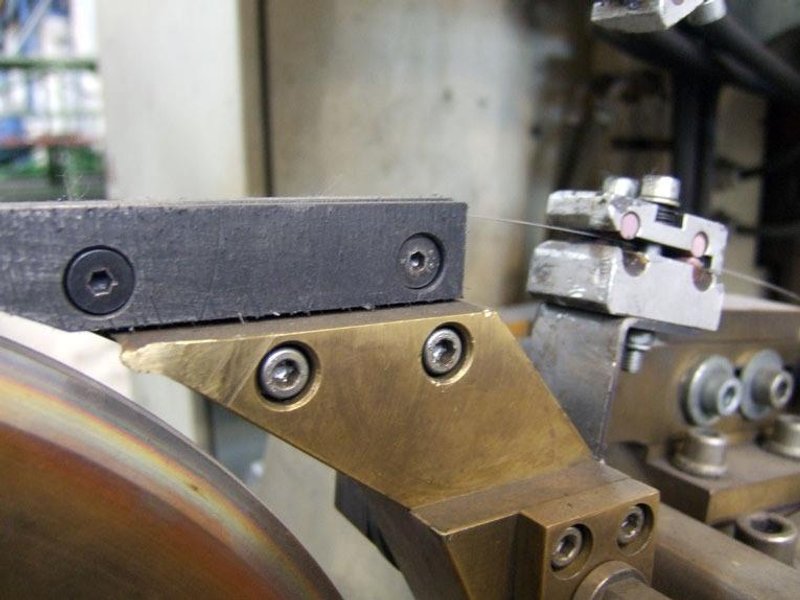

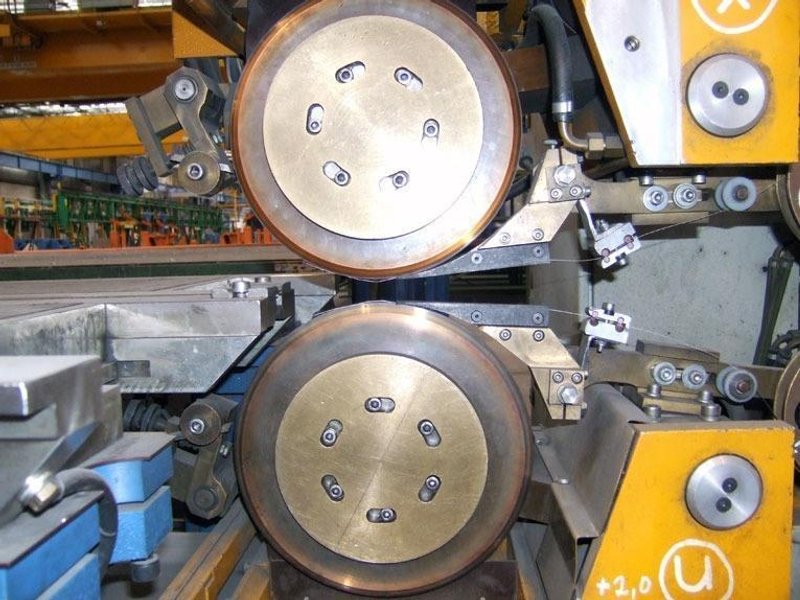

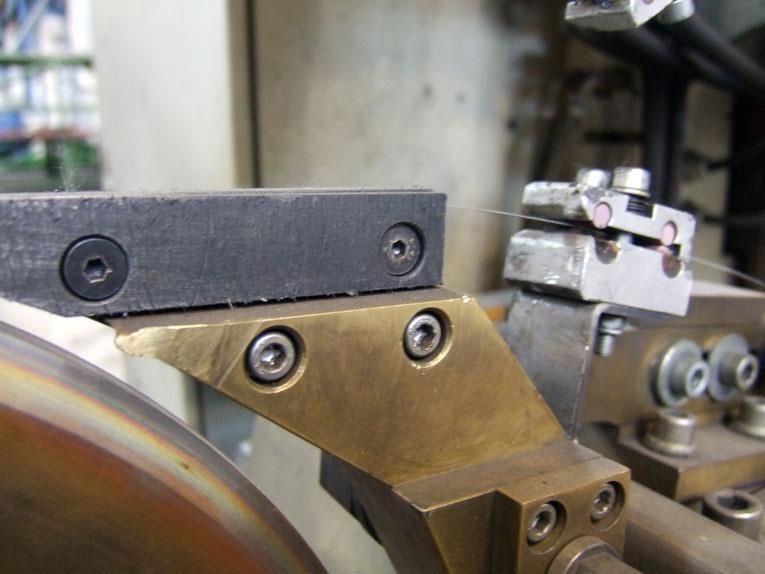

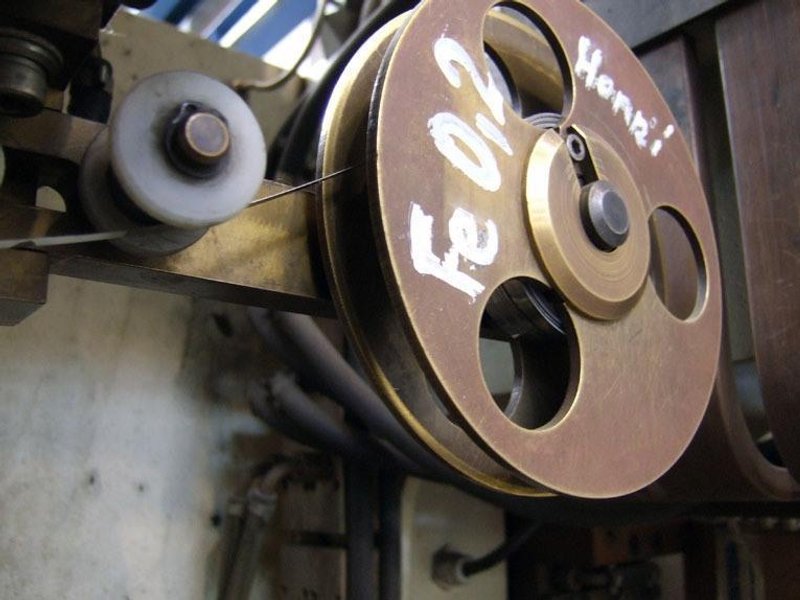

    Between the pressure rollers and the workpiece, a foil strip runs on both sides. The foil is automatically fed from a spool.

    The foil provides:
    - high current concentration
    - reduced heat dissipation
    - welding of the joint edges and sheet surface

    Material Strength:
    - at least equal to that of the base material

    Post-treatment:
    - material distortion remains within small limits and can be neglected in most applications

    Corrosion Resistance:
    - with the correct choice of foil material, the corrosion resistance of surface-treated materials is largely maintained
