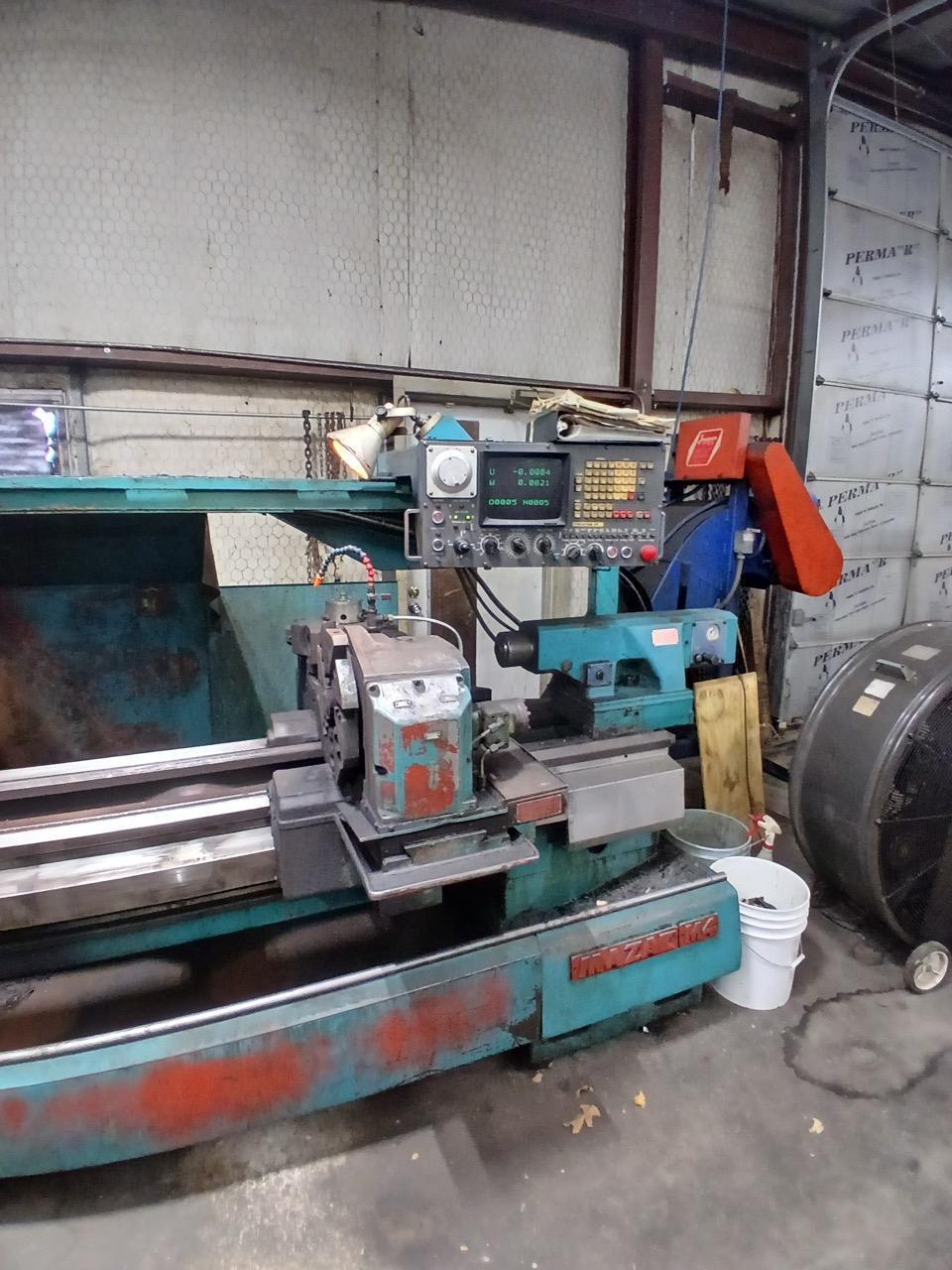

Mazak M4-1500 CNC Lathe, 1980 – Tailstock, Chip Conveyor
Brand
Category
Type
Model
M4-1500
Stock #
591145
Year
1980
Condition
Not specified
Location
Not specified
|
Control: Fanuc 6T
Swing Over Ways: 22″
Swing Over Cross Slide: 11″
Distance Between Centers: 60″
Spindle Speeds: 75~2200 RPM
Spindle Bore: 3-1/8″
Spindle Nose: A8
Spindle Motor: 20 HP
Max Bar Capacity: 2.7″
X Axis Travel: 22″
Z Axis Travel: 63″
Machine Dimensions: 170″L x 72″W x 76″H
Machine Weight: 13,000 LBS
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tailstock 12 Inch Chuck Chip Conveyor 8 Position OD Turn Turret 8 Position ID Turn Turret All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
