Mazak QT 250 II Universal CNC Lathe, 2015 – Tailstock
Brand
Category
Type
Model
QT 250 II
Stock #
492012
Year
2015
Condition
Not specified
Location
Not specified
|
Max Swing Over Bed: 27.4″
Max Turning Diameter: 16.25″
Max Distance Between Centers: 23.6″
Max Turning Length: 19.7″
X-Axis (Cross Travel): 8.5″
Z-Axis (Longitudinal Travel): 25″
Tool Turret Positions: 12
Spindle Nose: A2-6
8″ Chuck
Bar Capacity: 2″
Max Spindle Speed: 4,500 RPM
Spindle Horsepower: 20 HP
Electrics: 460/3/60
Approximate Machine Dimensions: 108″ x 84″ x 90″
Approximate Machine Weight: 11,500lb

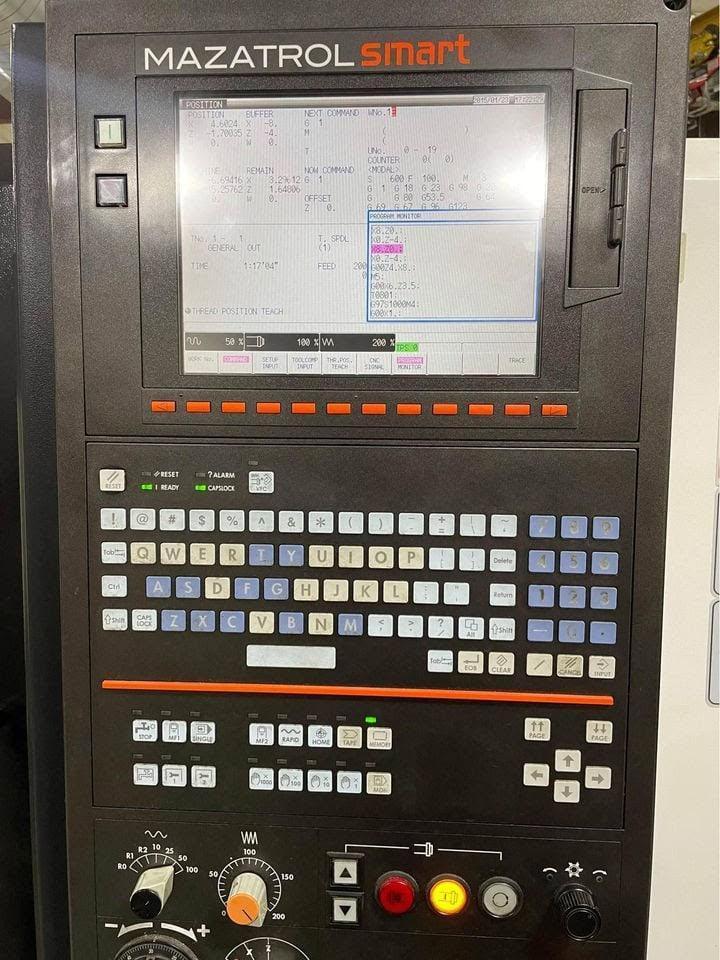

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Mazatrol Smart Control Tailstock Chip conveyor All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
