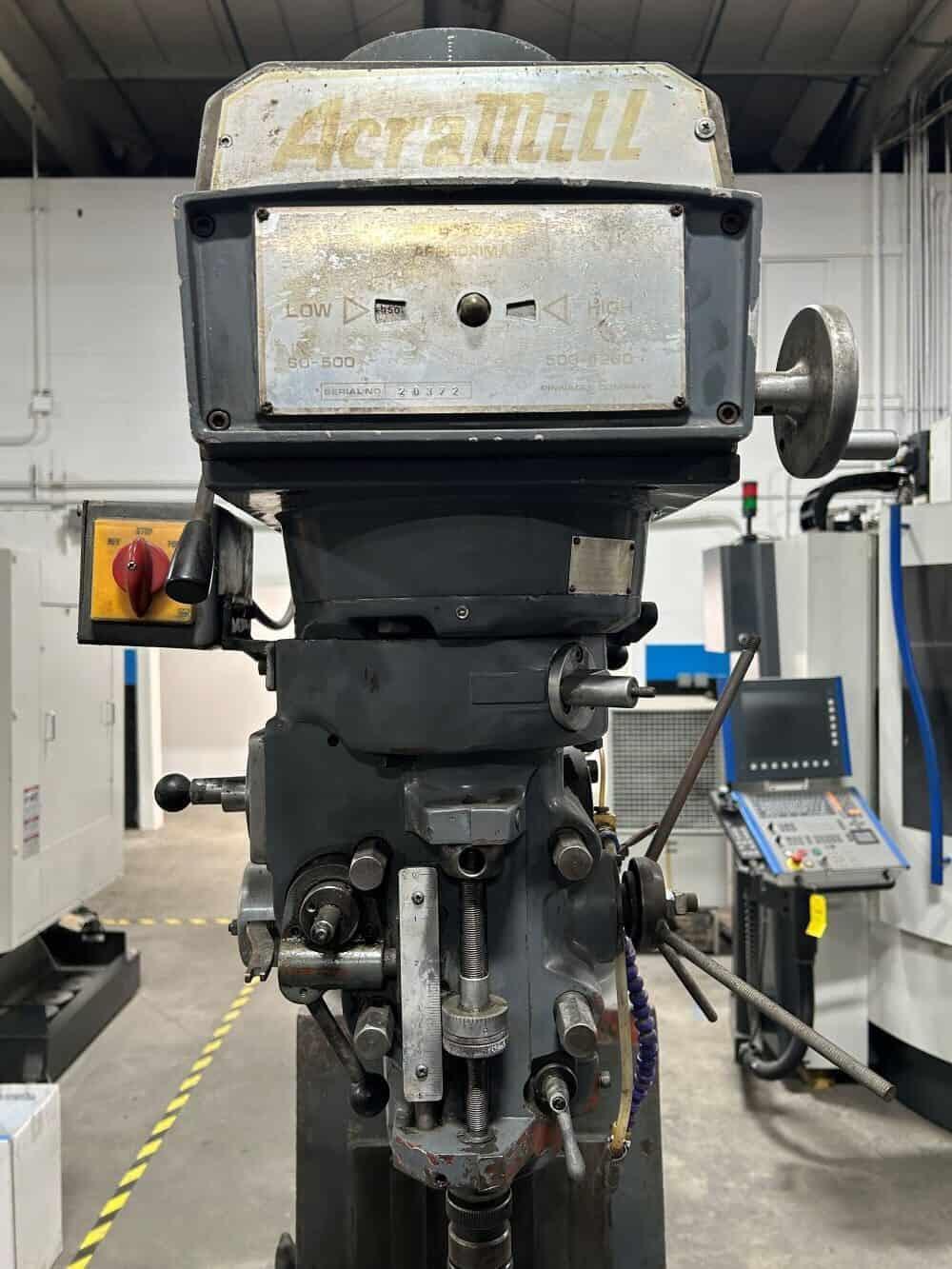

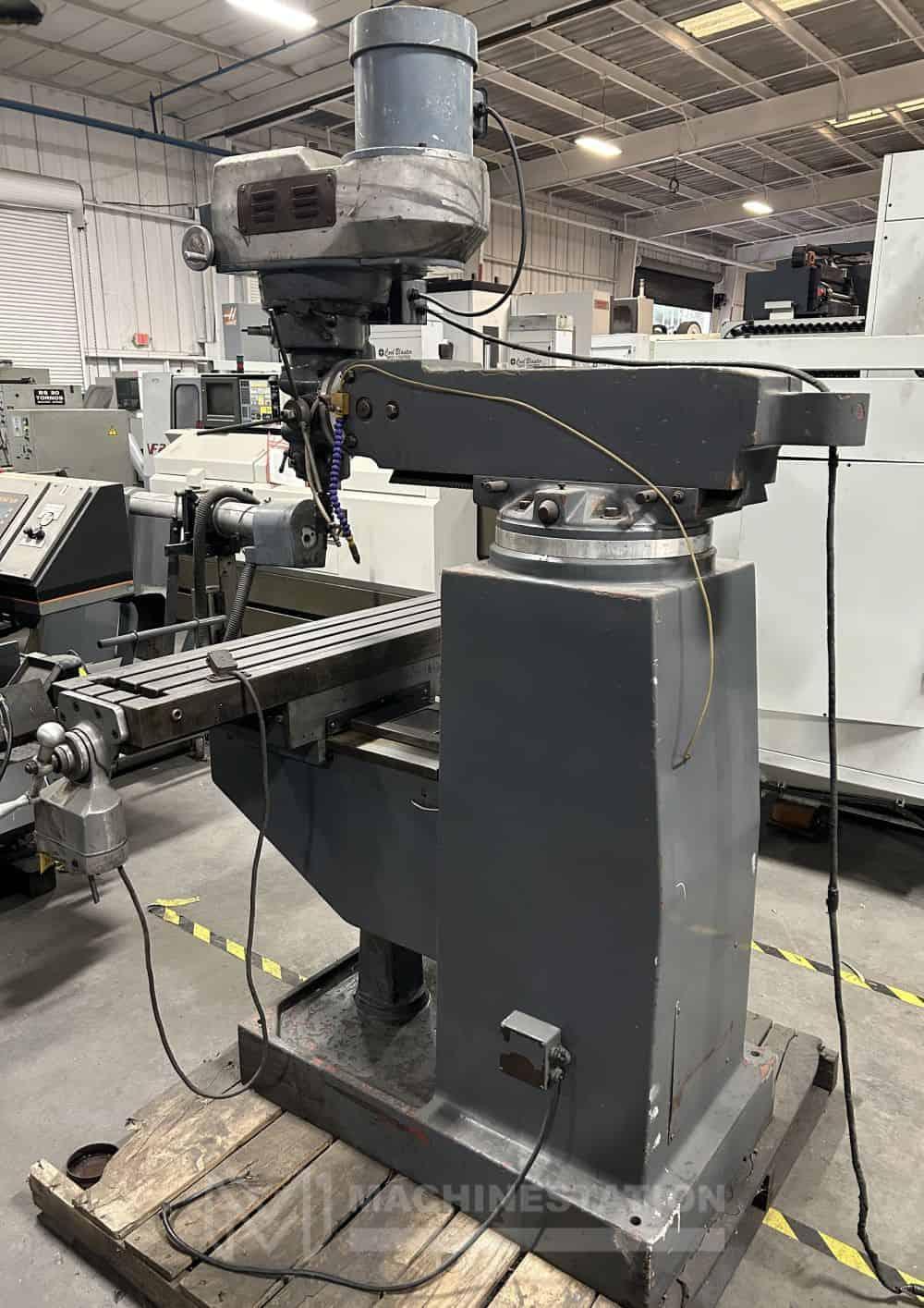

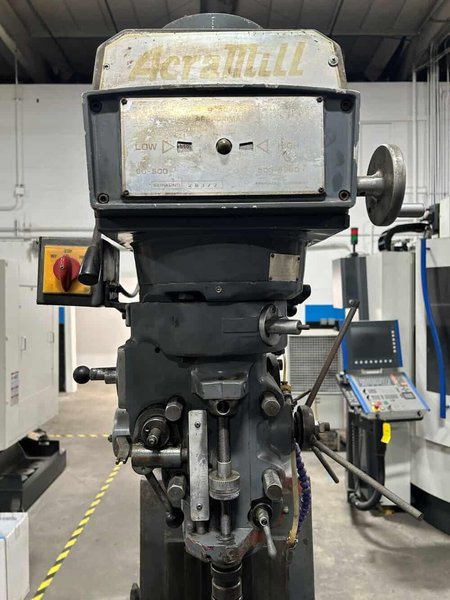

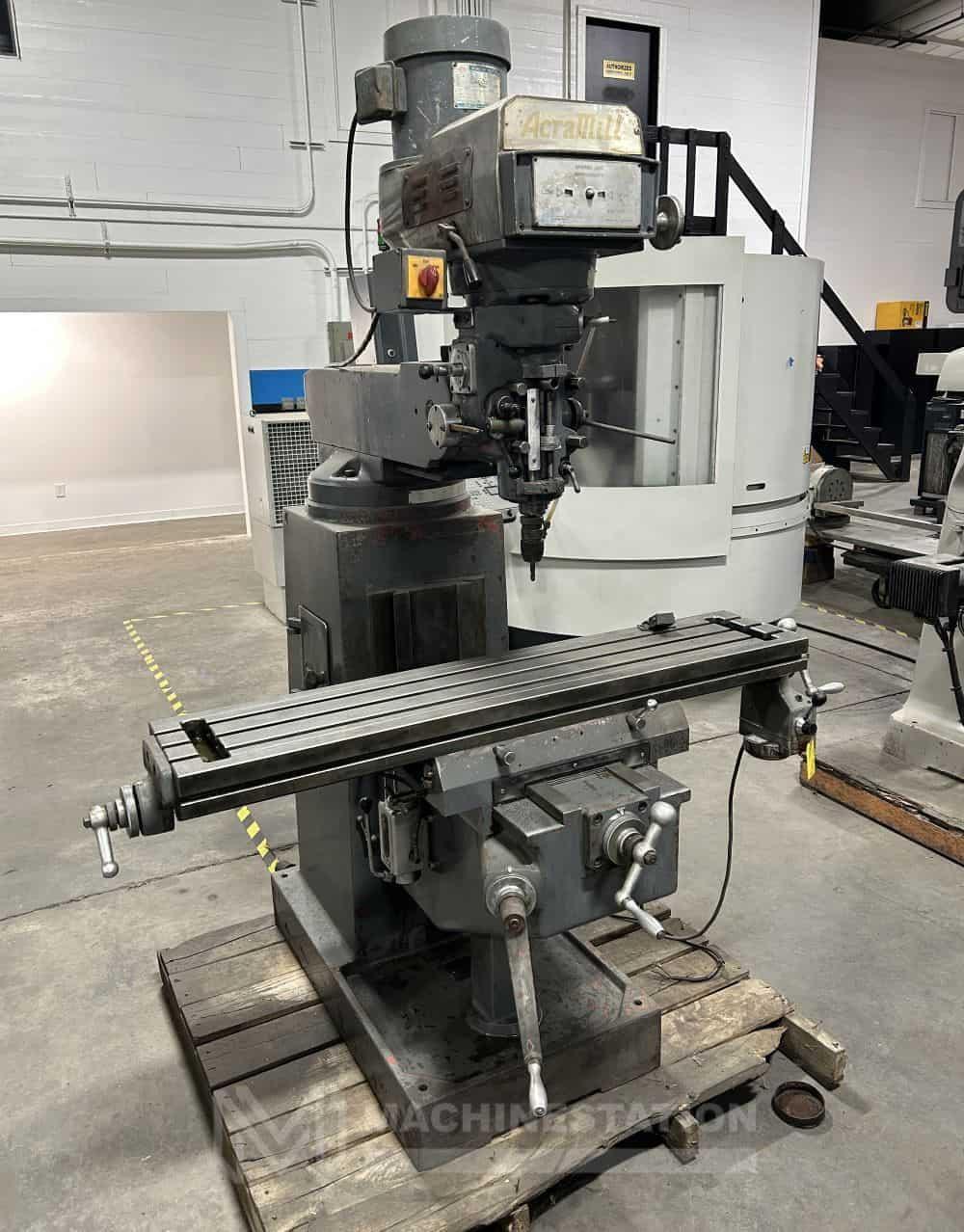

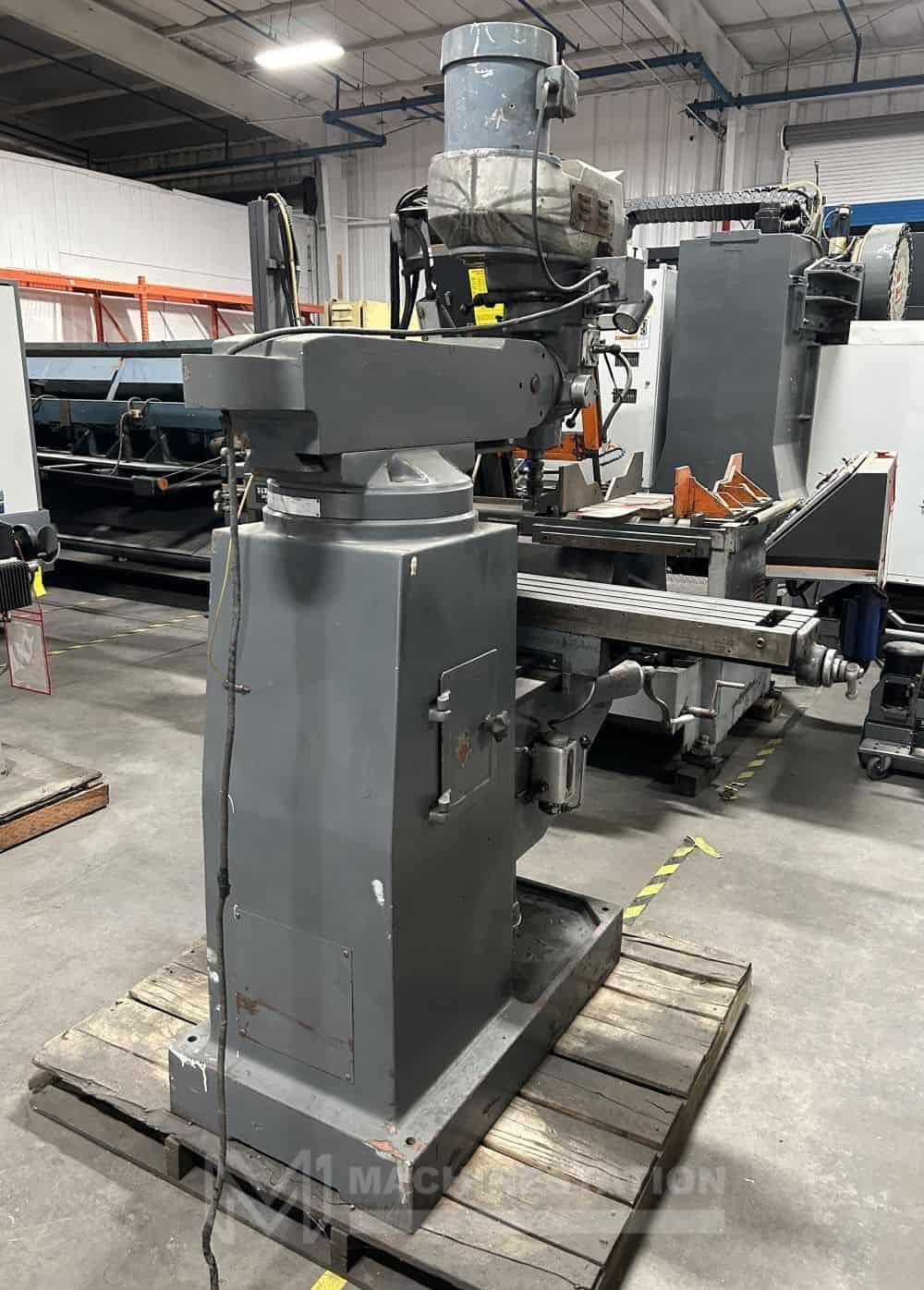

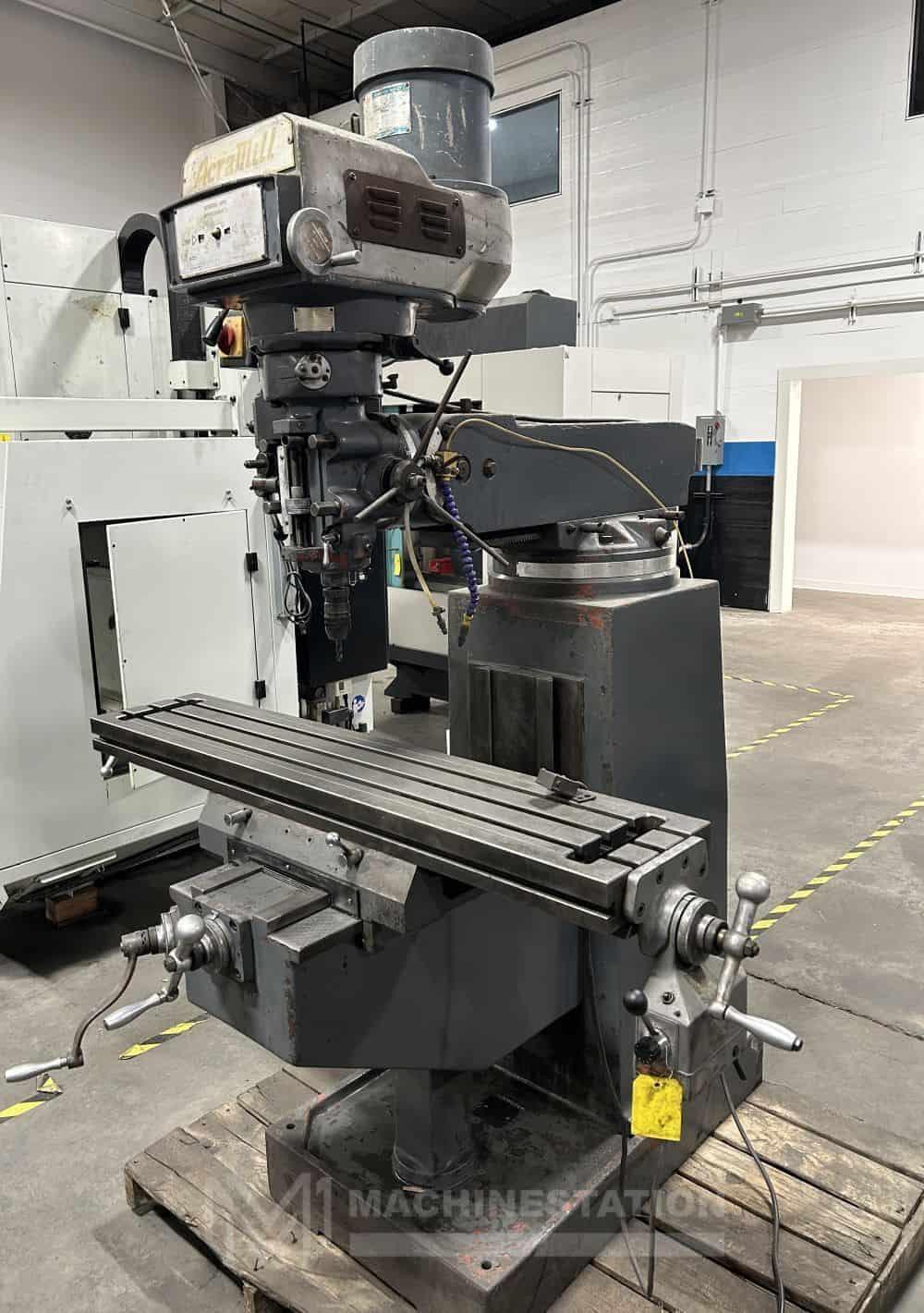

Acra 2V Variable Speed Vertical Milling

Brand
ACRA
Category
Milling Machines
Type
Knee Mills
Model
SKU:112539Make:AcraModel:2V
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:112539
Make:Acra
Model:2V
Condition:Used – Good



Features:
Machine base, knee and table are cast iron construction
Slideways are hardened and precision ground
Milling head can be tilted 90 degrees either right or left side
 X, Y, Z axis are dovetail way
X, Y, Z axis are transmitted by precision feed lead screw with double nut



Capacity:
Maximum Table Longitudinal Travel (X-Axis): 35.5″
Maximum Table Cross Travel (Y-Axis): 12.5″
Maximum Knee Travel (Z-Axis): 16″
Maximum Overarm Travel: 16.25″
Maximum Spindle Travel: 5″
Drilling Capacities: (Cast Iron) 0.75″ | (Steel) 0.62″
Face Milling: 3”
End Milling: 0.75″

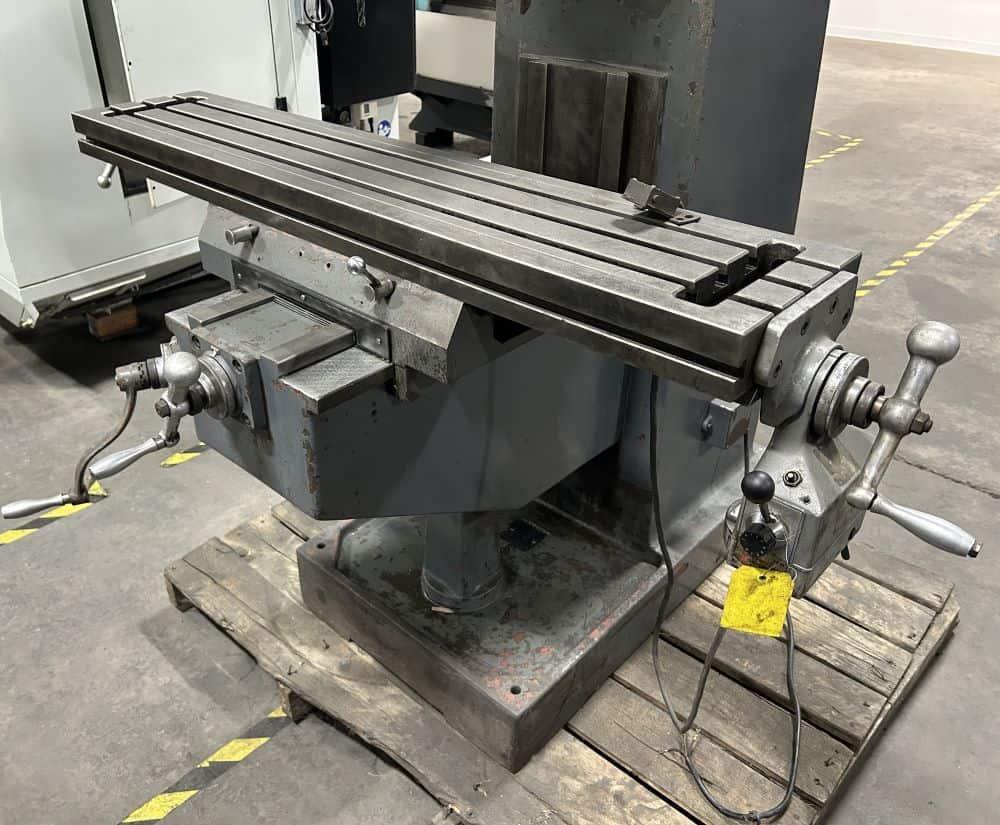

Table:
Working Surface: 9″ x 49″
T-Slot Number, Size: 3, 5/8″
Maximum Weight of Workpiece: 550 Lbs.



Spindle:
Number of Speeds: Variable

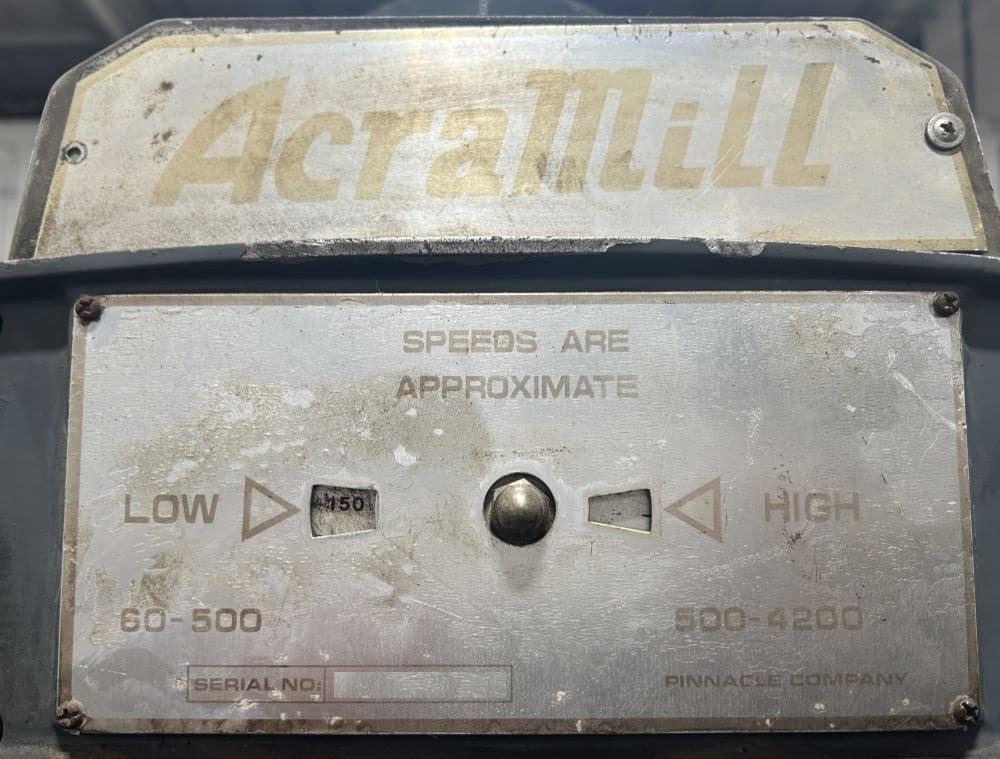

Range of Spindle Speeds : Low: 60 – 500 High: 500 – 4,200 RPM
Spindle Taper: R8
Diameter of Quill: 3-3/8″
Collet Capacity: 1/8″ ~ 5/8″
Spindle Feeds: .0015/.0003/.0006 inch/rev.
Spindle Travel: 5”
Spindle to Table: 2-3/4” ~ 17-1/2”
Spindle to Column: 5” ~ 17-3/8”
Horsepower: 2 HP



General:
Overall Machine Dimensions (WxDxH): 66″ x 63″ x 86″
Electrical: 220/440V, 3 phase, 60 Hz
Net Weight (approx.): 2300 lbs
