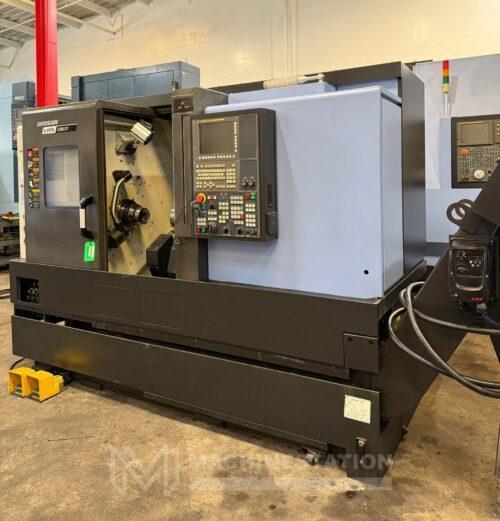

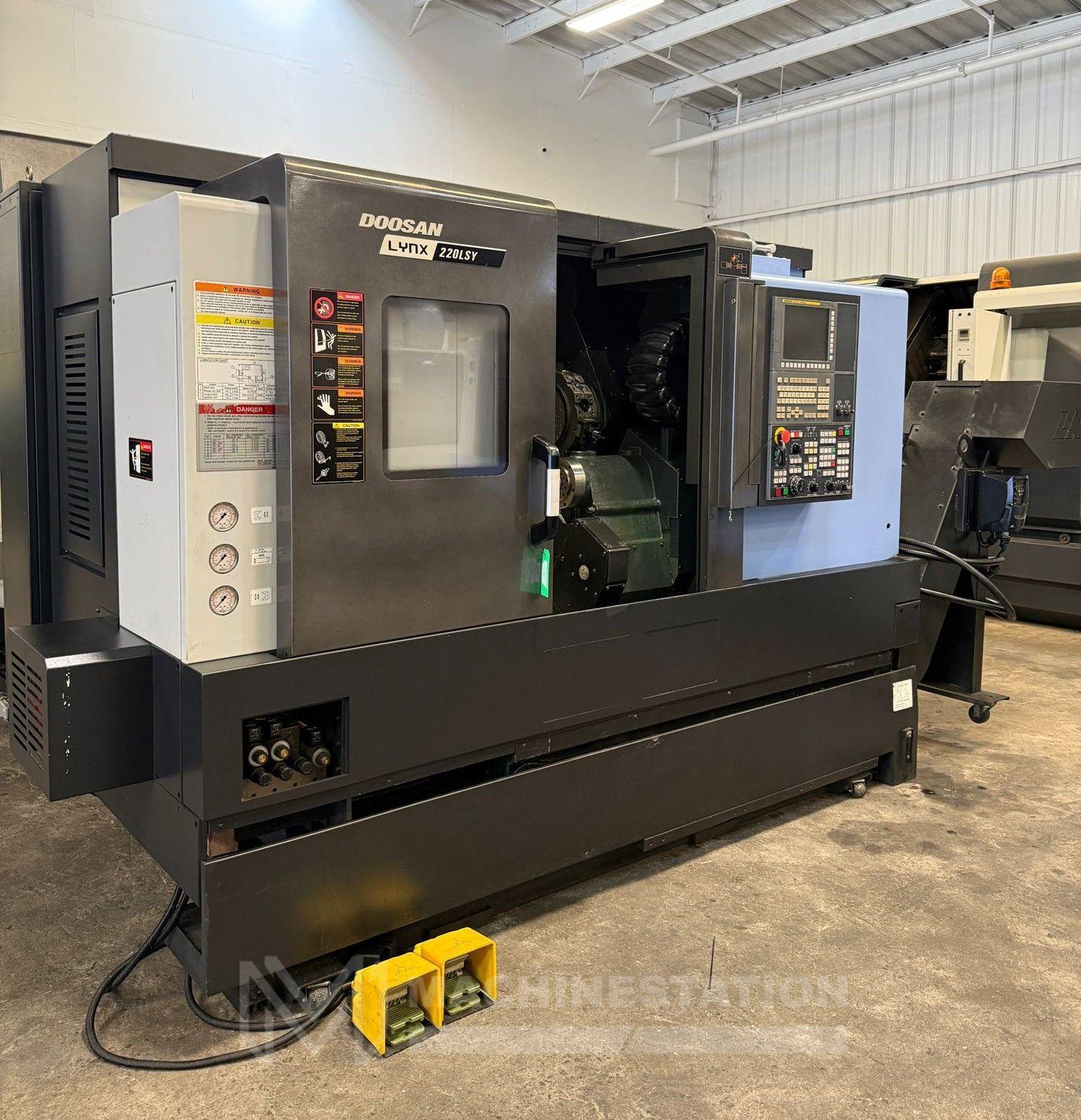

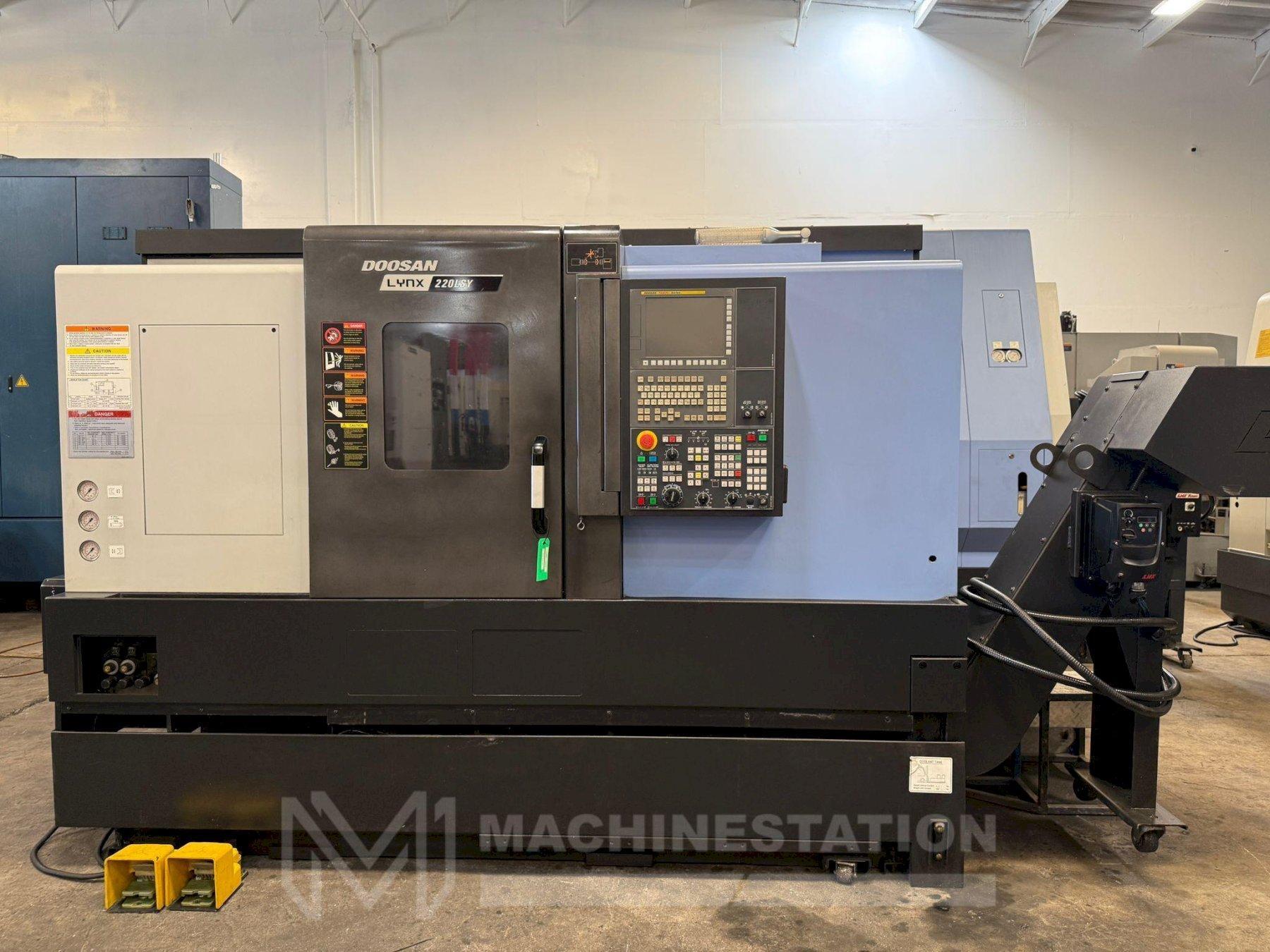

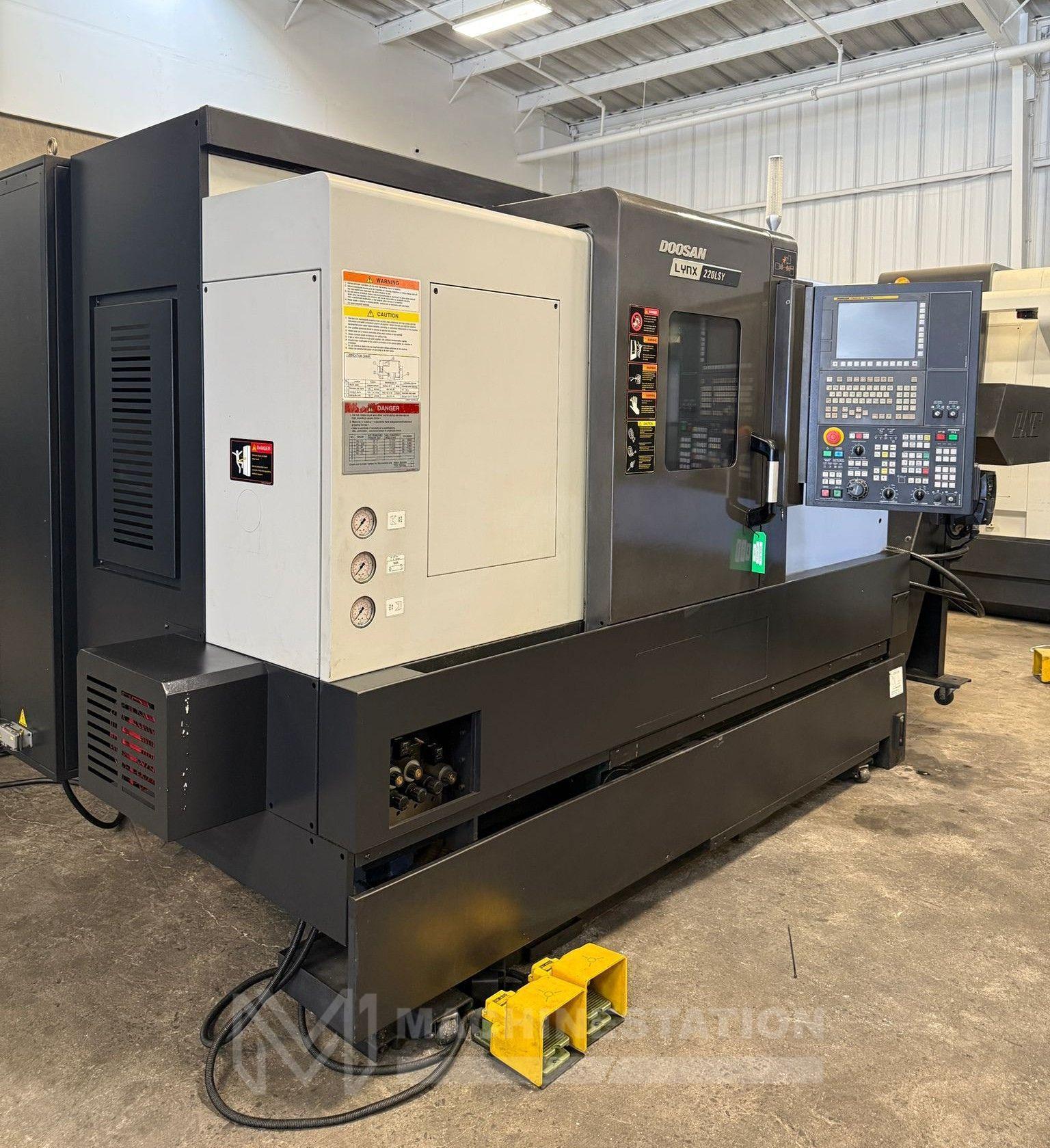

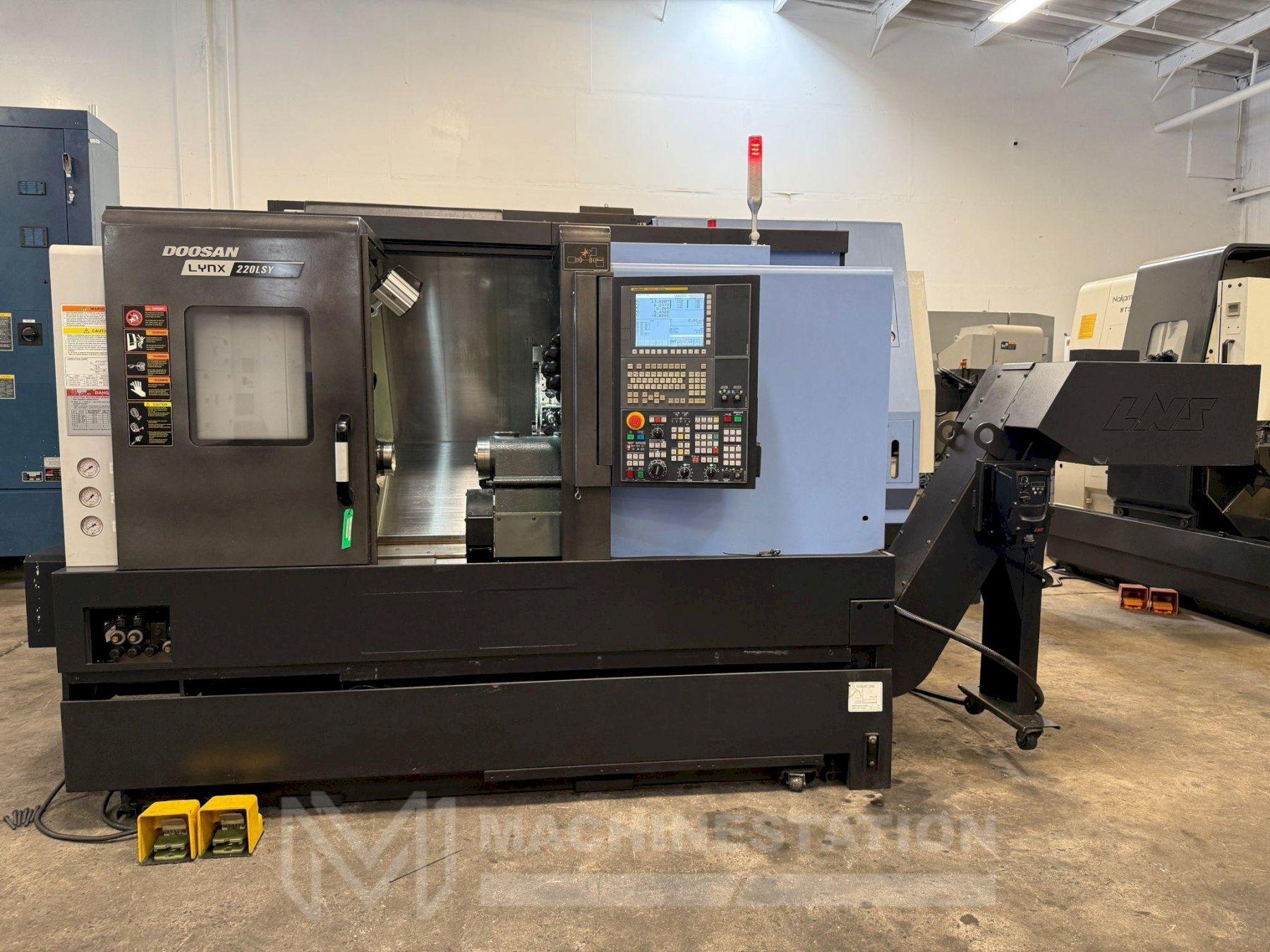

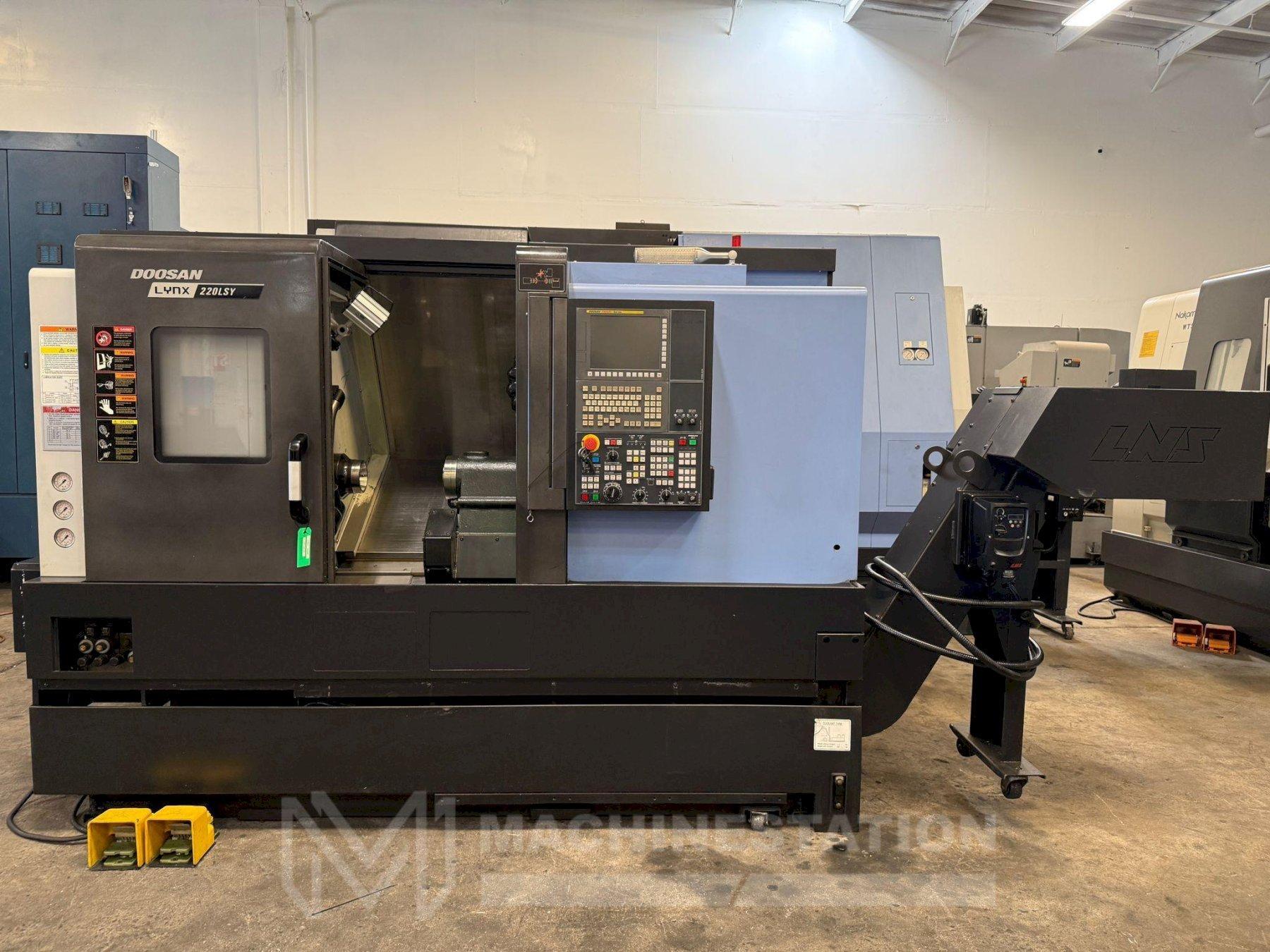

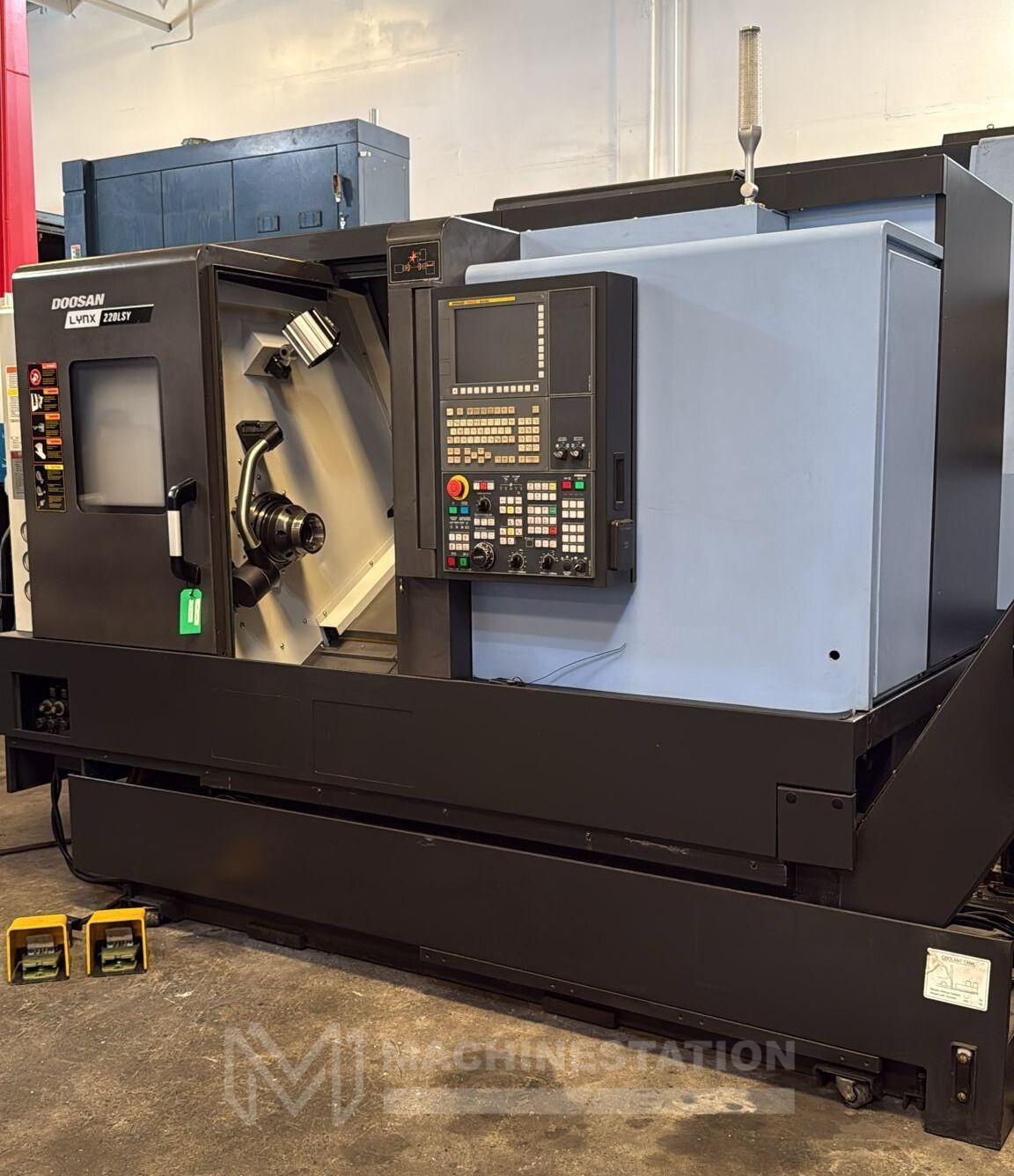

Doosan Lynx 220LSYC CNC Turning Center – Sub Spindle Y Axis Lathe

Brand
DOOSAN
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Lynx 220LSYC
Stock #
112831
Year
Not specified
Condition
Not specified

Location

California
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Doosan
Model:Lynx 220LSYC
Year:2017
Condition:Used – Excellent



Equipped With:

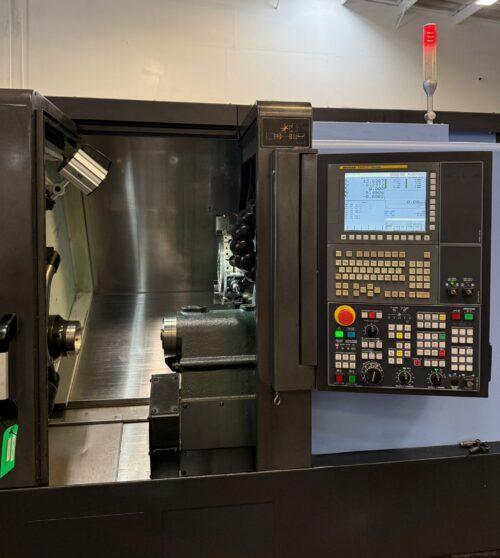

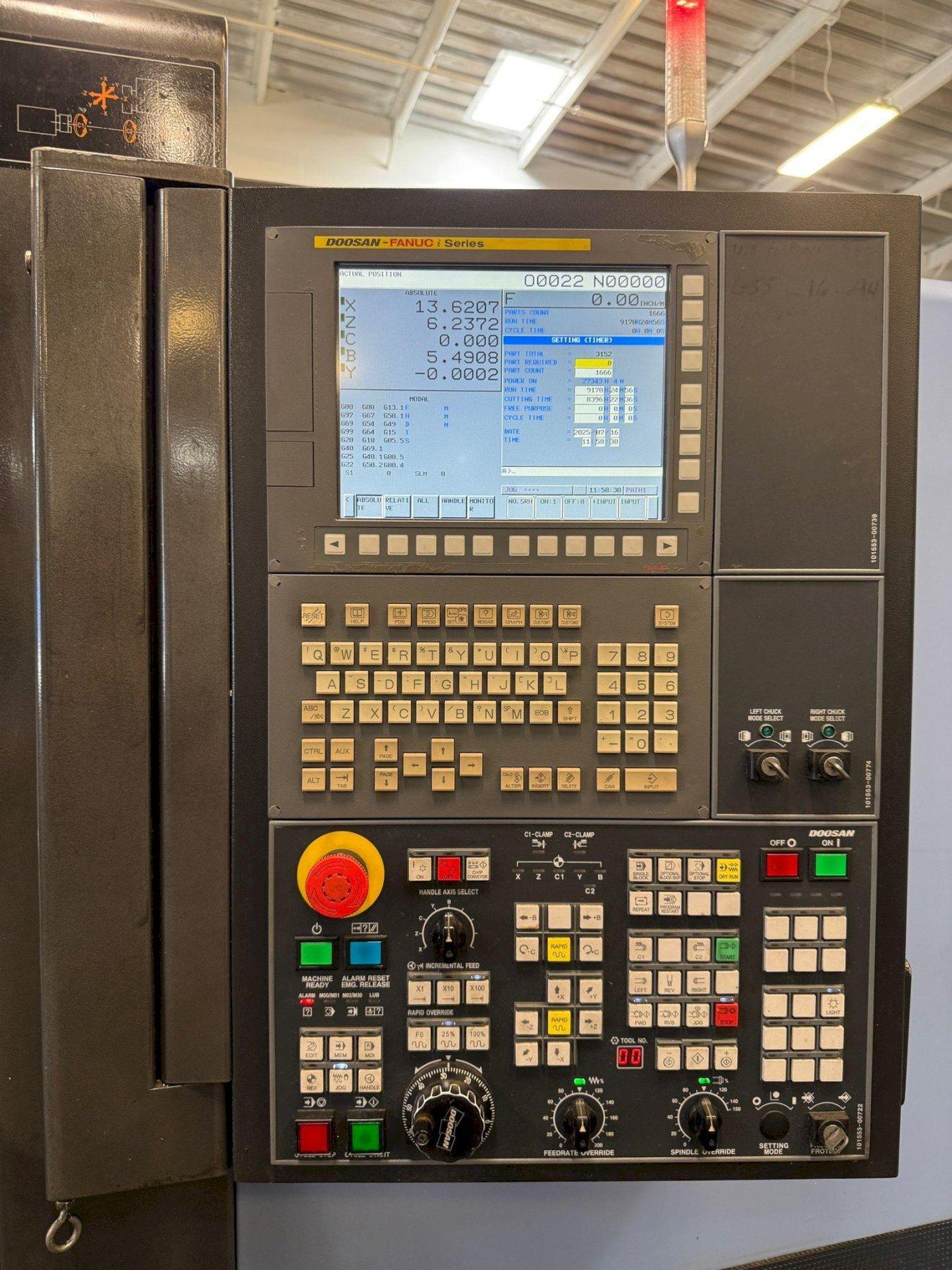

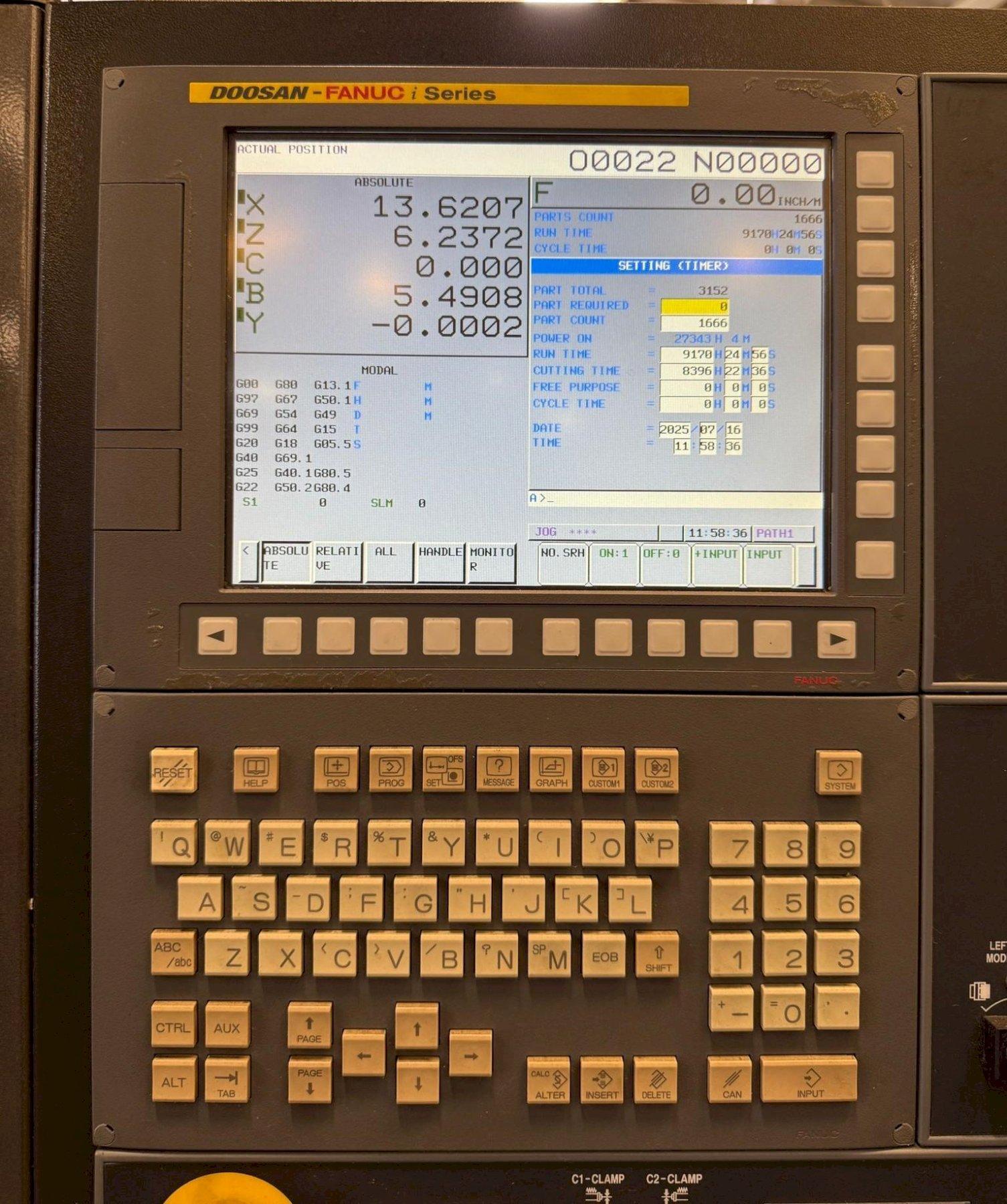

Doosan-Fanuc i Series CNC Control

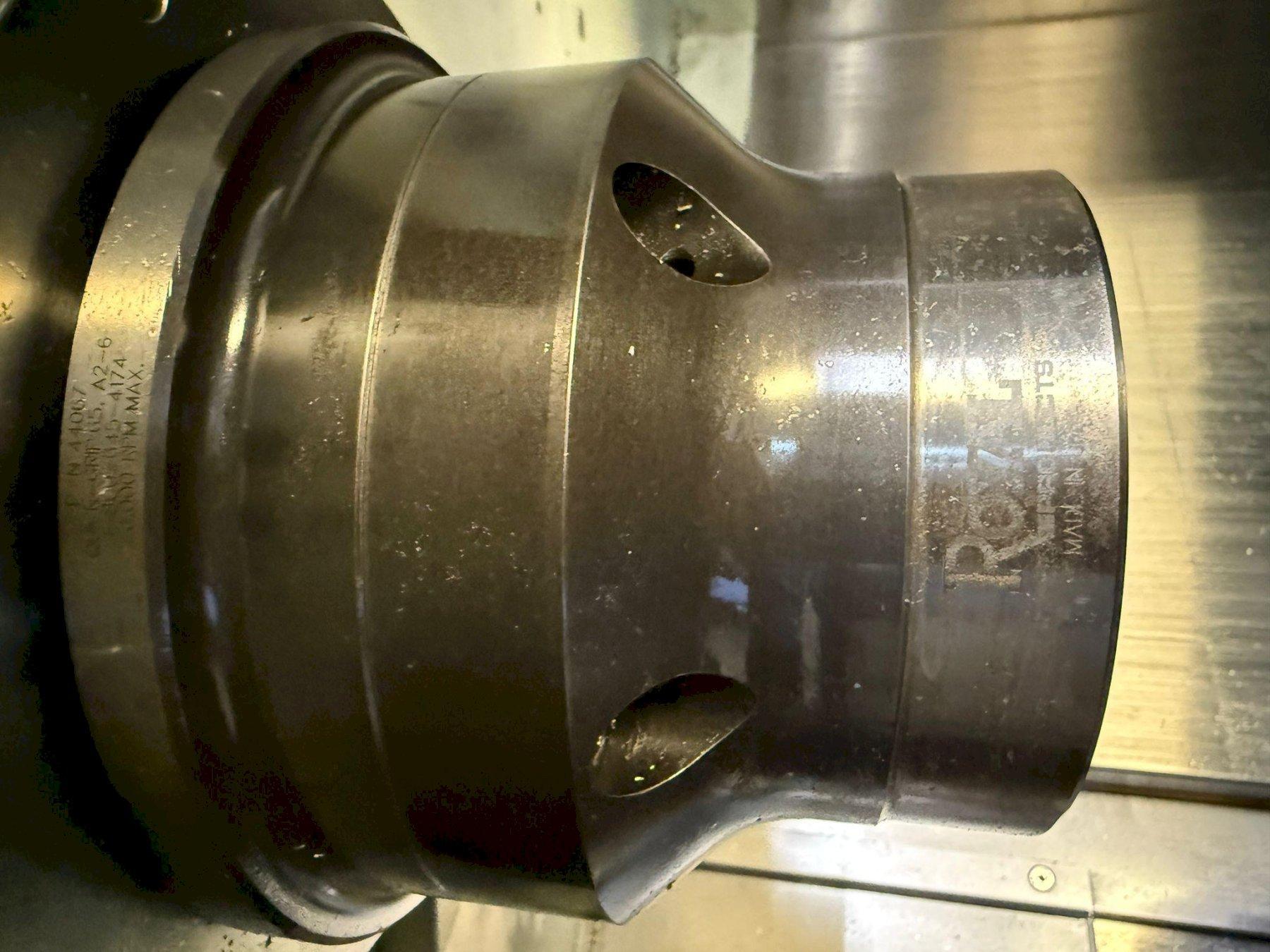

Royal Quick Grip 65 Collet Chuck on Main Spindle (Capable 8″ Chuck)

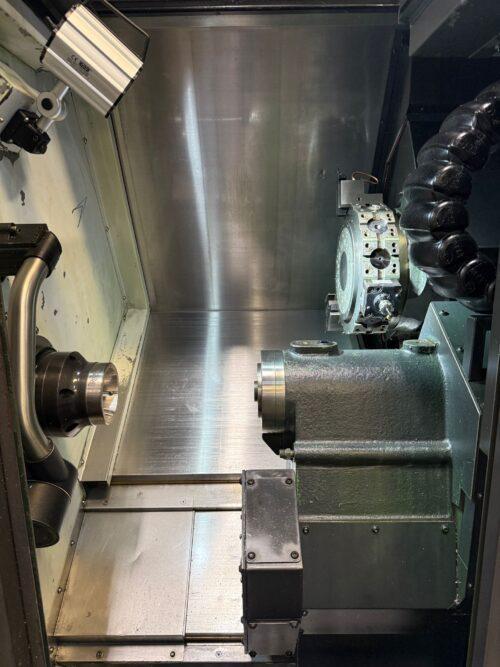

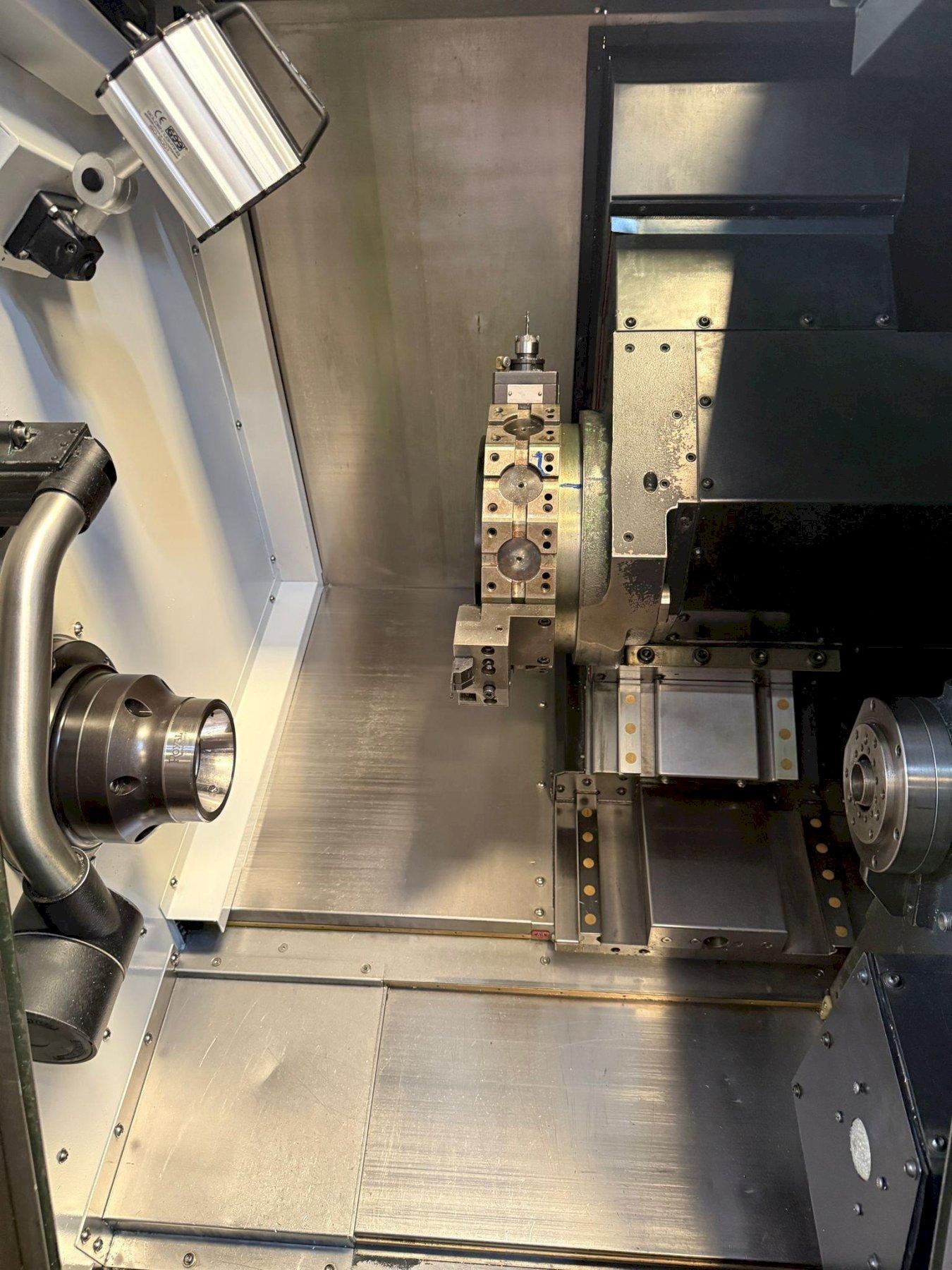

Sub Spindle
Servo Controlled Full C Axis on Both Spindles

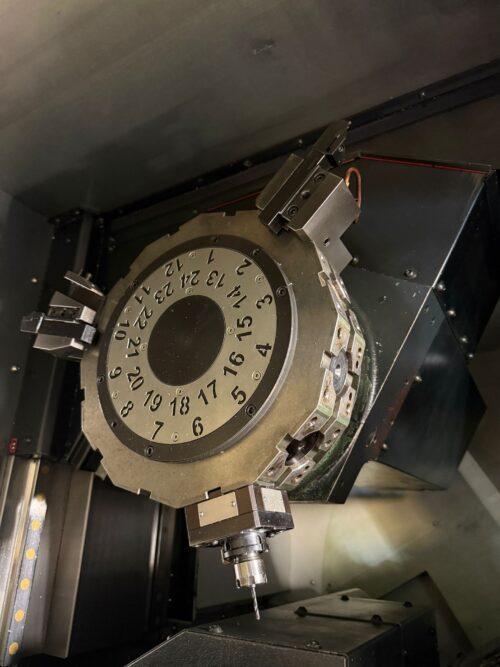

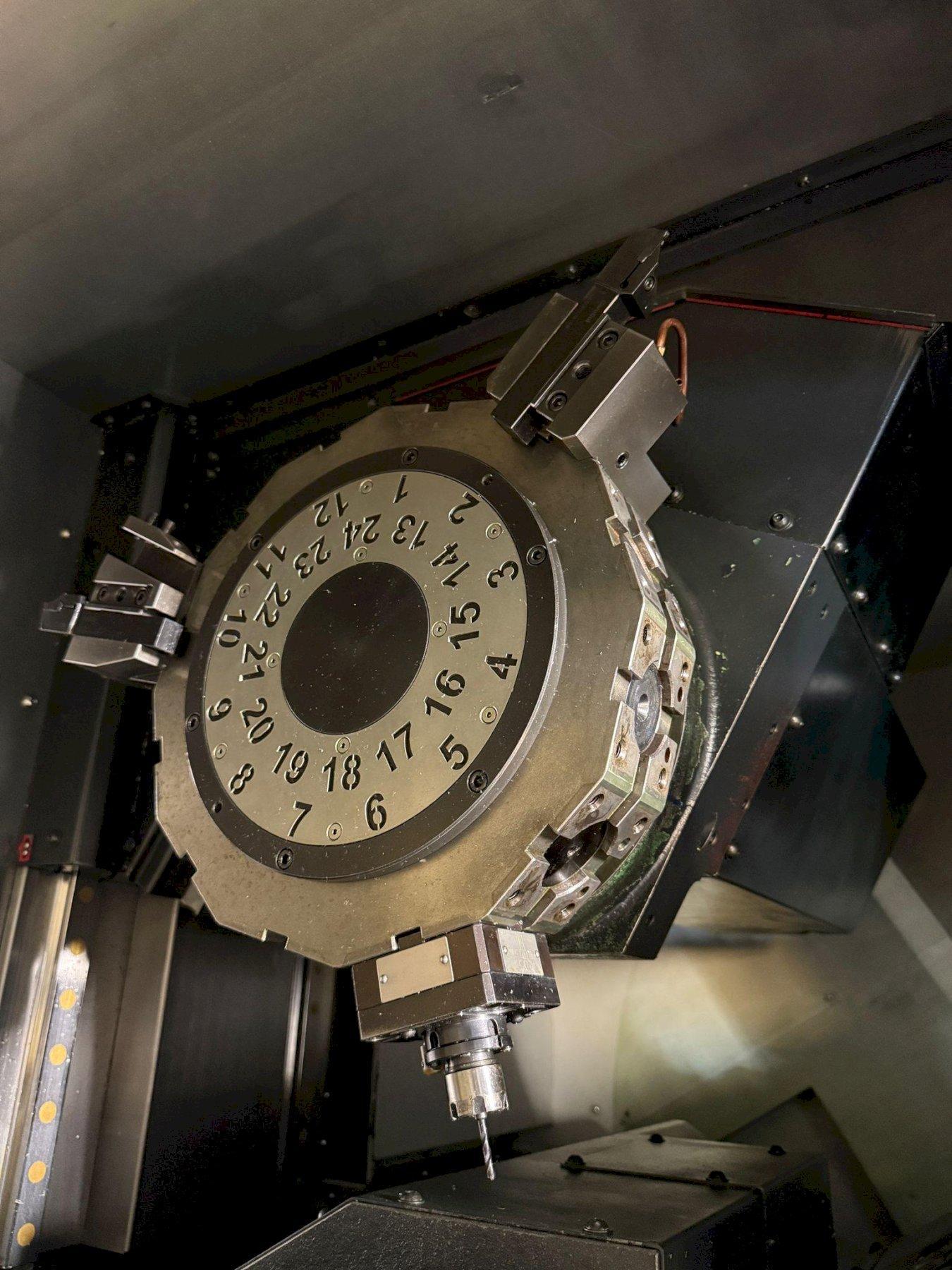

12 Station (24 Positions) Live Tool Turret
Y Axis on Turret
Tool Presetter
Part Catcher
PCMCIA Card Slot

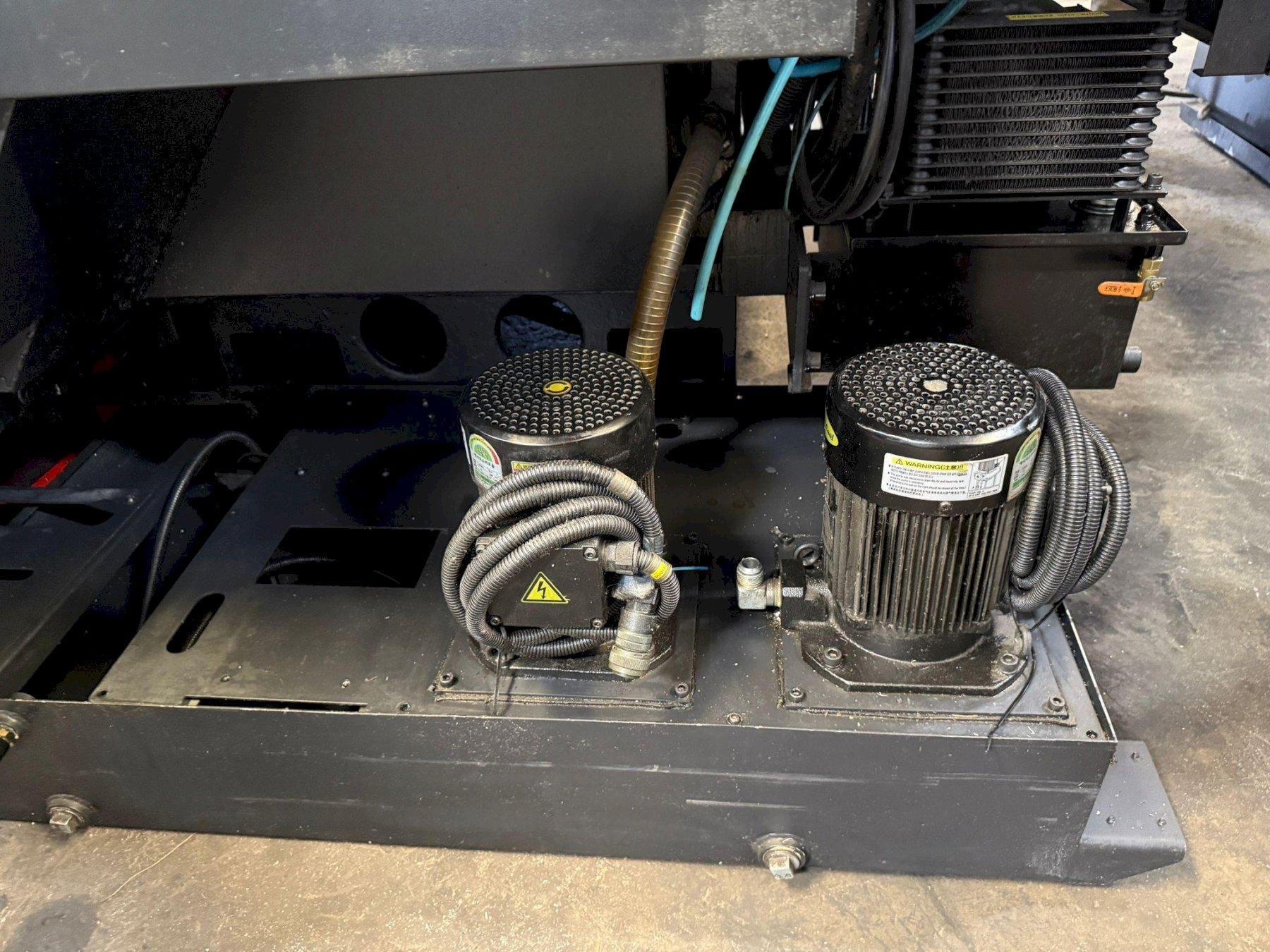

High Pressure Coolant System
LNS Chip Conveyor
Foot Switch
(1) Live Tool Holder (2) Turning Tools are Mounted on Turret (As shown in the images)



Capacity:
Max Turning Diameter : 11.8″
Max Swing Over Bed : 23.6″
Max Swing Over Saddle : 15.7″
Max Turning Length: 20.1″
Max Bar Capacity : 2.6″



Travels:
X Axis Travel : 8.1″
Y Axis Travel : 4.13″
Z Axis Travel : 22.0″
B Axis Travel (Sub Spindle) : 22.0″
C Axis (Both Spindles) : 0.001 Degree
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Y Axis: 394 IPM
Rapid Traverse Z Axis: 1417 IPM



Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.0″
Spindle Speed: 4500 RPM
Spindle Motor: 20 HP

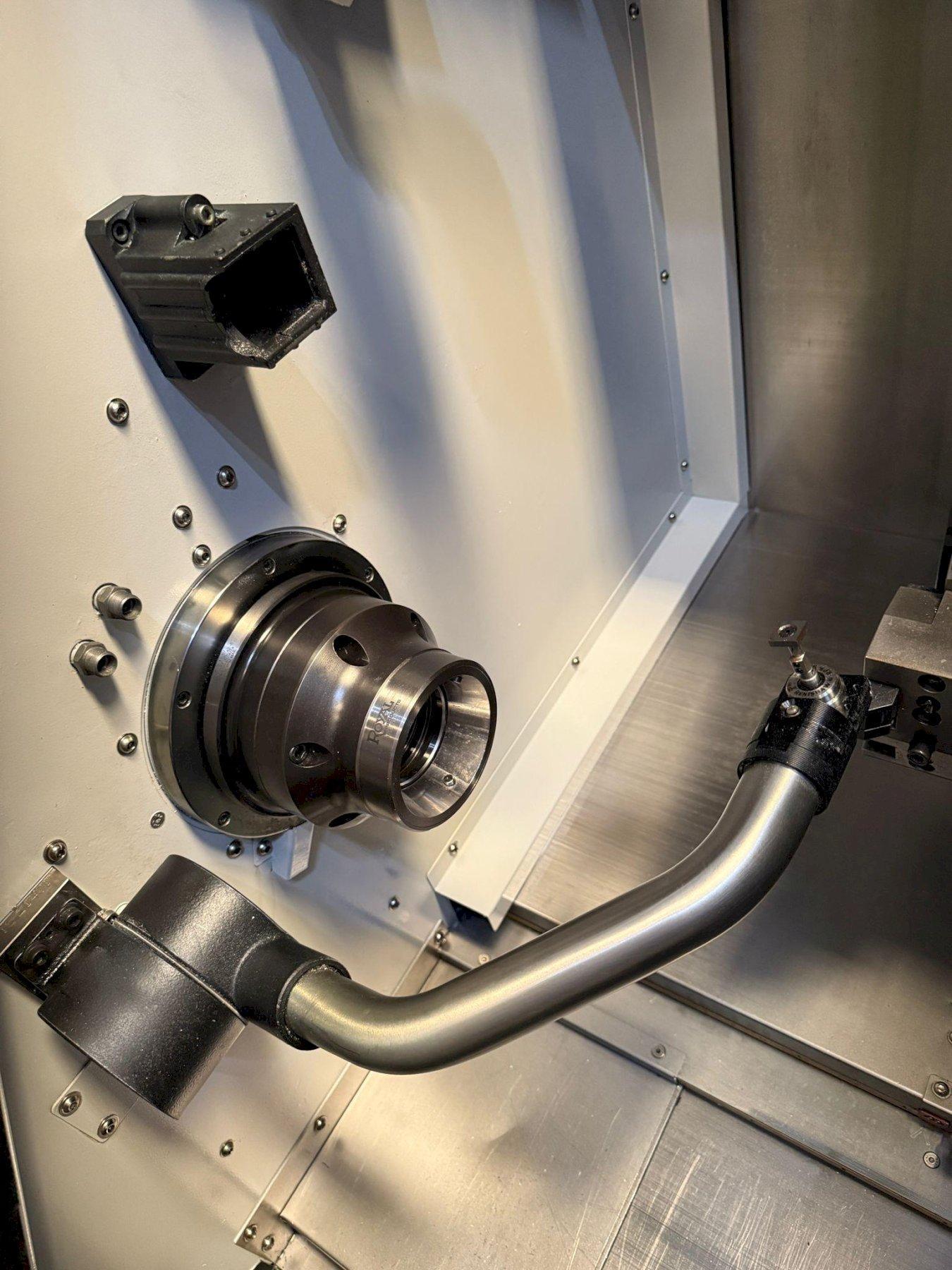

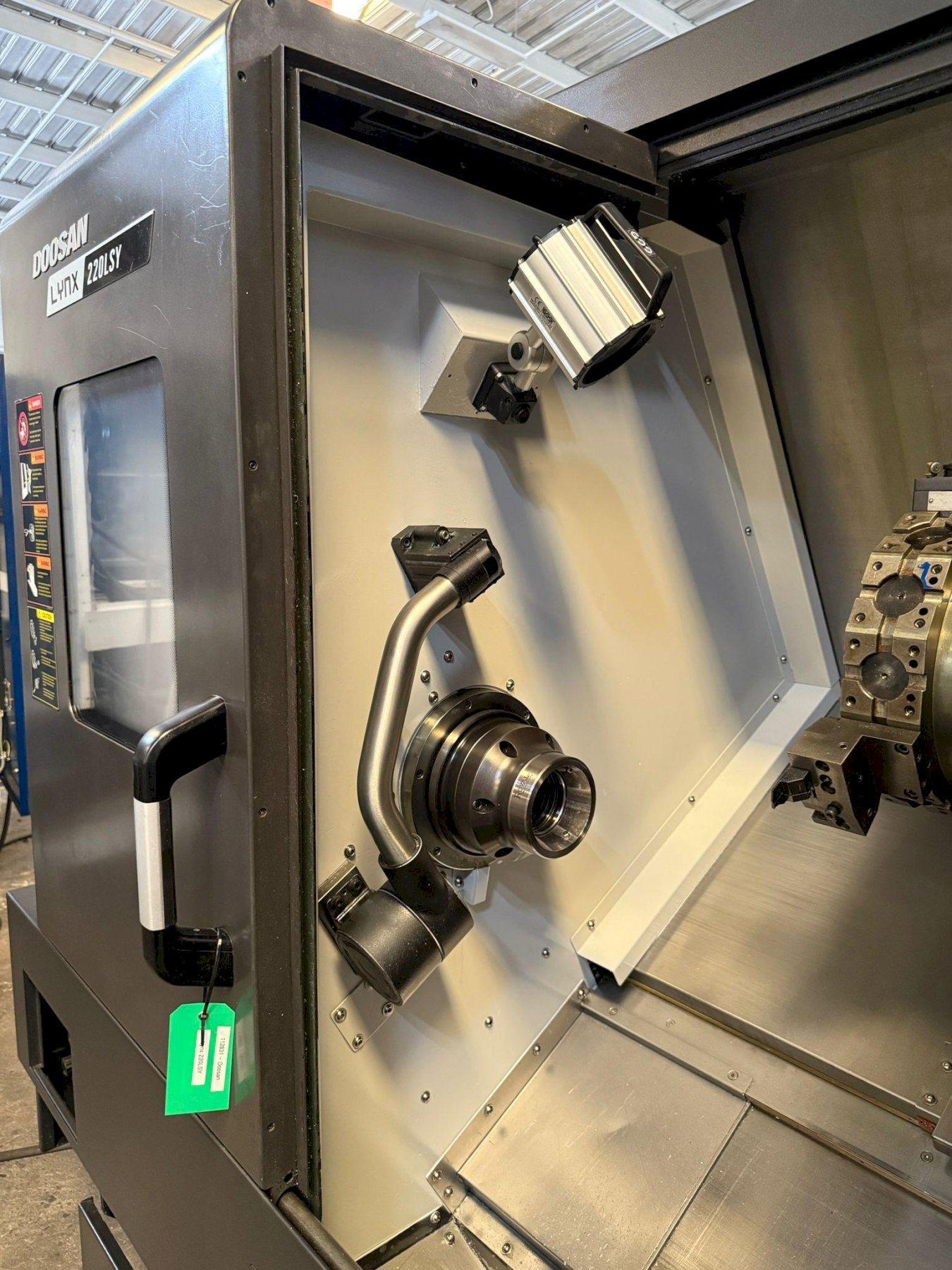

Sub Spindle:
Spindle Nose: FLAT
Spindle Bore: 1.7″
Spindle Speed: 6000 RPM
Spindle Motor: 7.5 HP



Turret:
Turret Capacity: 12 Stations (24 Positions)
Turret Index Time: 0.11 Second
Tool Holders Type: BMT



General:
Power Source: AC 220v / 3-Phase / 60 Hz
Power Requirement: 33.66 kva
Machine Dimensions: 113.4″ x 67.3″ x 75.6″ High
Machine Weight: 9,260 lbs Approx.
No files or videos to display
