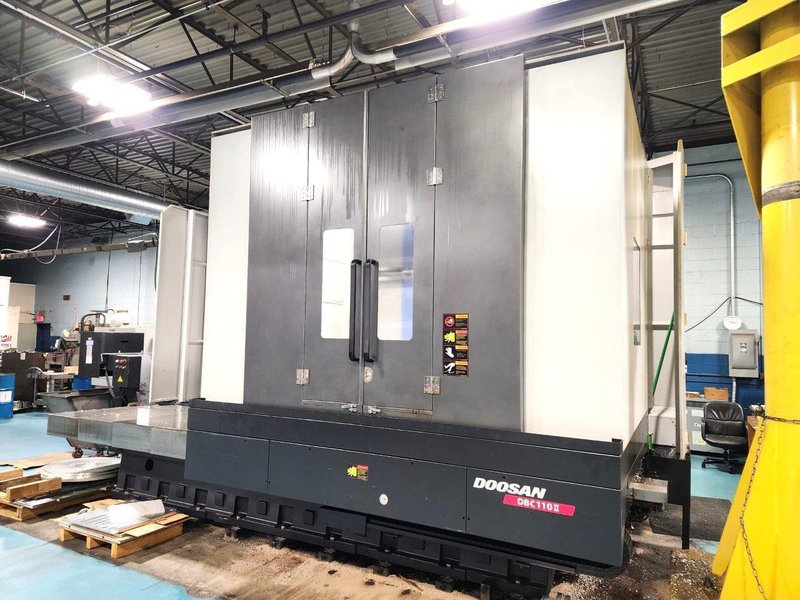

4.33" Doosan DBC-110 CNC Table Type Horizontal Boring Mill

CAPACITY:

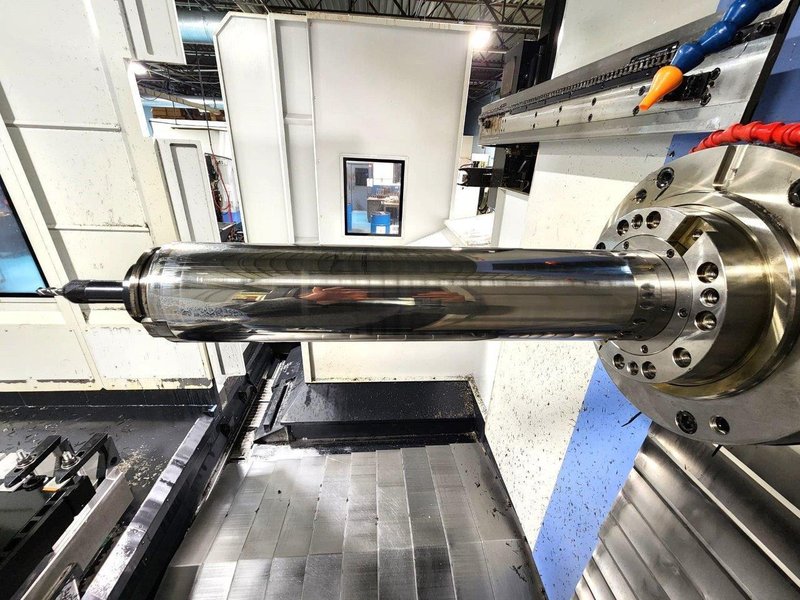

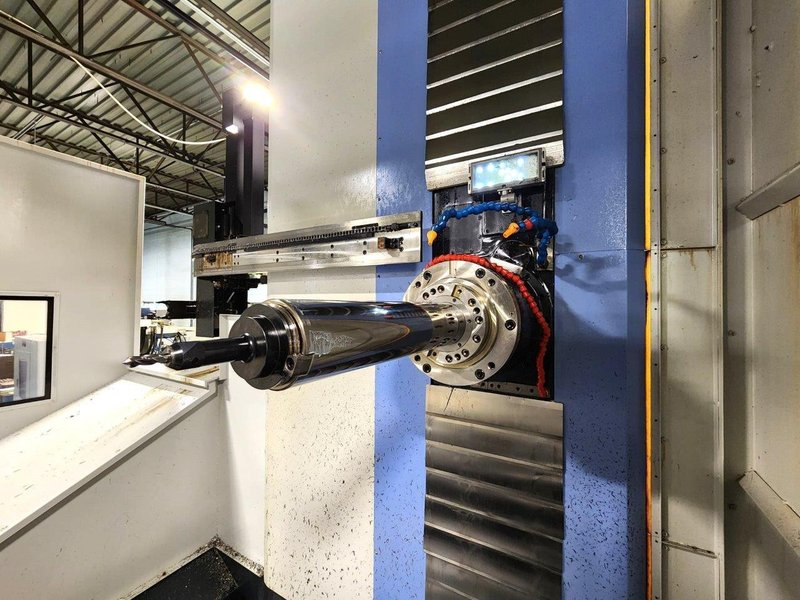

SPINDLE DIAMETER.................................................... 4.33"
SPINDLE TAPER............................................................. #50
VERTICAL HEADSTOCK TRAVEL,Y-AXIS ..............78.74"
TABLE CROSS TRAVEL, X-AXIS ................................98.42"
SPINDLE TRAVEL, W-AXIS .......................................21.65"
COLUMN INFEED TRAVEL, Z-AXIS .......................59.05"
DISTANCE SPINDLE CENTER TO TABLE TOP..... 0"-78.7"
SPINDLE NOSE TO TABLE CENTER........................ 22.7"-80.7"
TABLE SIZE, B-AXIS .....................................................55.1" X 70.8"
ROTARY TABLE WEIGHT CAPACITY........................ 22,046 LBS
B-AXIS TABLE ROTATION........................................... .001 DEGREE
MAXIMUM SPINDLE SPEEDS................................... 4,000 RPM
RAPID TRAVERSE RATE (ALL AXES)....................... 472.44 IPM
CUTTING FEEDRATE (X/Y/Z AXES)......................... 1-236.22 IPM
OVERALL HEIGHT......................................................... 191.4"
FLOOR SPACE................................................................. 274.8" X 301.5"
ESTIMATED MACHINE WEIGHT............................... 79,366 LBS

EQUIPPED WITH:

FANUC 31I-A CNC CONTROL

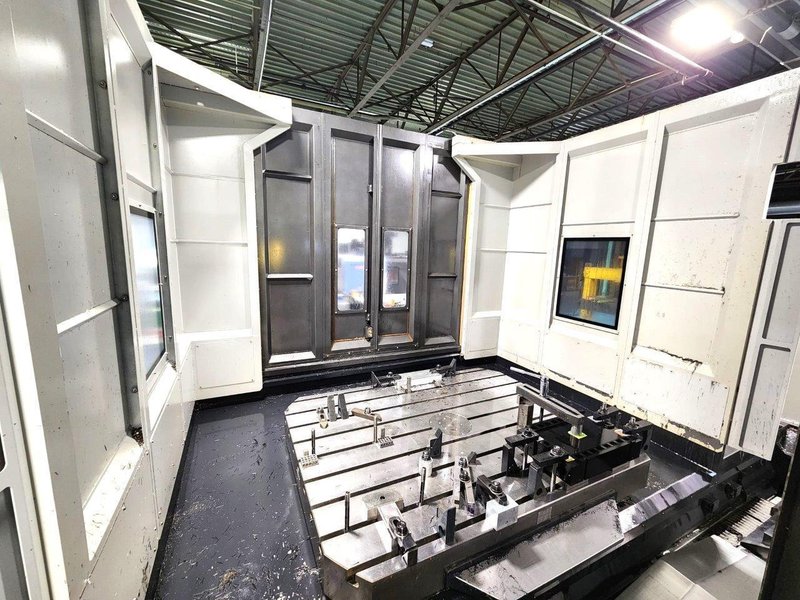

B-AXIS BUILT IN ROTARY TABLE

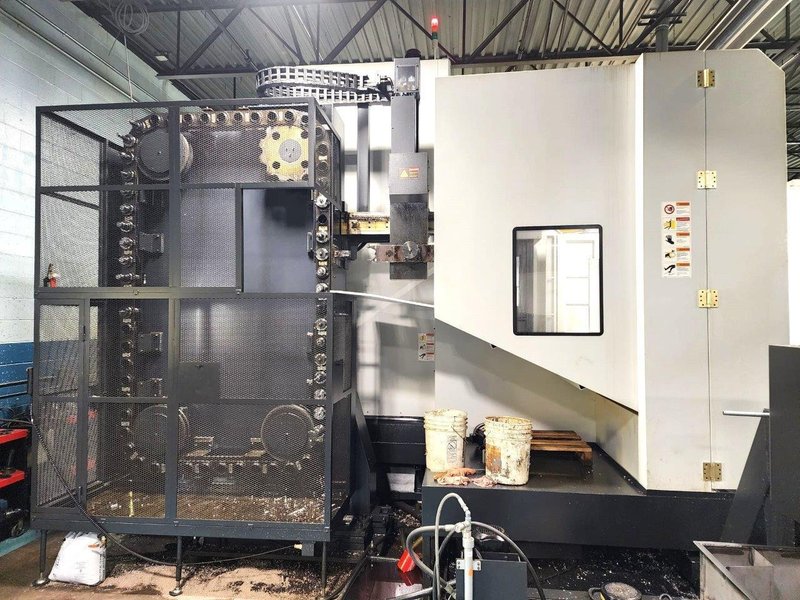

60-STATION AUTOMATIC TOOL CHANGER
COOLANT THRU SPINDLE
CHIP CONVEYOR
FULL ENCLOSURE
40 HP MAIN MOTOR

NOTE: MACHINE IS IN PRISTINE CONDITION! LIKE NEW!
LOCATION: INSPECT UNDER POWER IN NORTHEAST USA PLANT!
HOURS:
18,188 POWER ON
4,522 CUTTING TIME HOURS
746 RUN TIME HOURS

DECOMMISSION & INSTALLATION AVAILABLE AT ADDITIONAL COST
