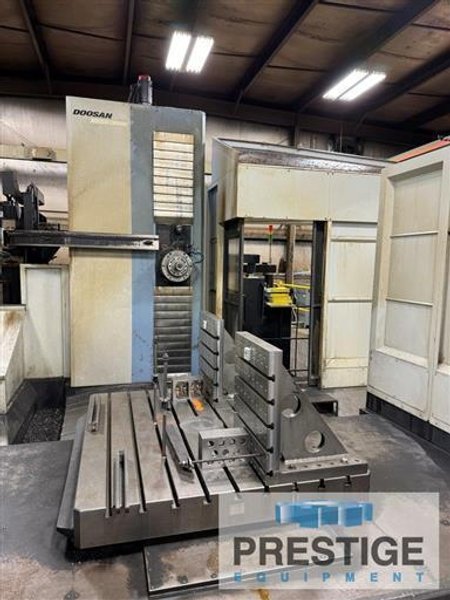

Doosan DBC-130 II 5.12" Table Type CNC Horizontal Boring MIll

SPECIFICATIONS:

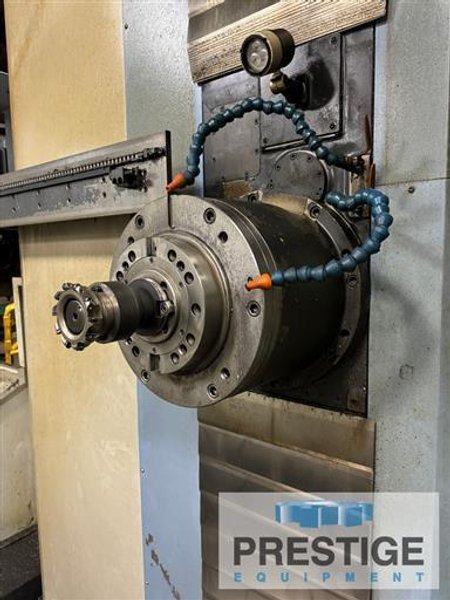

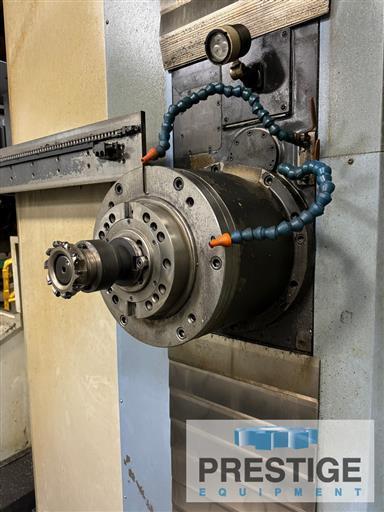

Spindle Diameter 5.12"
Spindle Taper Cat 50
Y-Axis Head Vertical Travel 78.74"
X-Axis Table Travel 118.12"
W-Axis Spindle Travel 27.6"
Z-Axis Column Infeed Travel 62.99"

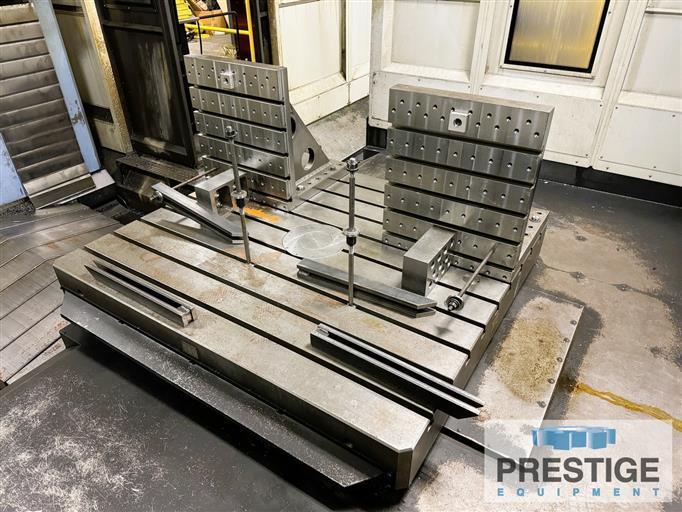

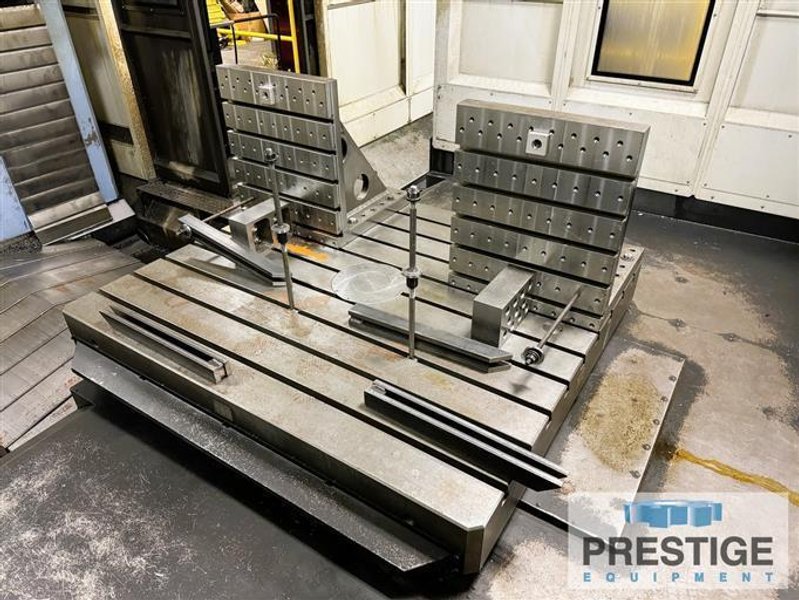

B-Axis Rotary Table 62.99" x 70.9"
B-Axis Table Rotation .001 Degree
Rotary Table Weight Capacity 33,068 Lbs
Maximum Spindle Speeds 5 to 2500 RPM
Rapid Traverse Rate (All Axes) 393.7 IPM
Cutting Feed Rate (X/Y/Z Axes) 1-157.5 IPM
Overall Height 196.9"
Floor Space 295.3" x 322.8"
Estimated Machine Weight 94,797 Lbs



Equipped With:

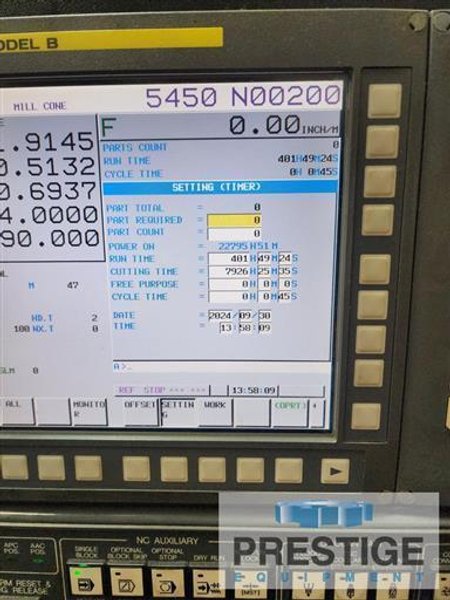

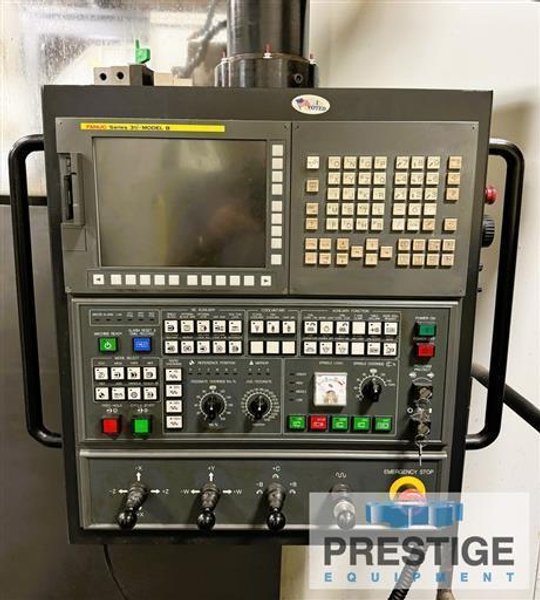

Fanuc 31i-B CNC Control
B-Axis Built In Rotary Table

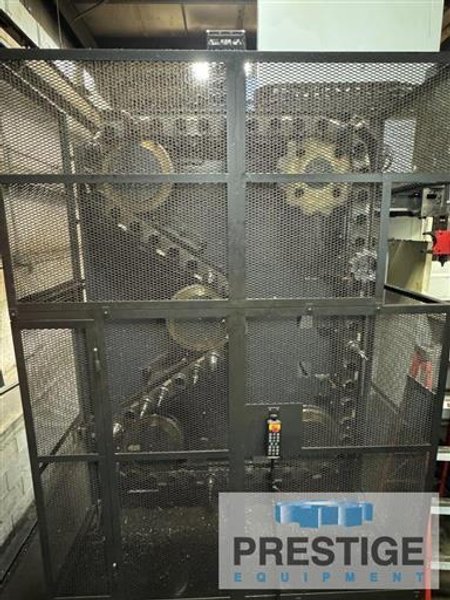

60-Station Automatic Tool Changer
Coolant Thru Spindle
Flood Coolant
Chip Conveyor

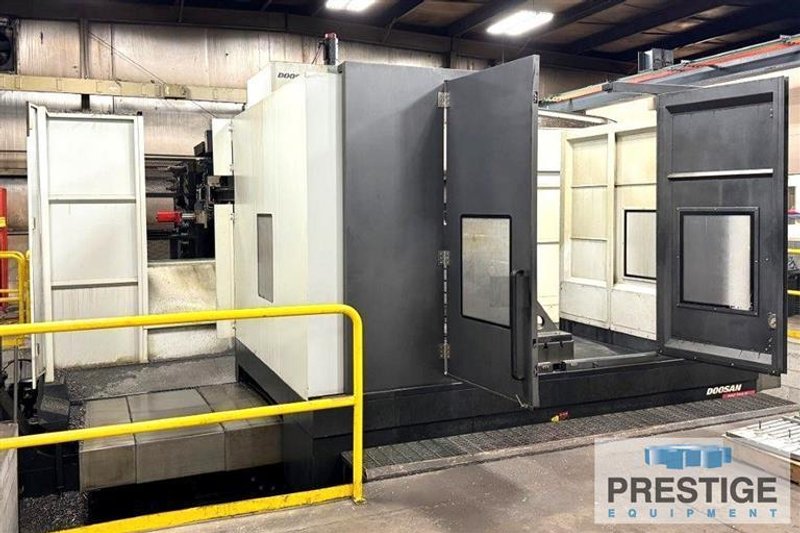

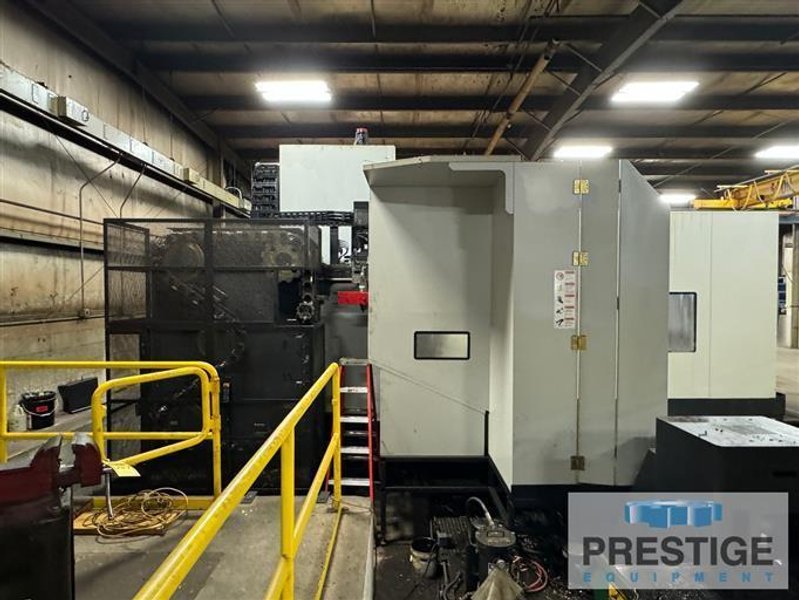

Full Enclosure


NOTES: Video of the machine Under Power Available Upon Request!
Machine is Currently Disassembled and Ready to Load!
Call for Installation Cost from People who Disassembled it the 1st time.
