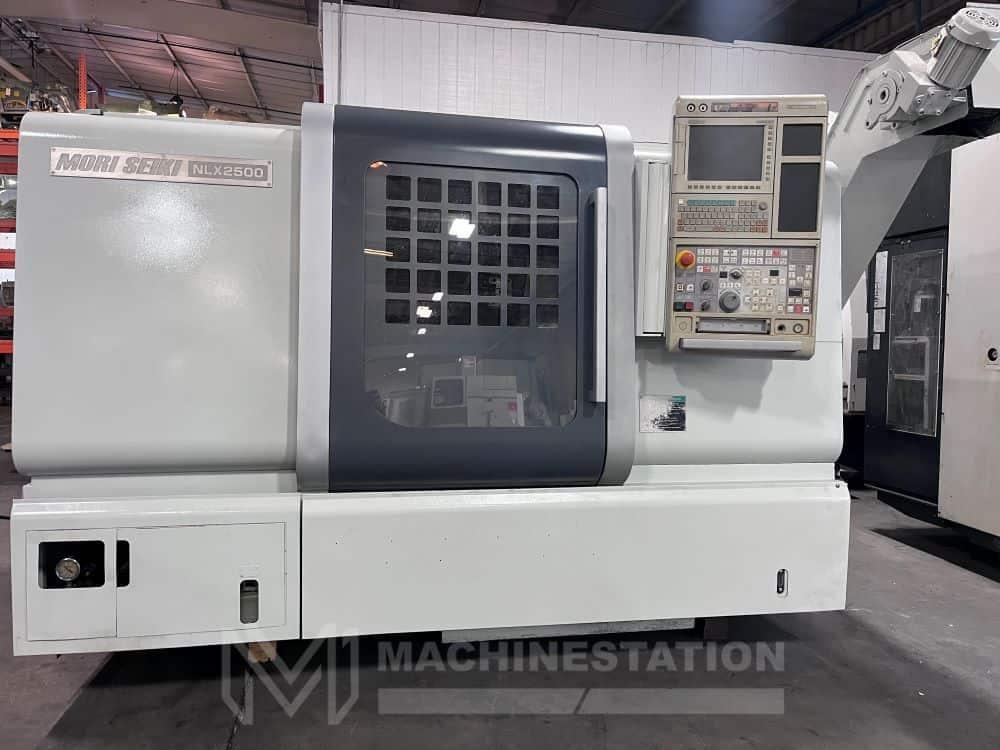

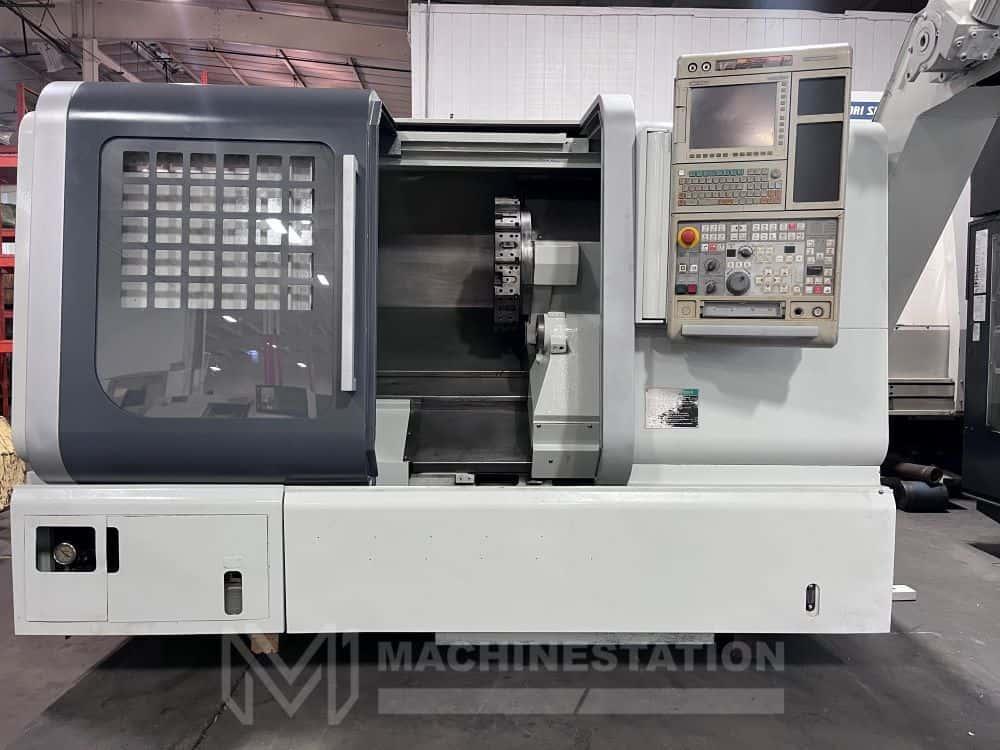

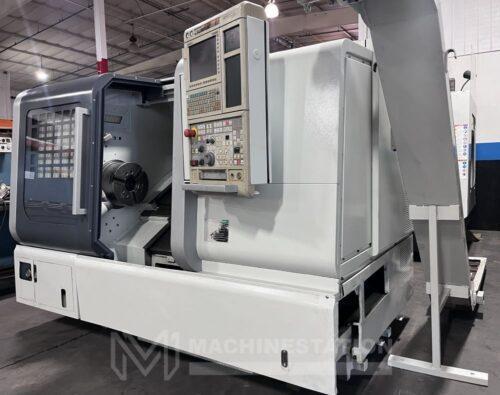

DMG Mori Seiki NLX 2500/700 CNC Turning Center – Lathe

DMG Mori Seiki NLX 2500/700 CNC Turning Center – Lathe

Brand

MORI SEIKI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	MORI SEIKI
Model:	NLX2500/700
Year:	2011
Condition:	Used – Good

DMG Mori Seiki NLX2500/700 Equipped With:
Mori Seiki MSX-853IV CNC Control
12″ 3 Jaw Hydraulic Chuck
12 Station High Speed Turret
25 HP Spindle Power
Tool Presetter
PCMCIA Card Slot
Programmable Tailstock
Rigid Tapping
Coolant System
Chip Conveyor

Capacity:
Max Turning Diameter: 14.4″
Max Turning Length: 27.7″
Max Bar Capacity: 3.1″
Swing Over Bed: 23.2″
Distance Between Centers: 31.5″

Travels:
X Axis Travel: 10.2″
Z Axis Travel: 31.2″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.5″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tool Holders Type: BMT

Tailstock:
Tailstock Body Travel: 25.5″
Tailstock Quill Dia.: 3.34″
Tailstock Quill Stroke: 3.1″
Tailstock Taper: MT-4

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 26 kva
Overall Dimensions: 103″ x 75 ″ x 72″ High
Weight : 9,900 lbs Approx.

Tags:DMG, DMG MORI, DMG Mori Seiki
