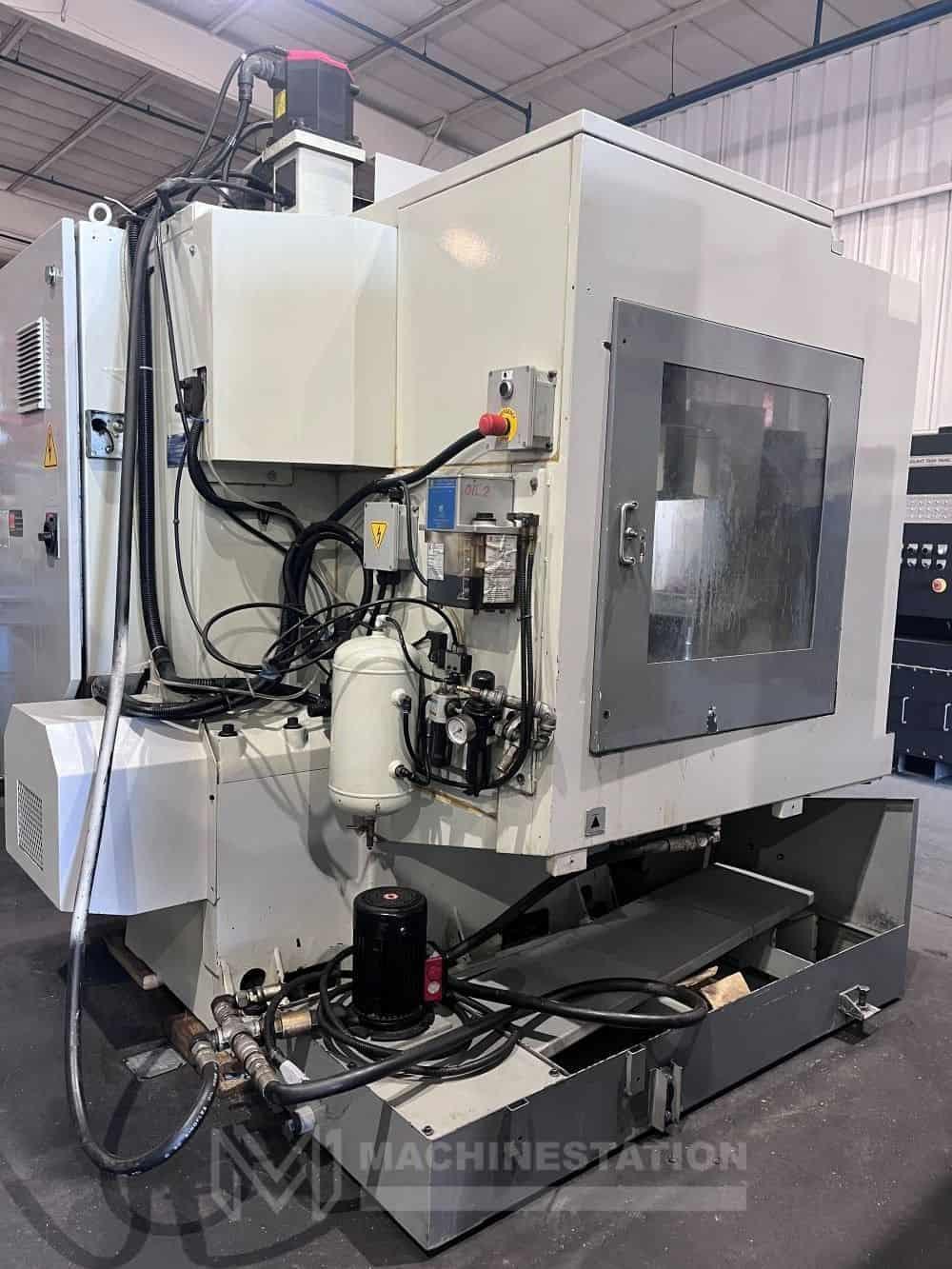

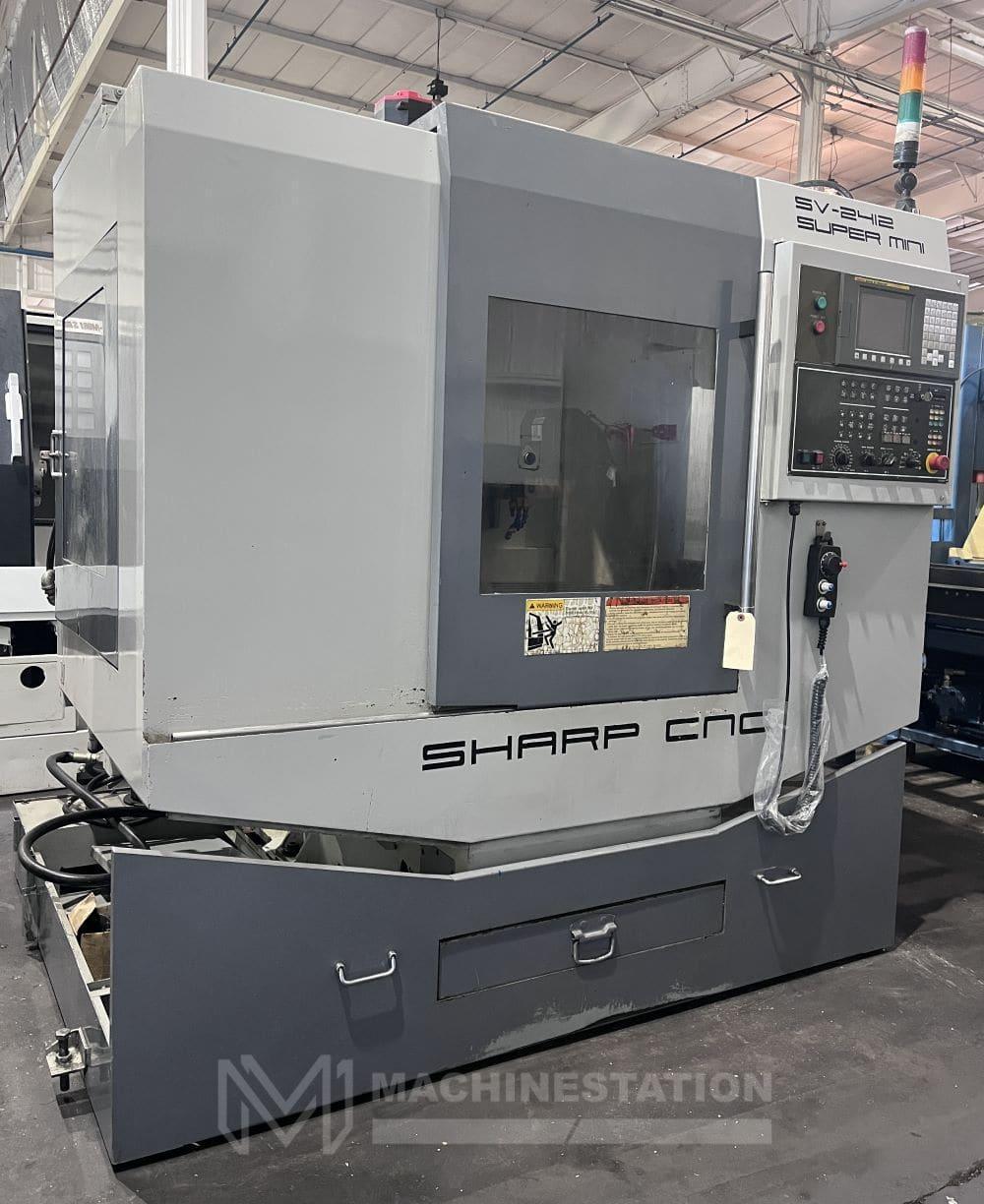

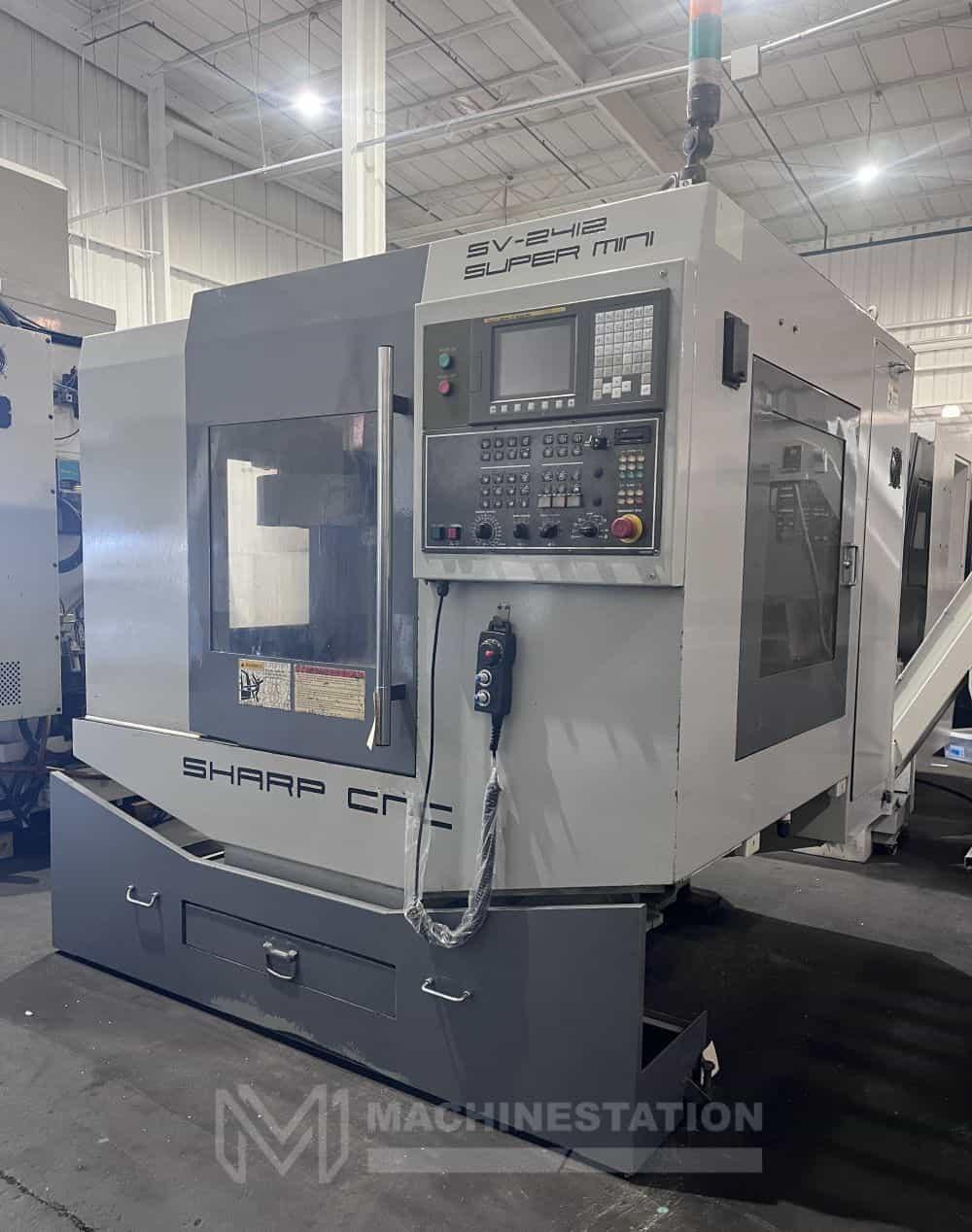

Sharp SV-2412S CNC Vertical Machining Center – Super Mini Mill

Sharp SV-2412S CNC Vertical Machining Center – Super Mini Mill

Brand

SHARP

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

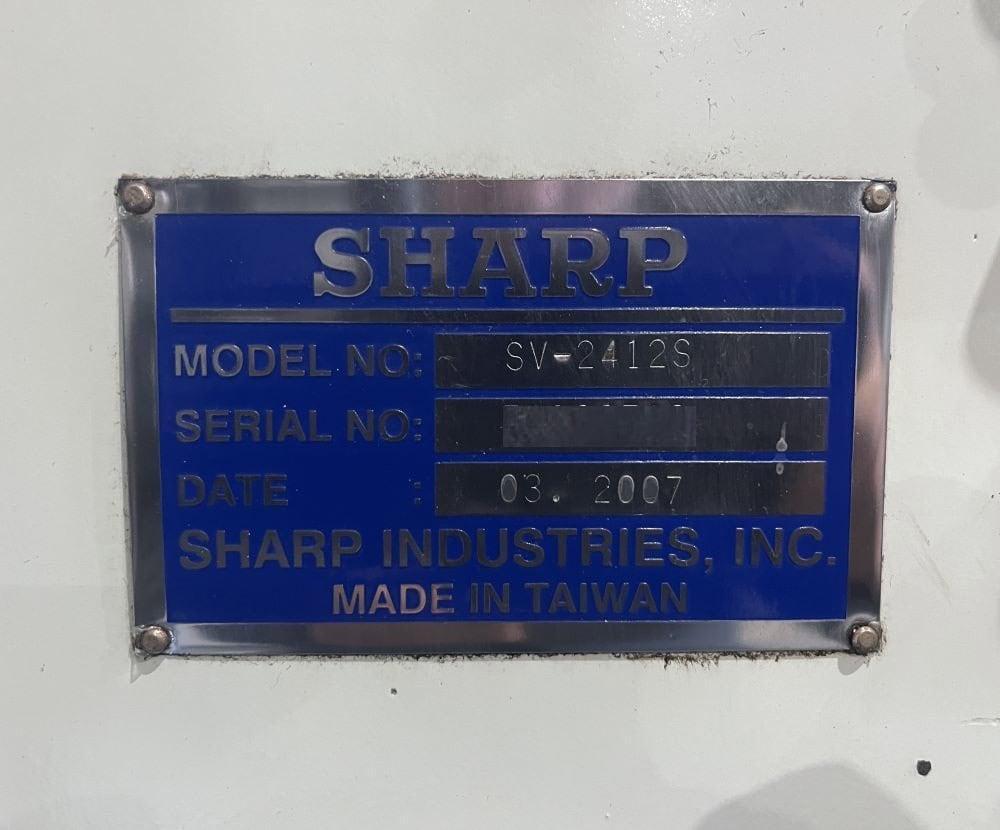

Make:	Sharp
Model:	SV-2412S
Year:	2007
Condition:	Used-Good

Features:

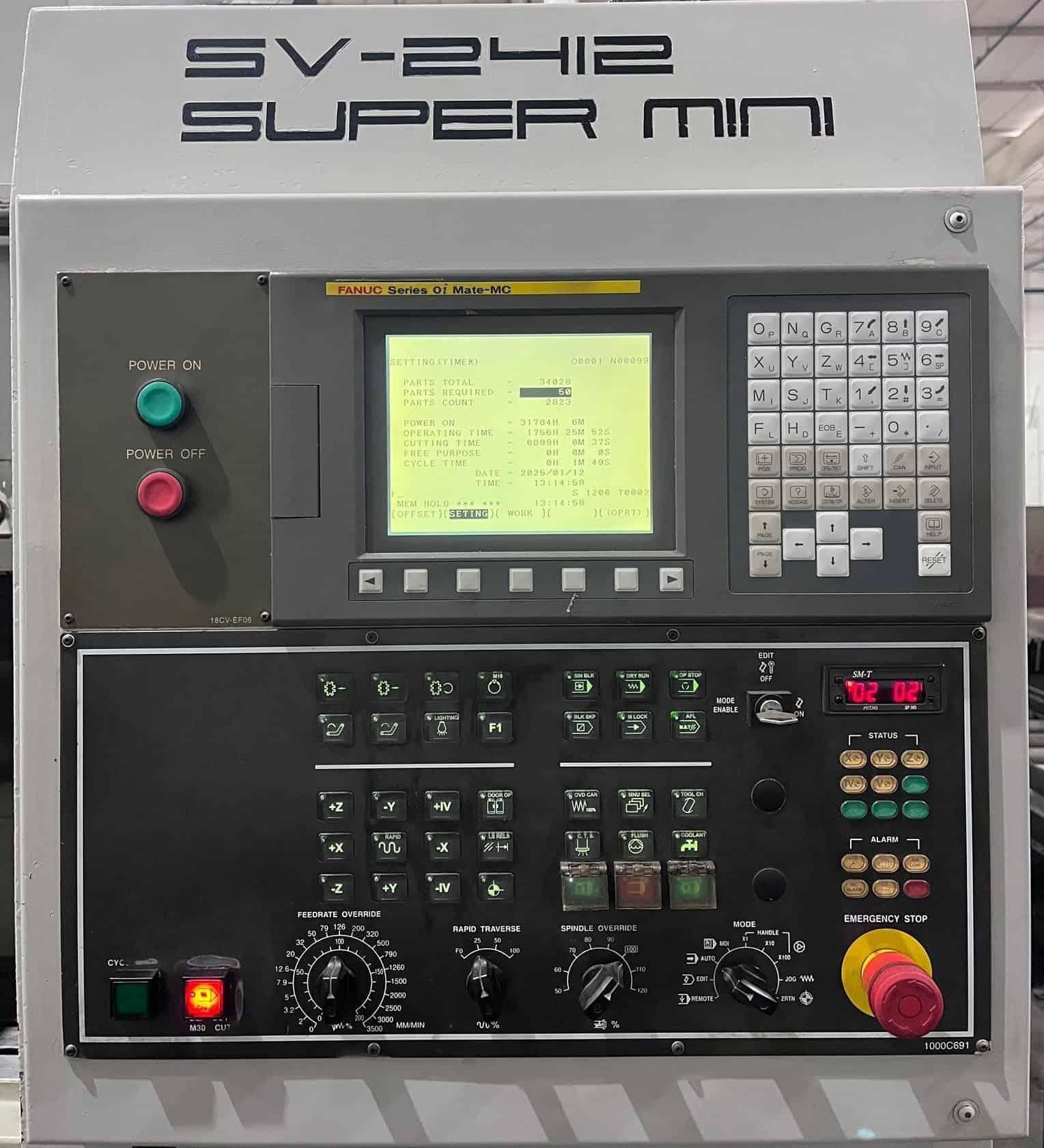

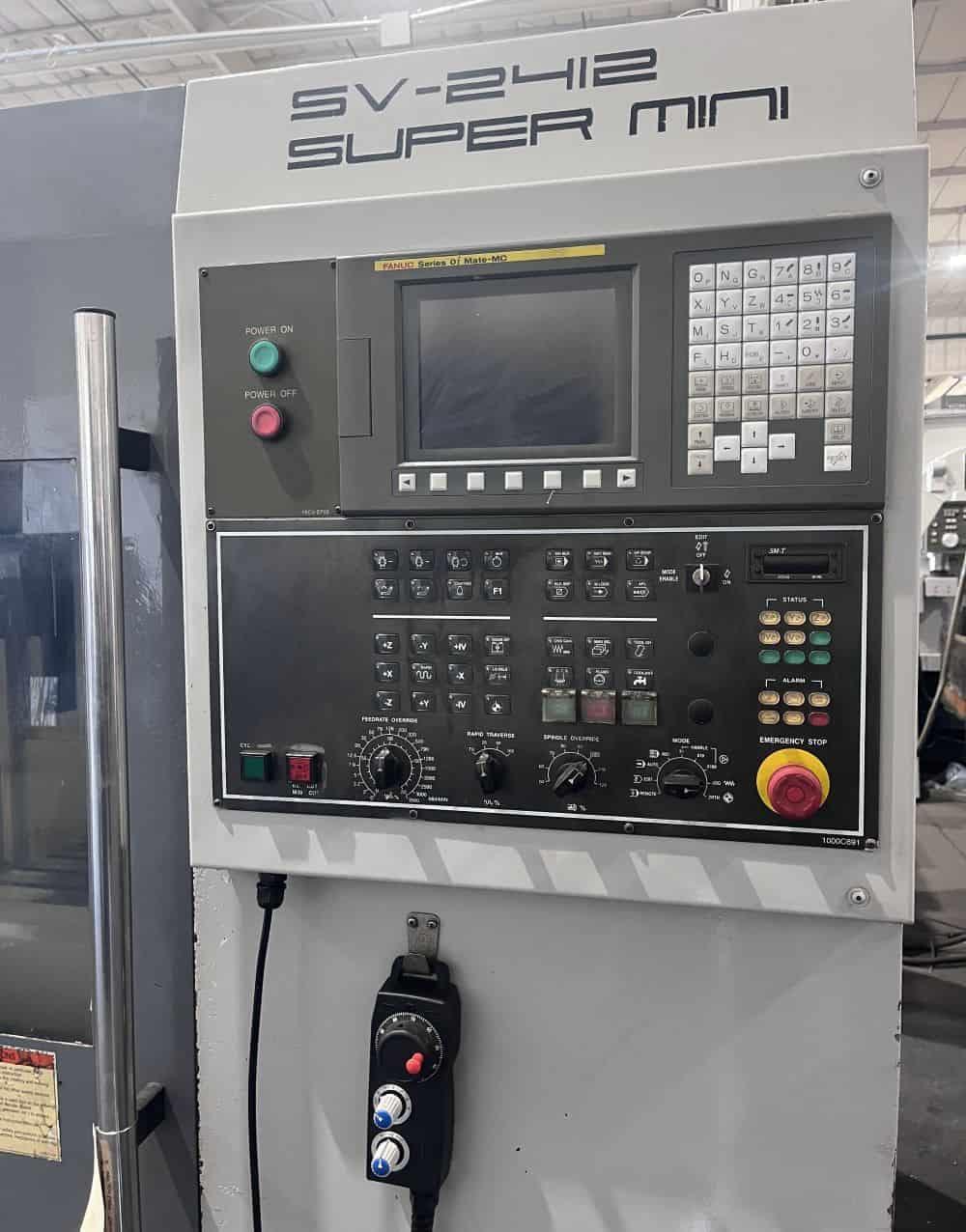

Fanuc 0i-MC CNC Control
Box Way Construction All Axis
10,000 RPM High Precision Spindle
16 Station Automatic tool changer
40 Taper Spindle
10 HP Spindle Motor
Rigid Tapping
RS-232 Port
PCMCIA Card Slot
MPG Handwheel Control
Coolant System
Telescopic way covers

Travels:
X-Axis: 24″
Y-Axis: 12″
Z-Axis: 18″
Rapid Traverse Rates: 787 IPM
Cutting Feed Rates: 493 IPM
Spindle Nose to Table (Min.- Max.): 2.7″ – 20.8″

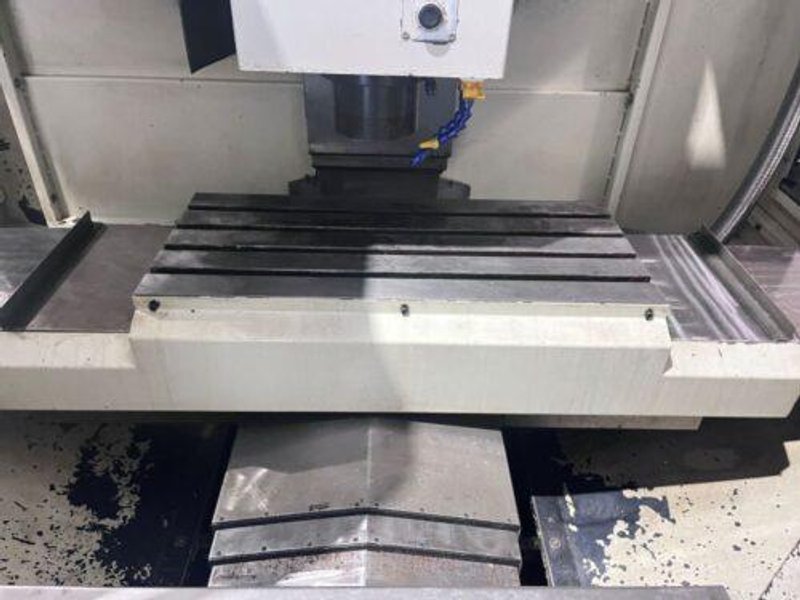

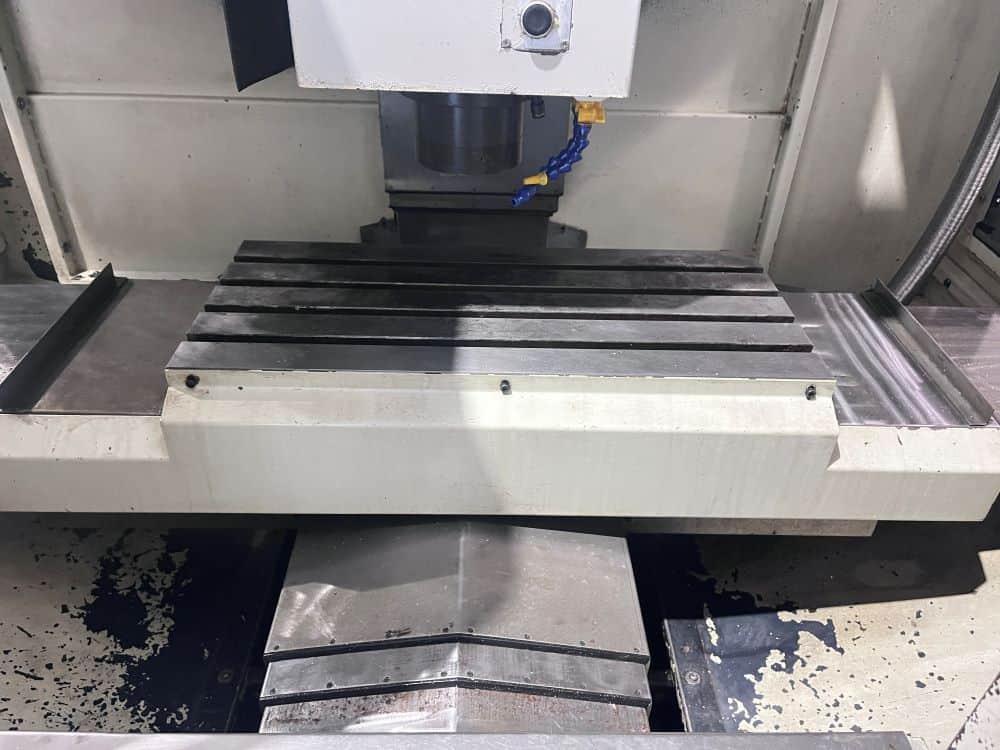

Table
Length: 28″
Width: 12″
Max Weight on Table: 800 lbs

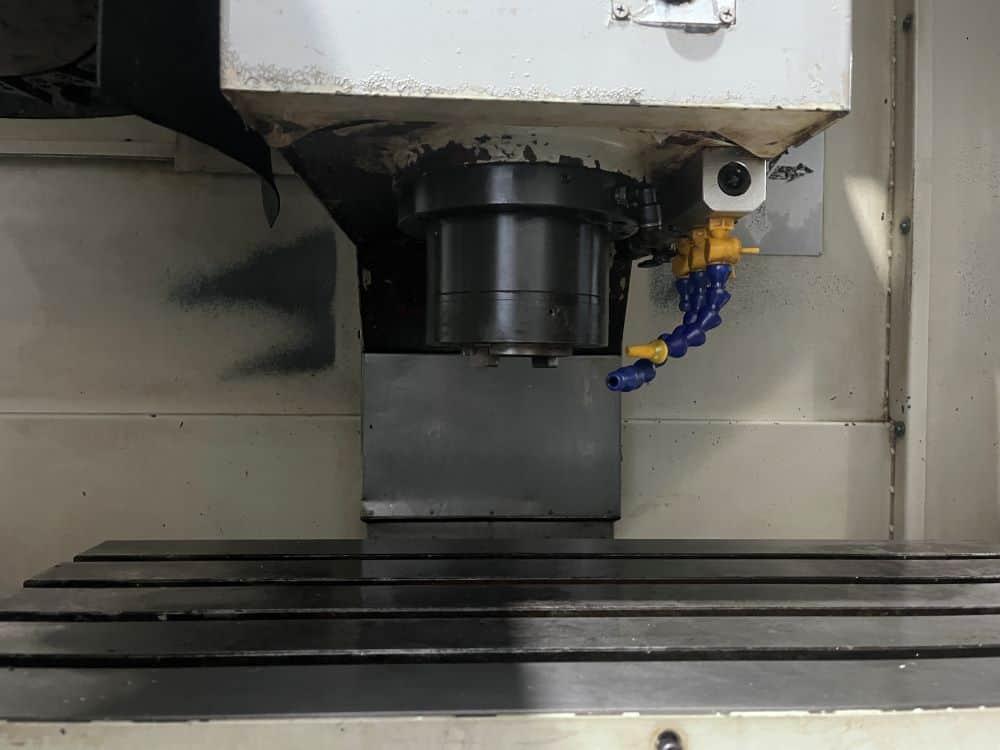

Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 10 HP

Automatic Tool Changer:
Capacity: 16 Station
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.7″ – 4.7″
Max Tool Length: 9.1″

General:
Air Required: 80 psi, 4 scfm
Power: 205-220v / 66FLA / 3-Phase
Overall Dimensions: 74″ x 78″ x 90″ High
Weight: 6,900 lbs

No files or videos to display
