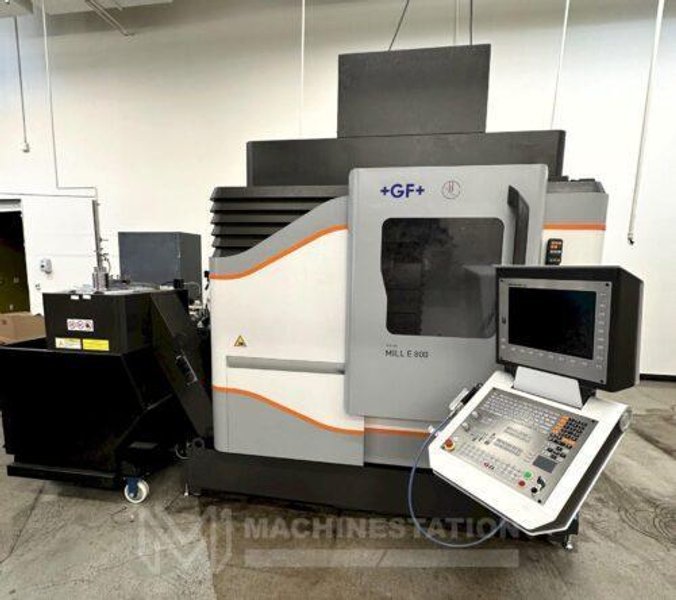

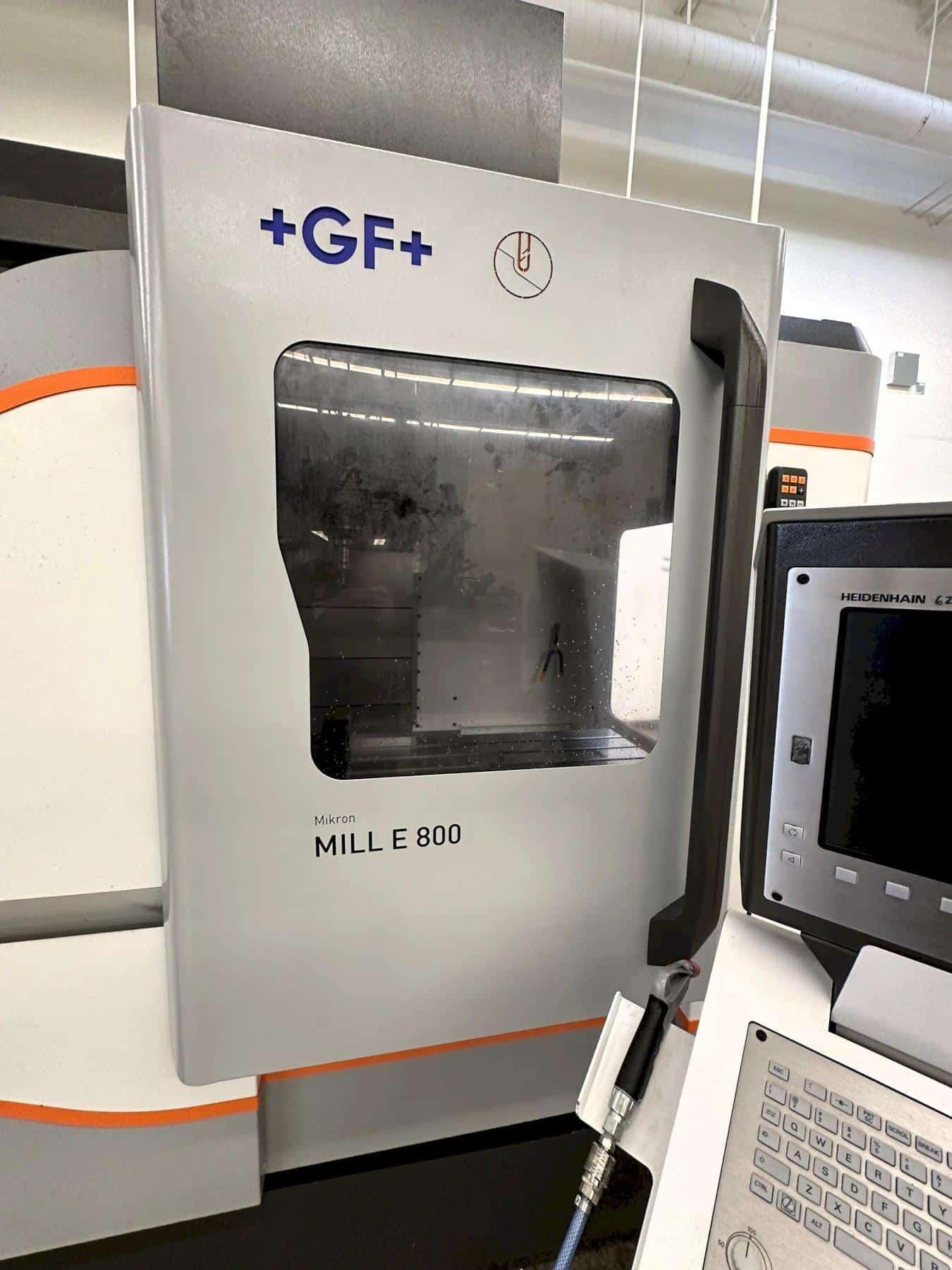

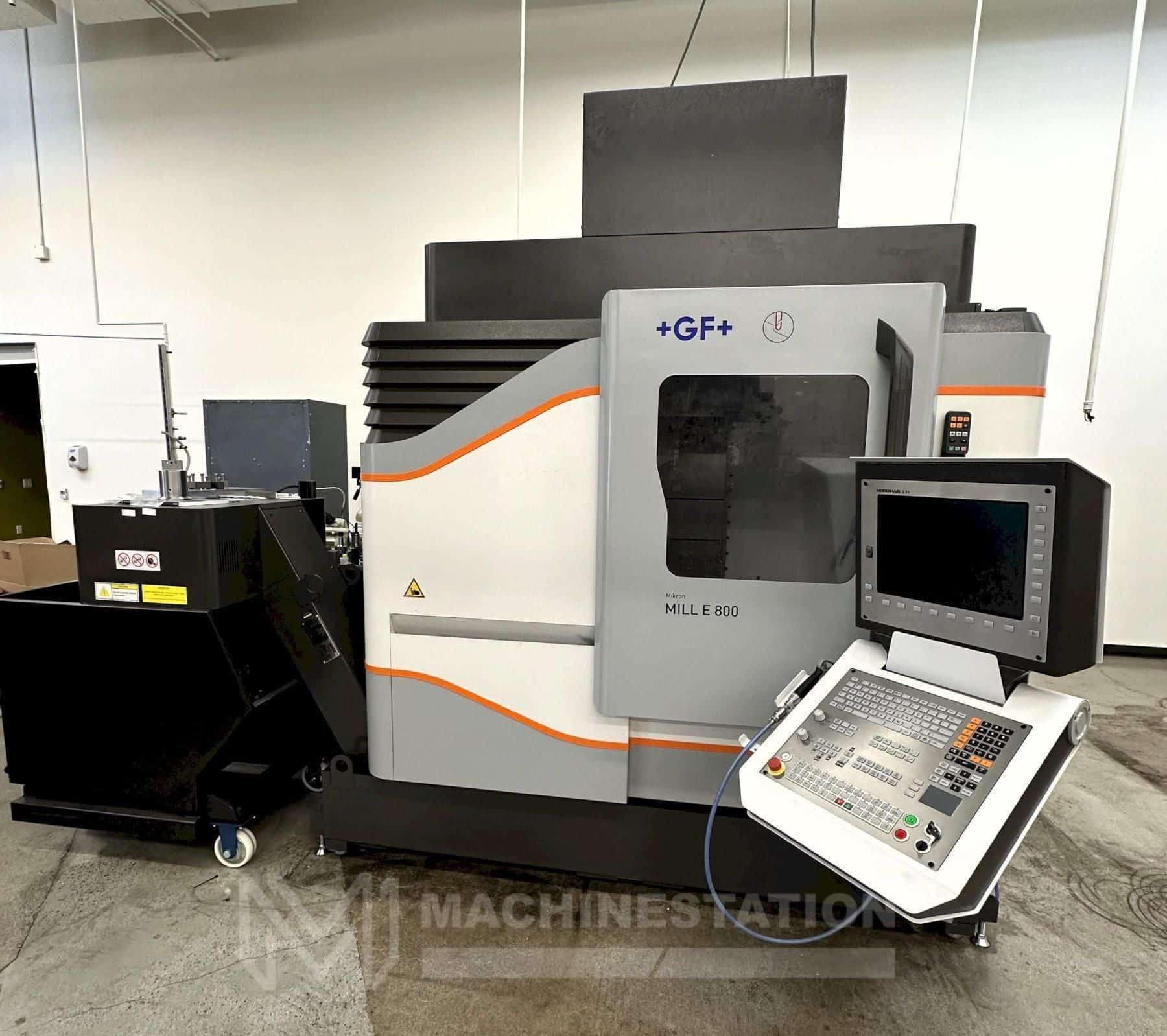

Mikron Mill E 800 CNC Vertical Machining Center

Mikron Mill E 800 CNC Vertical Machining Center

Name: Mikron Mill E 800 CNC Vertical Machining Center
Brand: MIKRON
SKU: 115001
Availability: PreOrder

Brand

MIKRON

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Mikron
Model:	Mill E 800
Year:	2021
Condition:	Used – Excellent

Key Features of the Mikron Mill E 800:

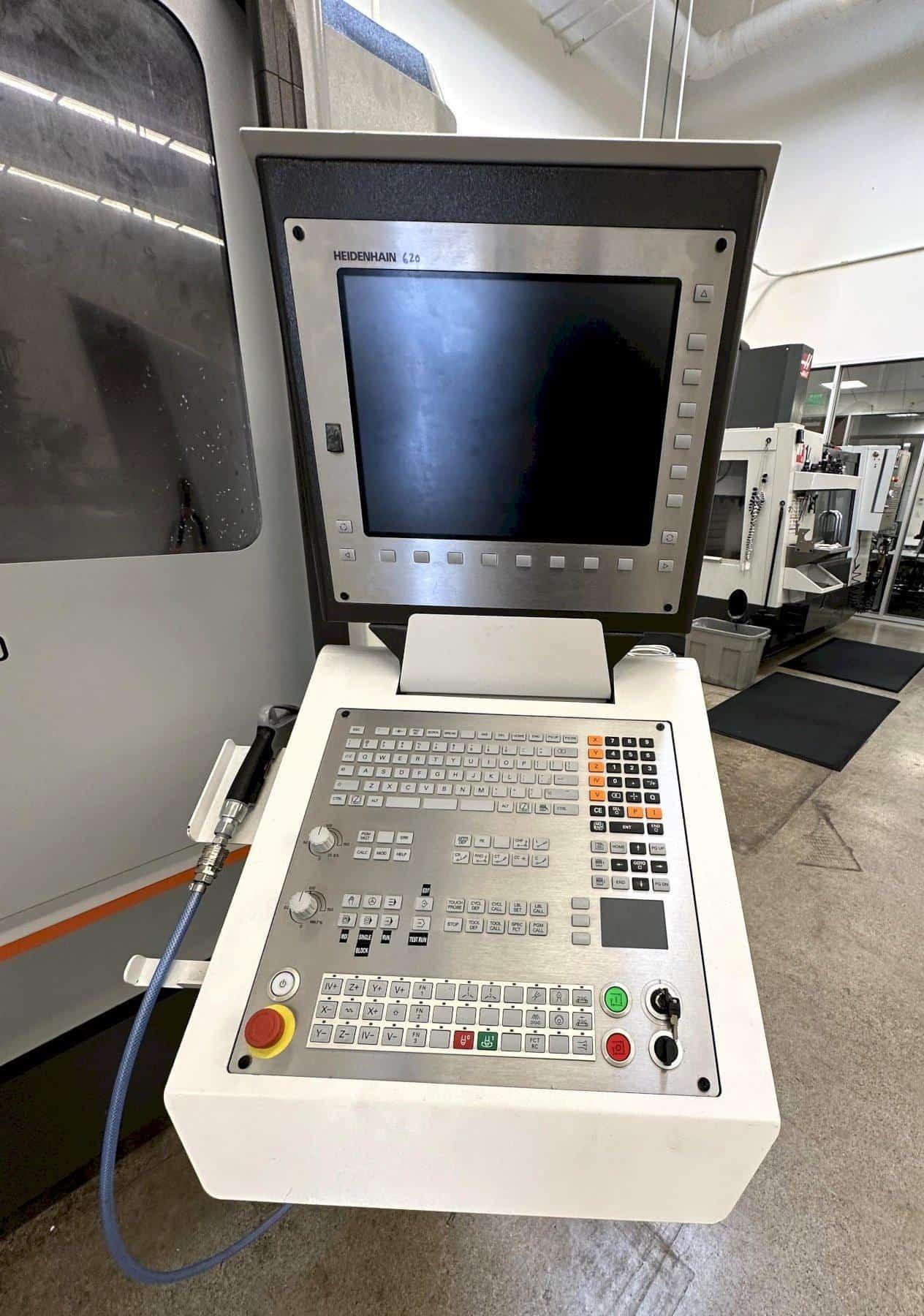

Heidenhain TNC 620 CNC Control

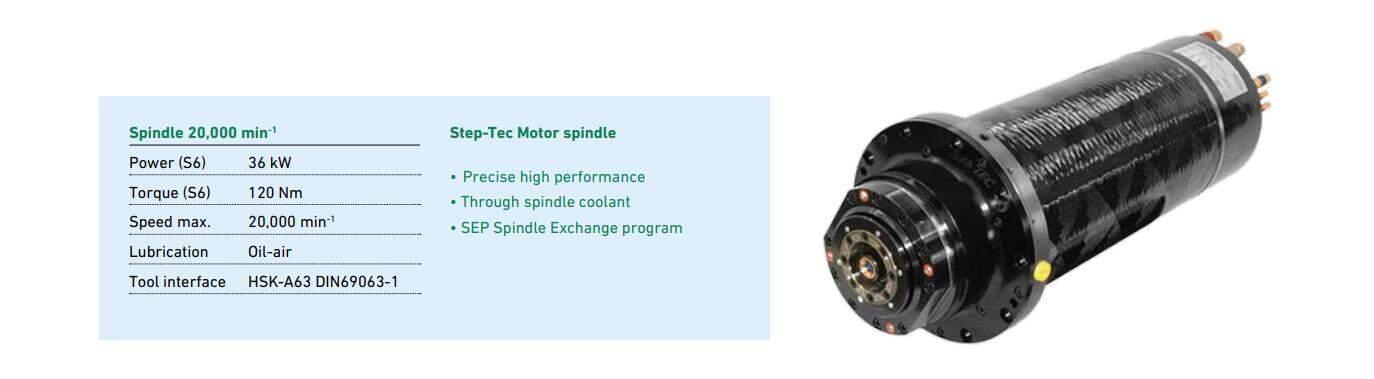

20,000 RPM High-Speed Step – Tec Spindle
HSK-A63 Spindle Taper
30 Station Automatic Tool Changer
Infrared Touch Probe
Laser Tool Measuring System
Glass Scales

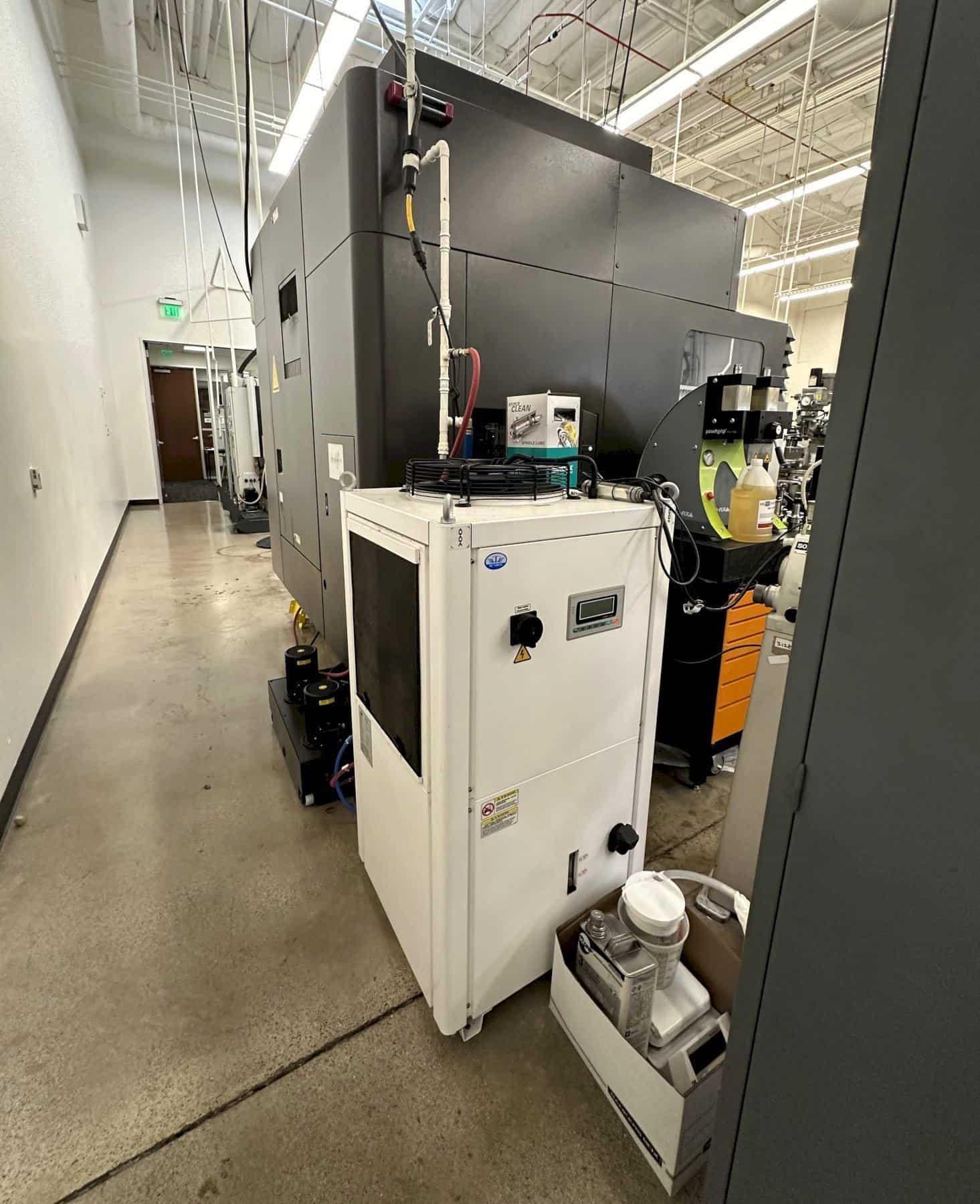

Chiller Unit
Coolant Tank
Lift-up Chip Conveyor

Travel:
X-Axis: 33.46″
Y-Axis: 23.62″
Z-Axis: 23.62″
Rapid Traverse Rates: 1574 Inch Per Minute
Feed Cutting Rates: 590 Inch Per Minute
Feed Force: 4200 N
Spindle Nose to Table (Min.- Max.): 5.90″ – 29.62″

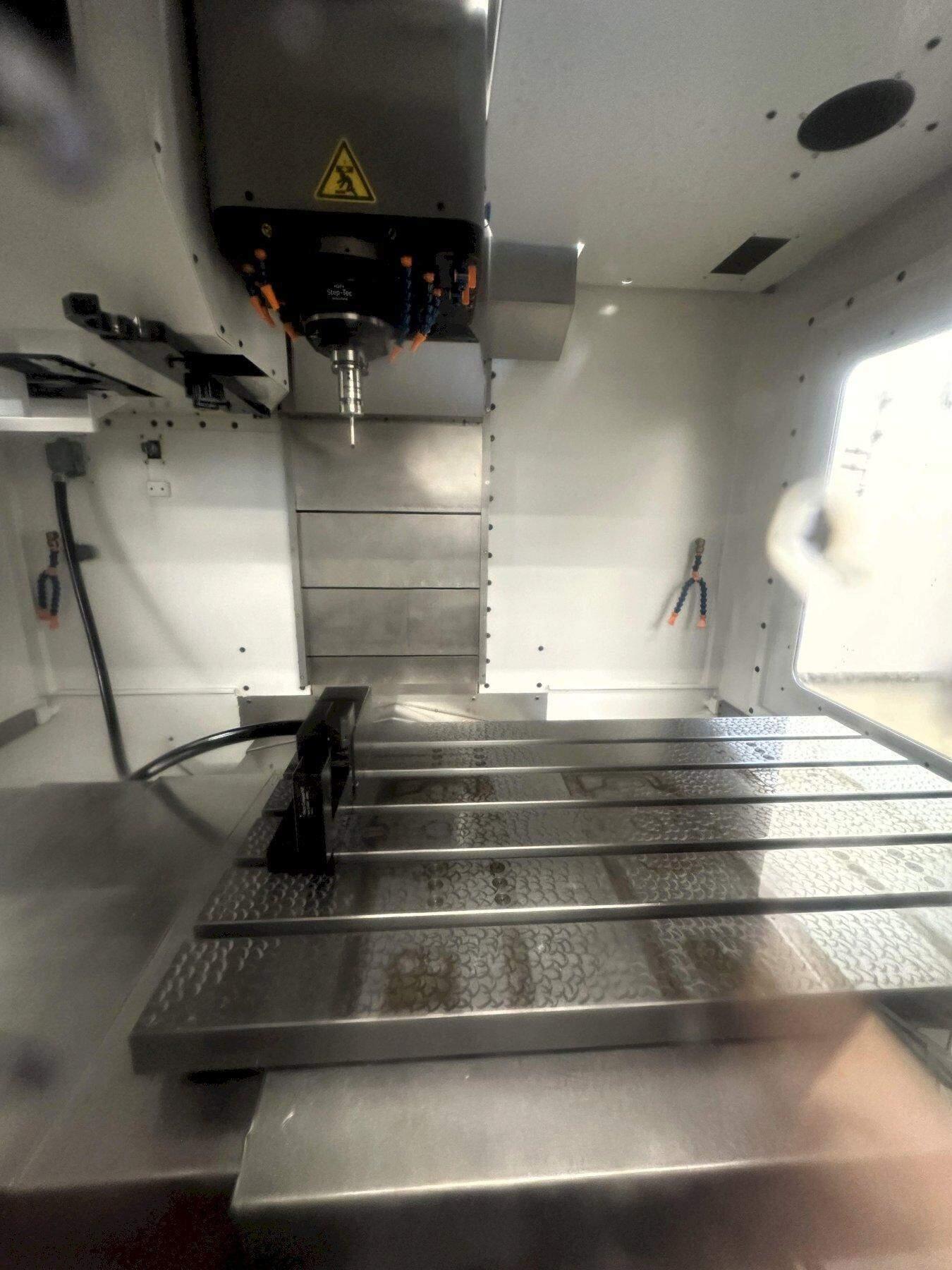

Table:
Length: 41.33″
Width: 23.62″
Max Weight on Table: 2204 lbs

Spindle:
Taper Size: HSK-A63
Speed Range: 20,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 17.83 lbs
Max Tool Dia: 3.14″
Max Tool Length: 11.81″

General:
Air Required: 100 psi 4 scfm

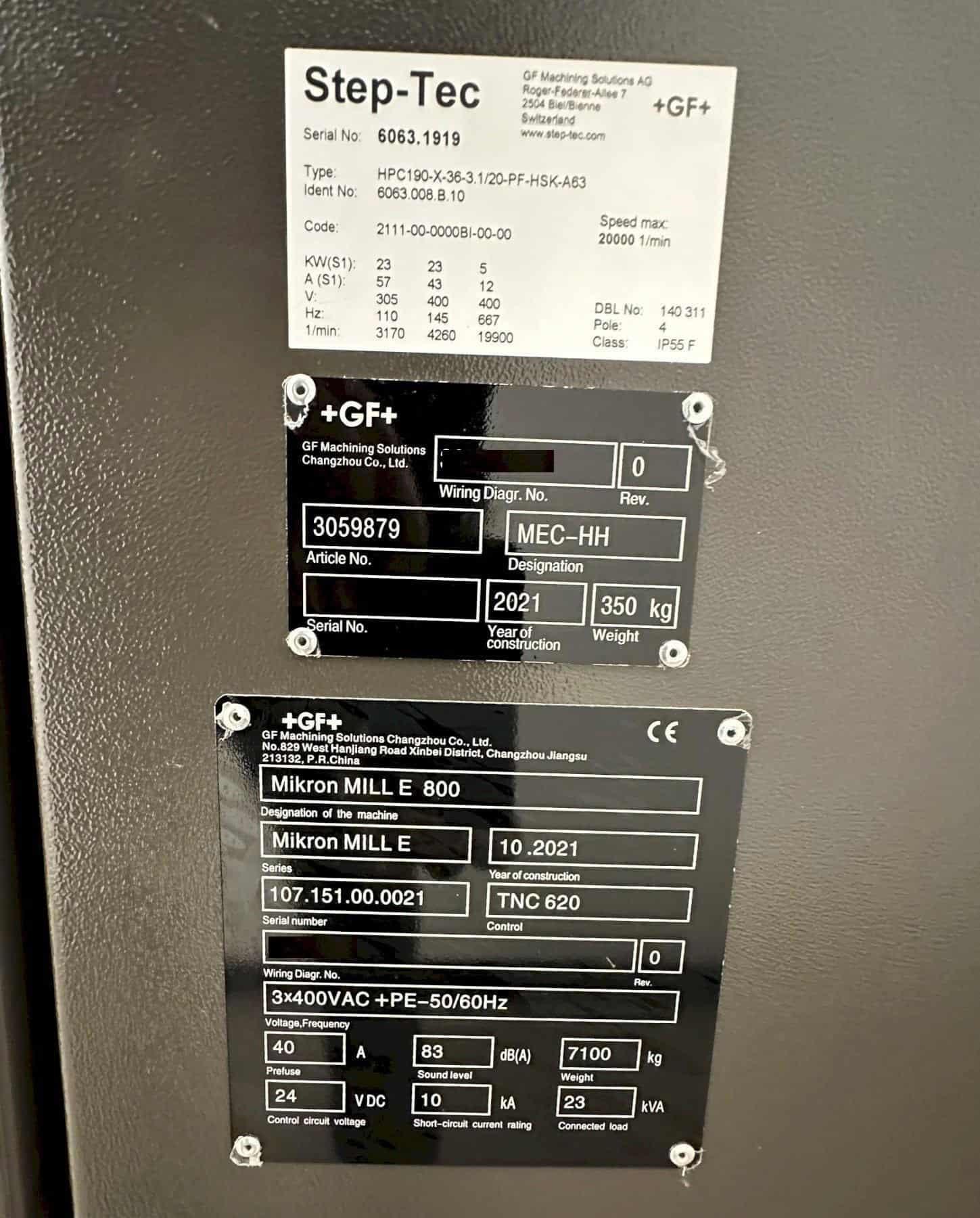

Power: 400v / 50/60 Hz / 3-Phase / 23 KVA
Overall Dimensions: 87.79″ x 106.92″ x 119.37″ High
Weight: 15,682 lbs Approx.
