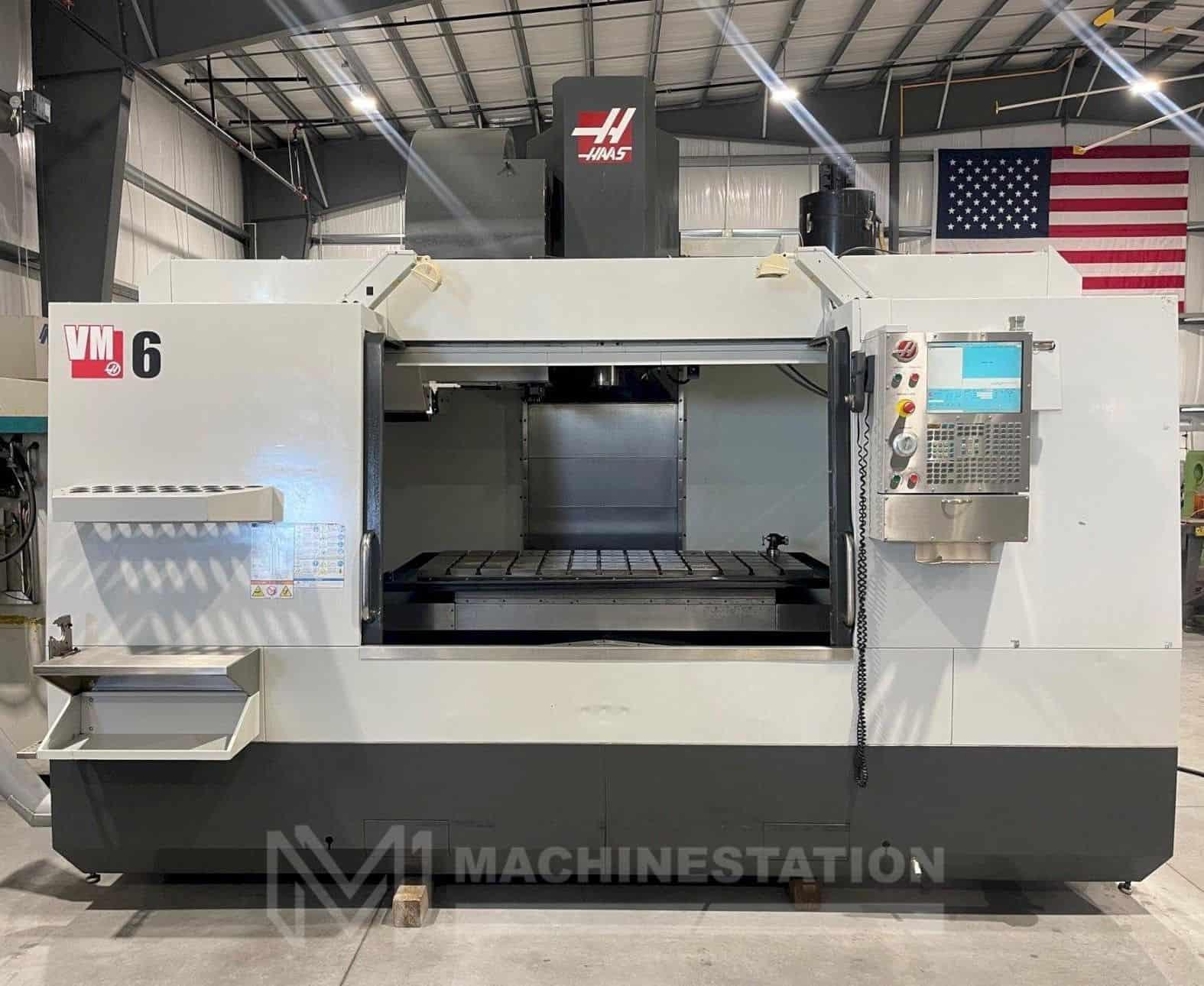

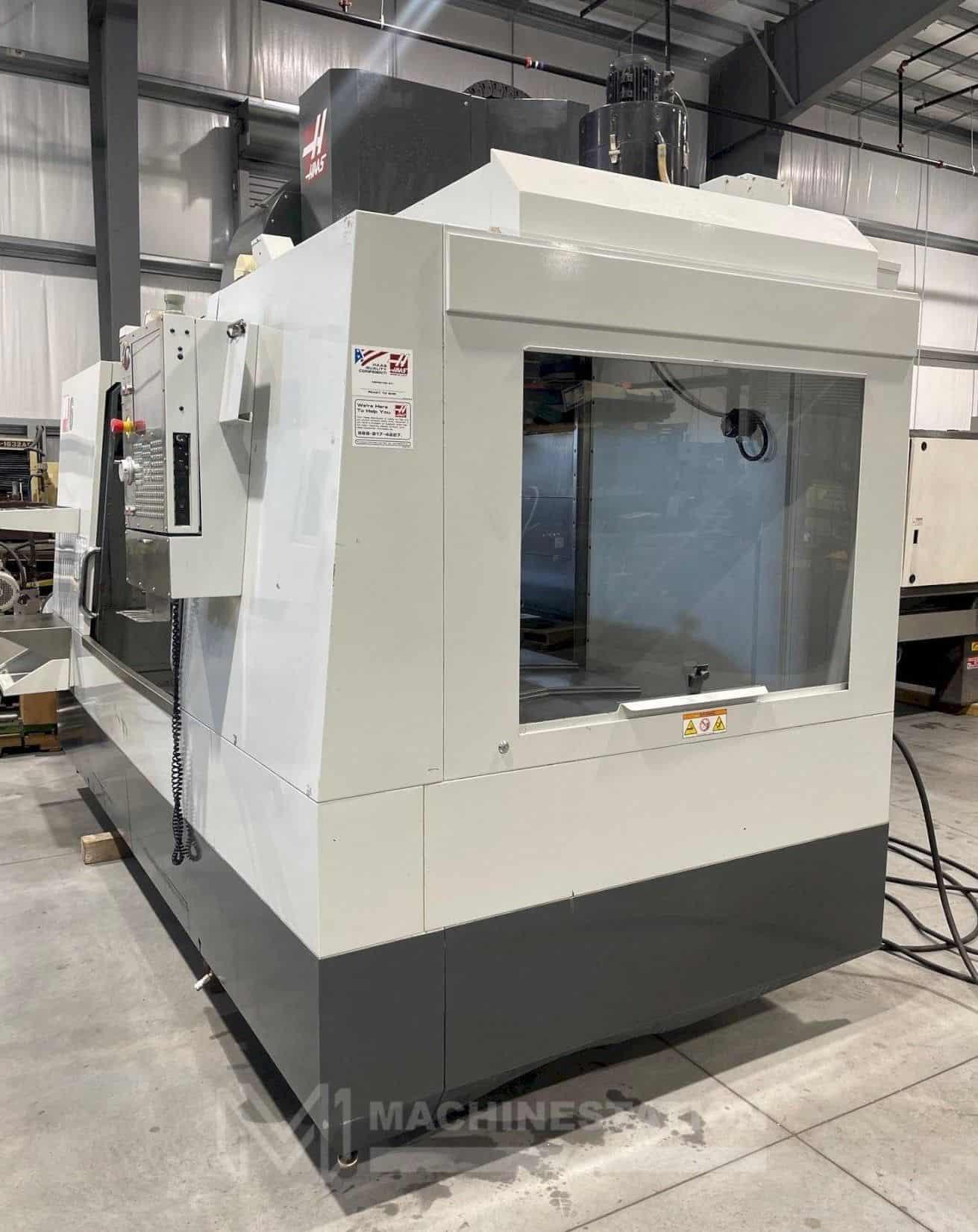

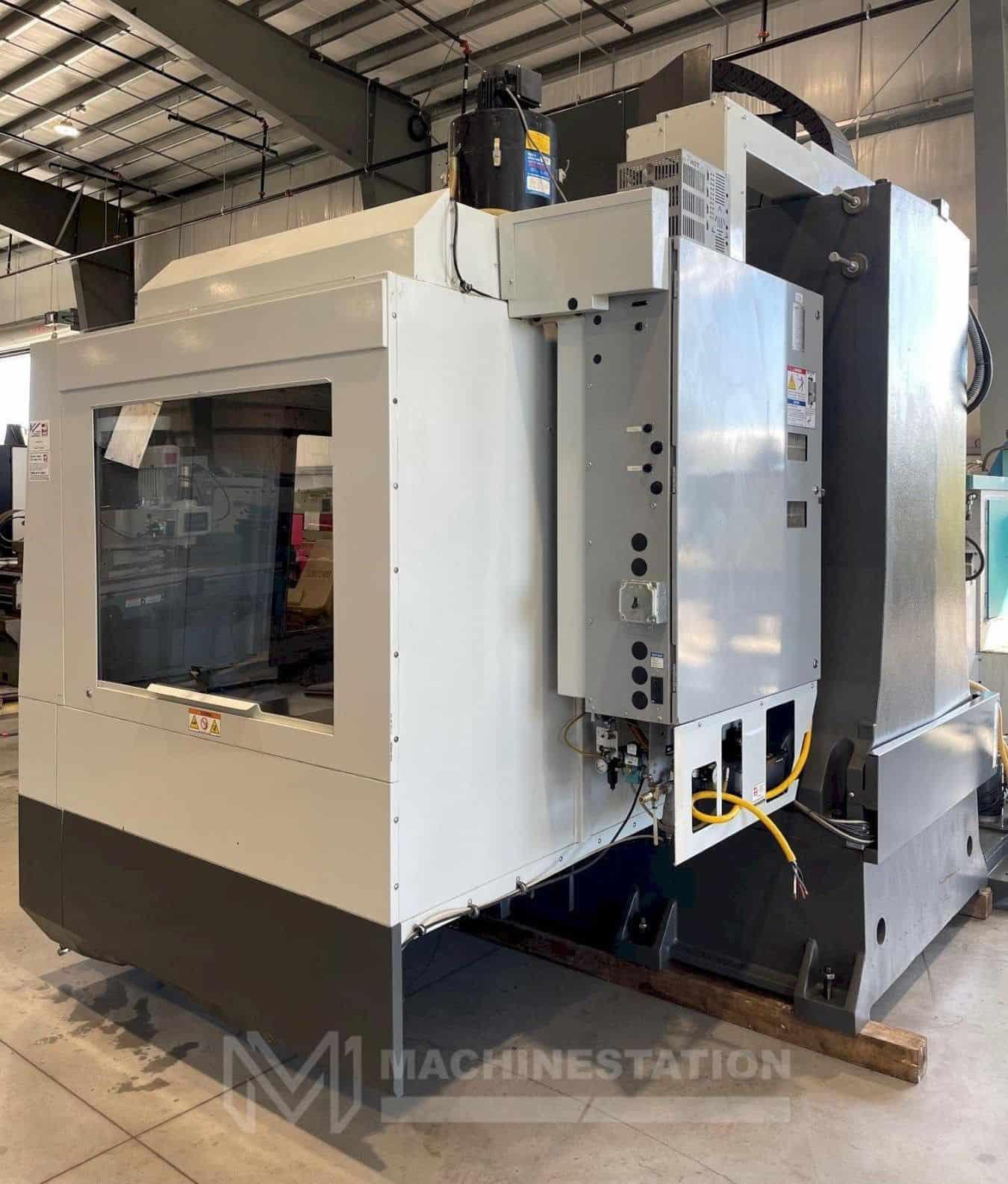

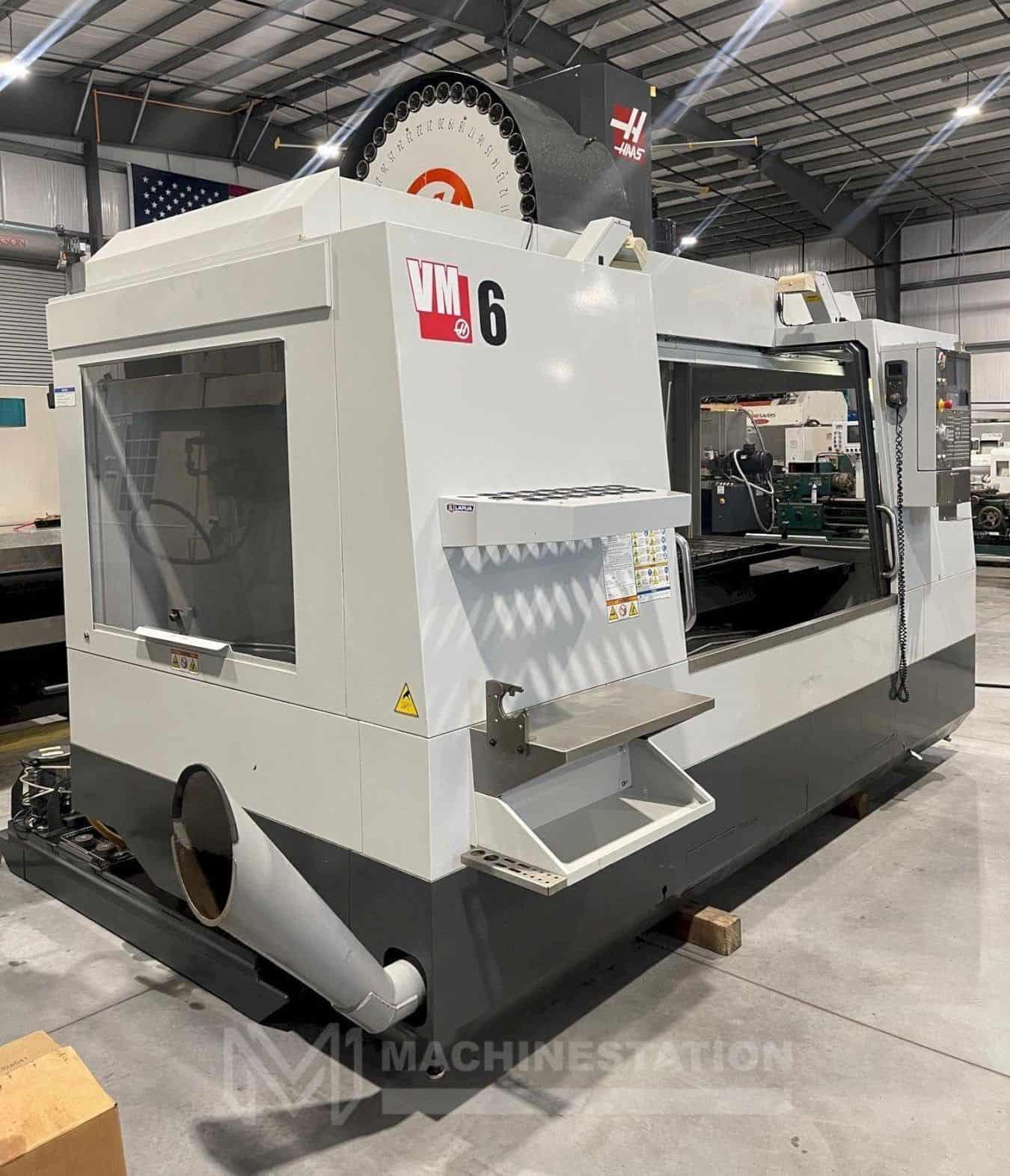

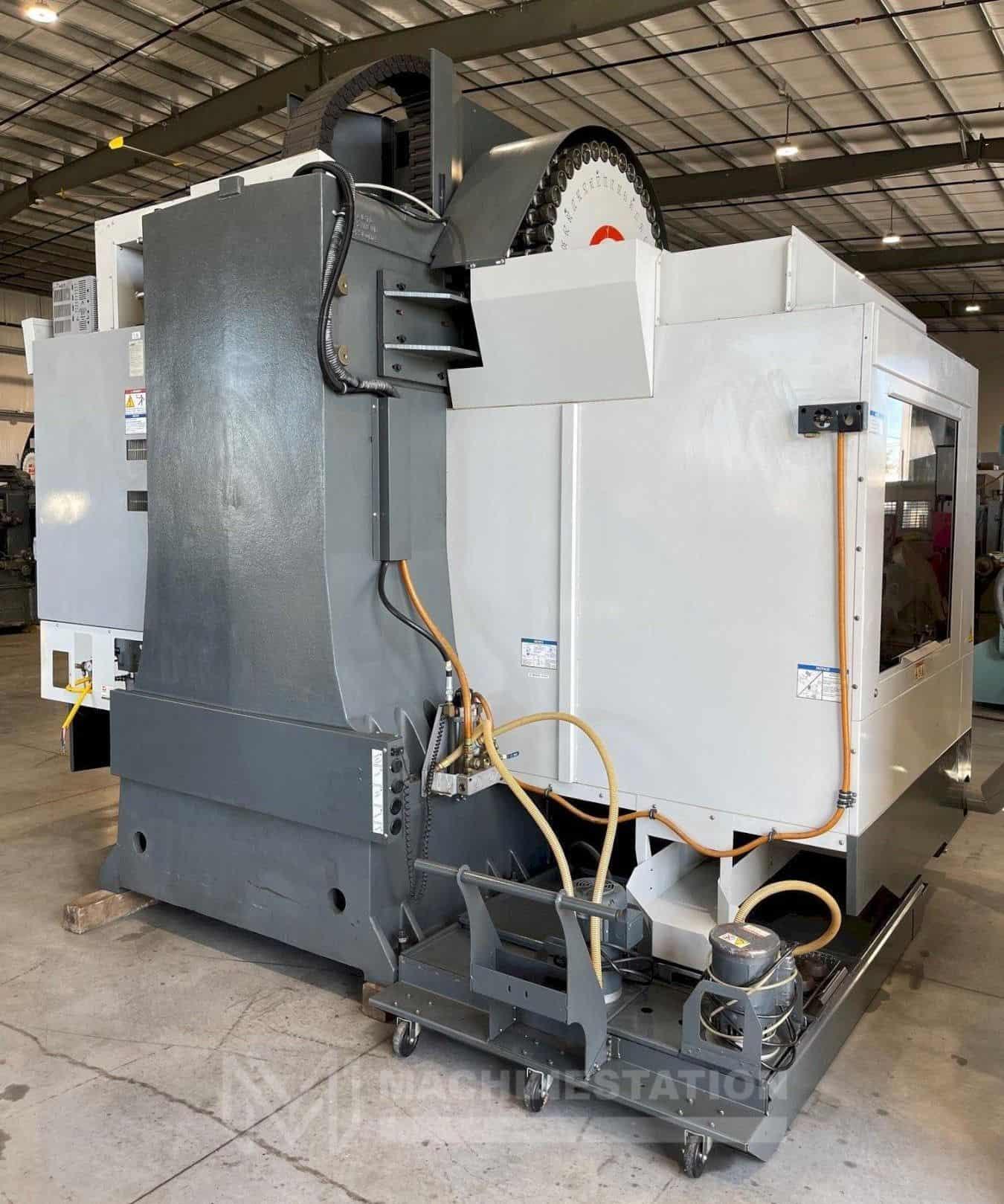

Haas VM-6 CNC Vertical Machining Center – Mill

Brand
HAAS
Category
Machining Centers
Type
Machining Centers, Vertical
Model
HAAS VF-3SS
Stock #
115002
Year
2010
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:HAAS
Model:VM6
Year:2010
Condition:Used – Good
Key Features of the Haas VM-6:

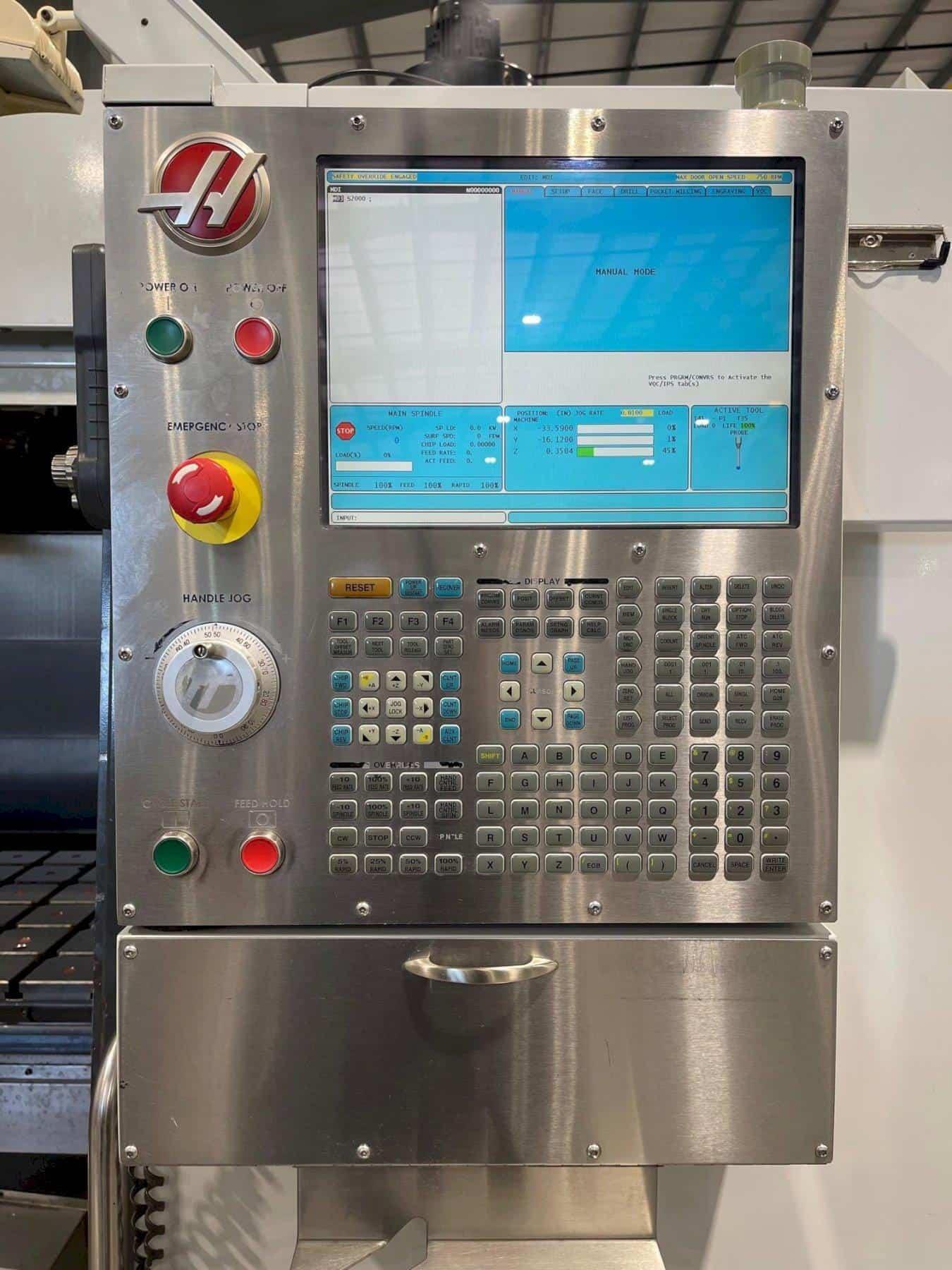

Haas CNC Control
4th & 5th Axis Ready
12,000 RPM High-Speed Spindle
30 Station High-Speed Tool Changer
30 HP High Torque Spindle
Probing System
MPG Handwheel Control
Rigid Tapping
Spindle Orientation
Programmable Coolant

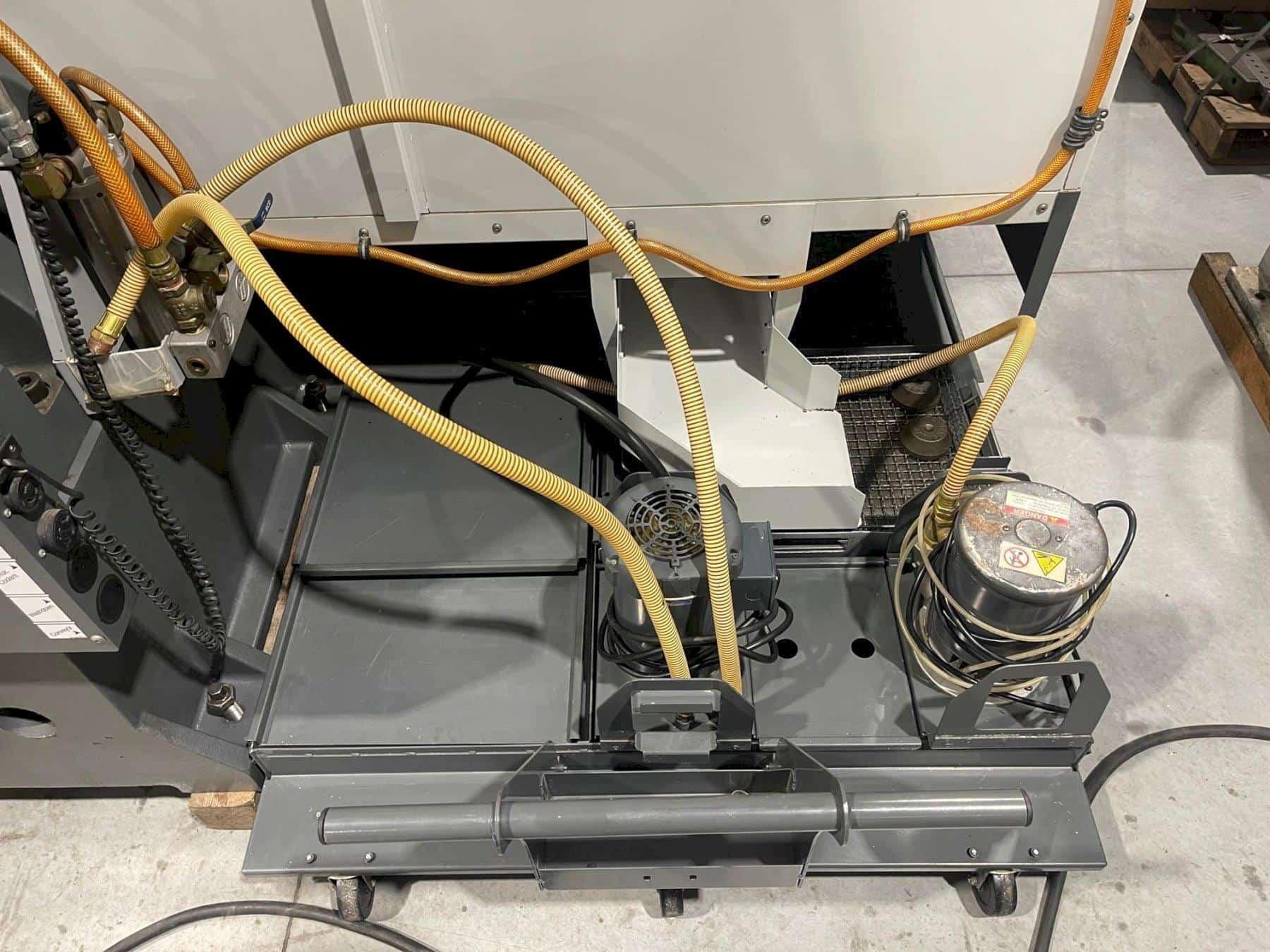

Coolant Tank
Chip Auger
Travel:
X-Axis: 64″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 600 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 34″

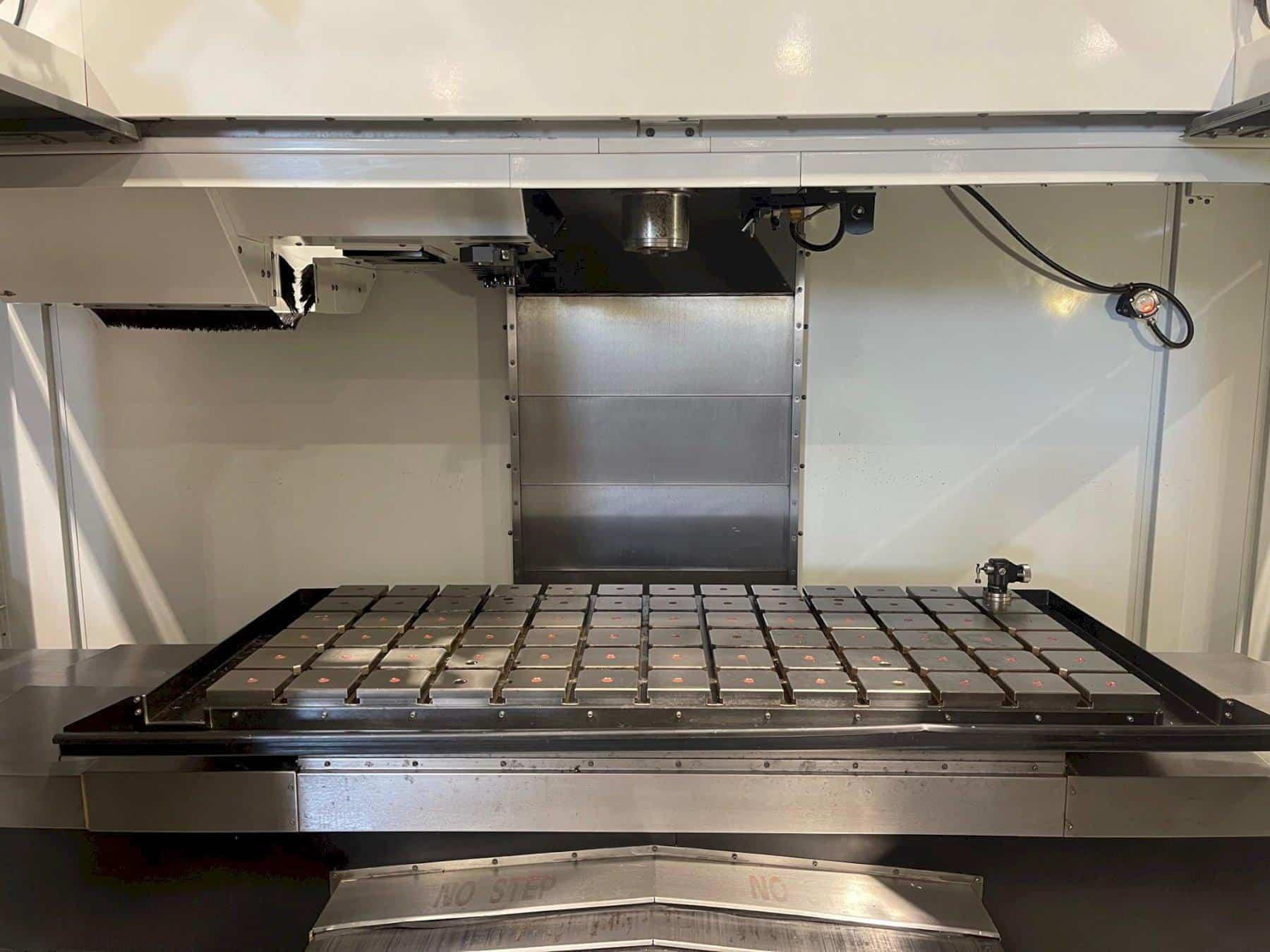

Table:
Length: 64″
Width: 28″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 4000 lbs

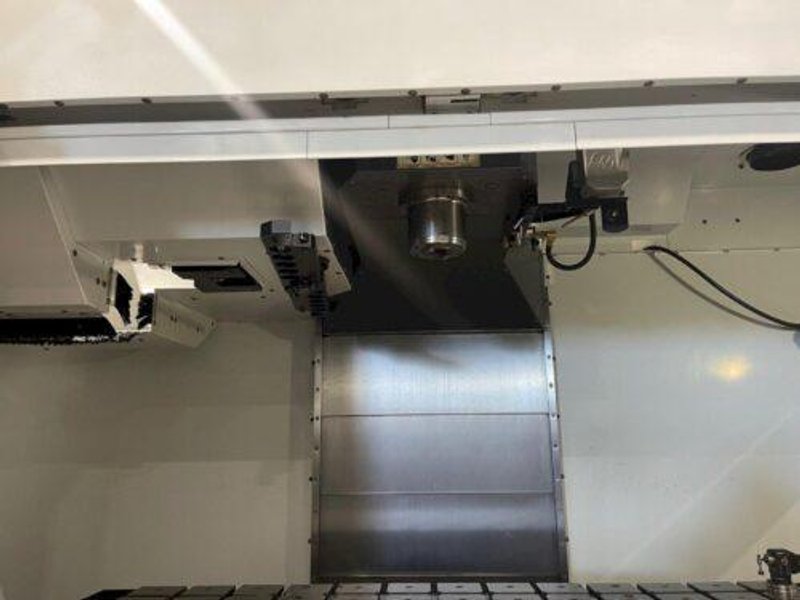

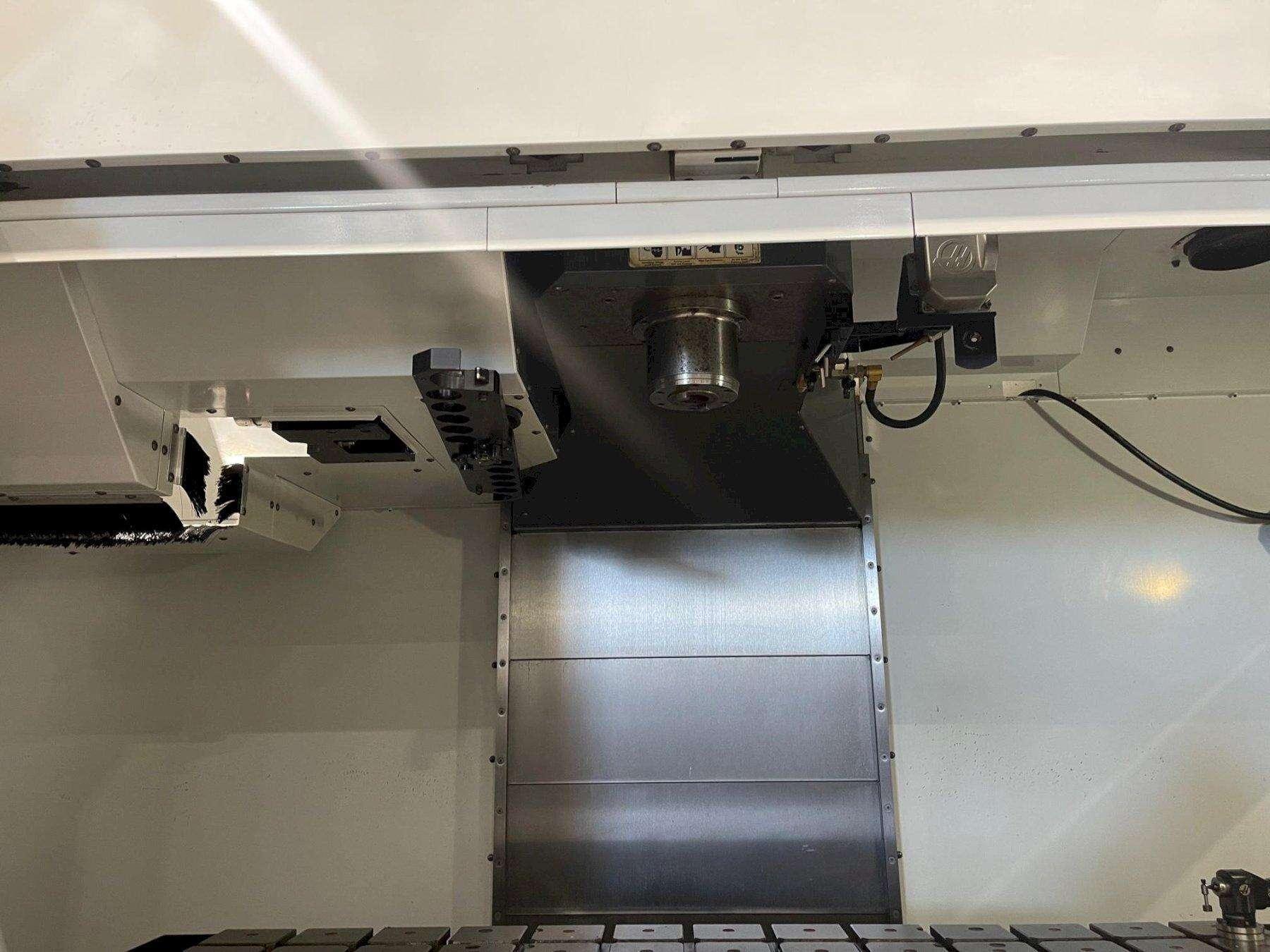

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5″ – 5.0″
Max Tool Length: 16″
Tool Changing Time: 2.80 Seconds
General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 152″ x 102″ x 120″ High
Weight: 25,000 lbs Approx.
