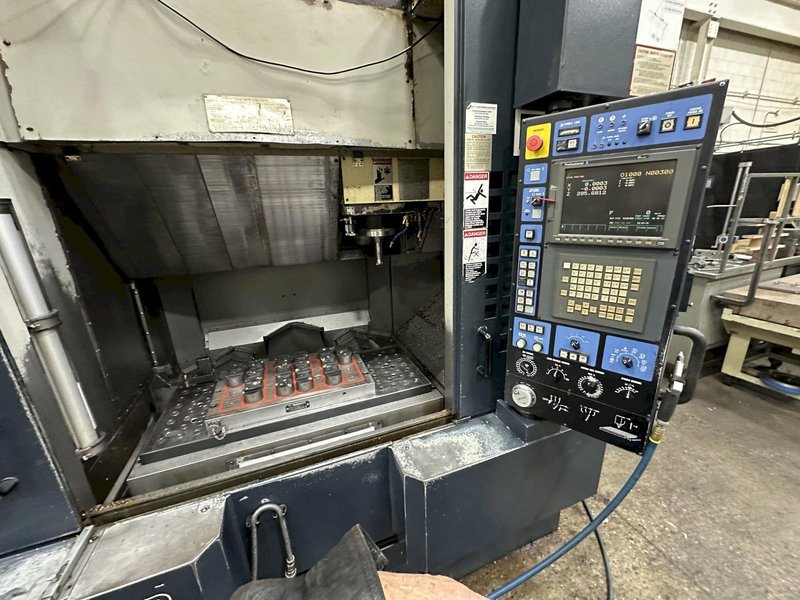

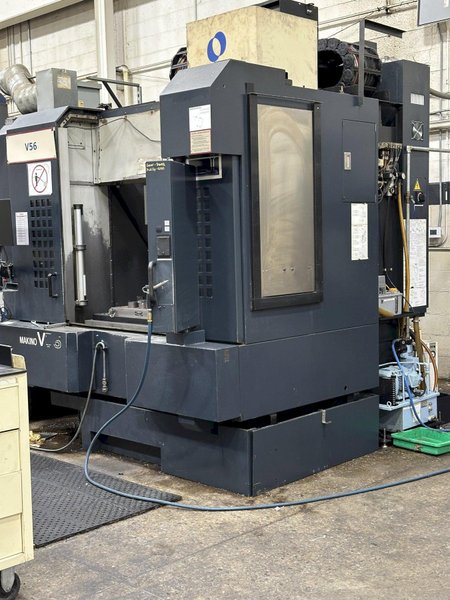

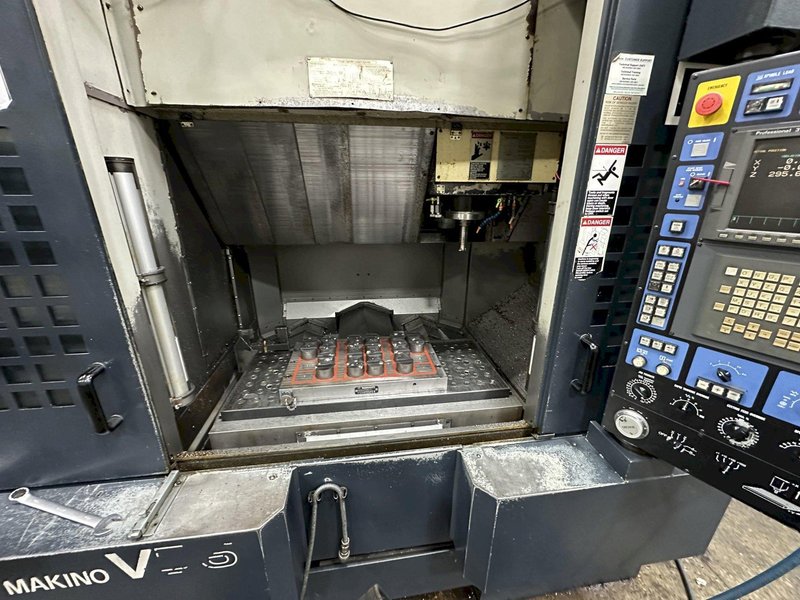

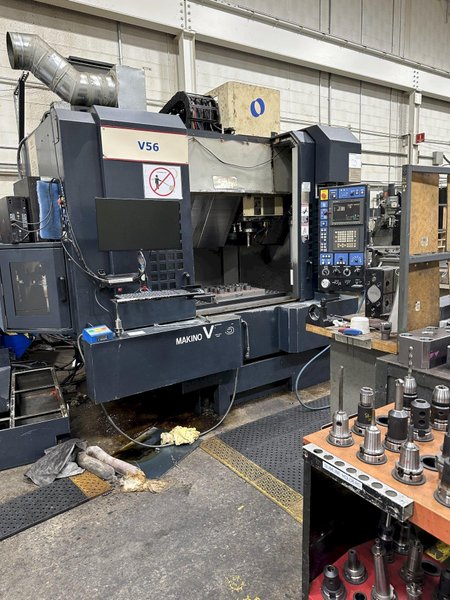

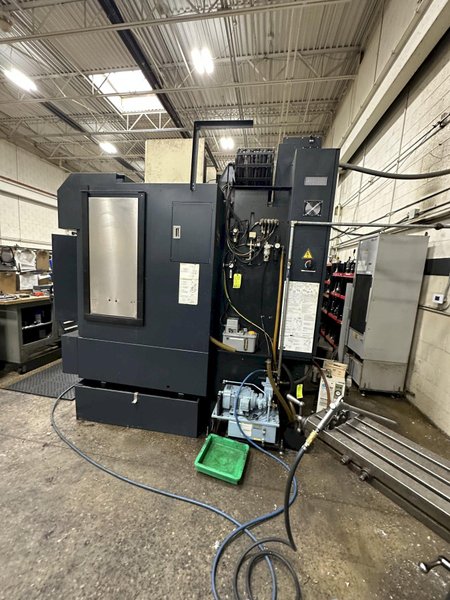

MAKINO V-56 HIGH SPEED CNC VERTICAL MACHINING CENTER
Brand
Category
Model
V-56
Stock #
Not specified
Year
2007
Condition
Not specified
Location
Michigan
|

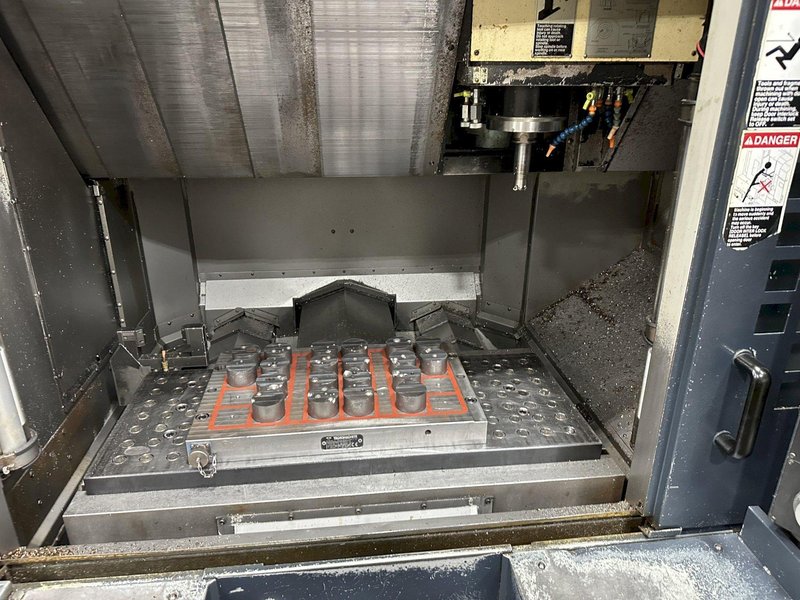

TABLE AREA.......................................................... 21.6" X 41.3"
MAX WORK PIECE WEIGHT............................ 1,760 LBS
TRAVELS (X).......................................................... 35.4"
(Y)............................................................................. 21.6"
(Z)............................................................................. 17.7"
SPINDLE TAPER.................................................. HSK 63A
SPINDLE SPEEDS.............................................. 20,000 RPM
SPINDLE MOTOR.............................................. 25 HP
TOOL CHANGER............................................... 40 ATC (STD 25)
MAX FEEDS........................................................ 787 IPM
WEIGHT.............................................................. 22,700 LBS
EQUIPPED WITH:

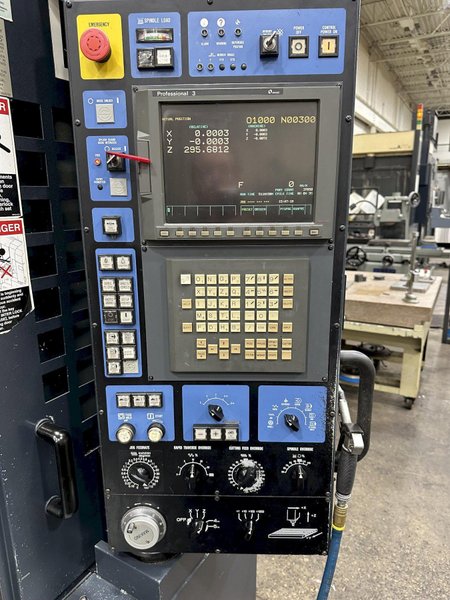

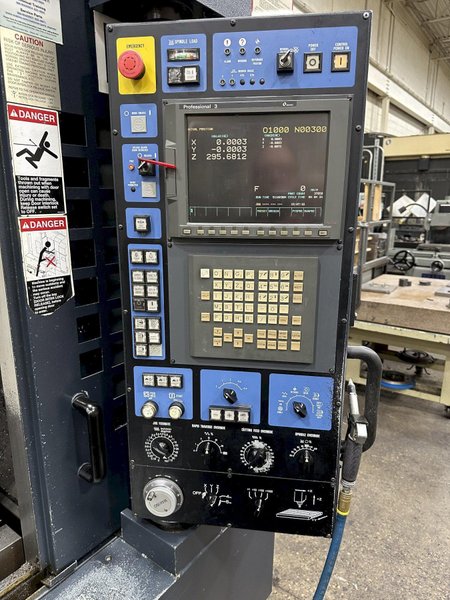

PRO 3 CNC CONTROLS
SGI.4 HIGH ACCURACY 3D CONTROL TECHNOLOGY
COOLANT THRU SPINDLE (210 PSI)
BLUM LASER
CHIP CONVEYOR
SCALE FEEDBACK (0.05 MICRONS)
INNER RACE AND CORE COOLED SPINDLE |
