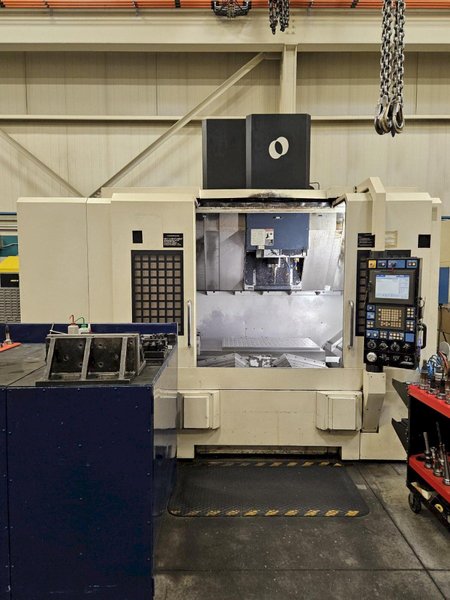

2004 Makino V77 CNC Vertical Machining Center

2004 Makino V77 CNC Vertical Machining Center

Name: Used MAKINO V77 For Sale IGAM0360001
Brand: MAKINO
SKU: IGAM0360001

Brand

MAKINO

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

Overview

2004 Makino V77 CNC Vertical Machining Center For Sale – 20,000 rpm, HSK-63. Professional 5 Control (Fanuc) HSK-63 | 20,000 RPM Spindle Blum Laser Coolant Through Spindle.

Specification Table

CNC Control	Professional 5
# Axis	3
Table-L	55.1"
Table-W	27.6"
Max Table Load	5500
X-axis Travel	47.2"
Y-axis Travel	27.6"
Z-axis Travel	25.6"
Spindle Taper	HSK-63
Spindle Speed	20,000 RPM
Main Motor	25 hp
# ATC	30
Coolant Thru Spindle	yes

Equipped With

- Professional 5 Control (Fanuc) - Chip Conveyor - Coolant Tank - Spindle Chiller - Blum Tool Length Measurement

SPECIFICATIONS

Spec	Inch	Metric
CNC Control	yes	yes
Type of CNC Control	Professional 5	Professional 5
# Axis	3	3
Table Size	55.1″ x 27.6″	55.1″ x 27.6″
Table Capacity	5500 lb	2,494.76 kg
X-Axis Travel	47.2 in	1,198.88 mm
Y-Axis Travel	27.6 in	701.04 mm
Z-Axis Travel	25.6 in	650.24 mm
Rapid Traverse Rate (X/Y/Z)	787 ipm	787 ipm
Spindle Taper	HSK-63	HSK-63
Spindle Speed	20,000 rpm	20,000 rpm
Tool Changer Capacity	30	30
Machine Weight	36000 lb	16,329.31 kg
