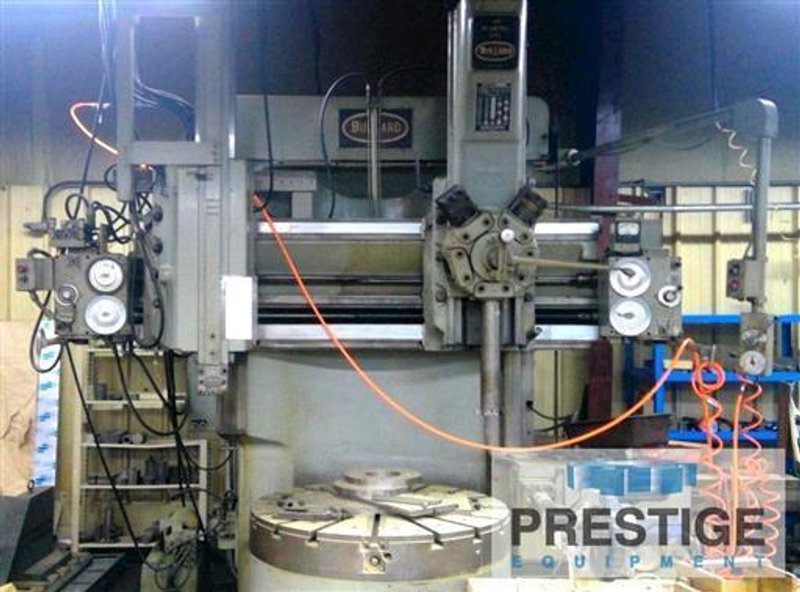

46" Bullard Dynatrol Manual Vertical Turret Lathe
Brand
Category
Model
46" Dynatrol
Stock #
43928
Year
Not specified
Condition
Not specified
Location
Not specified
|
SPECIFICATION:
Table Diameter 46" Maximum Swing, W/O Side Head 58" Maximum Swing, W/ Side Head 59" Height Under Rail 40" Table Speeds (20) 5.1 - 187 RPM Feeds (16) .0006 - .125 IPR Cross Rail Vertical Travel 30" Max. Height Under Turret Head 50.37" Vertical Travel, Turret 26" Horizontal Travel, Turret 65" Vertical Travel, Side Head 38.75" Horizontal Travel, Side Head 23.75" Approx. Machine Dimensions 144" x 108" x 144" Approx. Machine Weight 48,000 Lbs Equipped With: 46" 4-Jaw Chuck 5-Position Turret Head Ram Head Side Head |
