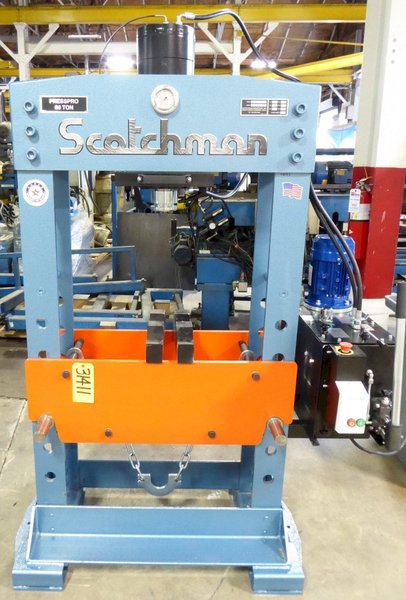

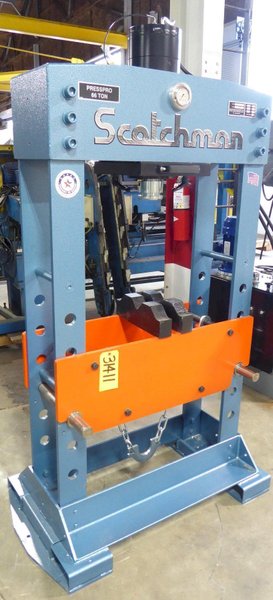

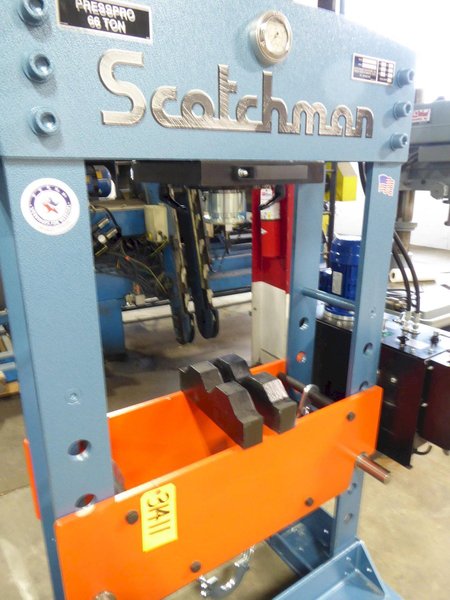

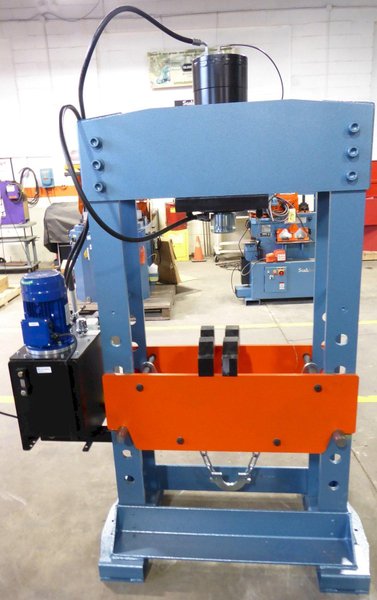

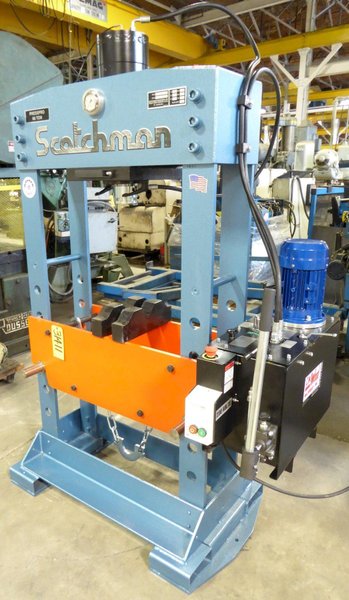

66 Ton Scotchman H-Frame Hydraulic Press PressPro 66, Elect., 15" Stroke, 29" B.H., New

66 Ton Scotchman H-Frame Hydraulic Press PressPro 66, Elect., 15" Stroke, 29" B.H., New

Name: 66 Ton Scotchman H-Frame Hydraulic Press PressPro 66, Elect., 15" Stroke, 29" B.H., New
Brand: SCOTCHMAN
SKU: 31813
Availability: PreOrder

Brand

SCOTCHMAN

Location

South Dakota

REQUEST FINANCING

Specifications
Files & Videos

Tonnage	66 tons
Stroke	15 inches
Daylight	37.25 inches
CNC Control	no
Weight	1600 pounds

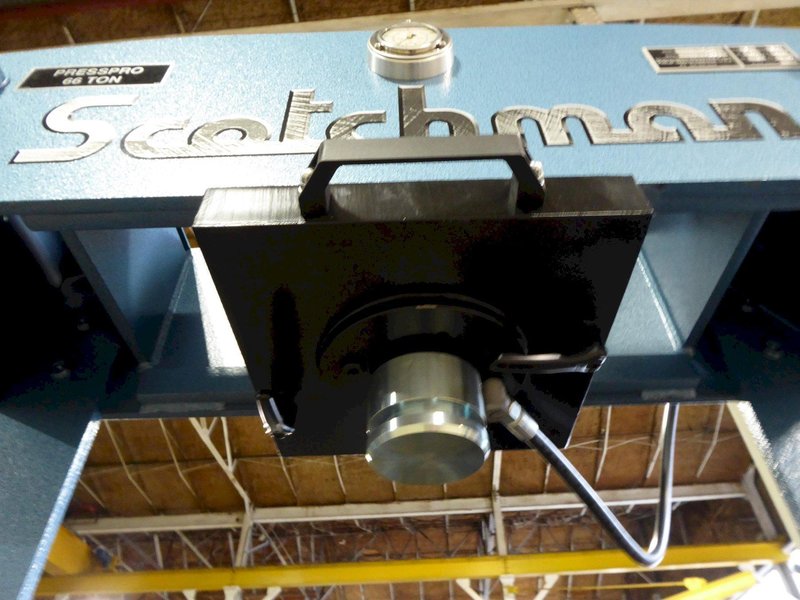

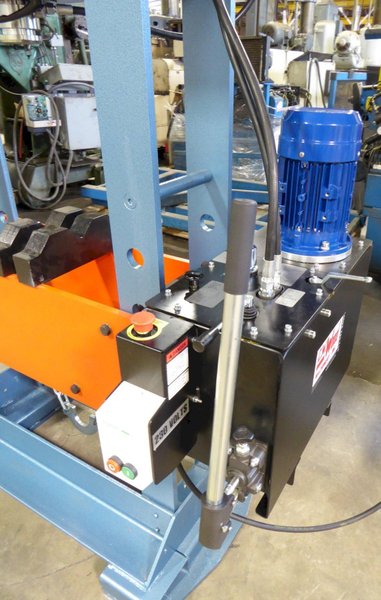

(NEW) SCOTCHMAN H-FRAME HYDRAULIC PRESS MODEL: PressPro 66 Heavy Duty All-Steel Construction Industrial Grade Hydraulic System Ram Moves Laterally For Added Versatility Three Ram Speeds FACTORY SPECIFICATIONS Press Force: 66 Tons Stroke: 15" Open Height, Minimum: 7-3/4" Open Height, Maximum: 37-1/4" Width Between Uprights: 29-1/2" Width Between Table Channels: 10-1/4" Ram Speed, Approach: 21 IPM Ram Speed, Press: 5 IPM Ram Speed, Return: 25 IPM EQUIPPED WITH 2.5 HP Motor 230/60/3 Set Of V-Blocks Pressure Gauge Adjustable Table Height w/Hydraulic Assist Joystick Operation /Manual Jog Removable Ram Cap To Accept A Wide Variety Of Tooling Three-Year Warranty F.O.B. Philip, South Dakota FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
