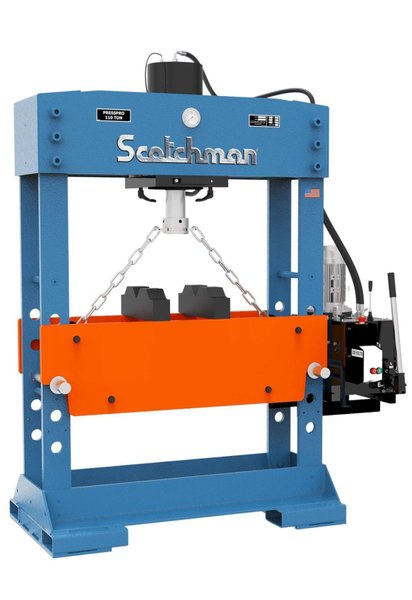

176 Ton Scotchman H-Frame Hydraulic Press PressPro 176, 43" B.H., 5 HP, New

(NEW) SCOTCHMAN H-FRAME HYDRAULIC PRESS

MODEL: PressPro 176

FACTORY SPECIFICATIONS

*Heavy Duty All-Steel Construction
*Ram Moves Laterally For Added Versatility
*Three Ram Speeds

Press Force: 176 Tons
Width Between Uprights: 43-1/4"
Width Between Table Channels: 15"
Open Height, Minimum: 7"
Open Height, Maximum: 36-1/2"
Ram Speed, Approach: 18 IPM
Ram Speed, Press: 6 IPM
Ram Speed, Return: 22 IPM
Table Height: Adjustable

EQUIPPED WITH

5 HP Motor
Joystick Operation w/Manual Jog
Removable Ram Cap To Accept A Wide Variety Of Tooling
Pressure Gauge
Hydraulic-Assist Adjustable Work Table
(2) Steel V-Blocks
Built-In Forklift Accommodations

Approximate Weight: 3450 Lbs.

Three Year Warranty

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS SUBJECT TO MODIFICATION AND OR CHANGE
