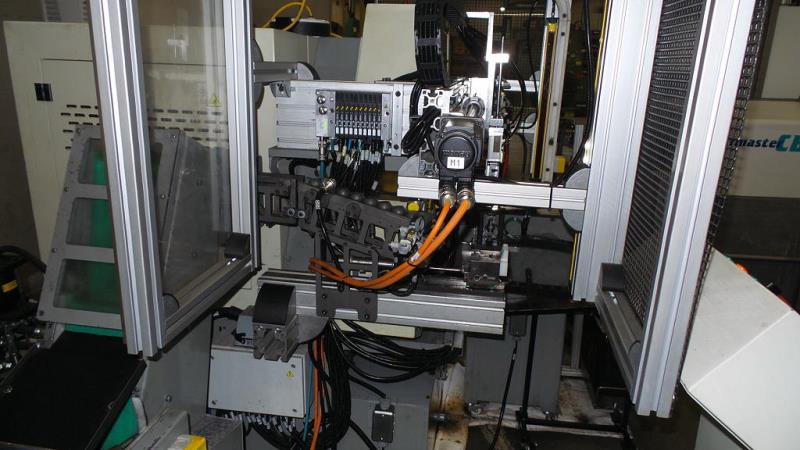

Govama Model ROT-1 Two Die Two Station 25tons PLC Controlled Cylindrical Thread Rolling Machine
Brand
Category
Model
Model ROT-1 (25ton)
Stock #
Not specified
Year
Not specified
Condition
New
Location
Not specified
|
Specifications:
Rolling Force (kN): 10-250 X2 Speed Range (rpm): 18-60 Min-Max Die Dia (mm): 195-250 Die Spindle Dia (mm): 100 Max Die Length (mm): 100 Workpiece Dia (mm): 3-100 Max Pitch (mm): 4 Main Motor (kW): 7.5 Total Power (kW): 19.5 Weight (kgs): 9000 Features: > The ROT-1 machine has been designed & produced to meet ball stud producers with high volume demand > There are total of 2 stations for different rolling forms. At station 1 the burnishing process and at station 2 the thread rolling operation. > Process flow and types can be modified based on customer request, so for example a grooving and threading operations can take place in each station. > The machine have radial die loads, ranging from 1-25 Ton(10 to 250 kN) in each of the two stations > PLC control unit & frequency control for speed adjustment are standard. > Servo motors, driven carriers, & proportional valves are all standard, allowing easy/fast setup, along with increased performance & accuracy > Machine is supplied with integrated automation system for part transport. |
