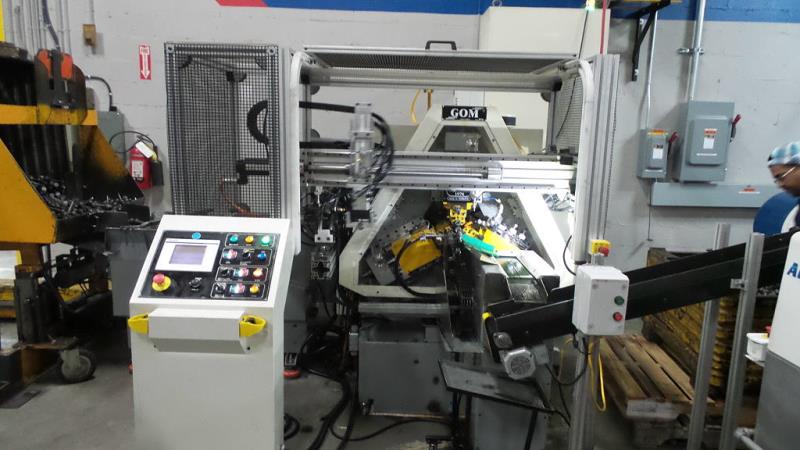

GOVAMA 3R-9 THREE DIE CYLINDRICAL INFEED/THRUFEED THREAD ROLLING MACHINE

**Safety Features
*All pinch points guarded with covers
*All covers have coded magnet safety interlock
switches
*2 handed control for jog or automation process
*System must be reset after e-stop activation
*Electrical components are UL, CSA approved
*All motors protected with fuses
*Safety Enclosure included
*Light curtain for when enclosure is open

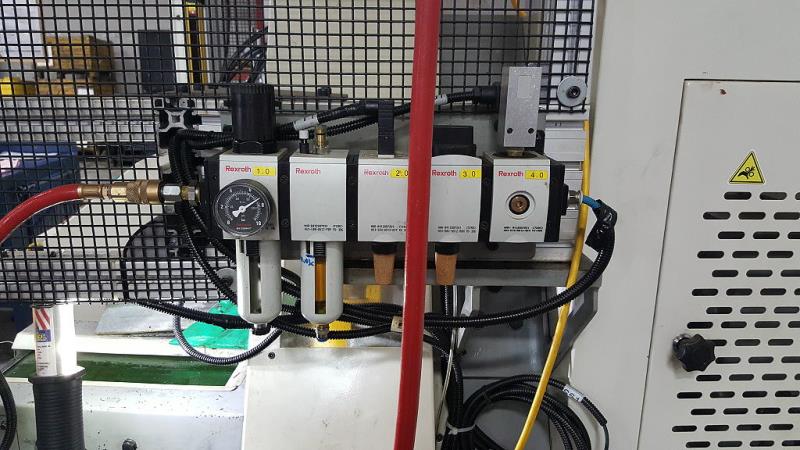

*Pneumatics System Upgraded (Aventics Installed)

Automation System
? In-Feed Conveyor to Part Elevator
? Elevator to slide rails

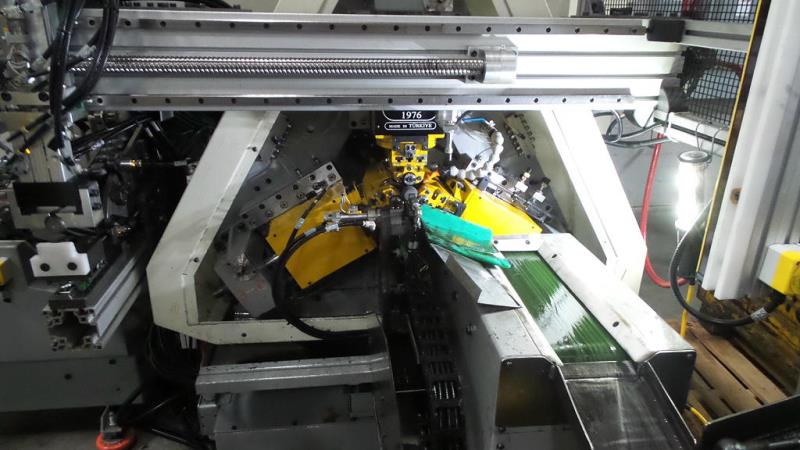

? Slide Rails to pick and place gantry
? Gantry to Machine Slide
? Machine slide to machine work

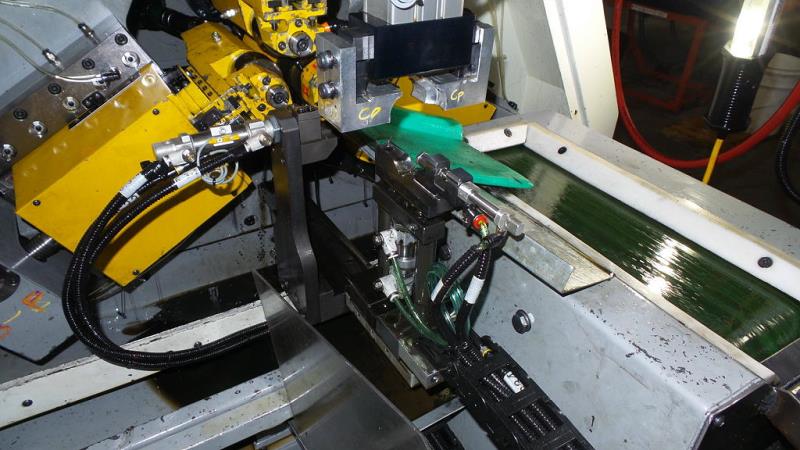

? Machine work to exit conveyor

Min. - Max. Threading Diameter (In-feed): 8 - 40mm
Maximum Thread Length (In-feed): 40mm
Spindle Diameter: 22mm
Main Motor: 5.5kW
Speed Range: 50 - 142 rpm
Max Pitch: 1.75mm
Swivel Angle: +/- 8 deg

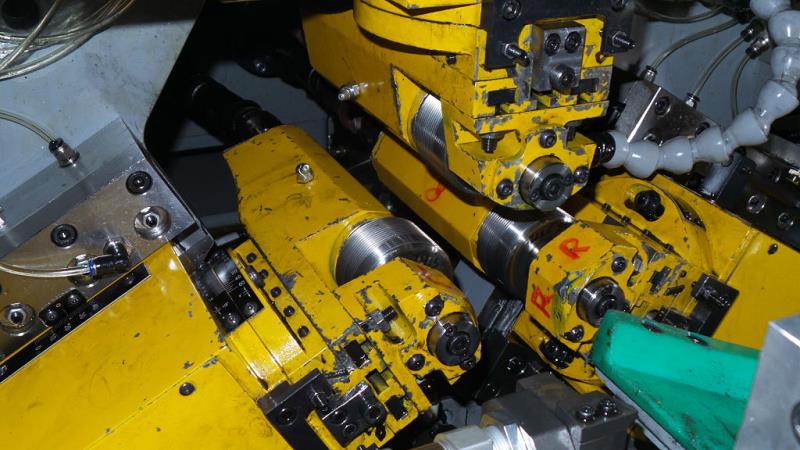

Min-Max. Diameter of Dies: 40 - 80mm
Max Radial Die Load (In Tons): 9
Electrics: 460V/3/60
Net Weight: 1,200 kgs.
Floor Space: 140 x 120 x 170cm

Location: N.AMERICAN PLANT
