Johnford Model DMC-4100PH CNC Bridge Type Vertical Machining Center

Brand
JOHNFORD
Category
Machining Centers
Type
Machining Centers, Gantry (incld. Bridge & Double Column)
Model
DMC-4100PH
Stock #
43698
Year
2019
Condition
Not specified

Location

Not specified
REQUEST FINANCING
CAPACITIES:
X-Axis Travel 161"
Y-Axis Travel 90"
Z-Axis Travel 32"/42"
Spindle Speeds
Spindle Drive Motor 35 HP
Spindle Taper CAT 50
Tool Changer 40 ATC
Table Size 165" x 81"
Table Weight Capacity 22,200 Lbs.
Rapid Traverse 472 IPM
Approximate Machine Weight 90,200 Lbs.



Equipped With:

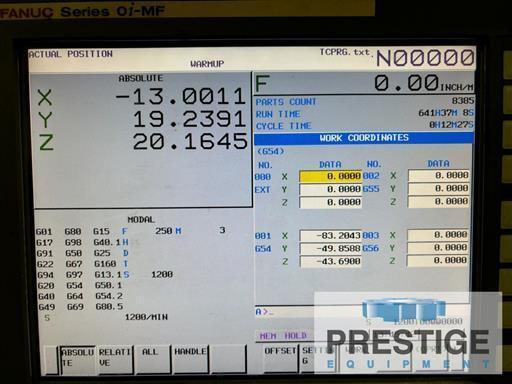

Fanuc 0i-MF CNC Control
40-Position ATC
165" x 81" Table
35 HP 2-Speed Gear Box Spindle Drive
Thru-Spindle Coolant
400 PSI Thru-Spindle Coolant
Chip Conveyor


LOCATION: Mid-West Manufacturing Facility


NOTE: Inspect In Plant Under Power
