2007 EMCO HYPERTURN 665MC PLUS | Lathes, Bar, CNC

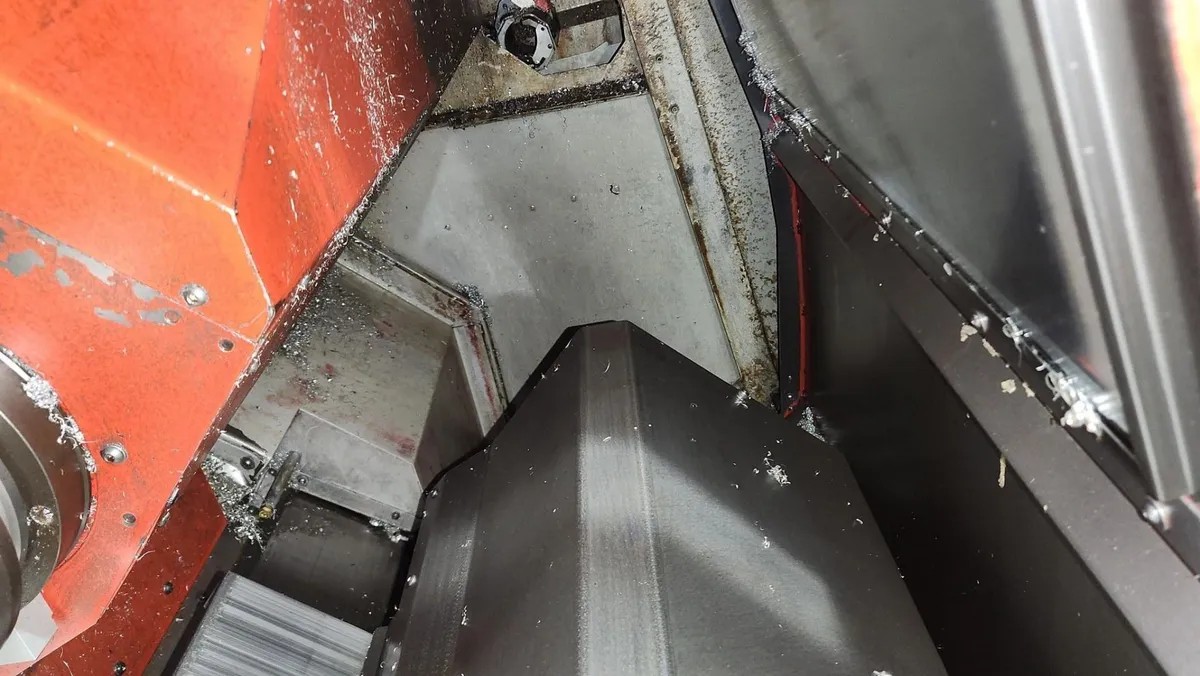

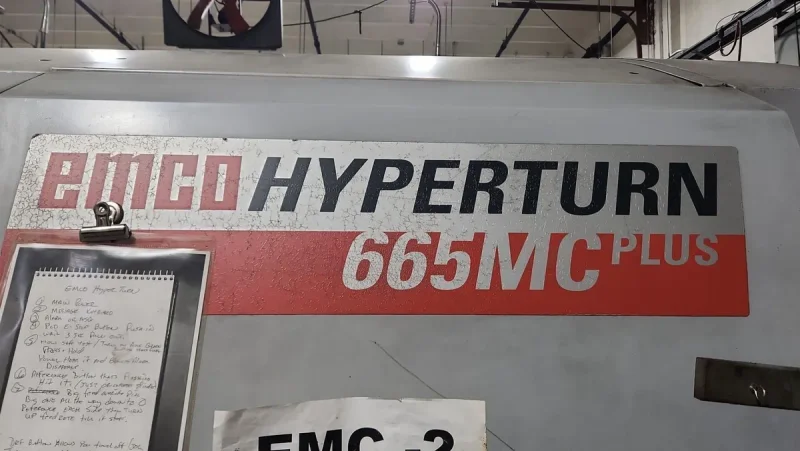

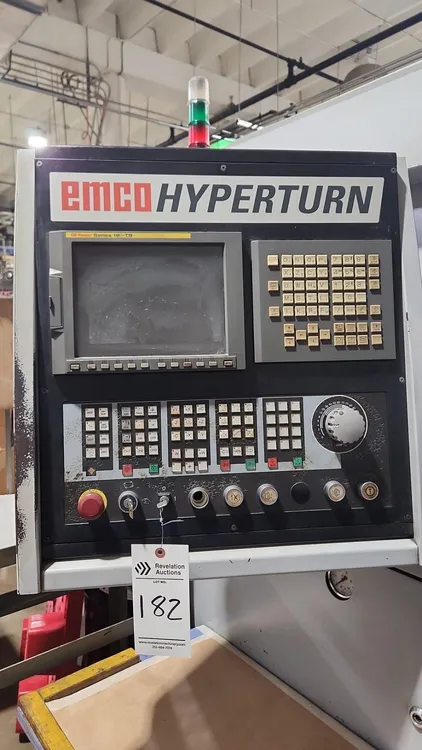

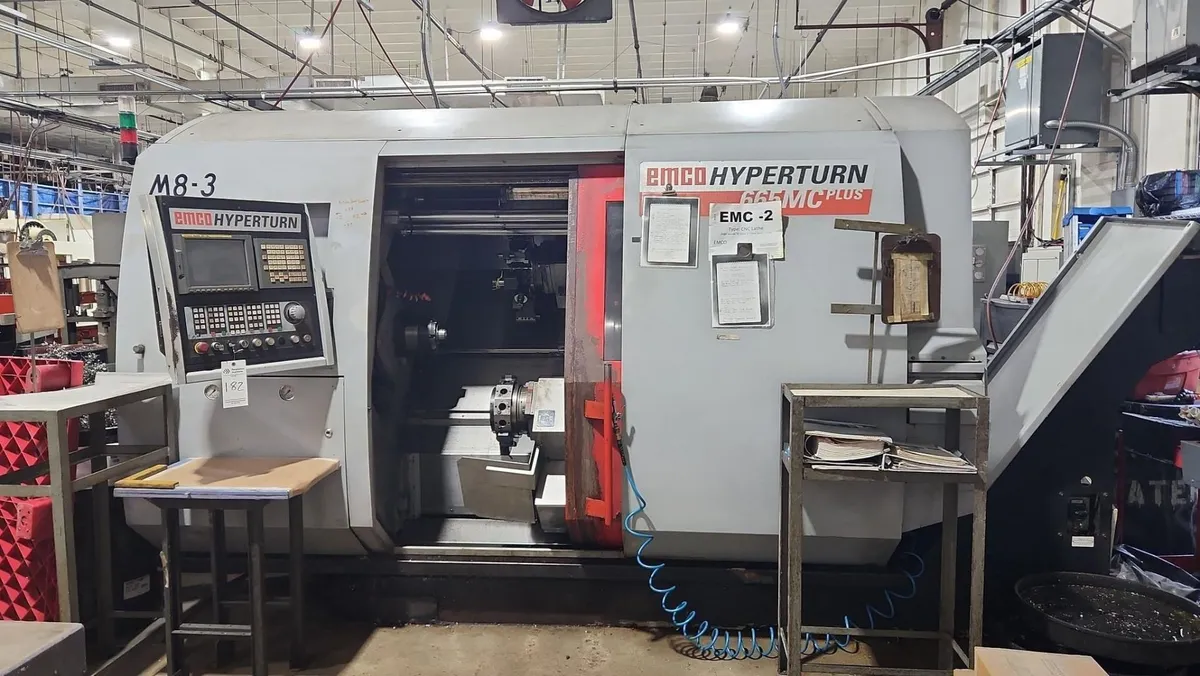

2007 EMCO HYPERTURN 665MC PLUS MULTI AXIS CNC LATHE, TURNING CENTER

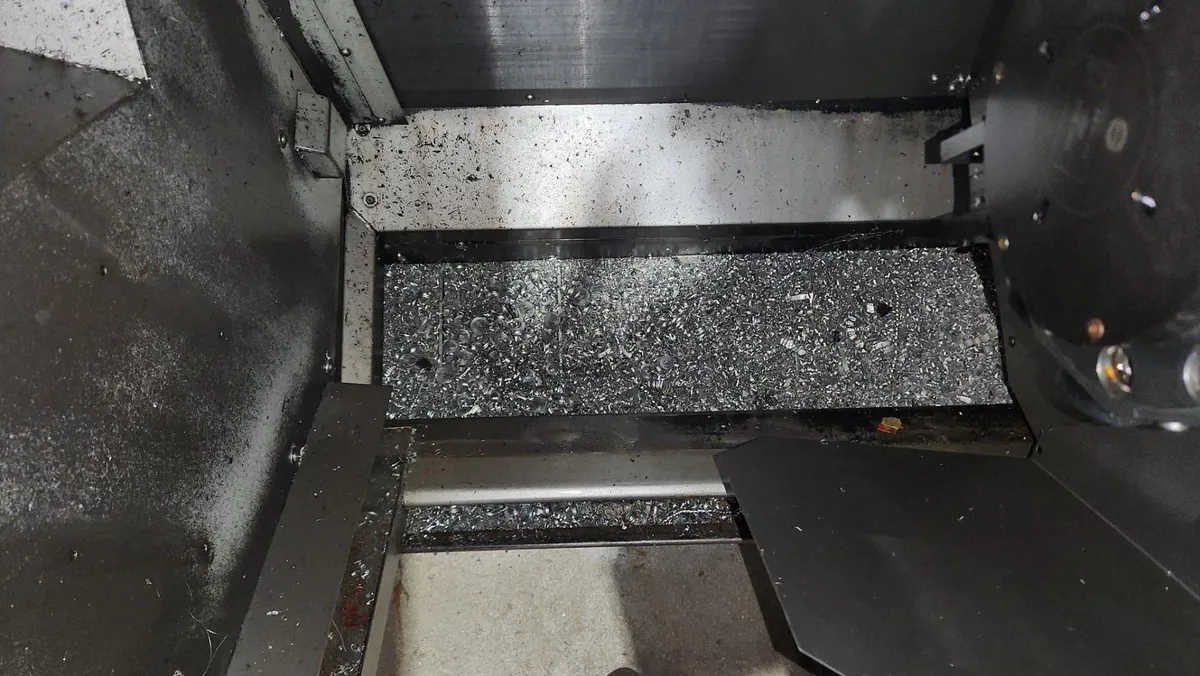

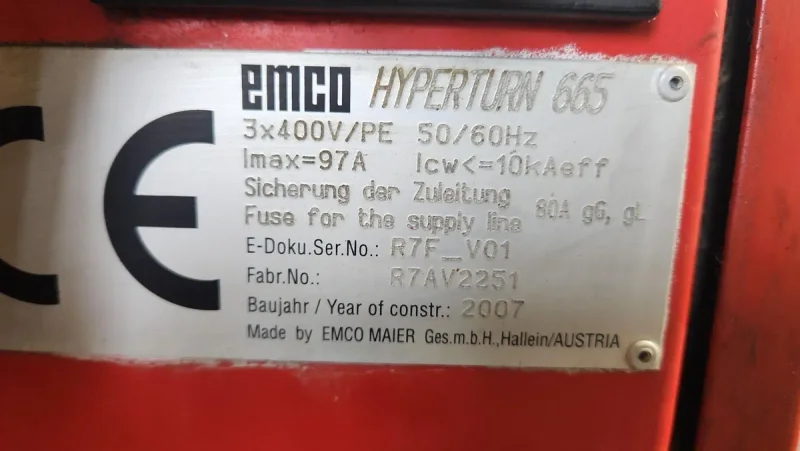

SN:R7F-V01

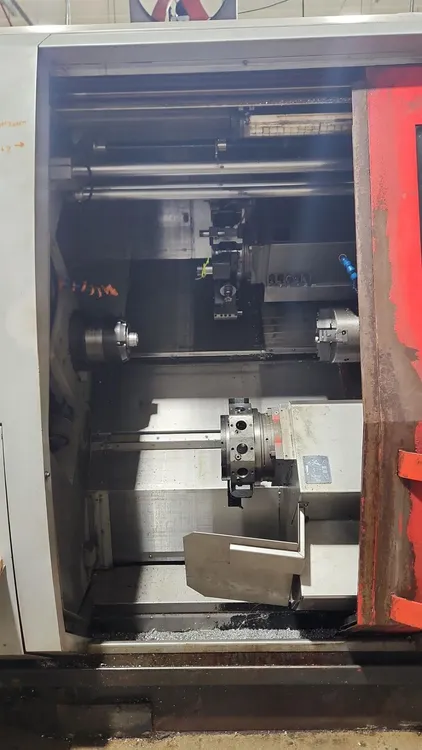

WORKSPACE
CIRCULATION DIAMETER OVER BED 600 MM
CIRCULATION DIAMETER OVER FACE CARRIAGE 500 MM
DISTANCE BETWEEN THE TWO SPINDLE LUGS 975 MM
MAX. TURNING DIAMETER 430 MM
MAX. PART LENGTH 744 MM
MAX. BAR DIAMETER 65 (76.2) MM

TRAVEL RANGE
TRAVEL X/X2 280/205 MM
TRAVEL Z/Z2/Z3 900/750/750 MM
TRAVEL Y 100 (+/–50) MM

MAIN SPINDLE
SPEED RANGE (INFINITELY ADJUSTABLE) 0 – 5000 (4000) RPM
TORQUE MAX. 250 NM
SPINDLE CONNECTION DIN 55026 A2-6 (A2-8)
SPINDLE DIAMETER IN FRONT BEARING 105 (130) MM
SPINDLE BORE (WITHOUT TENSION TUBE) Ø 73 (86) MM

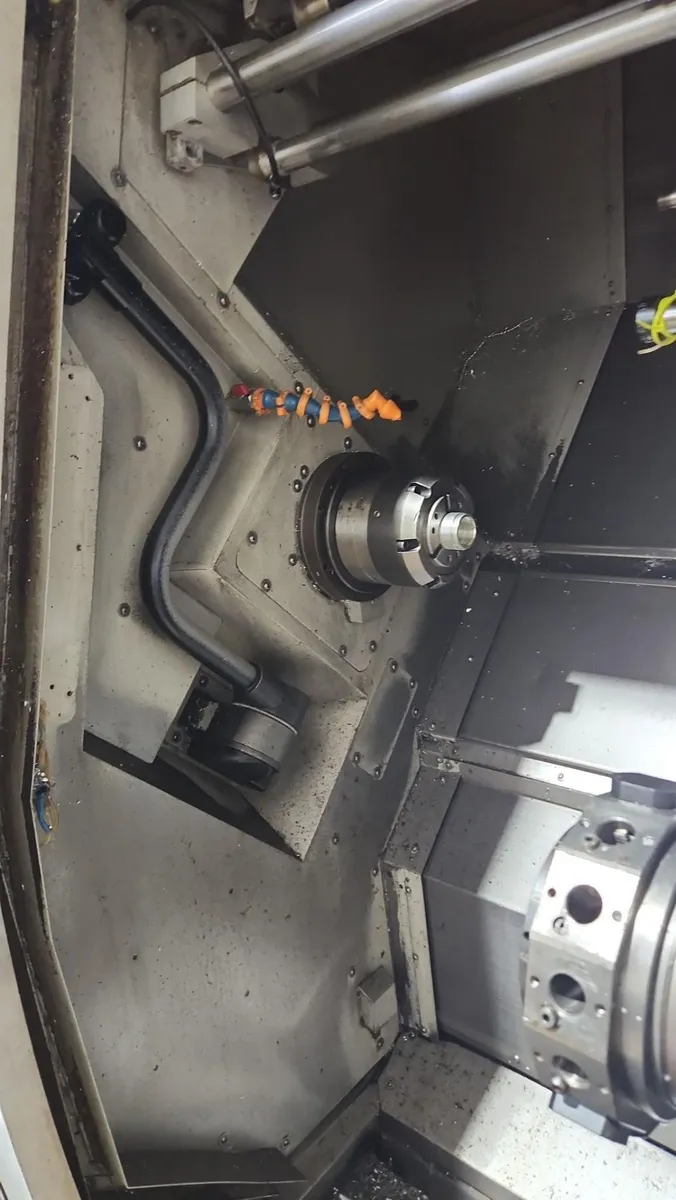

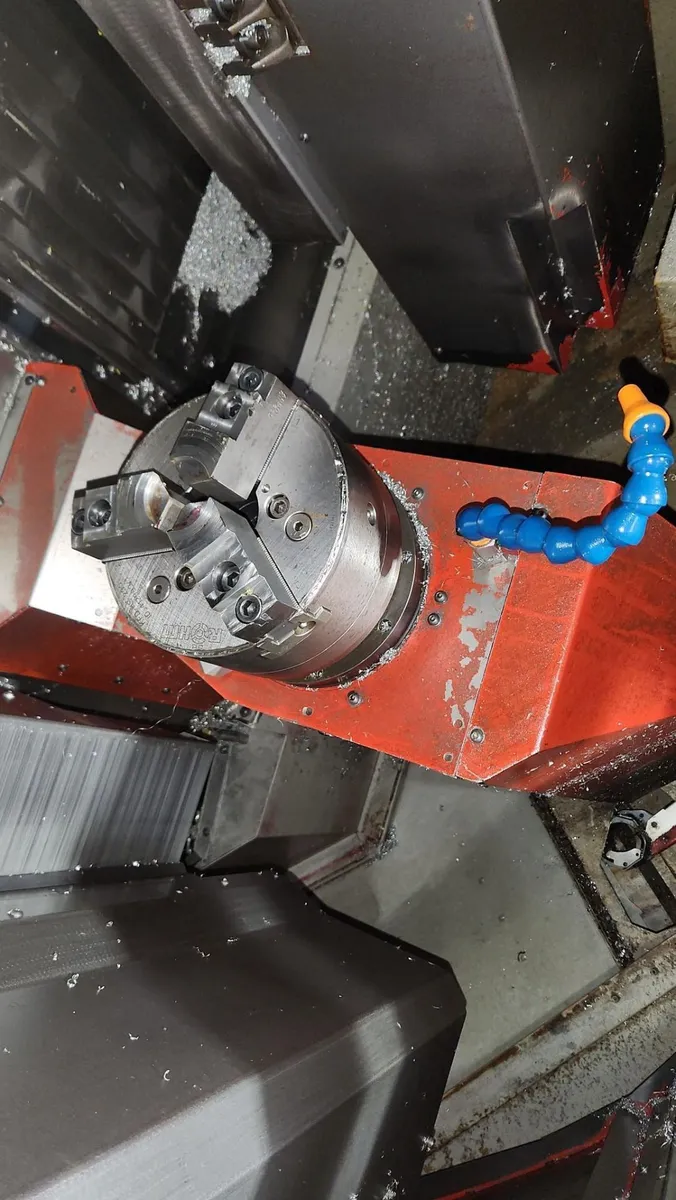

COUNTER SPINDLE
SPEED RANGE (INFINITELY ADJUSTABLE) 0 – 7000 RPM
TORQUE MAX. 130 NM
SPINDLE CONNECTION DIN 55026 A2-6
SPINDLE DIAMETER IN FRONT BEARING Ø 73 (86) MM

C-AXES: 0.001°
RAPID TRAVERSE 1000 RPM

POWER
MAIN SPINDLE (AC HOLLOW SPINDLE MOTOR) 29 KW
COUNTER SPINDLE (AC HOLLOW SPINDLE MOTOR) 22 KW

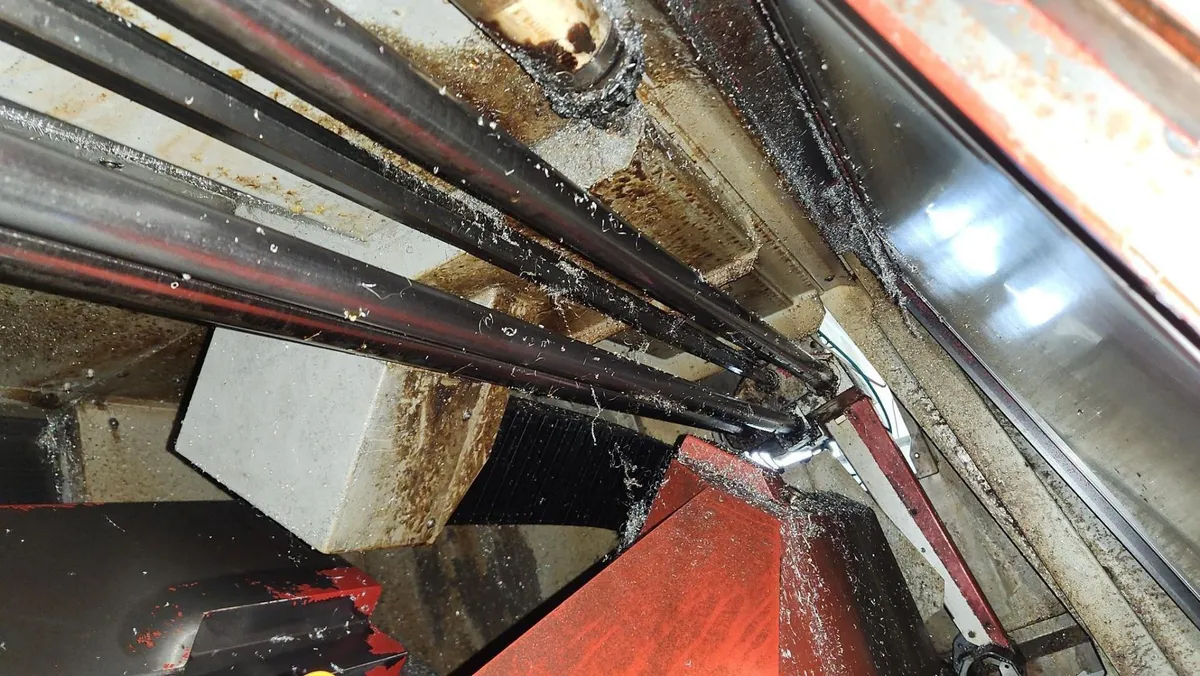

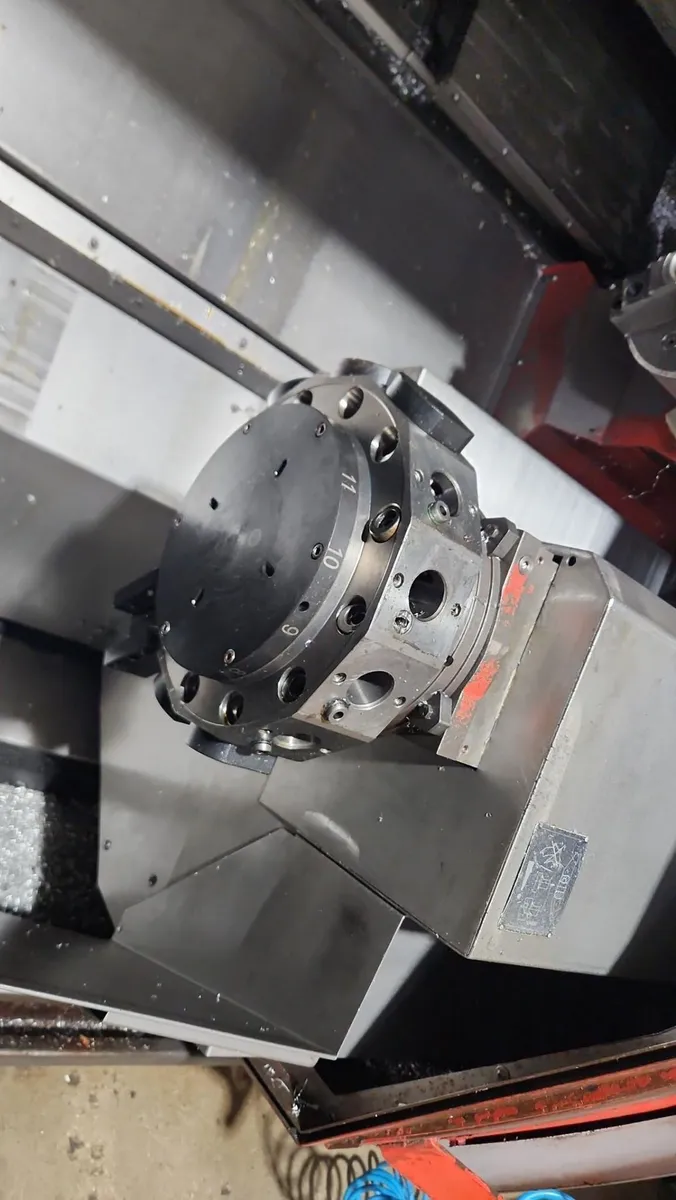

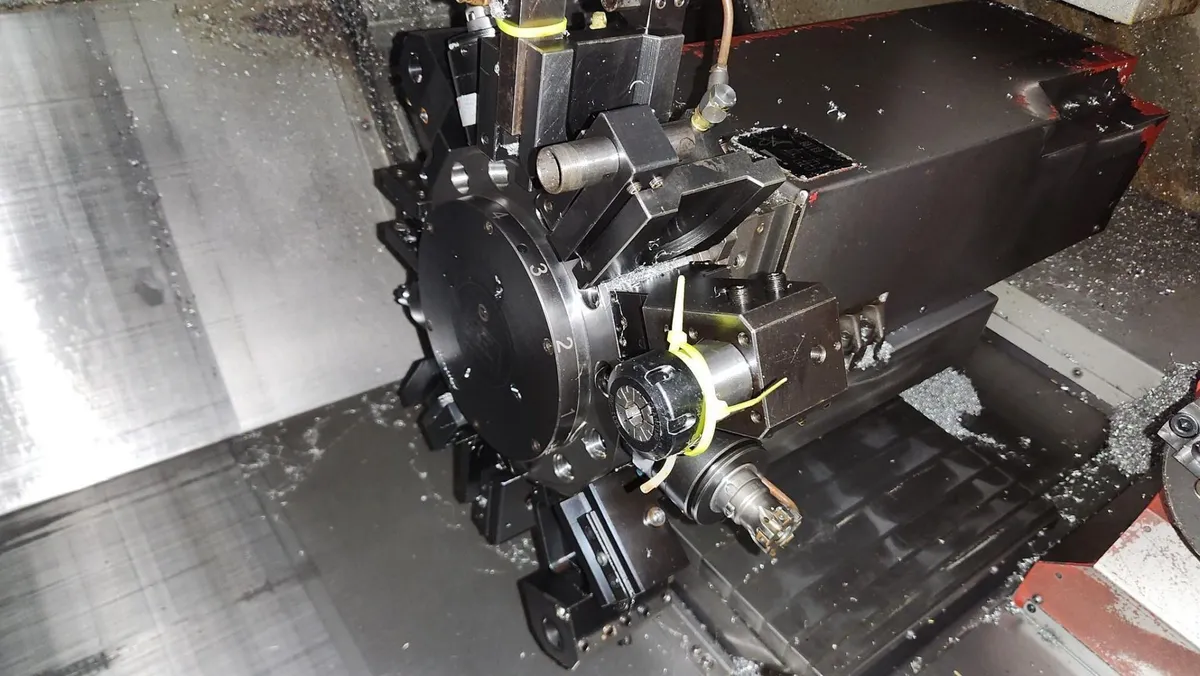

TOOL TURRET BOTTOM 12 TOOL POSITIONS
MOUNTING SHAFT ACCORDING TO VDI 40 (DIN 69880)
TURRET SWITCHING TIME 0.2 SEC
SPEED RANGE 0 – 5000 (4500) RPM
MAX. TORQUE 25 NM
DRIVE POWER 6.7 KW
DRIVEN TOOLS : 12
MILLING SPINDLE

B-POWERMILL
SWIVEL RANGE (INTERPOLABLE) 210°
INDEXING HOLDING TORQUE 3600/1300 NM
B-AXIS POSITIONING. 0,001°
NUMBER OF TOOLS 48
TOOL HOLDER CAPTO C4
TORQUE MAX. 40 NM
DRIVE POWER 14.5 KW
SPEED RANGE 0 – 10000 RPM
TOOL CHANGE TIME (TOOL – TOOL) 1.3 SEC

RAPID TRAVERSE SPEED X/Z/Y/Z3 (COUNTER SPINDLE) 24/30/10/30 R4348693 M/MIN
FEED FORCE X/Z/Z3 (COUNTER SPINDLE) 5000/8000/9000 N
COOLANT SYSTEM
CONTAINER VOLUME 300 L
PUMP CAPACITY 2 X 2.2 KW
POWER CONSUMPTION CONNECTED LOAD 46 KVA
COMPRESSED AIR CONNECTION 6 BAR

DIMENSIONS
HEIGHT 2300 MM
FOOTPRINT (WITHOUT CHIP CONVEYOR) W X D 3400 X 2550 MM
TOTAL WEIGHT APPROX. 9500 KG
SAFETY. ACC. TO CE

OTHER EQUIPMENT FEATURES

- BAR LOADING MAGAZINE IEMCA VIP 80 E
- CHIP CONVEYORS MADE BY KNOLL WITH HIGH-PRESSURE PUMPS
-VARIOUS HYDRAULIC CHUCKS , ( 3- JAWS ; COLLET CHUCK )
- VARIOUS TOOL HOLDERS
- PART UNLOADING COUNTER SPINDLE WITH CONVEYOR BELT
- SPINDLE OIL COOLER
- TOUCH SETTER, TOOL PRESET
- WORK AREA FLUSHING
