2008 PRIMA SYNCRONO 1530 | Laser Cutters

Prima Syncrono 1530 HS 4000 watt Laser Cutting System and Shuttle Table

New: 2008

Specifications:

Machine Axis Strokes                                                X-120"     Y- 60"       Z-5.1 "

Local Cutting Head Axis Strokes                               U-4" V- 4"

Maximum Individual Axis Speed (X, Y)                   3937 in/min  (100 m/min)

Maximum Axes Speed (Z)                                         1968 in/min (50 m/min)

Maximum Individual Local Axis Speed (U,V)          5905 in/min

Linear Axis Resolution  (X, Y)                                  0.00004 inches  (0.001 mm)

Accuracy:                                                              Positioning Accuracy (Pa):  0.001 inches  (0.03mm)                                                                                 Repeatability (Ps):  0.001 inches  (0.03 mm)

Electrical Supply                                                       460 VAC ±10%, 3 phase + ground, 60 Hz

Electrical Consumption (Machine, Chiller, Laser)    67kVA

Maximum Overall Dimensions                                 Length-19.0'   Width-11.5'   Height- 8.2'

Weight (approximate)                                                26,400 lbs.  (12000 Kg)

Standard CO2 Laser Power                                       4000 Watts

Additional Options:

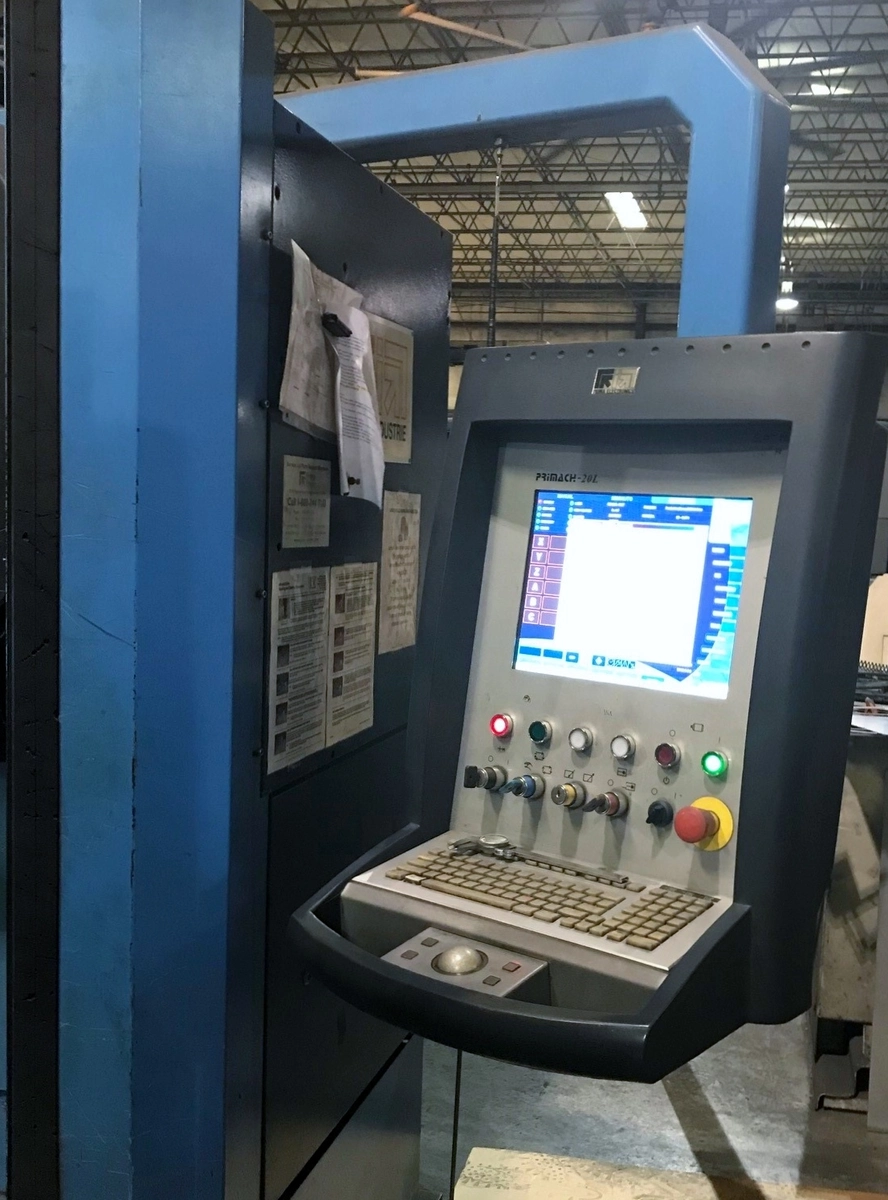

 CNC PRIMACH-20L Controller

 Laser Resonator 4000 Watt

 Dust Collector L-Cut 2-5P (1500cfm, supplied by Keller)

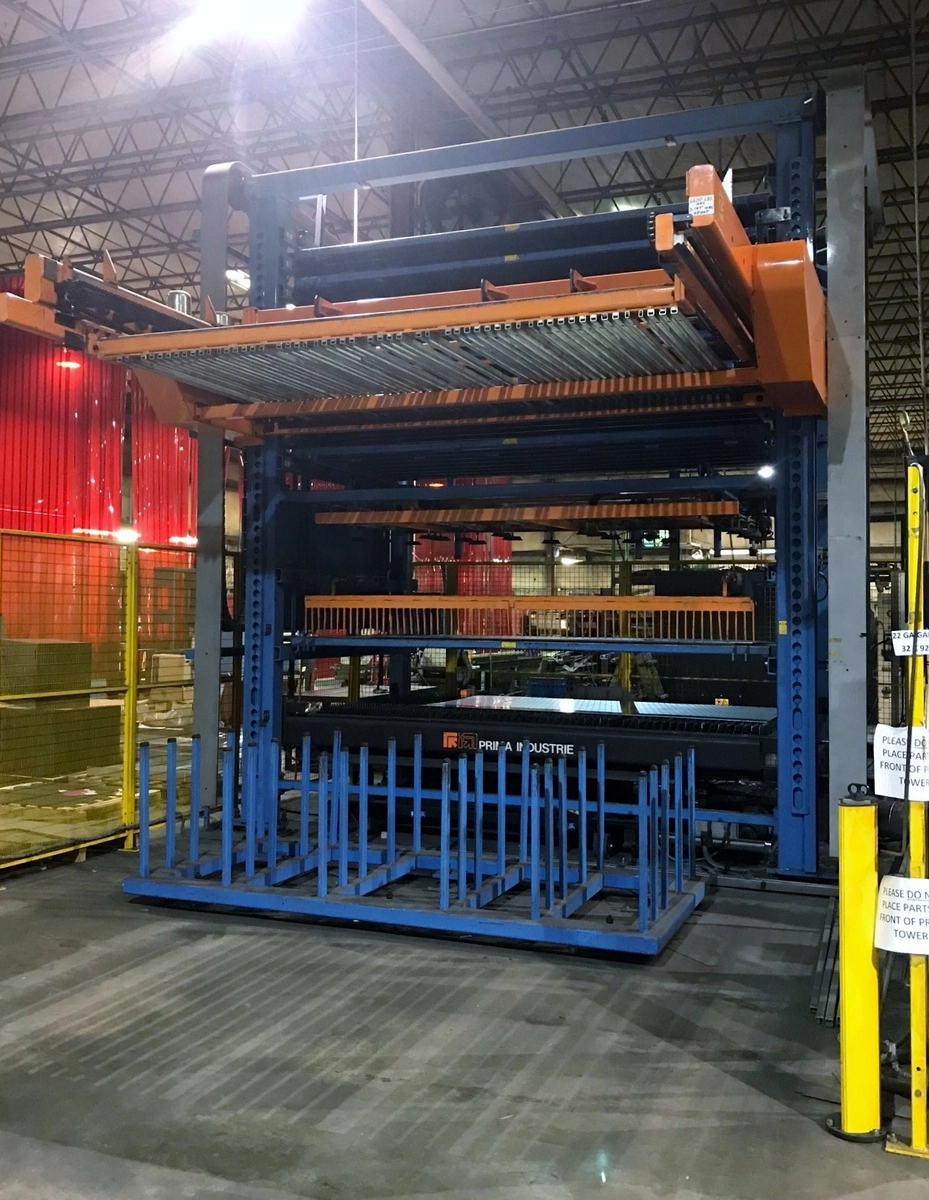

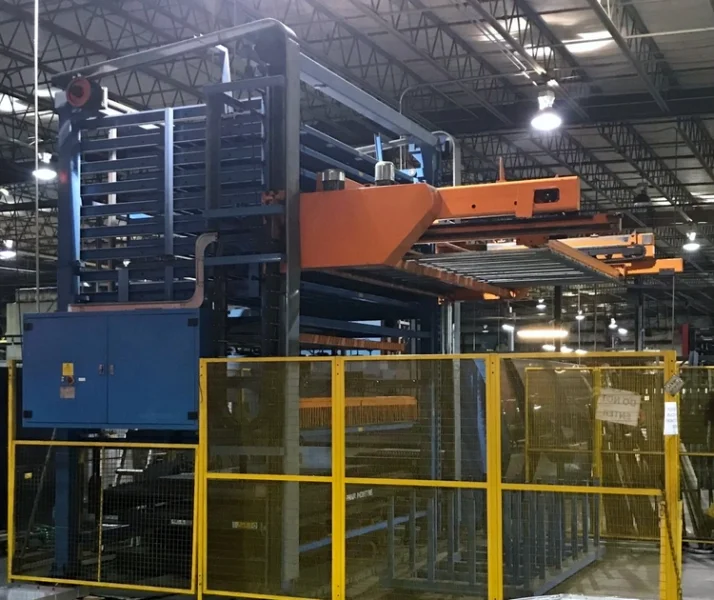

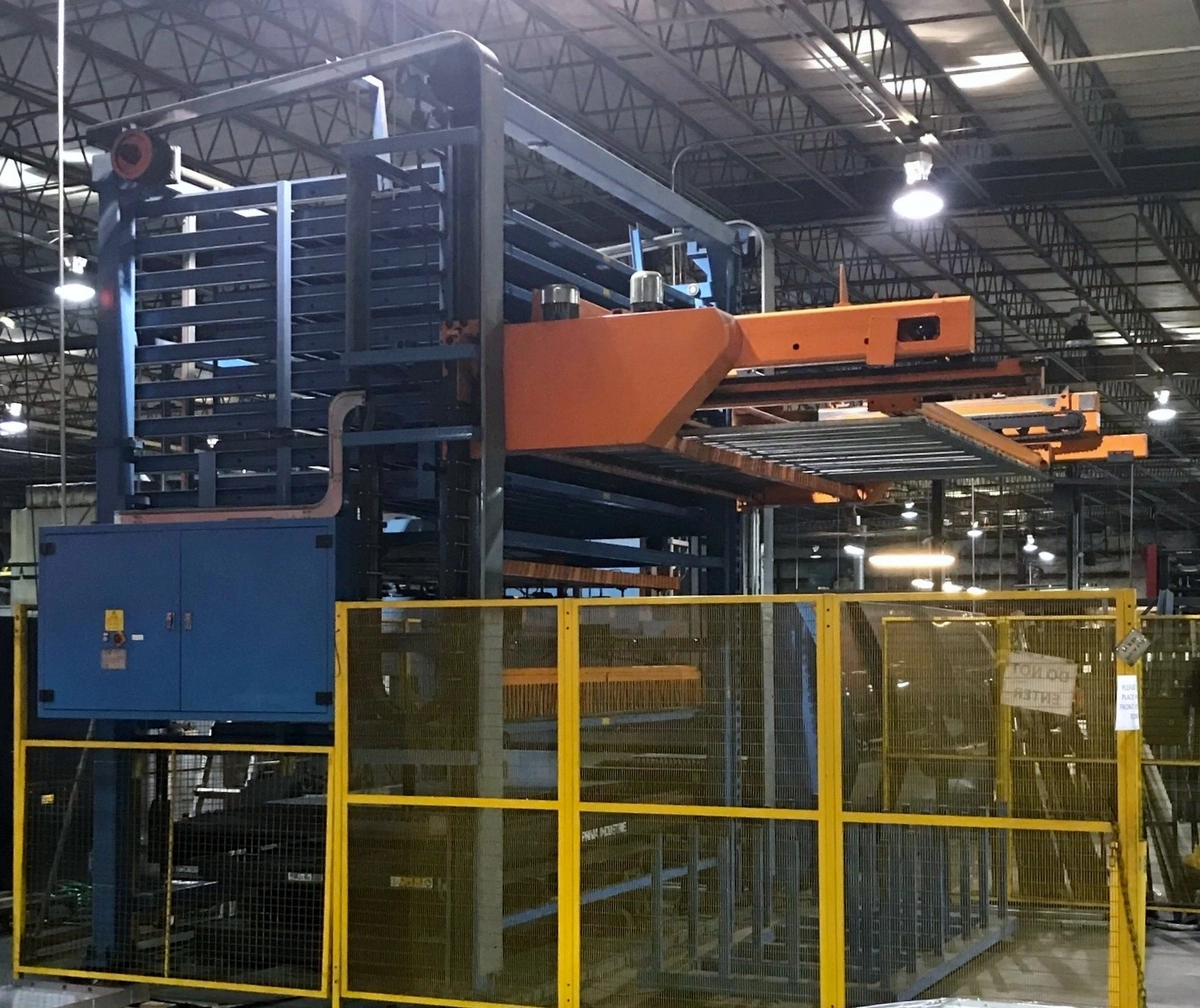

 Compact Tower w/10 Shelves, Single shelf capacity 6,600 lbs Integrated over the Pallet Changer

 Laser Ancillary Equipment (Water Chiller, Air Dryer)

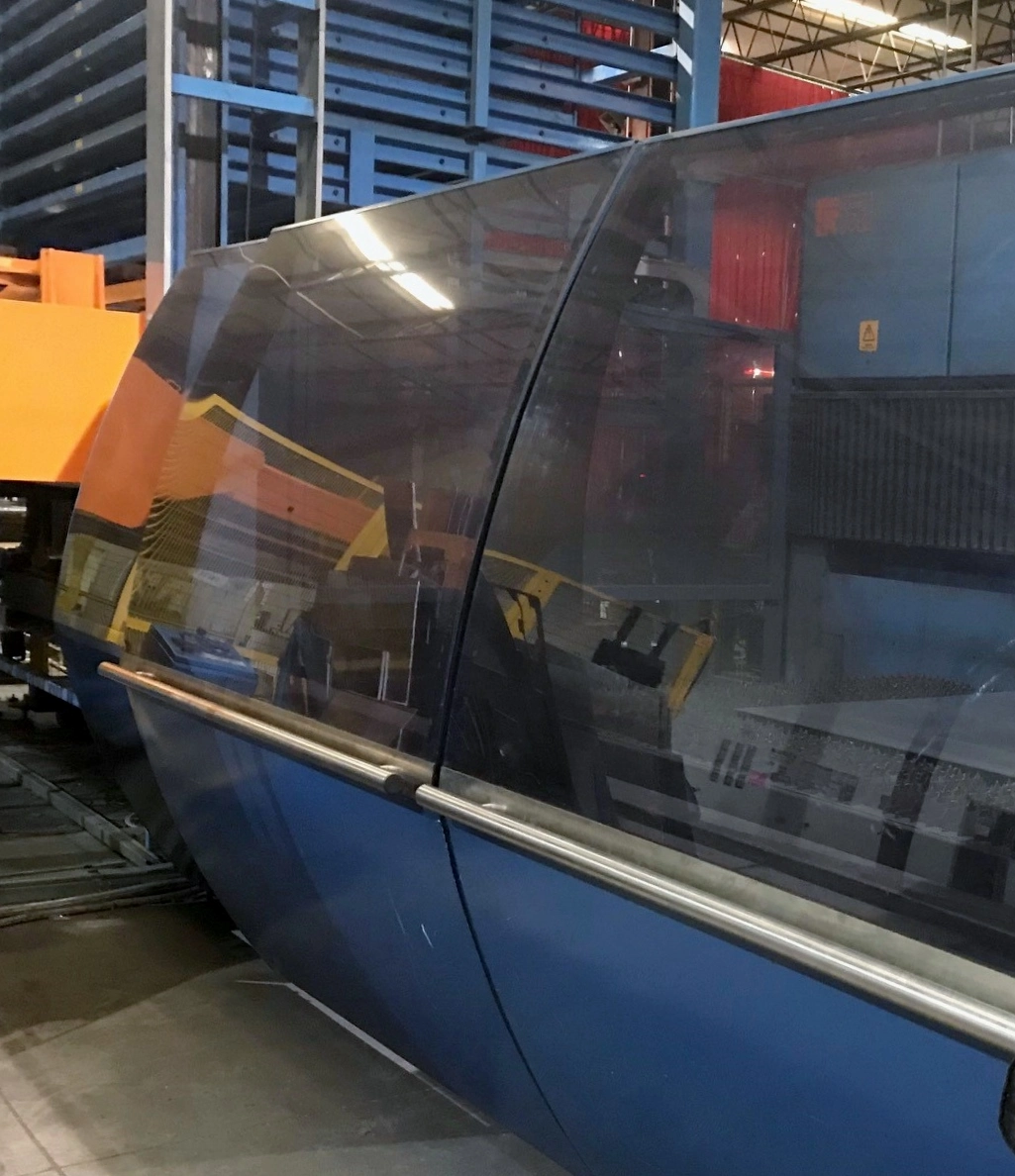

 Safety Enclosure

 Cutting Head with Capacitive Sensing

 Safe Impact Protection System

 Lens Holder (Includes 5.00’’ and 7.5’’ lenses)

 Automatic Focusing Control (F-axis)

 Programmable High Pressure Assist Gas with Two Ports (300 psi)

 Automatic Sheet Referencing System

 Automatic Switch Off System

 Ducted and Zoned Cutting Table

 Dual Pallet Shuttle Table

 Uses NC Express programming software

 Quick Pierce System

 Laser Piercing Monitor
